SPM TWS 600S Plunger Pump
SPM TWS 600S 3.5 INCH PLUNGER SIZE (1 YEAR RECOMMENDED SPARE PARTS )
Qty. Description Part No.
6 PLUNGER 2P103344
9 Packing Assembly Complete Set 2A140376
24 Packing Assembly Soft Set P139816
78 Novatech Valve Assembly NF-4-V2 P105742

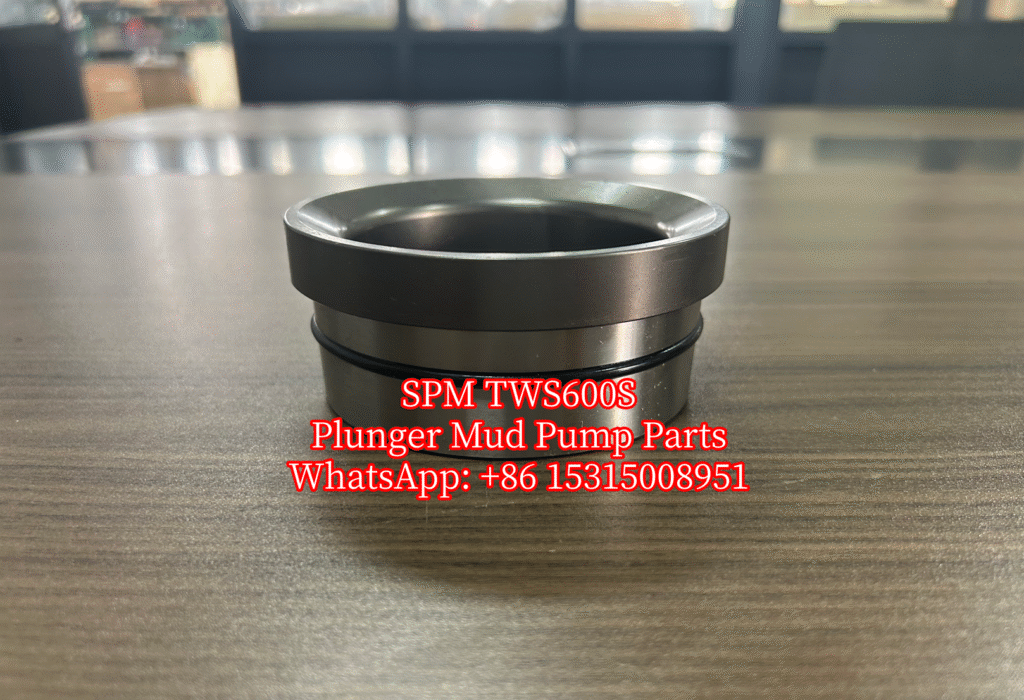

39 Novatech Seat NF-4-S2 P105752

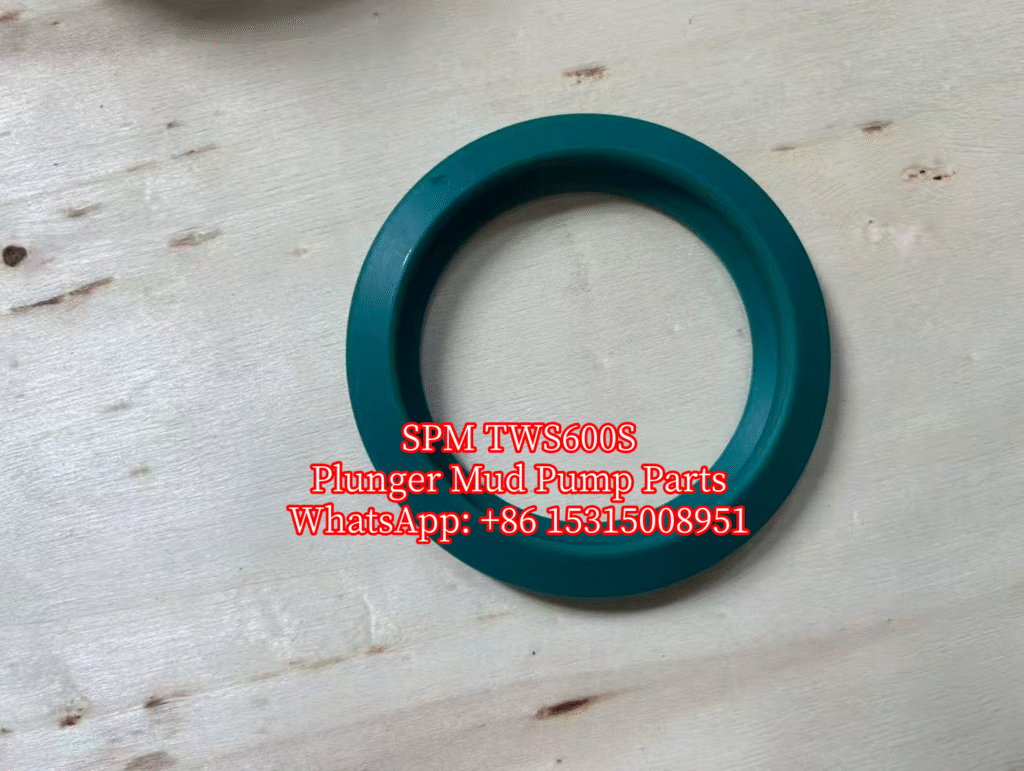

78 Valve Insert P105761
SEALS

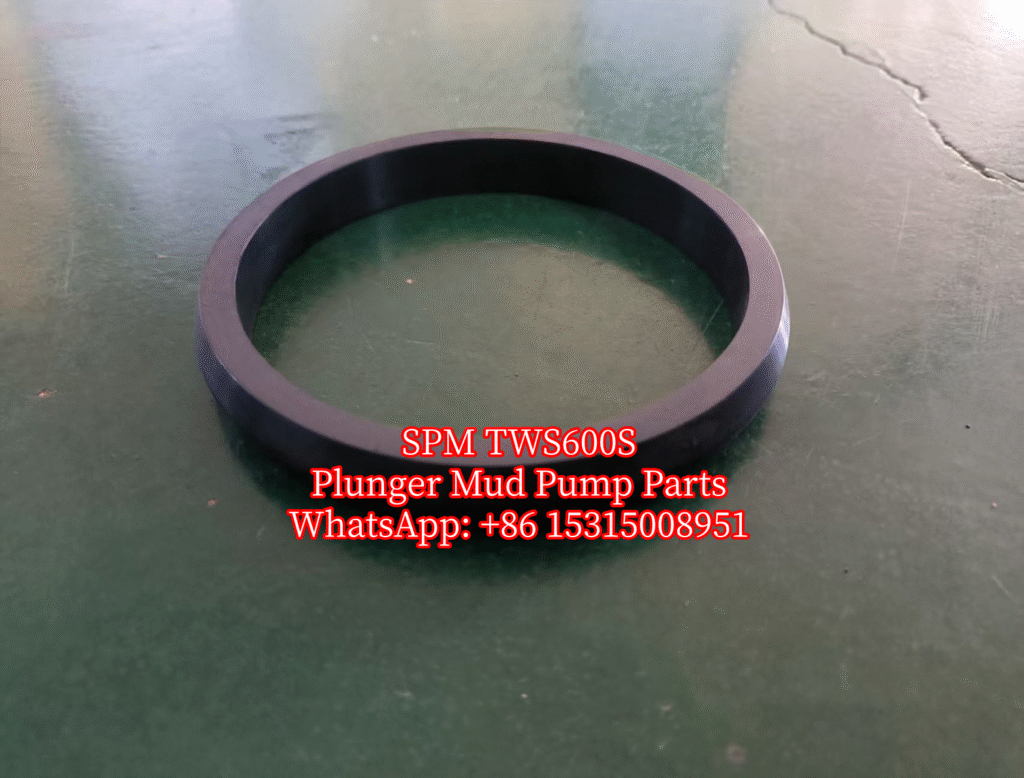

39 Suction Cover D Seal P108291

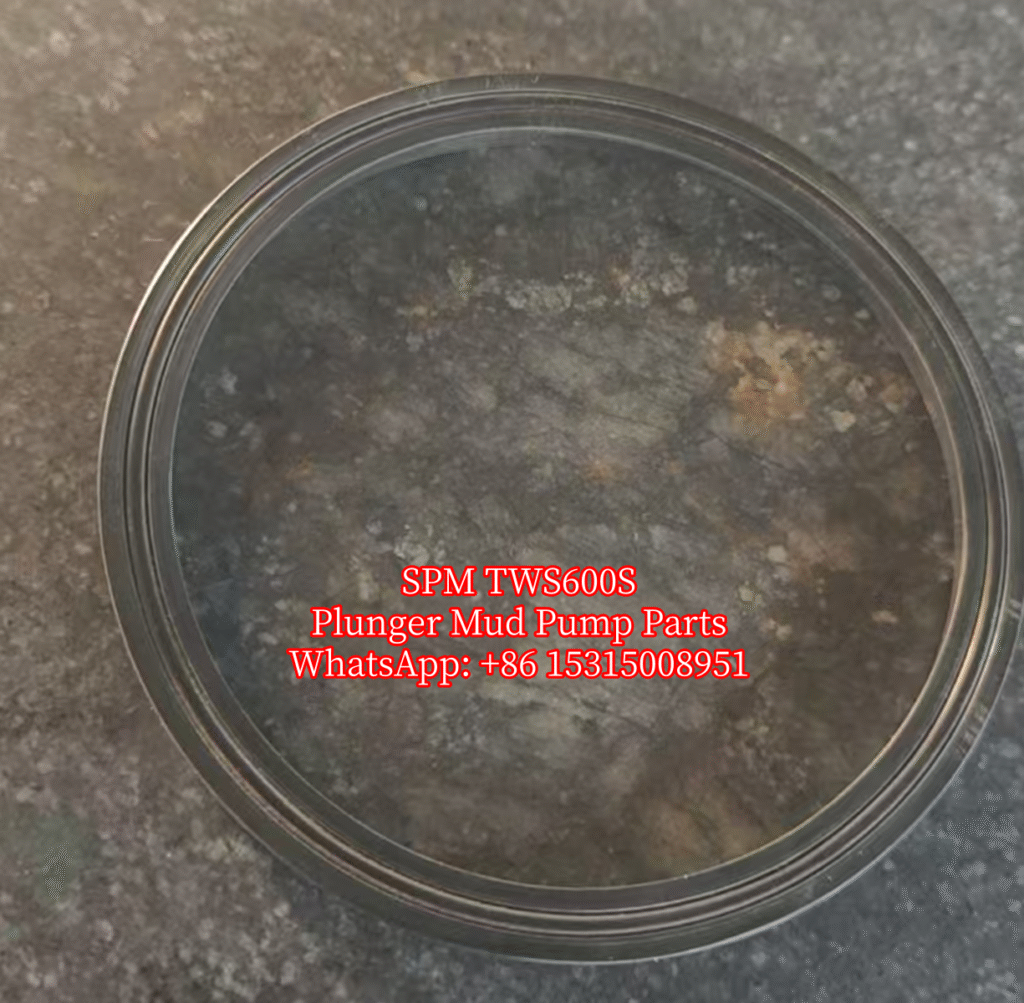

2 Discharge Flange Seal P109509

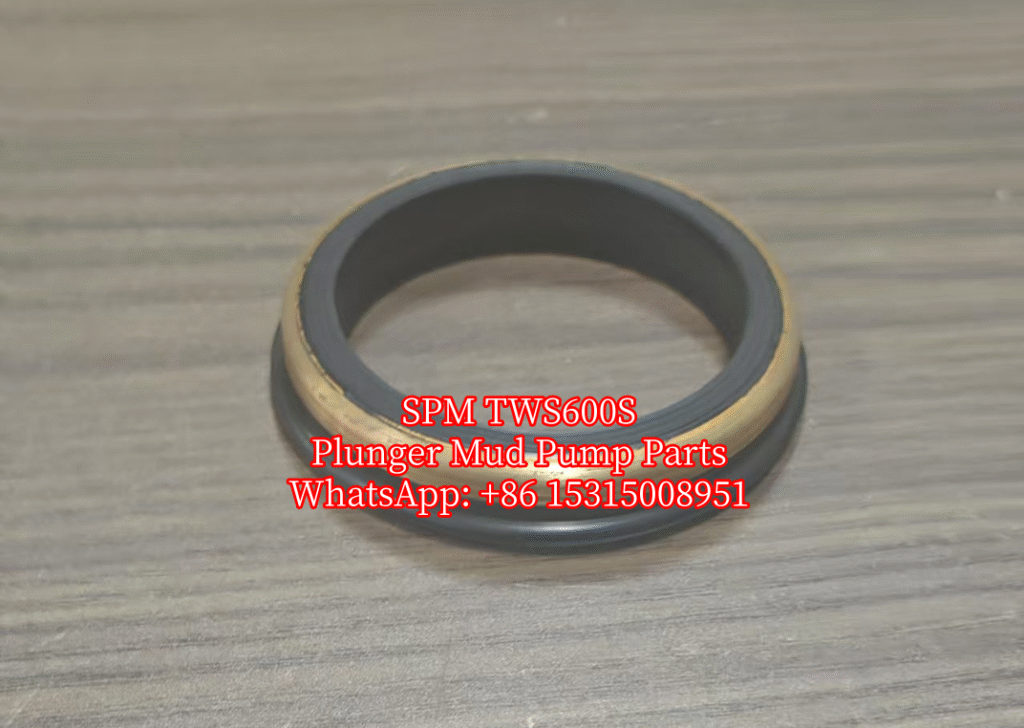

2 Seal Ring Union 4P10229
39 Discharge Cover D Seal P109379
6 Suction Manifold O Ring P100203

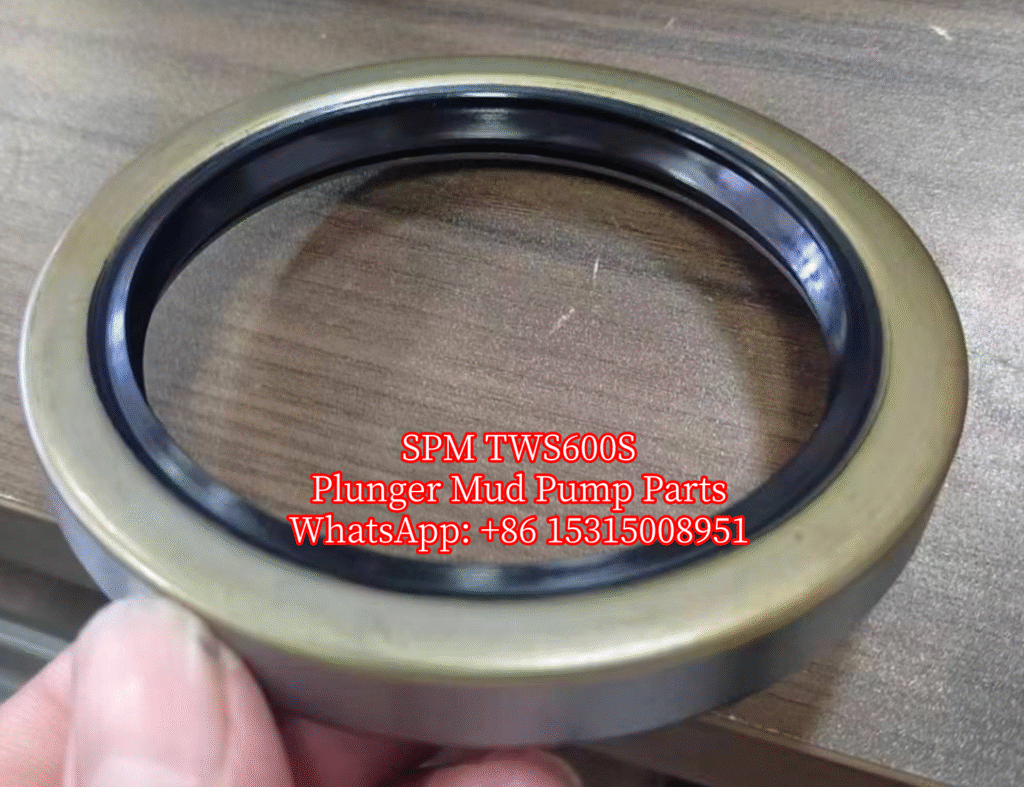

1 Gear Reducer Oil Seal P100169
OTHERS
3 Valve Stop 3P100176
1 Cover retaining nut 2P149498LT
1 3.5″ Suction Cover 2P120824
1 3.5″ Discharge Cover 3P105149LT
1 3.5″ Discharge Cover with 2″ 1502 Female 2P103069LT
1 2″ 1502 Discharge Flange 3P100182LT
1 Breather P138784
1 Packing Nut 3P103038GLT
1 Plung Pipe Allen P10453
12 Valve Spring 4P100198
TOOLS
1 ASSY/TOOL/SEAT PULLER/SP4 2A115967
1 TOOL/VALVE LIFTER/MAGNETIC 4A101708
1 TOOL/HEX/VA CVR/TWS-QWS 4P100160
1 TOOL/WRNCH/PLNGR/TWS600S 2A103265
1 TOOL/NUT/PKG/TWS600S 4P103401
1 TOOL/VALVE LIFTER/4.00 MAN/T25 3P103921
1 TOOL/VALVE STOP/REMOVAL 2P106661

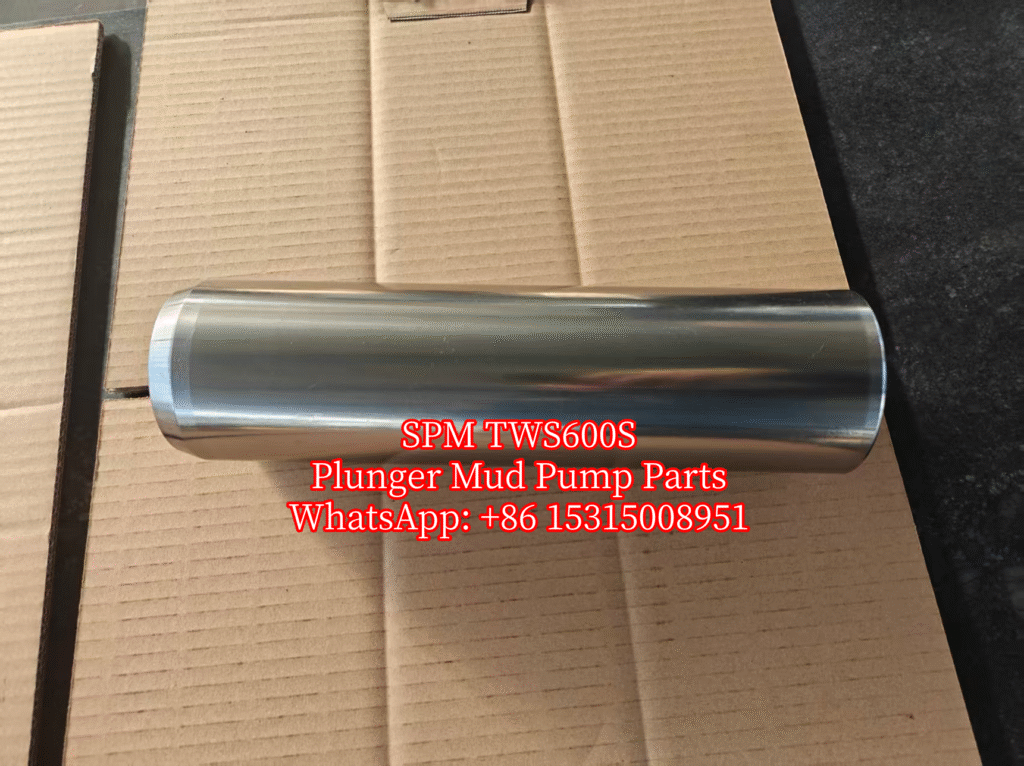

3.5” Plunger 2P103344

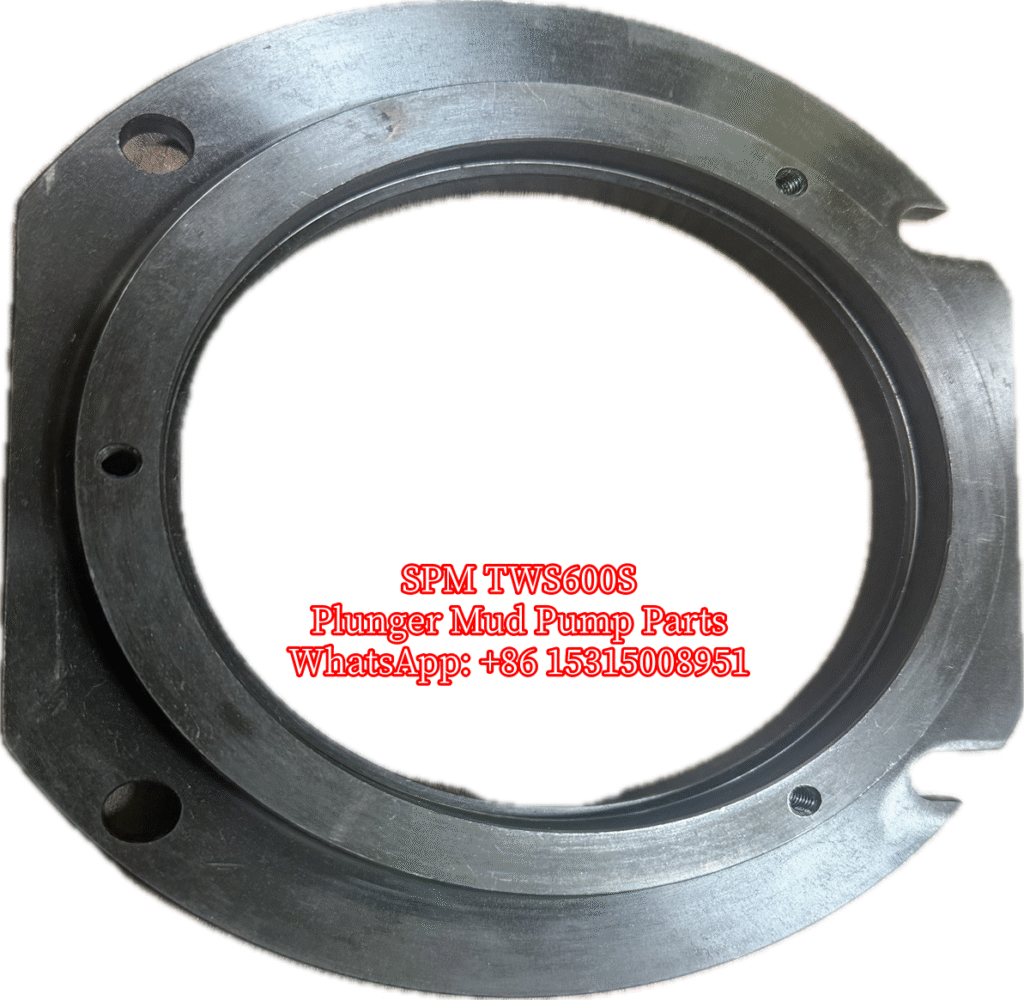

Diaphragm Plate 2P107892
Deflector Housing 3P107973

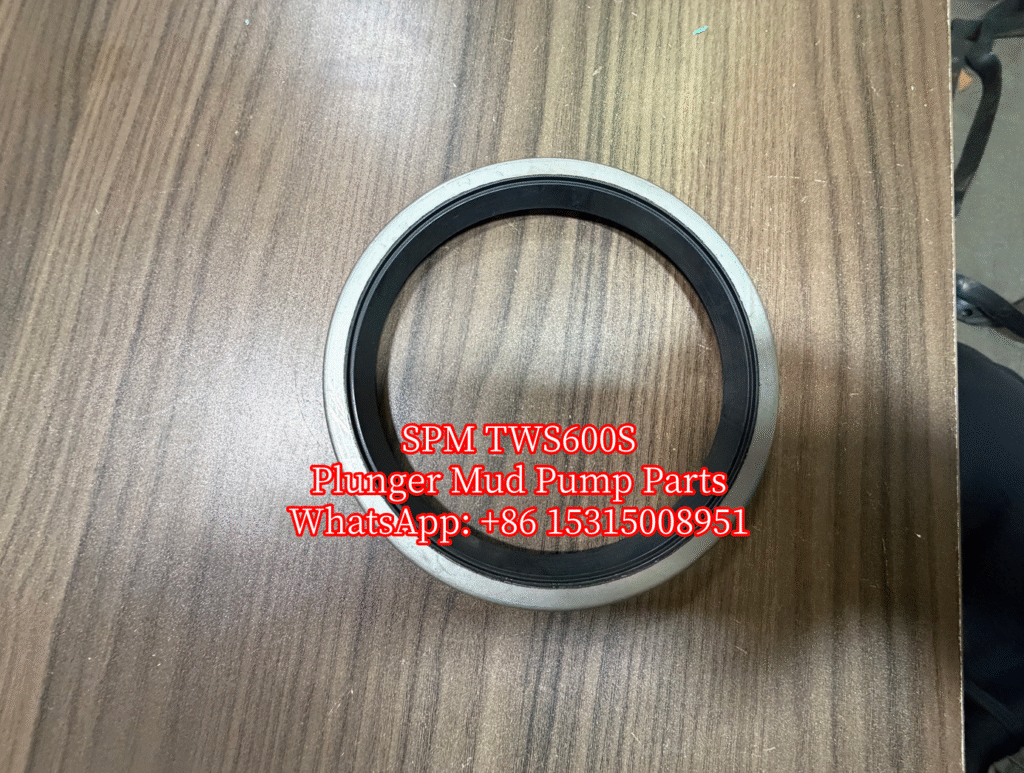

Daphragm Oil Seal P107907
Deflector 2P107976

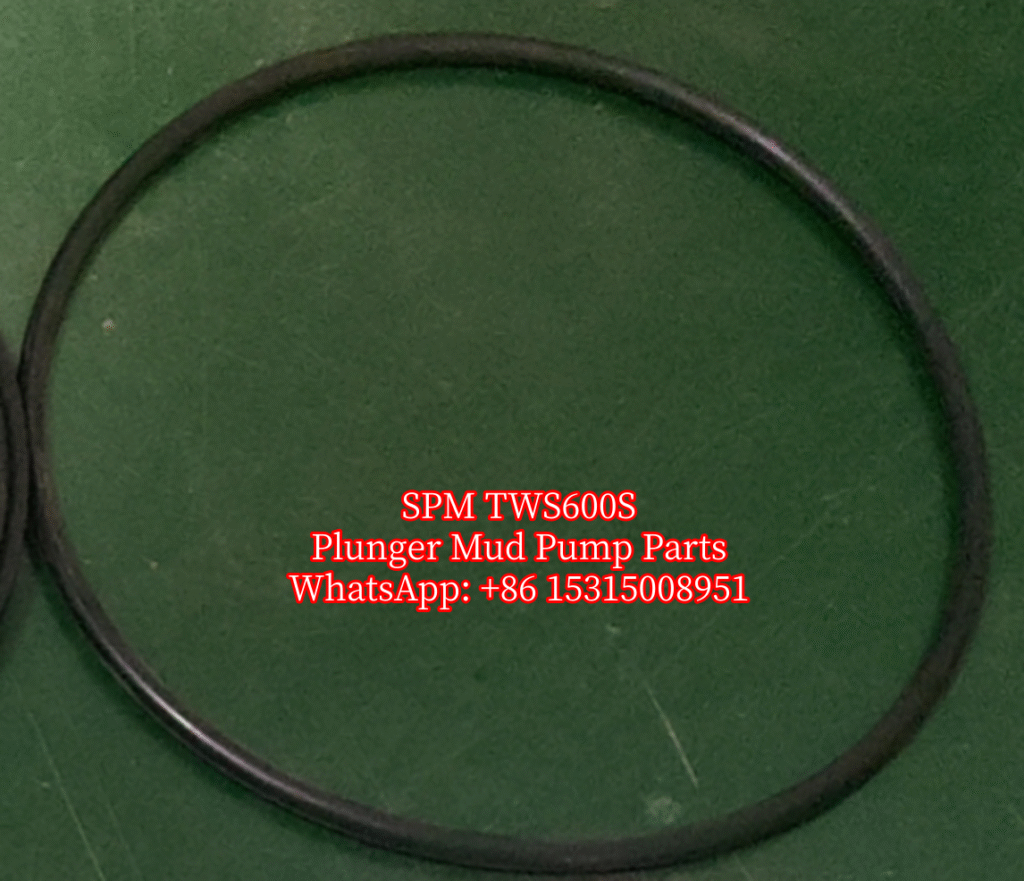

O-Ring For Deflector P106916
Packing Nut (Gland) 3P103027G
4.5” Plunger 2P103312

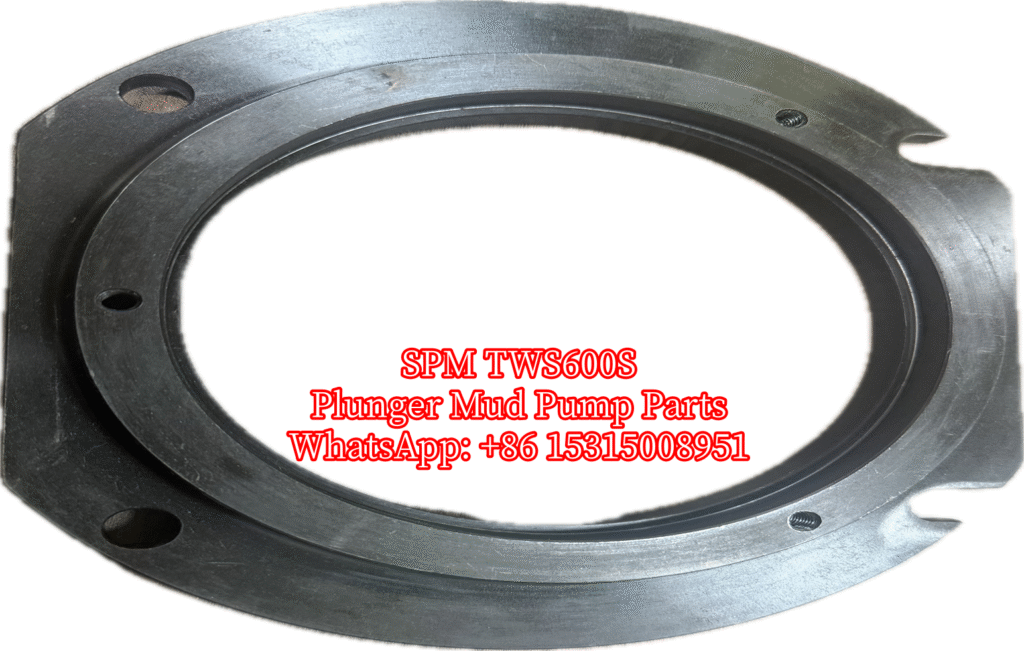

Diaphragm Plate 2P107894

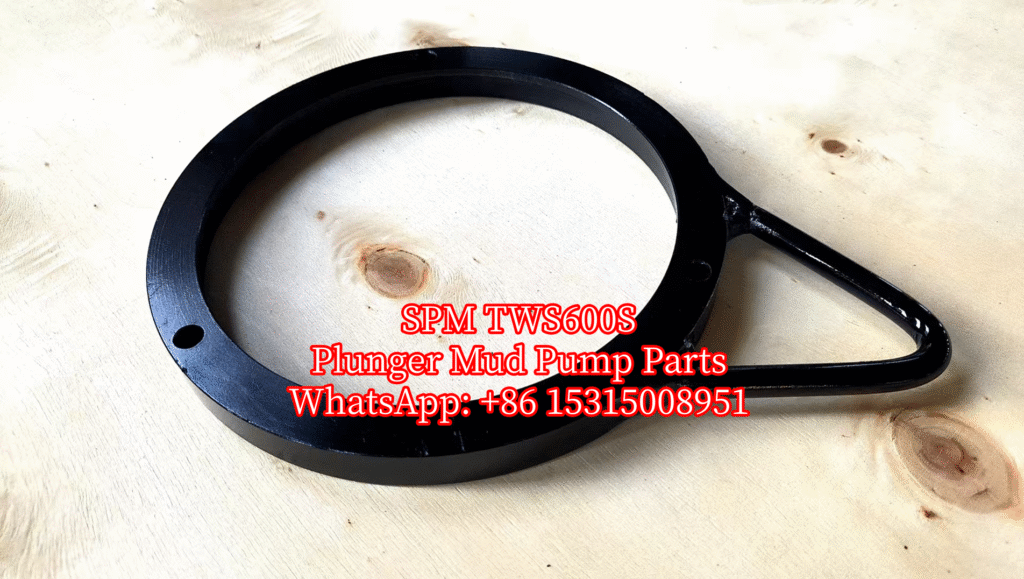

Deflector Housing 2P109701
Daphragm Oil Seal P107909

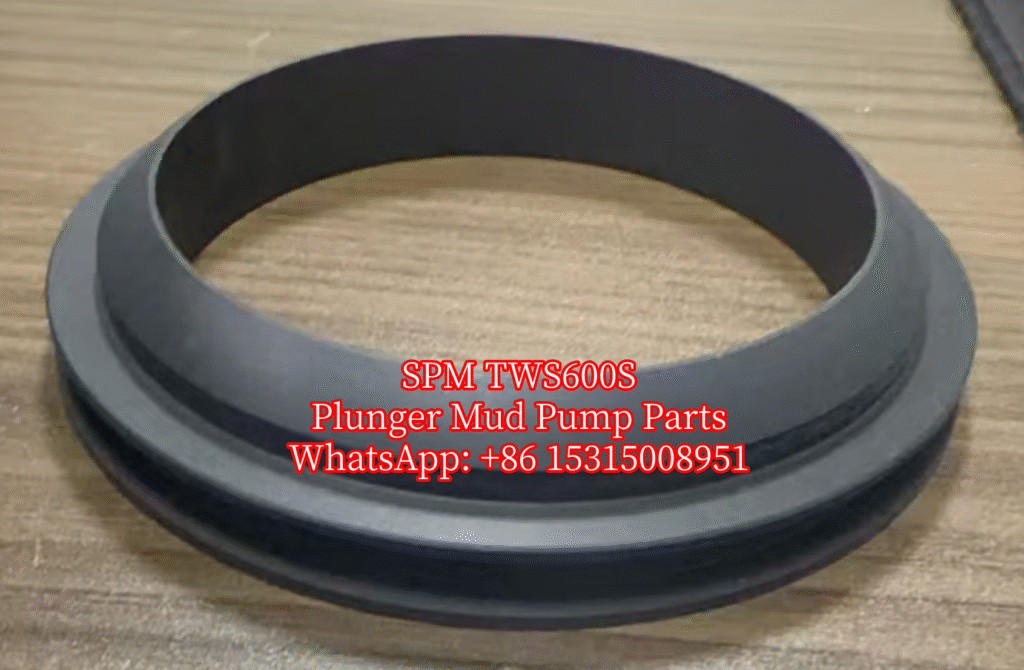

Deflector 2P109698
O-Ring For Deflector P23373

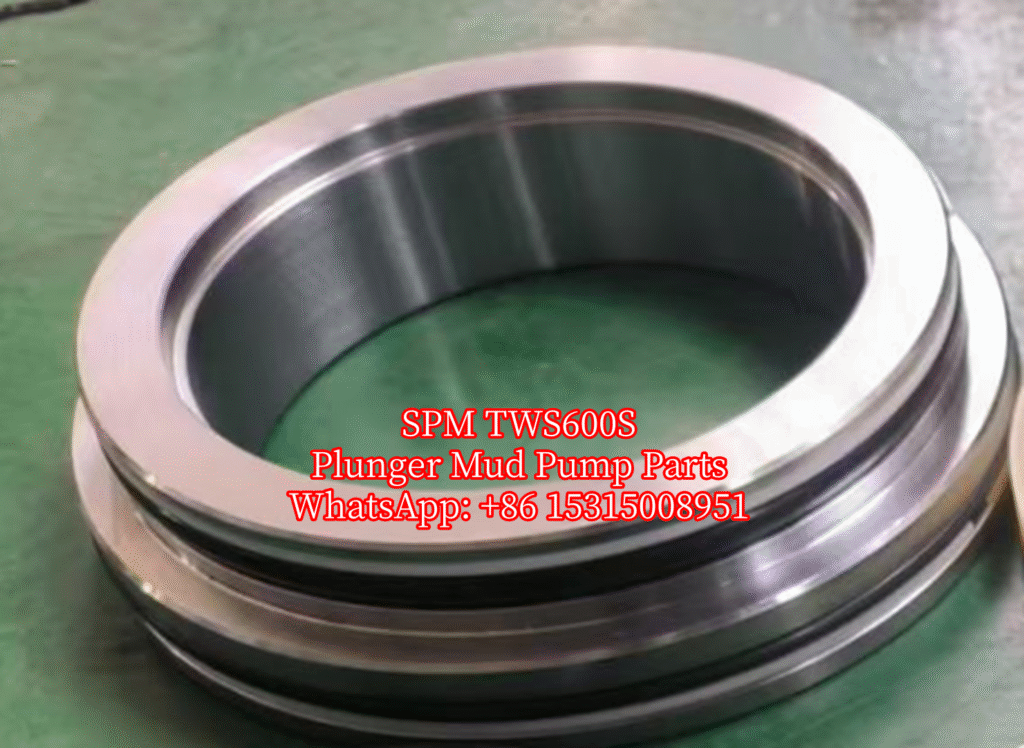

Seal Ring 3P103022
Lantern Ring 3P103048

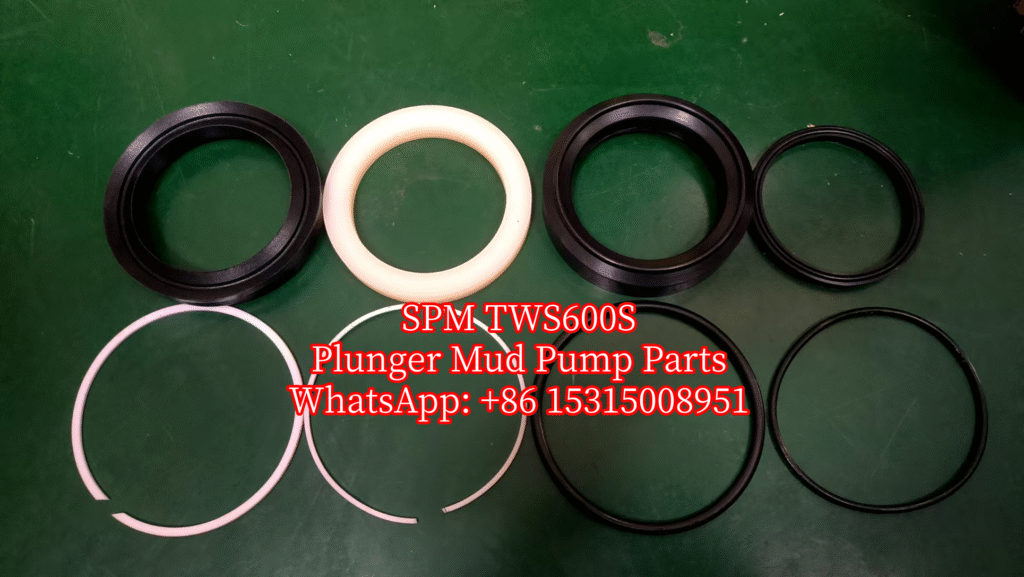

Packing Assy (SOFT Packing set) 3A107012HP

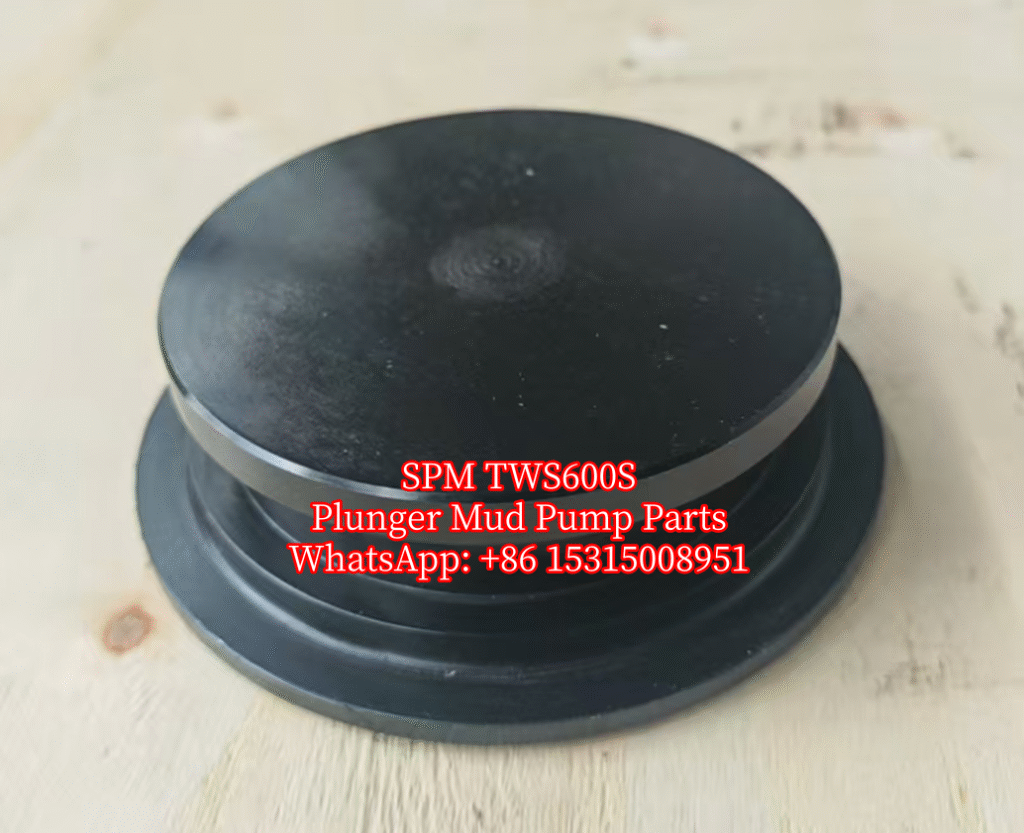

Suction Cover 3P104373
Suction Valve Stop 3P100176
Valve Seat Assy 2A109541

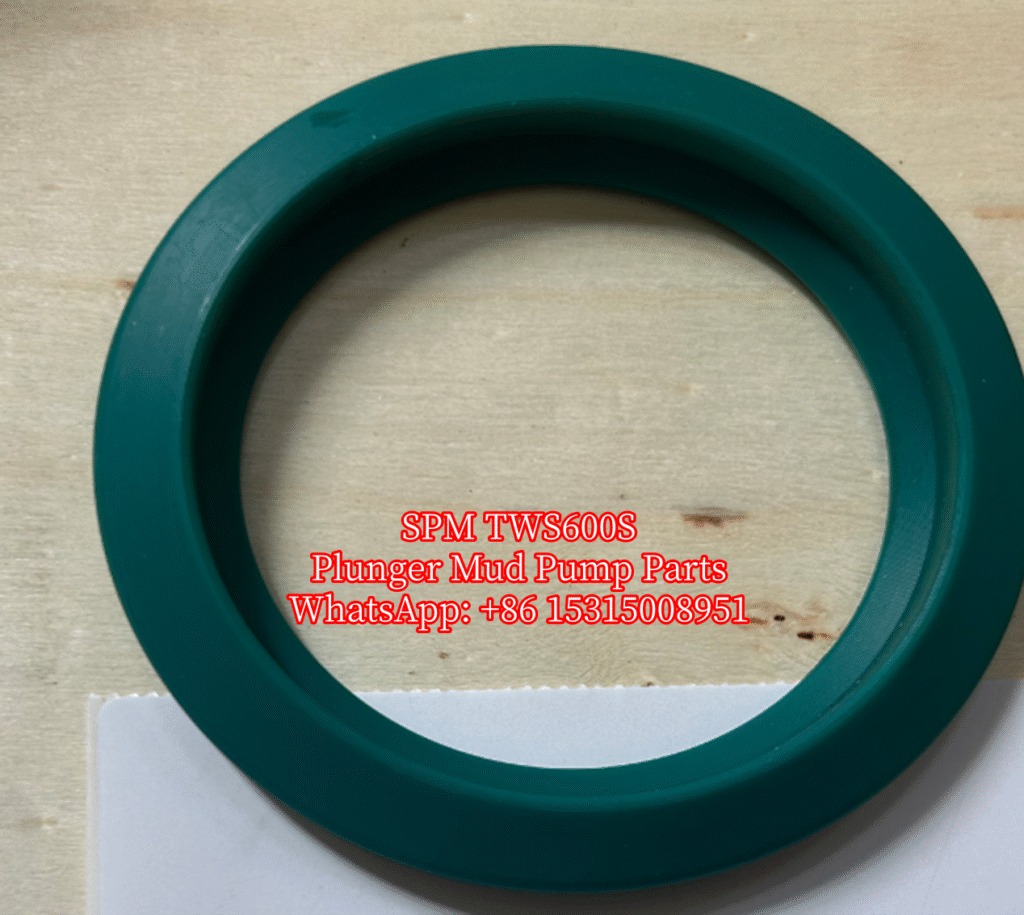

Insert P105761
Discharge Cover 3P105149

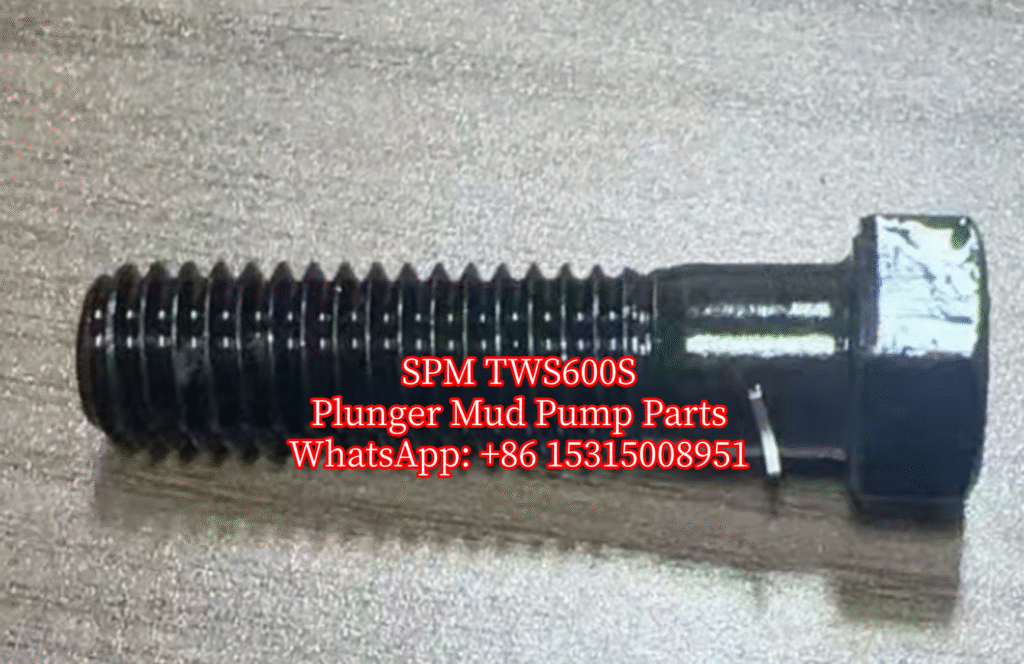

3/8 ~ 16UNC HHCS x 1.00 LG (For Deflector Housing) P12975

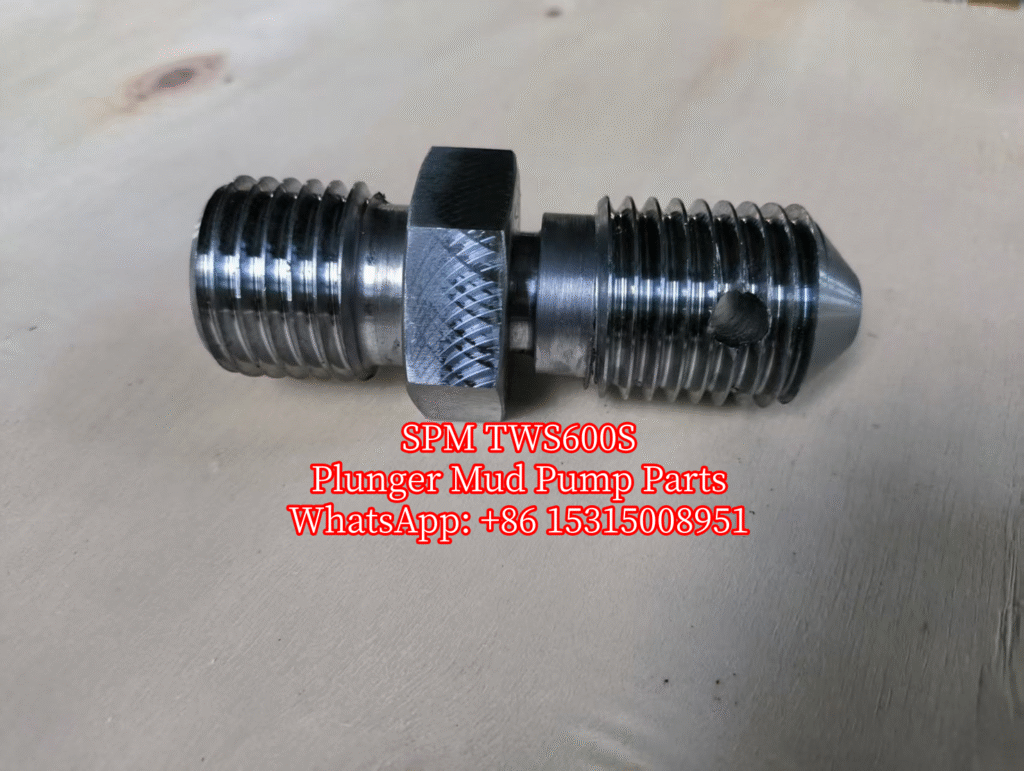

Plunger Stud 4P101714

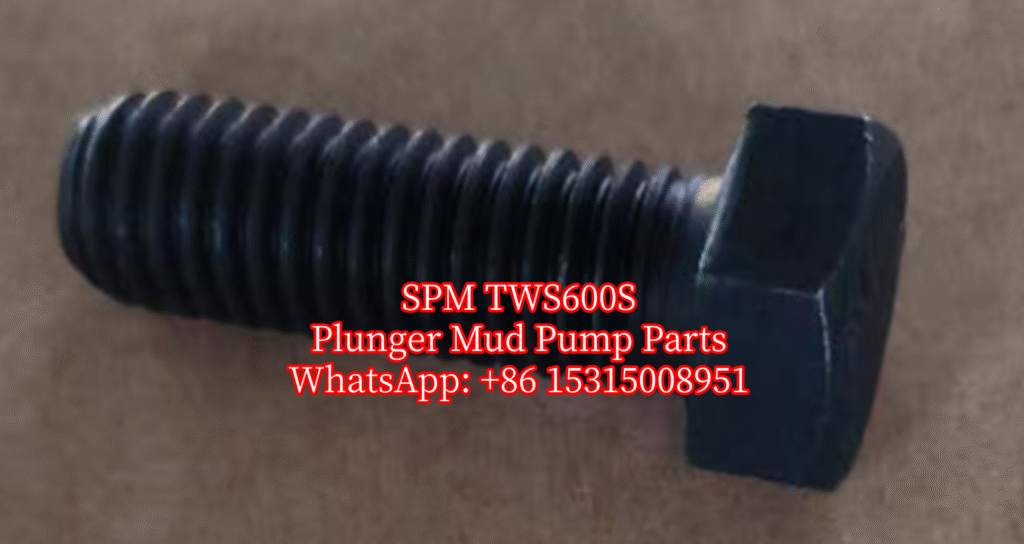

Diaphragm Screw P14890

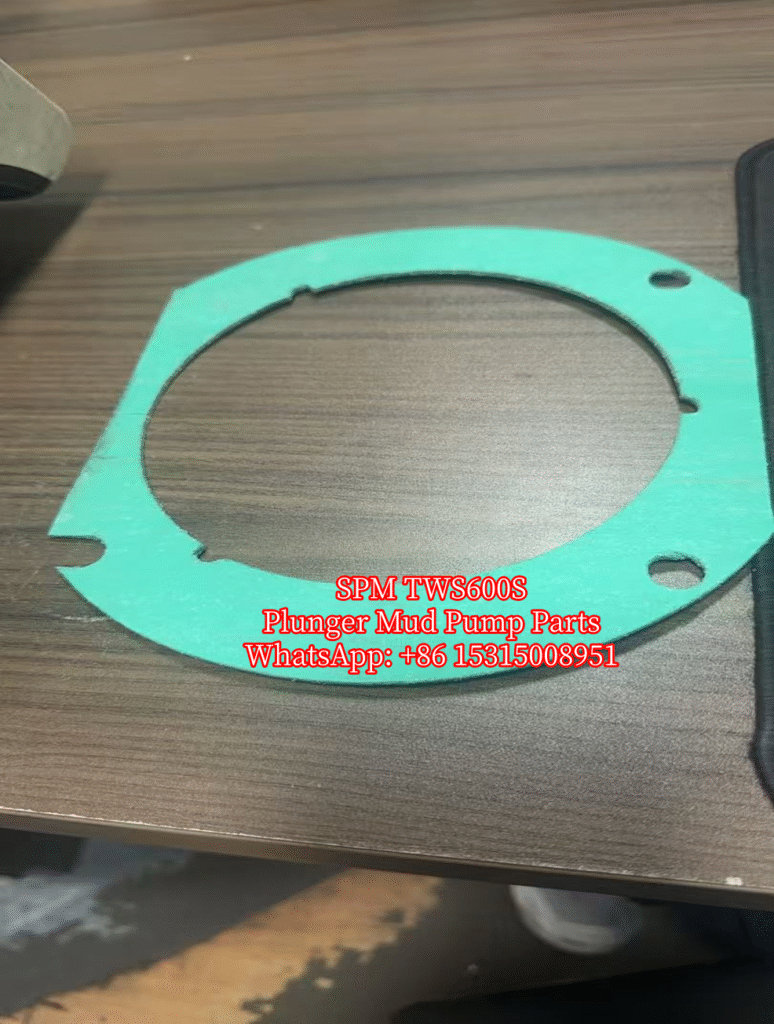

Diaphragm Plate Gasket 3P103019

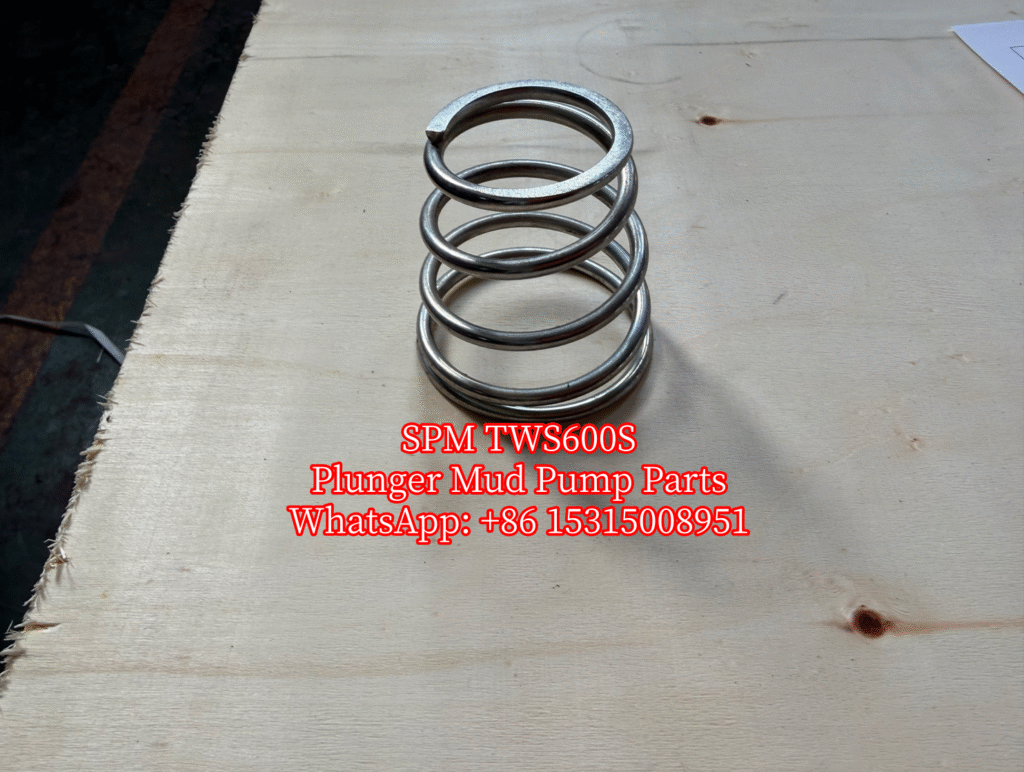

Valve Spring – HEAVY DUTY 4P100281

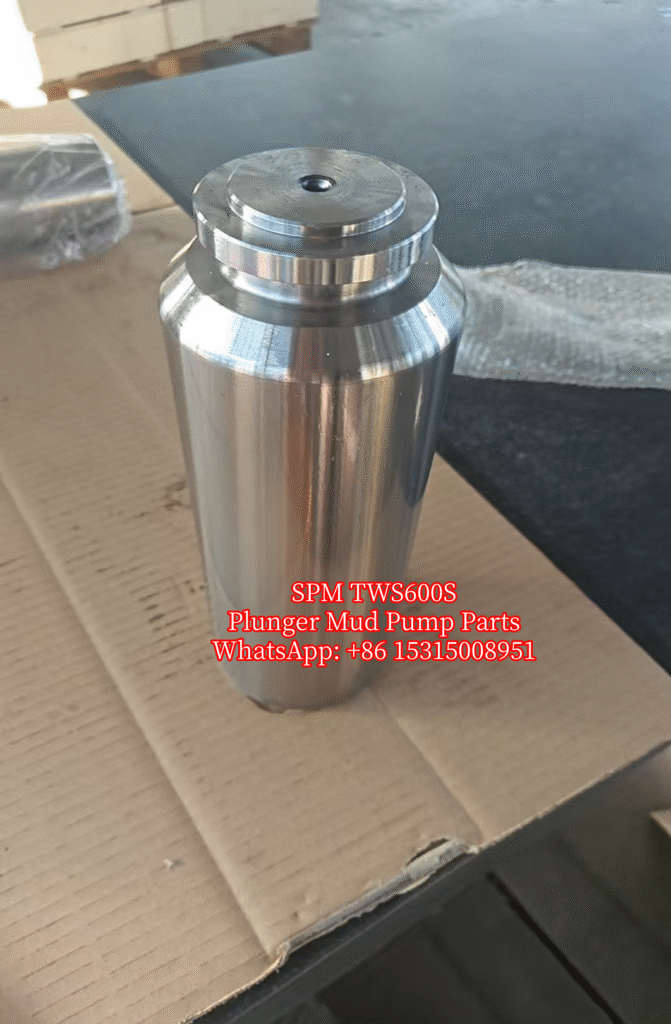

3.5” Plunger 2P120932
Thru Rod 2P120812
Packing Assembly Complete Set-HD 2A121150

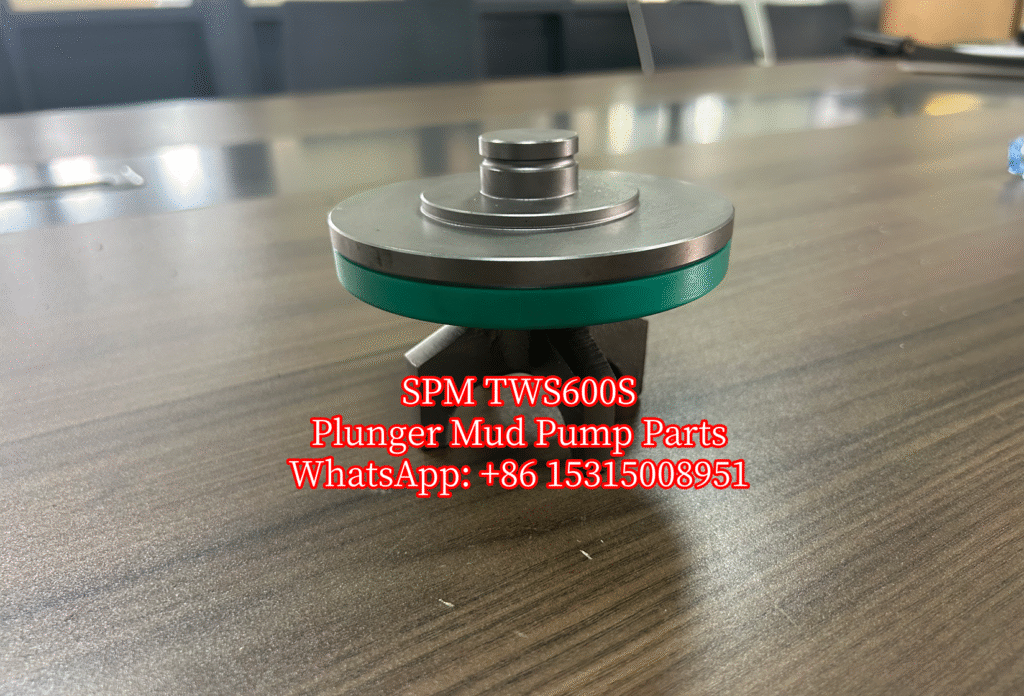

Novatech Valve Assembly NF-4-S2 P105742
Novatech Seat NF-4-S2 P105752
Valve Insert P105761
Seal Ring Union 4P10229

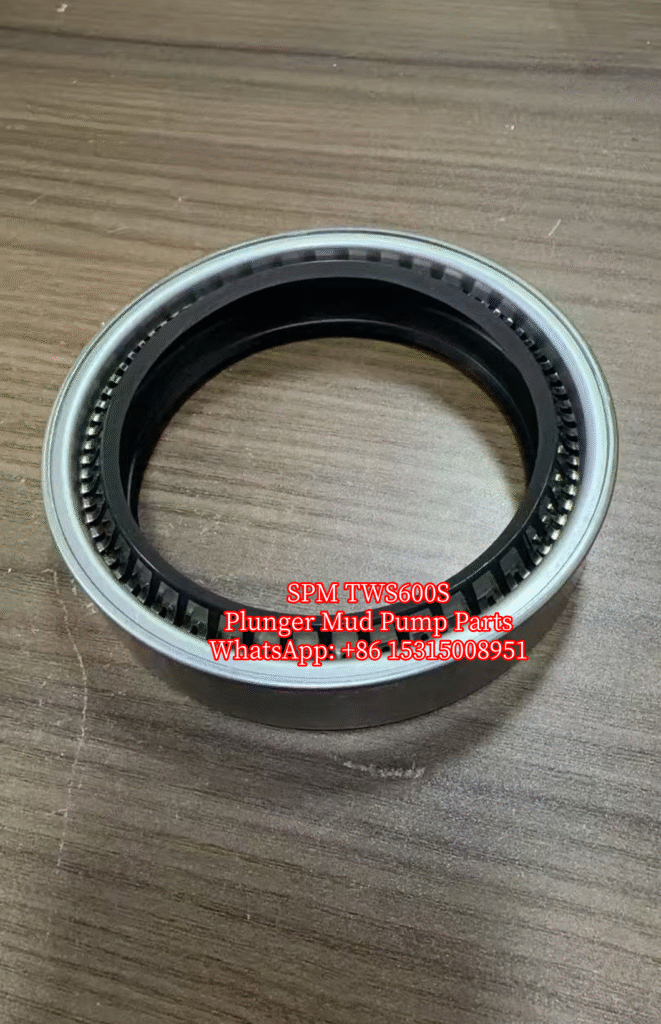

Rod Seal P140972

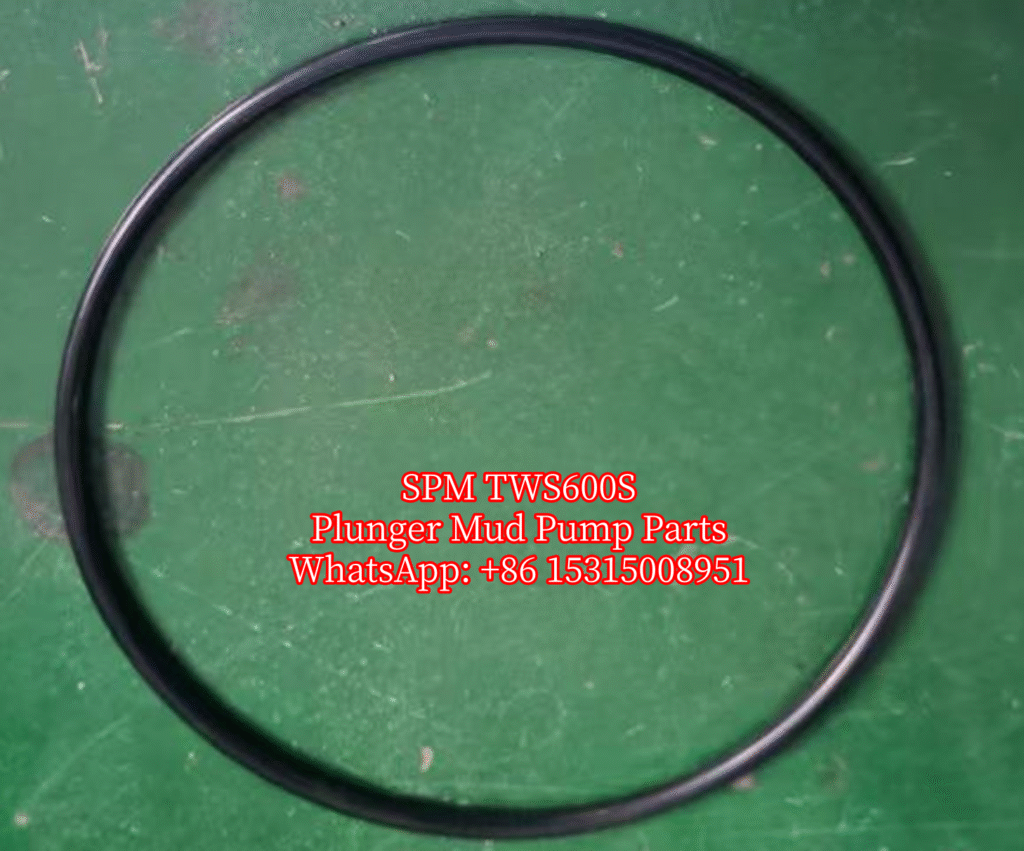

O-Ring P40479
Gear Reducer Oil Seal P100169
Suction Cover D Seal P108291
Disharge Cover Seal P109379
Disharge Flange Seal P109509

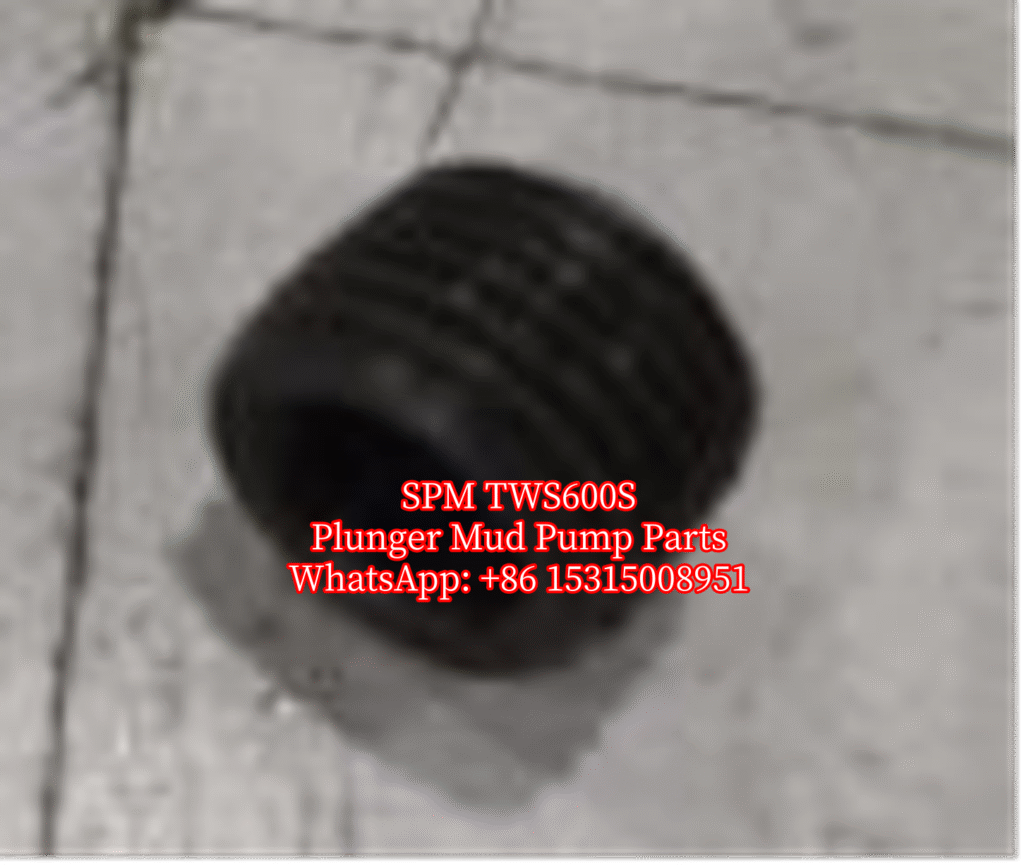

Plug Pipe Allen P10453

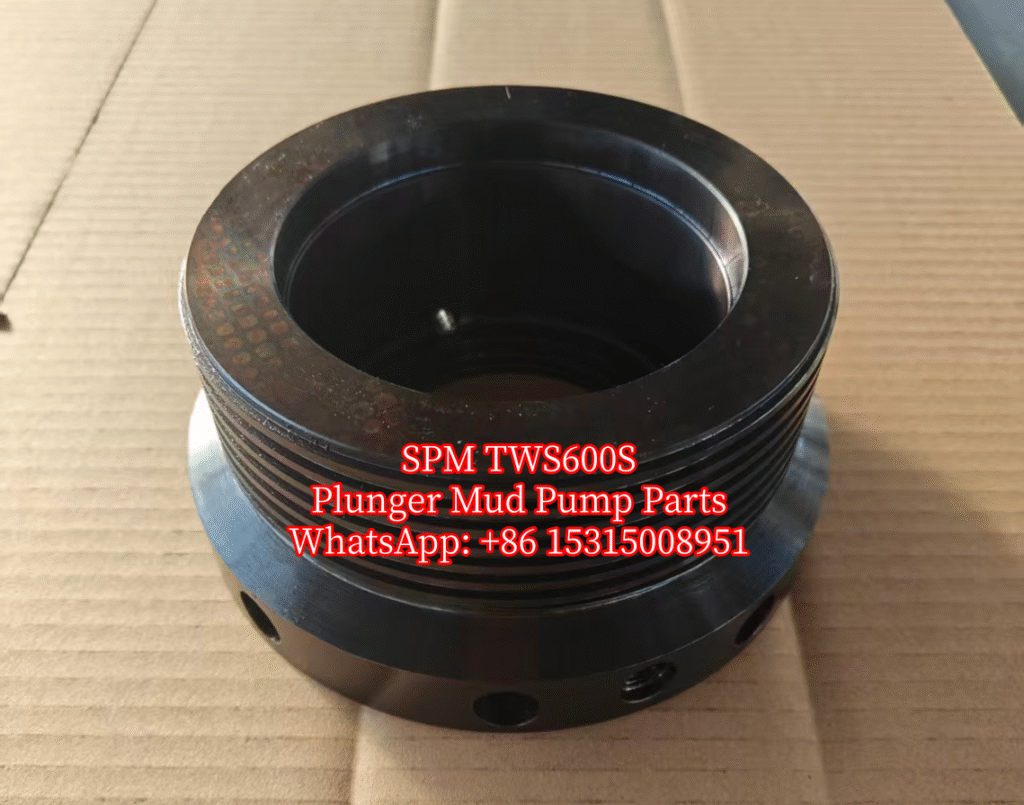

Packing Nut 2P120834
