NOV 9P100 Triplex Mud Pump Parts Manual List
SUCTION THRU POWER END
ITEM No.PART NO.DESCRIPTIONNo. Req
1011293072WIPER, L.H. Gear Oil1
1293073WIPER, R.H. Gear Oil1
1026310060NUT, 3/8″ Flexloc No. 20FA-6164
1037000210-11SCREW, 3/8″ x 1-1/2″ Grande 5 Cadmium Plated Hex Head Cap4
1047621024WASHER, 3/8″ N Type A 0.812″ O.D. Cadmium Plated8
1051293069BRACE, Oil Trough1
1061293070TROUGH,L.H.Pinion Oil1
1293071TROUGH,R.H.Pinion Oil1
1072400040SCREW, 3/8″ x 3/4″ Drilled Head8
1081291093COVER,Inspection2
1091291094GASKET, Inspection Cover2
1107000303-11SCREW,1/2″ x 1″ Grade 5 Cadmium Plated Hex Head Cap20
1117815057PLUG, 1″ Magnetic Post Lisle No.PM-3132
1126300103NUT, 5/8″ Cadmium Plated Hex34
1137619058WASHER, 5/8″ Regular Spring Lock Cadmium Plated34
1147621040WASHER, 5/8″ N Type A 1.312″ O.D. Cadmium Plated34
1151293095GASKET, Main Frame Cover1
1167817170RUBBER,Neoprene Sponge 3/16″ x 2″ 0′-24″ long2
1171293082WIPER, Left Hand Gear and Pinion Oil1
1293089WIPER,Right Hand Gear and Pinion Oil1
1186310060NUT,3/8″ Flexloc No.20FA-6164
1197000209-11SCREW,3/8″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap4
1207621024WASHER,3/8″ N Type A 0.812″ O.D. Cadmium Plated8
1211291179TROUGH,Left Hand Crosshead Lube Oil1
1221290078GASKET,Wrench Hole Cover3
1231290077COVER,Wrench Hole2
1247000208-11SCREW,3/8″ x 1″ Grade 5 Cadmium Plated Hex Head Cap24
1251290110COVER,Center Wrench Hole1
1267802020CAP,Donaldson No.S-183 Breather1
1277000567-10FSCREW,1-1/8″ – 12 x 3-3/4″ Grade 5 Hex Head Cap6
1281290075COVER, Top Access3
1291290076GASKET,Top Access Cover3
1307000303-11SCREW, 1/2″ x 1″ Grade 5 Cadmium Plated Hex Head Cap18
1311290251SCREW, Oil Passage3
1321293016SHIELD, Intermediate Rod Oil3
1336310040NUT,1/4″ Flexloc No.20FA-420s6
1346320062NUT,3/8″ Hex Jam3
1357000114-11SCREW,1/4″ x 2-1/2″ Grade 5 Cadmium Plated Hex Head Cap6
1367621016WASHER, 1/4″ N Type A 0.625″ O.D. Cadmium Plated12
1371291074BOLT,Hook9
1381293009RETAINER, intermediate Rod Oil Wiper3
1391293078GASKET,Intermediate Rod Oil Wiper Retainer3
1406541612PIN, 1/4″ x 1-1/2″ Groove ANSI Type C9
1417805052FITTING, 1/8″ Alemite No.1610 B3
1427805062FITTING, 1/8″ Alemite No.437163
1431293182WIPER,Intermediate Rod Oil12
144G-1293114PLATE,Oil Wioer Retaining6
1451293141SPACER,Oil Wiper6
146G-7061091-17SCREW,#10-24 x 5/8″ Zinc Plated Hex Head Machine18
1477619025WASHER,#10 Cadmium Plated Regular Spring Lock18
1481293038ROD,Intermediate3
1497000307-11SCREW,1/2″ x 2″ Grade 5 Cadmium Plated Hex Head Cap12
1501293079GASKET,Oil Wiper Retainer Plate3
1511293023PLATE,Oil Wioer Retaining3
1527621032WASHER,1/2″ N Type A 1.062″ O.D.Cadmium Plated12
1531283190PLATE,Clean-Out2
1541283191GASKET,Clean-Out Plate2
1557000304-11SCREW,1/2″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap12
1566800163BUSHING, 2″ x 1″ Standard C.I.Hex1
1577815057PLUG, 1″ Magnetic Post Lisle No.PM-3131
1581284106GASKET,Oil Gage Plate1
1591291130PLATE,Oil Gage1
1602400029DIPSTICK,Oil Level1
1617000208-11SCREW,3/8″ x 1″ Grade 5 Cadmium Plated Hex Cap12
1627618014WASHER, Stat-O-Seal Parker No.600-0101-3/8″12
SECTION THRU CRANKSHAFT
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
2011293081RETAINER, Main Bearing Cage Oil2
2025506202BOLT,3/8″ x 3/4″ Place16
2032401960SCREW,7/8″ x 2-3/4″ Drilled Head48
2041293011CAGE,Main Bearing2
2052400690SCREW,3/8″ x 1″ Drilled Head24
2067600024WASHER,3/8″ N Type A 0.812″ O.D.24
2071293012CAP,Main Bearing End2
208ZT-13127BEARING,Main2
2091293096GASKET,Main Bearing End Cap2
2101293021RING,Main Bearing Lock2
2111293104SHIM, .020″ Main Bearing Lock Ring ( Yellow )8
1293105SHIM, .0075″ Main Bearing Lock Ring ( Clear )8
1293106SHIM, .005″ Main Bearing Lock Ring ( Blue )14
G-1293110SHIM, 1/8″ Main Bearing Lock Ring ( Steel )2
2121293100SHIM, .020″ Connecting Rod Bearing Retainer Plate ( Yellow )9
1293101SHIM, .0075″ Connecting Rod Bearing Retainer Plate ( Clear )18
1293102SHIM, .005″ Connecting Rod Bearing Retainer Plate ( Blue )27
2136310120NUT, 3/4″ -10 UNC Flexloc No.31FA-12106
2147000462-11SCREW,3/4″ x 7-1/2″,Grade 5 Cadmium Plated Hex Head Cap6
2151293026PLATE, Connecting Rod Bearing Retainer12
2162405025SCREW,3/4″ x 5-3/4″ Drilled Head24
2171293061RETAINER, Connecting Rod Bearing Outer3
2181293107SHIM, .020″ Connecting Rod Bearing Outer Retainer ( Yellow )3
1293108SHIM, .0075″ Connecting Rod Bearing Outer Retainer ( Clear )9
1293109SHIM, .005″ Connecting Rod Bearing Outer Retainer ( Blue )9
219ZB-25500BEARING,Connecting Rod3
2201293007ROD,Connecting3
2211293062PLATE,Connecting Rod Bearing Retainer3
2221293005CRANKSHAFT1
2232400710SCREW,3/4″ x 2-1/2″ Drilled Head12
2241293008GEAR, Crankshsft1
2251293006BOLT,Crankshaft Gear12
2266310140NUT,7/8″-Flexloc #31FA-140912
2277400842TUBING,1/2″O.D. x 3/8″ I.D. x 21″ Long Cold Drawn Seamless Steel2
2287804146EBLOW, 90° Male Weatherhead No.7405 x 82
229G-7804202EBLOW, 45° Male Weatherhead No.7355 x 82
2301283147SHIM, .005″ Main Bearing Support ( Steel Shim Stock )4
1283148SHIM, .007″ Main Bearing Support ( Steel Shim Stock )2
2311293014SPACER,Main Bearing Support2
2326310320NUT, 2″ -8 UNC Flexloc 30FO-32082
2331293024BOLT,Main Bearing Support2
2342405026SCREW,1-1/8″ x 3-1/4″ Drilled Head8
2351293022PLATE, Main Bearing Retainer2
2361293152SHIM, 1/16″ Main Bearing Retainer Plate6
1293153SHIM, .020″ Main Bearing Retainer Plate4
1293154SHIM, .005″ Main Bearing Retainer Plate8
SECTION THRU PINION AND CROSSHEADS
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
3011293090CROSSHEAD, Left Hand1
3027000394-11SCREW, 5/8″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap8
3037618022WASHER, Stat-O-Seal Parker No.600-0101-5/8″8
3047000443-11SCREW, 3/4″ x 2-3/4″ Grade 5 Cadmium Plated Hex Head Cap6
3057611036WASHER, 3/4″ Locomotive Hi-Crome Light Series Spring6
3065506714BOLT, 3/4″ x 2-1/2″ Place6
3071293113COVER,Crosshead Hand Hole2
3081293112RETAIER, Crosshead pin3
309ZB-7120BEARING, Crosshead pin3
3101290114SHIM, Crosshead pin Retainer6
3111290089CONDUCTOR,Oil3
3122402680SCREW,5/8″ x 2″ Drilled Head 32
3137600040WASHER, 5/8″ N Type A 1.312″ O.D. Cadmium Plated32
314YS-7752SEAL, Pinion Bearing Oil2
3151293020RETAINER,Pinion Bearing Oil2
3161293097GASKET, Bearing Retainer2
317ZB-7873BEARING, Pinion2
3181293018CAGE,Left Hand Pinion Bearing1
3191293027PLATE, Pinion Bearing Cage 2
3202400930SCREW, 5/8″ x 1-3/4″ Drilled Head8
3217600040WASHER, 5/8″ N Type A 1.312″ O.D.8
3222402580SCREW,7/8″ x 3-1/2″ Drilled Head18
3237618026WASHER, Stat-O-Seal Parker No. 600-0101-7/8″36
3241293015CROSSHEAD, Center and Right Hand2
3251293010PINION1
3266912020RING,Eaton No.XAN-700 Retaining3
3271293019CAGE, Right Hand Pinion Bearing1
3282404074KEY,1-1/4″ x 1-3/4″ x 16″ Long1
3291293017LINER, Crosshead6
3301293028PIN, Crosshead3
3311277810RING, Crosshead Pin Bearing Snap6
3326875003PLUG, 3/8″ Standard Countersunk3
3331293103SHIM,Crosshead Liner15
3342405007SCREW, 7/8″ x 3-1/4″ Drilled Head18
3356873008PLUG, 1″Standard Cored Square Head Pipe1
SECTION THRU ROD CHAMBER AND CYLINDER
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
4016310040NUT, 1/4″ Flexloc No. 20FA-42015
4027000111-11SCREW, 1-1/4″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap15
4037621016WASHER, 1/4″ N Type A 0.625″ O.D. Cadmium Plated15
4041293085CLAMP COMPLETE, Rod6
Composed of:
1–1293086 CLAMP ONLY, Rod
2–G-1290087 CONNECTOR, Rod Clamp
2–1290088 PIN, Rod Clamp
2–6309080 NUT, 1/2″ Maclean-Fogg 22TWA-1213 Lock
4–6571014 PIN, 5/32″ x 7/8″ Spring Slot Steel
2–7000312-11 SCREW, 1/2″ x 3″Grade 5 Cad. Plated Hex Head Cap

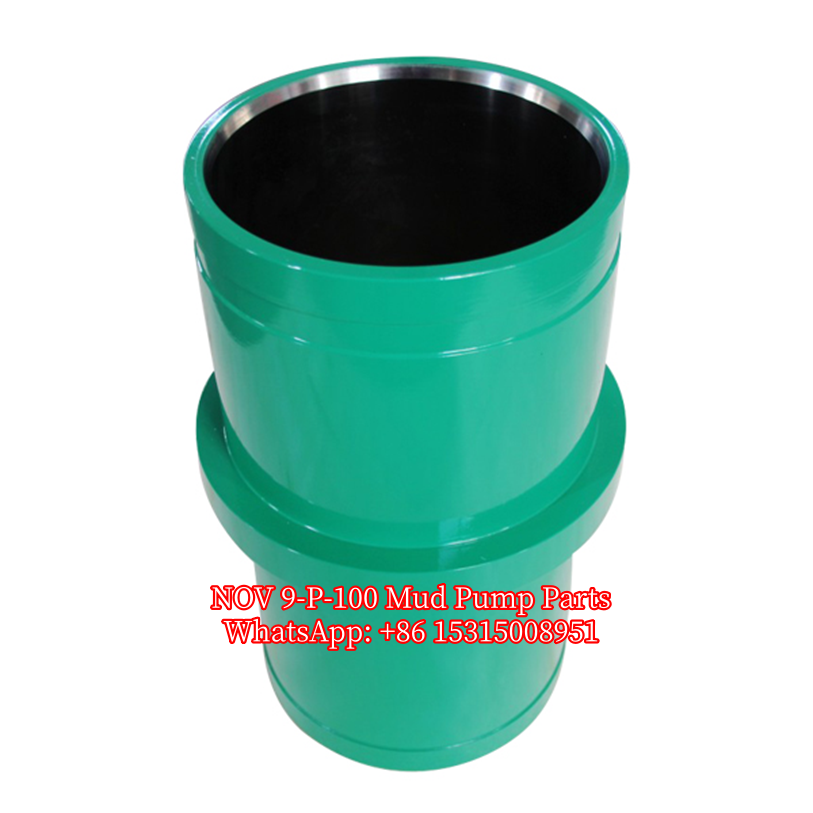

405See Page 26LINER, Bi-Metal3
4061293166CLAMP COMPLETE, Liner3
Composed of:
1–1293167 CLAMP ONLY,Liner
2–G-1290168-P CONNECTOR, Liner Clamp
2–1290169 PIN,Liner Clamp
2–6309120 NUT, 3/4″ Maclean-Fogg 22TWA-3410 Lock
4–6571420 PIN, 7/32″ x 1-1/4″ Spring Slot Steel
2–7000448-11 SCREW, 3/4″ x 4″ Grade 5 Cad. Plated Hex Head Cap
4072408018STUD,1″ x 5-7/8″ Top Taper Lock18
6300160NUT, 1″ Heavy Hex18
4081293130COVER COMPLETE, Rod Chamber3
Composed of:
1–1293227 COVER ONLY
1–1290406 HINGE, Cover
5–7041102 SCREW, 1/4″ x 3/8″ 100 Deg. Flat Head Mchine
4091293165BUSHING, Liner3
4102408019STUD, 1-3/8″ x 7-1/4″ Top Taper Lock72
6300220NUT, 1-3/8″ Heavy, Hex72
4111290174RETAINER,Valve Cover Seal6
4121290307COVER,Valve6
4131290315WASHER,Wedge Adjusting Screw6
4141290178SCREW,Wedge Adjusting6
4156300160NUT, 1″ Heavy Hex6
4161290308RING, Threaded6
417G-1290376WEDGE COMPLETE, Plug Locking6
Composed of:
6–G-1290179-P CASTING, Wedge, Investment
1–1290181 SPRING, Wedge Retaining
4181540126SEAL, Valve Cover6
4191292140HOLDER, Valve Guide Insert6
4201292141INSERT, Valve Guide6
4211560701SPRING,Valve6

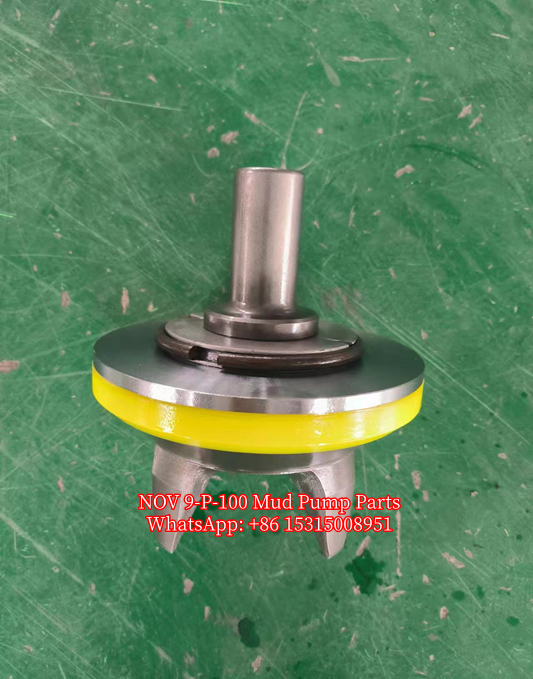

422See Page 26VALVE6

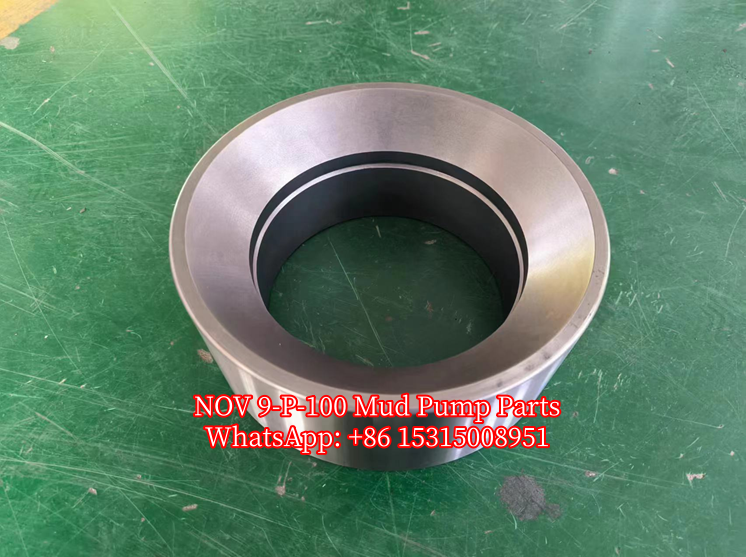

4231561450SEAT,Valve6
4241590051SEAT,Suction Manifold3
4257000483-11SCREW, 7/8″ x 2-1/2″ Grade 5 Cadmium Plated Hex Head Cap24
4261293173MANIFOLD, Front Inlet Sution1
or1293180MANIFOLD,Dampener Complete, Double Side Inlet Suction1
Composed of:
1–1293181 MANIFOLD,Dampener Only
1–5902449 FLANGE, 8″ ASA 150 Ib. Blind R.J.
1–6908041 RING, R48-Oval Joint
8–7000445-11 SCREW, 3/4″ x 3-1/4″ Grade 5 Cad,Plated Hex Head Cap
1–6817124 NIPPLE,2″ x 5-1/2″ Standard Pipe
2–6874016 PLUG,2″Soild Square Head Pipe
1–6888016 TEE, 2” Standard M.I. Pipe
Items, 1101-1115 sa illustrarted on page 22 are also included
4276511416PIN,7/8″ x 2″ Standard Hardened and Ground Dowel6

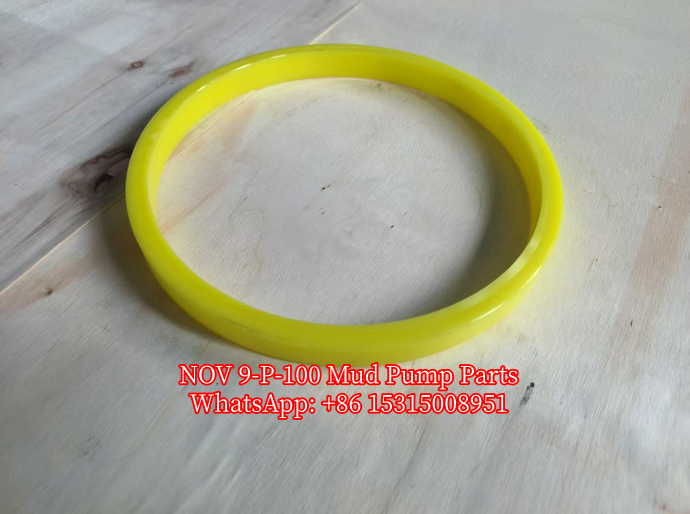

4281290344SEAL, Module6
4291290357PLATE,Wear3
430See Page 26PACKING,Liner3
4312408030STUD, 1-1/4″ x 6″ Top Taper Lock24
6300200NUT, 1-1/4″ Heavy Hex24
4326308241NUT, 1-1/2″-8N-3 Elastic Stop No. X59-1781-24083
433See Page 26PISTON3
4341293147ROD,Piston3
4351293146SUBROD,Piston3
SECTION THRU DISCHARGE OUTLET TOP VIEW OF ROD CHAMBERS AND CYLINDERS
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
5011293240MODULE STUDDED, Discharge3
Composed of:
1–1293241 MODULE ONLY, Discharge
6–2408018 STUD, 1″ x 5-7/8″ Top Taper Lock
6–6300160 NUT, 1″ Heavy Hex
12–2408019 STUD, 1-3/8″ x 7-1/4″ Top Taper Lock
12–6300220 NUT, 1-3/8″ Heavy Hex
8–2408030 STUD, 1-1/4″ x 6″ Top Taper Lock
8–6300200 NUT, 1-1/4″ Heavy Hex
6–2408034 STUD, 1-1/2″ x 19-1/8″ Top Taper Lock
6–6300241 NUT, 1-1/2″-8UN-3A Heavy Hex
5021290338MODULE STUDDED, Suction3
Composed of:
1–1290339 MODULE ONLY, Suction
12–2408019 STUD, 1-3/8″ x 7-1/4″ Top Taper Lock
12–6300220 NUT, 1-3/8″ Heavy Hex
5035912370FLANGE, 4″ API-5000 Ib. WN RJ with 3.152 Bore1
5046908033RING, R39-D Oval Joint1
5052402560TUD, 1-1/4″ x 6-1/4″ Bottom Taper Lock8
6300200NUT, 1-1/4″ x Heavy Hex8
5061293243SPACER STUDDED, Discharge2
Composed of:
1–1293244 SPACER ONLY, Discharge
8–2402560 STUD, 1-1/4″ x 6-1/4″ Bottom Taper Lock
8–6300200 NUT, 1-1/4″ Heavy Hex
5071290342CONNECTOR,Discharge2
5081290175RING, Back-Up4
5097000305-11SCREW, 1/2″ x 1-1/2″ Grade 5 Cadmium Plated Hex Head Cap16
5107619050WASHER, 1/2″ Regular Spring Lock Cadmium Plated16
5111290343ADAPTER, Discharge Connector2
5122410031-348PACKING,Rectanbgular2
5132410031-427PACKING,Rectanbgular4
5142407142PLATE,Valve Cover Instruction1
5157178025SCREW, Round Head Drive Type U No.2 x 1/4″8
5162408034STUD, 1-1/2″ x 19-18″ Top Taper Lock18
6300241MUT, 1-1/2″ -8UN-3A Heavy Hex18
5175912373FLANGE, 4″ API-5000 #. Blind with RJ Face1
5187006606SCREW, 1-1/4″ x 3″ Hex Socket Head Cap16
5196908033RING, R39-D Oval Joint1
5201290345SEAL, Discharge Spacer2
521G-2407274PLATE,Warning1
5226829016ELBOW, 90 Deg. x 2″ standard M.I. Street2
5231293194BAFFLE,Intermediate Rod-1/2 Piece6
5246300041NUT, 1/4″ Cadmium Plated Hex6
5257000124-11SCREW, 1/4″ x 5″ Grade 5 Cadmium Plated Hex Head Cap6
5267621016WASHER, 1/4″ N Type A 0.625″ O.D. Cadmium Plated12
1293115 PISTON-LINER SPRAY SYSTEM
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
6011293193MANIFOLD COMPLETE, Piston-Liner Sparay3
Includes items indicated by*
*602G-7818256SCREW, 3/8″ -16 x 1-3/4″ 18-8 Stainless Steel Thumb9
*6037813050NUT, 3/8″ -16 18-8 Stainless Steel Wing9
*6047815099PLUG, 1/2″ 150 Ib. 316 Stainless Steel Hex Head Cap6
*6057006204-30SCREW, 3/8″ x 1/2″ Stainless Steel Hex Socket Head Cap18
*6061291193NOZZLE,Spray18
*6077804075ELBOW, 90° x 1/2″ – 150 Ibs. 316 Stainless Steel Street3
608G-2400075HOSE ASSEMBLY, 1/2″ x 16-1/2″ Long3
6096800083BUSHING, 1″ x 1/2″ Standard M.I. Hex3
6106829004ELBOW, 90° x 1/2″ Standard M.I. Street3
6117815094PLUG, 1/2″ Hansen No. B4-T25 Male Pipe Thread3
6127818282SOCKET, 1/2″ Hansen No. 4-S26 Female Pipe Thread3
BELT DRIVEN PISTON-LINER LUBE SYSTEM
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
7011293077SHEAVE, Lube Pump Drive1
7027027206-02SCREW, 3/8″ x 3/4″ Hex Socket Head Cup Point Nyloc Set2
7031293098CAP, Pinion Shaft End1
7044701112BELT, A-112″V”1
7051293067GUARD, Left Hand “V” Belt (For Left Hand Drive )1
1293068GUARD, Right Hand “V” Belt (For Right Hand Drive )1
7067000301-11SCREW,1/2″ x 3/4″ Grade 5 Cadmium Plated Hex Head Cap4
7077621032WASHER, 1/2″ N Type A 1.062″ O.D. Cadmium Plated4
7086800120BUSHING, 1-1/2″ x 1″ Standard C.I. Hex1
7096817079NIPPLE, 1″ x 4-1/2″ Standard Pipe1
7106826008ELBOW, 90° x 1″ Standard M.I.1
7117815072PUMP, B & S No. 3 Foot Mounting without Relief Valve 713-3-11
7122401620KEY, 3/16″ Square x 1″ Long1
7137200038SHEAVE, Singel “A” Grove 4-1/2″ O.D.1
7141293080RAIL,Sump Support2
7156300081NUT, 1/2″ Cadmium Plated Hex8
7167035305-01SCREW,1/2″ x 1-1/2″ Cadmium Plated Flat Head Machine8
7177619050WASHER,1/2″ Cadmium Plated Regular Spring Lock8
7187621032WASHER,1/2″ N Type A 1.062″ O.D.Cadmium Plated8
7191293063SUMP,Lube Oil1
7201293076STRAINER,Lube Oil Sump1
7211289358HOSE ASSEMBLY, 1″ x 24″ Long3
7226829008ELBOW, 90° x 1″Standard M.I.Street7
7231275228HOSE ASSEMBLY, 1″ x 45-1/2″ Long1
7241286036HOSE ASSEMBLY, 1″ x 33-1/4″ Long1
7256830022ELBOW, 90° x 1″ x 3/4″ Standard M.I. Reducing Street2
7267000259-11SCREW,7/16″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap4
7277619045WASHER,7/16″ Cadmium Plated Regular Spring Lock4
7281292065BRACKET, Lube Pump Nounting1
7291290064PLATE,Back-Up1
7307000304-11SCREW,1/2″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap2
7317619050WASHER, 1/2″ Cadmium Plated Regular Spring Lock2
7327621032WASHER, 1/2″ N Type A 1.062″ O.D. Cadmium Plated2
ELECTRIC MOTOR DRIVEN PISTON-LINER SPRAY SYSTEM
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
3 8015902091FLANGE, 1″ ASA 150 Ib. Threaded Flat Face1
3 8026010037GASKET, 1″ J-M 76 150 Ib. 1/16″ with Holes Full Face1
3 8037000307-11SCREW, 1/2″ x 2″ Grade 5 Cadmium Plated Hex Head Cap4
3 8046300081NUT, 1/2″ Cadmium Plated Hex4
3 8057619050WASHER, 1/2″ Cadmium Plated Regular Spring Lock4
8066829008ELBOW, 90° x 1″ Standard M.I. Street1
8076817076NIPPLE, 1″ x 3″ Standard Pipe1
8086859008CROSS, 1″ Standard Pipe1
8097806002GAUGE, Glycerine 2-1/2″ 0-1– PSI 1/4″ N.P.T.1
8106800081BUSHING, 1″ x 1/4″ Standard M.I. Hex1
8116873008PLUG, 1″ Standard Cored Square Head1
8121289358HOSE ASSEMBLY, 1″ x 24″ Long ( For Rear Mounted Pump Drive )1
or1270115HOSE ASSEMBLY, 1″ x 32″ Long ( For Top Mounted Pump Drive )1
8137800070ADAPTER, Male Pipe Gates No.7253-867371
8141292284SUPPORT, Piston-Liner Spray Pump2
8151292294HOSE ASSEMBLY, 1-1/2″ x 26″ Long1
8166310120NUT, 3/4″ -10 UNC Flexloc No.31FA-12104
8177000439-11SCREW, 3/4″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap4
8187621044WASHER, 3/4″ N Type A 1.469″ O.D. Cadmium Plated4
3 8197815147PUMP, 1″ x 1-1/2″ Centrifugal1
8206839008ELBOW, 45° x 1″ Standard M.I. Street ( For Rear Mounted Pump Drive )1
or6829008ELBOW, 90° x 1″ Standard M.I. Street ( For Top Mounted Pump Drive )1
8211293080RAIL,Sump Support2
8226300081NUT, 1/2″ Cadmium Plated Hex8
8237035305-01SCREW, 1/2″ x 1-1/2″ Cadmium Plated Flat Head Machine8
8247619050WASHER, 1/2″ Cadmium Plated Regular Spring Lock8
8257621032WASHER, 1/2″ N Type A 1.062″ O.D. Cadmium Plated8
8261293063SUMP,Piston-Liner Spray1
8276829008ELBOW, 90° x 1″ Standard M.I. Street6
8281293076STRAINER,Lube Sump1
8291289358HOSE ASSEMBLY, 1″ x 24″ Long3
3 8305902172FLANGE, 1-1/2″ ASA 150 Ib. Threaded Flat Face1
3 8316010036GASKET, 1-1/2″ J-M 76 150 Ib. 1/16″ with Holes Full Face1
3 8327000309-11SCREW, 1/2″ x 2-1/4″ Grade 5 Cadmium Plated Hex Head Cap4
3 8336300081NUT, 1/2″ Cadmium Plated Hex4
3 8347619050WASHER, 1/2″ Cadmium Plated Regular Spring Lock4
3 8351292283SHIM, Pump ( Laminated )4
3 8367000396-11SCREW, 5/8″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap4
3 8372401860KEY, 1/4″ Square x 1-1/4″ Long2
3 8387802327COUPLING, Falk Type T – 10 Size 20T 10 1-1/8″ Bore1
3 8391292286GUARD,Coupling1
3 8407000207-11SCREW,3/8″ x 7/8″ Grade 5 Cadmium Plated Hex Head Cap4
3 8417600026WASHER, 3/8″ W Type A 1.000″ O.D.4
3 8427000211-11SCREW,3/8″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap4
3 8436300062NUT, 3/8″ Cadmium Plated Hex4
3 8447619041WASHER, 3/8″ Cadmium Plated Regular Spring Lock4
3 8451292293WASHER, 1/4″ x 1-3/4″ Square4
3 8461292285BASE,Pump and Motor1
3 8477812008230/460 V Motor, 3 HP 182TC 60 Hz 1735 RPM 3 PH1
or7812009575 V Motor, 3 PH 182 TC 60 Hz 1735 RPM 3 PH1
1292288PUMP COMPLETE,Piston-Liner Spray with 230/460 V Motor. Includes Items Listed Above Indicated by 3 ( Service Item ).
1292309PUMP COMPLETE,Piston-Liner Spray with 575 V Motor. Includes Items Listed Above Indicated by 3 ( Service Item ).
BELT DRIVEN RIGHT ANGEL PISTON-LINER LUBE SYSTEM
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
9017000301-11SCREW, 1/2″ x 3/4″ Grade 5 Cadmium Plated Hex Head Cap4
9027621032WASHER, 1/2″ N Type A 1.062″ O.D. Cadmium Plated4
903G-1293171GUARD, Left Hand Gear Box Sheave1
orG-1293170GUARD, Right Hand Gear Box Sheave1
904G-7000254-11SCREW, 7/16″ x 3/4″ Grade 5 Cadmium Plated Hex Head Cap2
9057619045WASHER, 7/16″ Regular Spring Lock Cadmium Plated2
9067016421SCREW, 5/8″ x 8″ Square Head Cup Point Set1
9076320100NUT, 5/8″ Hex Jam1
9087802358CONNECTOR,Weatherhead No. C5205 x 242
9097805072FITTING, 1-1/2″ No. 411-24S Swivel Female2
9101293076STRAINER, Lube Oil Sump1
9111293063SUMP,Lube Oil1
9121293080RAIL,Lube Sump Support2
9136300081NUT, 1/2″ Cadmium Plated Hex8
9147035305-01SCREW, 1/2″ x 1-1/2″ Cadmium Plated Flat Head Machine8
9157619050WASHER, 1/2″ Regular Spring Lock Cadmium Plated8
9167621032WASHER, 1/2″ N Type A 1.062″ O.D. Cadmium Plated8
917G-1291252BRACKET, Right Angle Drive Liner Spray Pump Complete Mounting2
With the Following Replaceable Items:
2–6300103 NUT, 5/8″ Cadmium Plated Hex
1–6320120 NUT, 3/4″ Hex Jam
2–7000397-11 SCREW, 5/8″ x 2″ Grade 5 Cad. Plated Hex Head Cap
1–7014456-01 SCREW, 3/4″ x 6″ Square Head Full Dog Point Set
2–7619058 WASHER, 5/8″ Regular Spring Lock Cadmium Plated
2–7621042 WASHER, 5/8″ W Type A 1.750″ O.D. Cadmium Plated
9186300103NUT, 5/8″ Cadmium Plated Hex4
9197000397-11SCREW, 5/8″ x 2″ Grade 5 Cadmium Plated Hex Head Cap4
9207619058WASHER, 5/8″ Regular Spring Lock Cadmium Plated4
9217621042WASHER, 5/8″ W Type A 1.750″ O.D. Cadmium Plated4
9226828012ELBOW, 45° x 1-1/2″ Standard M.I.1
9236817076NIPPLE, 1″ x 4″ Standard Pipe1
9246817112NIPPLE, 1-1/2″ x 4″ Standard Pipe1
9256839008ELBOW, 45° x 1″ Standard M.I. Street1
9266888008TEE, 1″ Standard M.I. Street1
9276829008ELBOW, 90° x 1″ Standard M.I. Street1
9286817076NIPPLE, 1″ x 3″ Standard Pipe1
9296800081BUSHING, 1″ x 3″ Standard M.I.Hex1
9307806002GAGE,Glycerin 2-1/2″ 0-100 PSI 1/4″ NPT1
9314701112BELT, “V” A-1122
932G-1293169GUARD, Left Hand “V” Belt1
orG-1293168GUARD, Right Hand “V” Belt1
9337027206-02SCREW, 3/8″ x 3/4″ Hex Socket Cup Point Nyloc Set2
9341293077SHEAVE, Lube Pump1
9351293098CAP, Pinion Shaft End1
9366829008ELBOW, 90° x 1″ Standard M.I. Street6
9371289358HOSE ASSEMBLY, 1″ x 24″ Long1
9387805083FITTING, Aeroquip No. 411-16S2
9397800076ADAPTER, Aeroquip No. 2021-16-16S2
9406100037HOSE, Aeroquip No. 2651-24 0′-27″ Long1
9416826008ELBOW, 90° x 1″ Standard M.I.1
9426100036HOSE, Aeroquip No. 2651-16 0′-24″ Long1
943G-1291258COVER, Cross Shaft1
9442401860KEY, 1/4″ Square x 1-1/4″ Long1
945G-7200046SHEAVE, 3.6″ P.D. “A” 2 Groove with “SH” O.D. Hub1
946G-1291157PUMP COMPLETE, See Page 201
PISTON-LINER LUBE PUMP G-1291157 ( RIGHT ANGLE DRIVE )
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
1001G-7806090GEAR BOX, Von Ruden Model 55-19 Type E/G 2:1 Reduction Ratio1
10027801121BREATHER, Bendix No.5686991
10032401860KEY, 1/4″ x 1/4″ x 1-1/4″ Plain2
1004G-7802332COUPLING, Bondtru No.B-323 W/1-1/8″ and 1″ Bore1
10051292286GUARD, Coupling1
10067815147PUMP, 1″ x 1-1/2″ Centrifugal1
10076300081NUT, 1/2″ Cadmium Plated Hex10
10087000307-11SCREW, 1/2″ x 2″ Grade 5 Cadmium Plated Hex Head Cap4
10097619050WASHER, 1/2″ Regular Spring Lock Cadmium Plated10
10105902091FLANGE, 1″ ASA 150 Ib. Threaded Flat Face1
10116010037GASKET, 1″ J-M 76 150 Ib. 1/16″ w / Holes Full Face1
10127000309-11SCREW, 1/2″ x 2-1/4″ Grade 5 Cadmium Plated Hex Head Cap4
10135902172FLANGE, 1-1/2″ ASA 150 Ib. Threaded Flat Face1
10146010036GASKET, 1-1/2″ J-M 76 150 Ib. 1/16″ w / Holes Full Face1
1015G-1292283SHIM, Pump4
10166300103NUT, 5/8″ -11UNC Cadmium Plated Hex4
10177000398-11SCREW, 5/8″ x 2-1/4″ Grade 5 Cadmium Plated Hex Head Cap4
10187619058WASHER, 5/8″ Cadmium Plated Regular Spring Lock4
10197000206-11SCREW, 3/8″ x 3/4″ Grade 5 Cadmium Plated Hex Head Cap4
10207621024WASHER, 3/8″ Type A 0.81″ O.D. Cadmium Plated4
10217000306-11SCREW, 1/2″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap2
1022G-1291158BRACKET, Centrifugal Pump and Gear Box Mounting1
1023G-1291159PEDESTAL, Gear Box1
10247000257-11SCREW, 7/16″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap4
10257619045WASHER, 7/16″ Cadmium Plated Regular Spring Lock4
1026G-7624021WASHER, 1/2″ I.D. X 1-1/4″ O.D. x .217″ Thick Special Flat4
SECTION THRU SUCTION LINER DAMPENER AIR CHUCK AND COUPLING SUCTION LINE RELIEF VALVE
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
11011290198RETAINER, Suction Line Dampener Diaphragm1
11021290199GASKET, Dampener2
11037000361-11SCREW, 9/16″ x 4″ Grade 5 Cadmium Plated Hex Head Cap32
11047621036WASHER, 9.16″ N Type A 1.159″ O.D. Cadmium Plated32
11052410031-024PACKING, Rectangular Section2
11061290197COVER, Suction Line Dampener1
11071290195DIAPHRAGM, Suction Line Dampener1
11081290228GUARD, Air Valve1
11097500021VALVE, 1/4″ Dill No. 02500-100AA-643VC Check1
11107815106PLUG, Tedeco Model No. W-54 Sight2
11111290196SPACER, Suction Line Dampener1
11122407136PLATE, Instruction1
11137178025SCREW, No. 2 x 1/4″ Type U Round Head Drive8
11147802028CHUCK, 1/4″ Dill No. 6044 Air1
11157802029COUPLING, Dill No.6094 Air Chuck1
11167500065VALVE, Relief Texstream Series 55-RO Set At 70 PSI1
*1290203DAMPENER, Double Flanged 8″ Suction Line1
Composed of:
1–1290200 BODY COMPLETE, Double Flanged 8″ Suction Line Dampener
8–6300121 NUT, 3/4″ Cadmium Plated Hex
2–6908041 RING, R48-D Oval Joint
8–7000445-11 SCREW, 3/4″ x 3-3/4″ Grade 5 Cad. Plated Hex Head Cap
8–7000448-11 SCREW, 3/4″ x 4″ Grade 5 Cad. Plated Hex Head Cap
2–6874016 PLUG,2″ Standard Soild Square Head
1–6817121 NIPPLE, 2″ x 3″ Standard Pipe
1–6888016 TEE, 2” Standard Pipe
Items, 1101 thru 1115 are also included
*1290212DAMPENER, Single Flanged 8″ Suction Line1
Composed of:
1–1290213 BODY COMPLETE, Single Flanged 8″ Suction Line Dampener
1–6908041 RING, R48-Oval Joint
8–7000445-11 SCREW, 3/4″ x 3-3/4″ Grade 5 Cad. Plated Hex Head Cap
1–6874016 PLUG, 2″ Standard Solid Square Head
Items, 1101 thru 1115 are also included
*1290277DAMPENER, Right Hand Side Inlet 8″ Suction Line1
Composed of:
1–1290275 BODY COMPLETE, Right Hand Side Inlet 8″ Suction Line Dampener
1–6010023 GASKET, 8″ Flat Ring
8–6300121 NUT, 3/4″ Cadmium Plated Hex
1–6908041 RING, R48-Oval Joint
16–7000445-11 SCREW, 3/4″ x 3-1/4″ Grade 5 Cad. Plated Hex Head Cap
1–6874016 PLUG, 2″ Standard Solid Square Head
Items, 1101 thru 1115 are also included
*1290278DAMPENER, Left Hand Side Inlet 8″ Suction Line1
Composed of:
1–1290279 BODY COMPLETE, Left Hand Side Inlet 8″ Suction Line Dampener
1–6010023 GASKET, 8″ Flat Ring
8–6300121 NUT, 3/4″ Cadmium Plated Hex
1–6908041 RING, R48-Oval Joint
16–7000445-11 SCREW, 3/4″ x 3-1/4″ Grade 5 Cad. Plated Hex Head Cap
1–6874016 PLUG, 2″ Standard Solid Square Head
Items, 1101 thru 1115 are also included
*1290208DAMPENER, Suction Line for Field Installation to 10″ Pipe1
Composed of:
1–1290209 PLATE, Mounting
Items, 1101 thru 1115 are also included
*1290210DAMPENER,Suction Linefor Field Installation to 8″ Pipe1
Composed of:
1–1290211 PLATE, Mounting
Items, 1101 thru 1115 are also included
* One Furnished with Pump — Type and Size Optional
TOOLS FURNISHED — NOT ILLUSTRATED
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
1290140ADAPTER,Pinion Rotating1
7000394-11SCREW, 5/8″ x 1-1/4″ Grade 5 Cadmium Plated Hex Head Cap3
7619058WASHER, 5/8″ Regular Spring Lock Cadmium Plated3
2402290WRENCH, Pinion Rotating Adapter1
1290183PULLER COMPLETE, Seal Retainer1
Composed of:
1–1290182 PULLER ONLY
1–2408021 STUD, 3/4″ x 1-1/2″ Straight ALL-Thread
1–6572024 PIN, 5/16 x 1-1/2″ Stainless Steel Spring
1290207BOLT, Liner Clamp Tee Handle Lifting ( 4″ Long )1
1290206BOLT, Liner Clamp Tee Handle Lifting ( 3″ Long )1
G-7815046PULLER, Bluebonnet Model NP-2100 Valve Seat1
1291181DRIVER, Fluid Valve Seat1
Composed of:
1–1291223 COVER, Guide
1–1291224 DRIVER ONLY,Fluid Valve Seat
1292278HOLDER, Seal Retainer1
1710270BAR, Wedge Loosening1
2409010WRENCH, Wedge Adjusting Screw1
2409011WRENCH, for 24090101
1290164PLATE, Bushing Puller1
M-1023WRENCH, Piston Rod Nut1
OPTIONAL ITEMS — NOT ILLUSTRATED
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
1293125HOIST COMPLETE1
Composed of:
2–1290127 BRACKET, Hoist Support
1–1293126 BOOM, Hoist
1–1291128 MAST, Hoist
2–1293129 ROD, Hoist Support
4–6320120 NUT, 3/4″ Hex Jam
2–7000395-11 SCREW, 5/8″ x 1-1/2″ Grade 5 Cadmium Plated Hex Head Cap
2–7000440-11 SCREW, 3/4″ x 2″ Grade 5 Cadmium Plated Hex Head Cap
2–7619058 WASHER, 5/8″ Regular Spring Lock Cadmium Plated
2–7619066 WASHER, 3/4″ Regular Spring Lock Cadmium Plated
4–7800044 ASSEMBLY, Yoke Pin 2708-1/2-8A
4–7804019 END, Adjustable Yoke 2708-8A
1–7805052 FITTING, Alemite No.1610B
1–7819040 TROLLEY, 1/2 Ton Plain Yale Model FW
1293274STROKE COUNTER SWITCH1
Composed of:
1–1290273 BRACKET, Switch
1–1290324 CONDUIT, Switch Wire
2–6300041 NUT, 1/4″ Cadmium Plated Hex
2–6300062 NUT, 3/8″ Cadmium Plated Hex
1–6829004 ELBOW, 90° x 1/2″ Standard M.I. Street
1–6839004 ELBOW, 45° x 1/2″ Standard M.I. Street
2–7000106-11 SCREW, 1/4″ x 3/4″ Grade 5 Cadmium Plated Hex Head Cap
2–7000212-11 SCREW, 3/8″ x 2″ Grade 5 Cadmium Plated Hex Head Cap
2–7618014 WASHER, Parker No. 600-0101-3/8″ Stat-O-Seal
2–7619033 WASHER, 1/4″ Regular Spring Lock Cadmium Plated
2–7619041 WASHER, 3/8″ Regular Spring Lock Cadmium Plated
1–7818203 SWITCH, Micro EX-Ar
1–7822068 WIRE, Romex Cable 14/3″ Type NM 600V 22″ Long
OPTIONAL ITEMS — NOT ILLUSTRATED
ITEM No.PART NO.DESCRIPTIONNo. Req’d.
1293174CROSS COMPLETE, Discharge Strainer ( 4″ Outlets )1
Composed of:
1–1291208 CROSS ONLY, Discharge Strainer
1–1291212 STRAINER, Complete
24–2402560 STUD, 1-1/4″ x 6-1/4″ ( For 4″ API-5000 Ib. Flange )
24–6300200 NUT, 1-1/4″ Heavy Hex
1–2407004 TAG, Strainer Cleanout
2–7178088 SCREW, 3/8″ – # 10 Type U Round Head Drive
4–102842-1 SHIM, 1/8″ Thick
3–102842-2 SHIM, 1/16″ Thick
4–102842-3 SHIM, 1/32″ Thick
1–1293176 SUPPORT, Discharge Strainer Cross
1–1290221 PLATE, Support Base
4–7000439-11 SCREW, 3/4″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap
4–7000440-11 SCREW, 3/4″ x 2″ Grade 5 Cadmium Plated Hex Head Cap
8–7619066 WASHER, 3/4″ Regular Spring Lock Cadmium Plated
1291214KIT,Flange and Gasket ( Used on 1293174 Cross )
Composed of:
1–1290305 FLANGE, Strainer Clean Out
2–5912370 FLANGE, 4″ API-5000 Ib. with 3.152″ Bore Weld Neck Ring Joint
4–6908033 RING, R39-D Oval Joint
1293175CROSS COMPLETE, Discharge Strainer ( 5″ Outlets )1
Composed of:
1–1290311 CROSS ONLY, Discharge Strainer
1–1291212 STRAINER, Complete
8–2402560 STUD, 1-1/4″ x 6-1/4″
16–2408017 STUD, 1-1/2″ x 7-3/4″
8–6300200 NUT, 1-1/4″ Heavy Hex
16–6300240 NUT, 1-1/2″ Heavy Hex
1–2407004 TAG, Strainer Clean-Out
2–7178088 SCREW, 3/8″ – # 10 Type U Round Head Drive
4–102842-1 SHIM, 1/8″ Thick
3–102842-2 SHIM, 1/16″ Thick
4–102842-3 SHIM, 1/32″ Thick
1–1293176 SUPPORT
1–1290221 PLATE, Support Base
4–7000439-11 SCREW, 3/4″ x 1-3/4″ Grade 5 Cadmium Plated Hex Head Cap
4–7000440-11 SCREW, 3/4″ x 2″ Grade 5 Cadmium Plated Hex Head Cap
8–7619066 WASHER, 3/4″ Regular Spring Lock Cadmium Plated
1290312KIT,Flange and Gasket ( Used on 1293175 Cross )
Composed of:
1–1290305 FLANGE, Strainer Clean Out
2–5912393 FLANGE, 5″ API-5000 Ib. with 4.313″ Bore Weld Neck Ring Joint
2–6908033 RING, R39-D Oval Joint
2–6908040 RING, R44-D Oval Joint
1290313KIT,Flange and Gasket ( Used on 1293175 Cross )
Composed of:
1–1290305 FLANGE, Strainer Clean Out
2–5912391 FLANGE, 5″ API-5000 Ib. with 4.063″ Bore Weld Neck Ring Joint
2–6908033 RING, R39-D Oval Joint
2–6908040 RING, R44-D Oval Joint
PISTONS
COMPLETECUP ASSEMBLIESCOMPLETE
SIZE* Liner PckingLINERBlue-Stripe RegularBlue-StripeBlue Solid
Premium
41540142L — 4167K-1134K-1115G-1502352
4-1/2″1540142L — 4187K-1034K-1117G-1502362
51540120L — 4207K-1032K-1102G-1502382
5-1/2″1540122L — 4227K-1021K-1104G-1502392
61540124L — 4247K-1022K-1044G-1502402
6-1/4″1540150L — 4257K-1064K-1106G-1502412
6-1/2″1540126L — 42671523821K-1067K-1107G-1502422
6-3/4″1540126L — 42771523820K-1070K-1108G-1502432
* NOTE: One Liner Packing Furnished With Each Liner. Packing May Be Ordered Separately For Service Items.
NATIONAL VALVES
Type Valve Seat Valve Complete Valve Body Valve Disc Valve Lock Valve Spring Snap Ring
“G-2” Hyear 15661450 1560994 1560990 1560588 1560706 1560701 1560705
“G-2” Polyurethane 15661450 1560995 1560990 1560587 1560706 1560701 1560705
