Halliburton HT-400 Triplex Plunger Pump Spare Parts List

Description

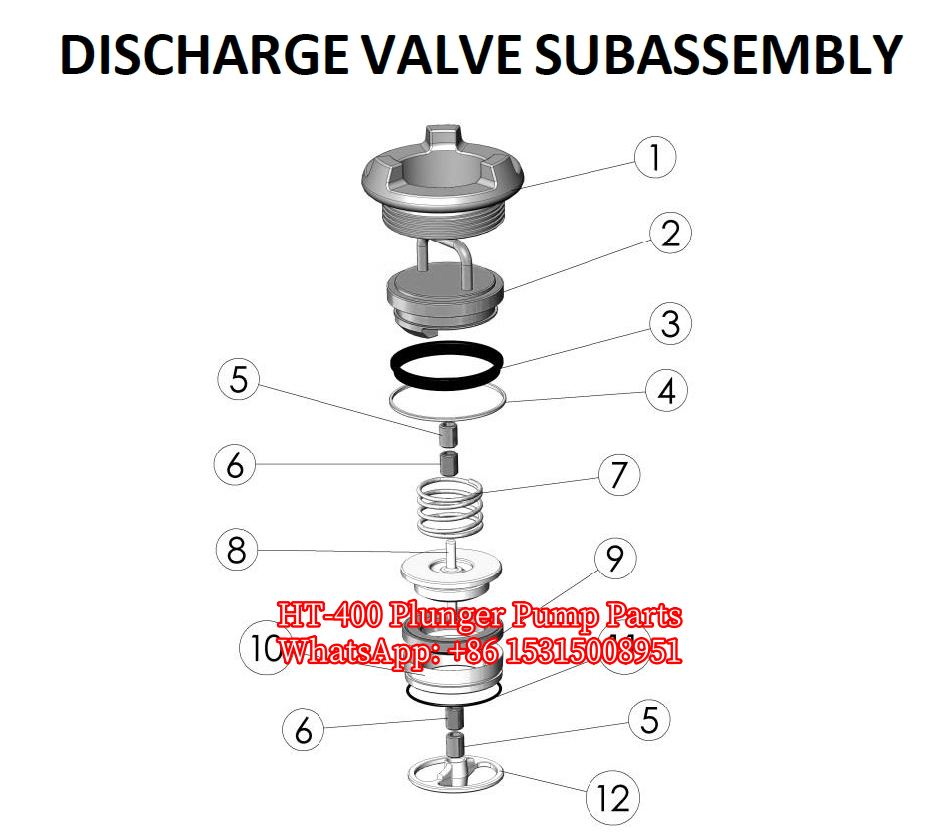

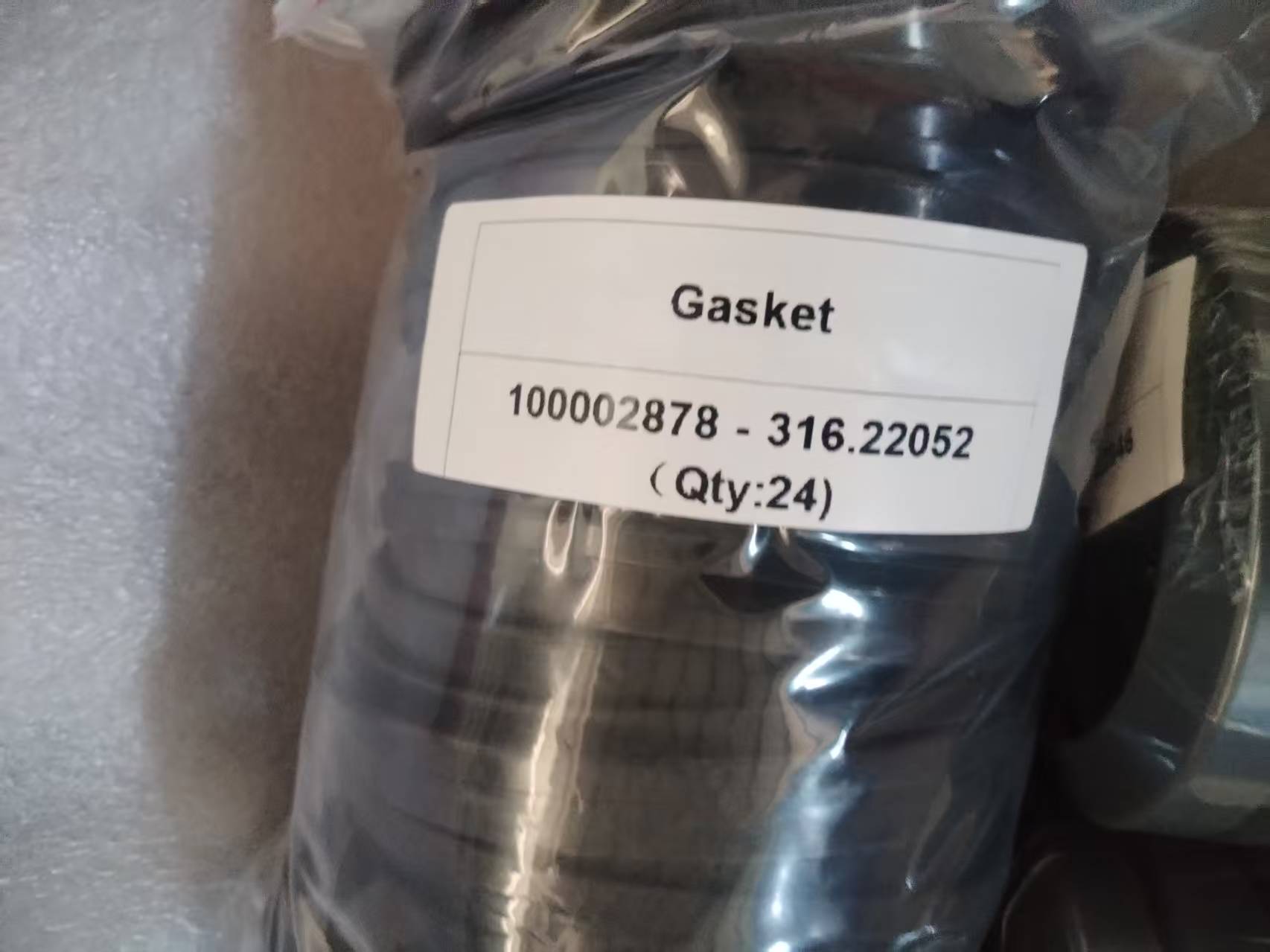

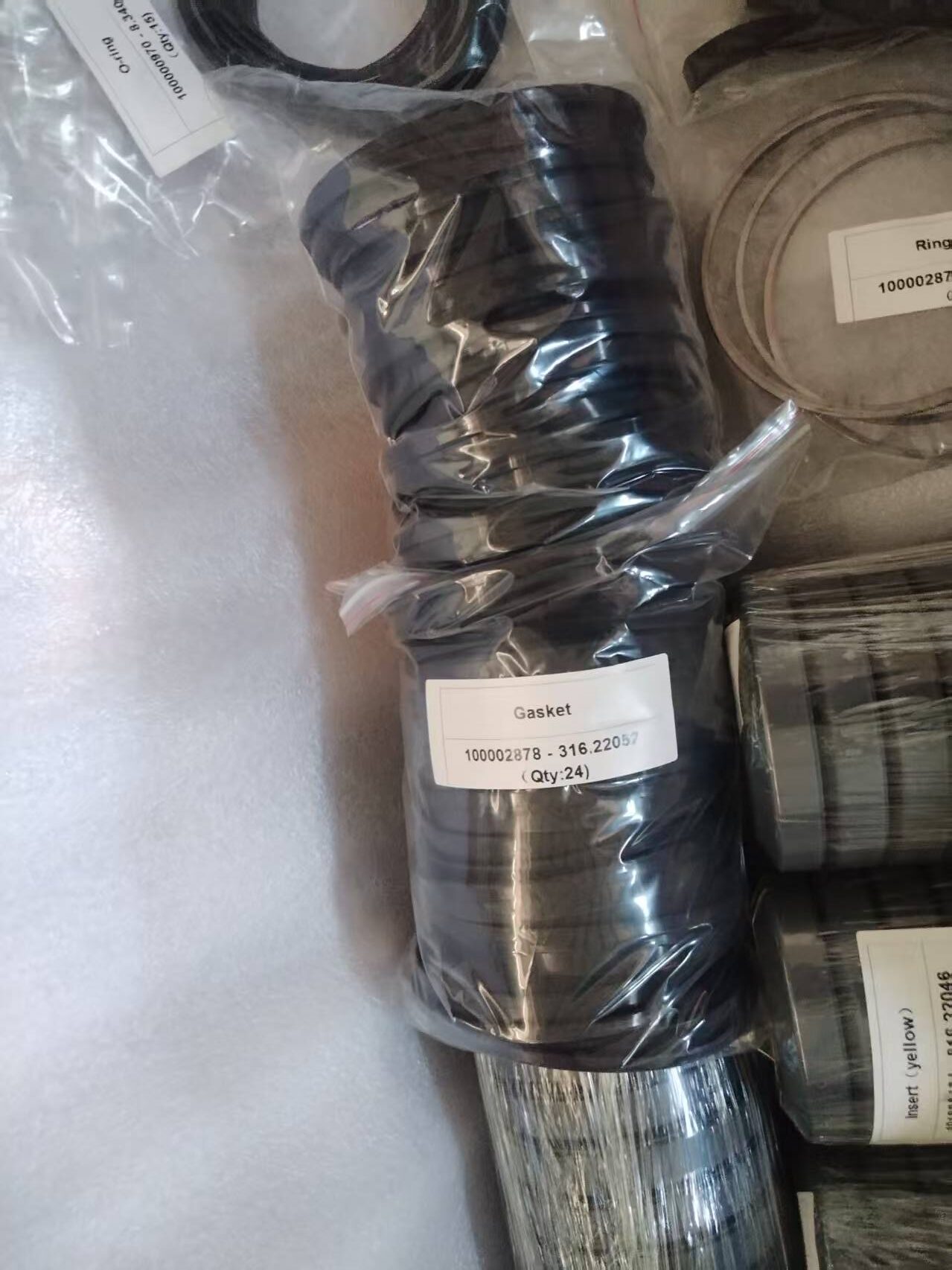

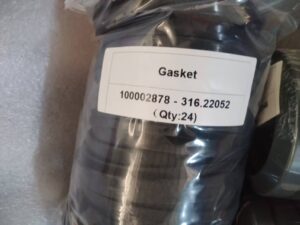

Gasket, Discharge valve and cylinder head cover.	100002878 – 316.22052

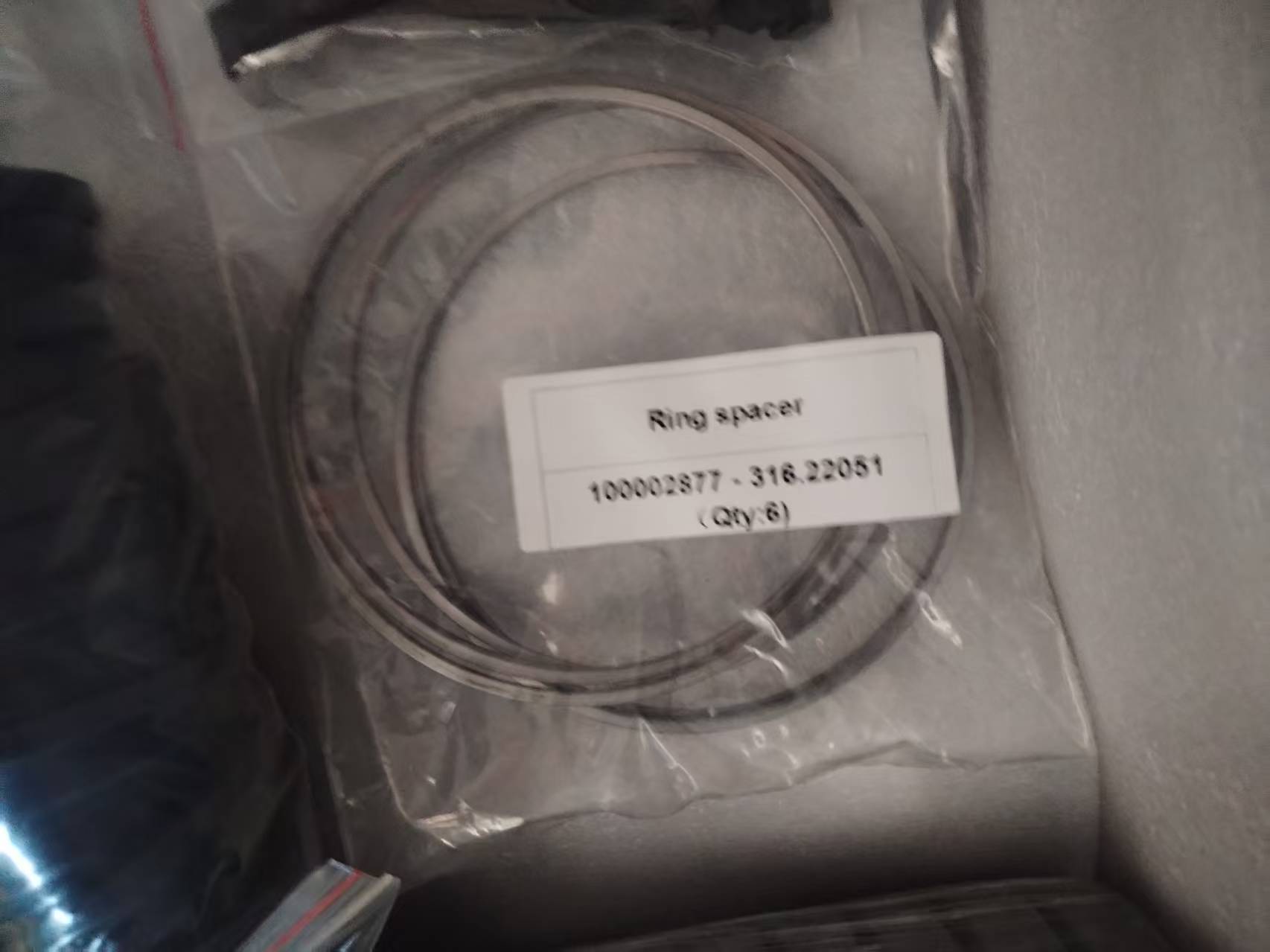

Ring spacer, discharge valve and cylinder head cover.	100002877 – 316.22051

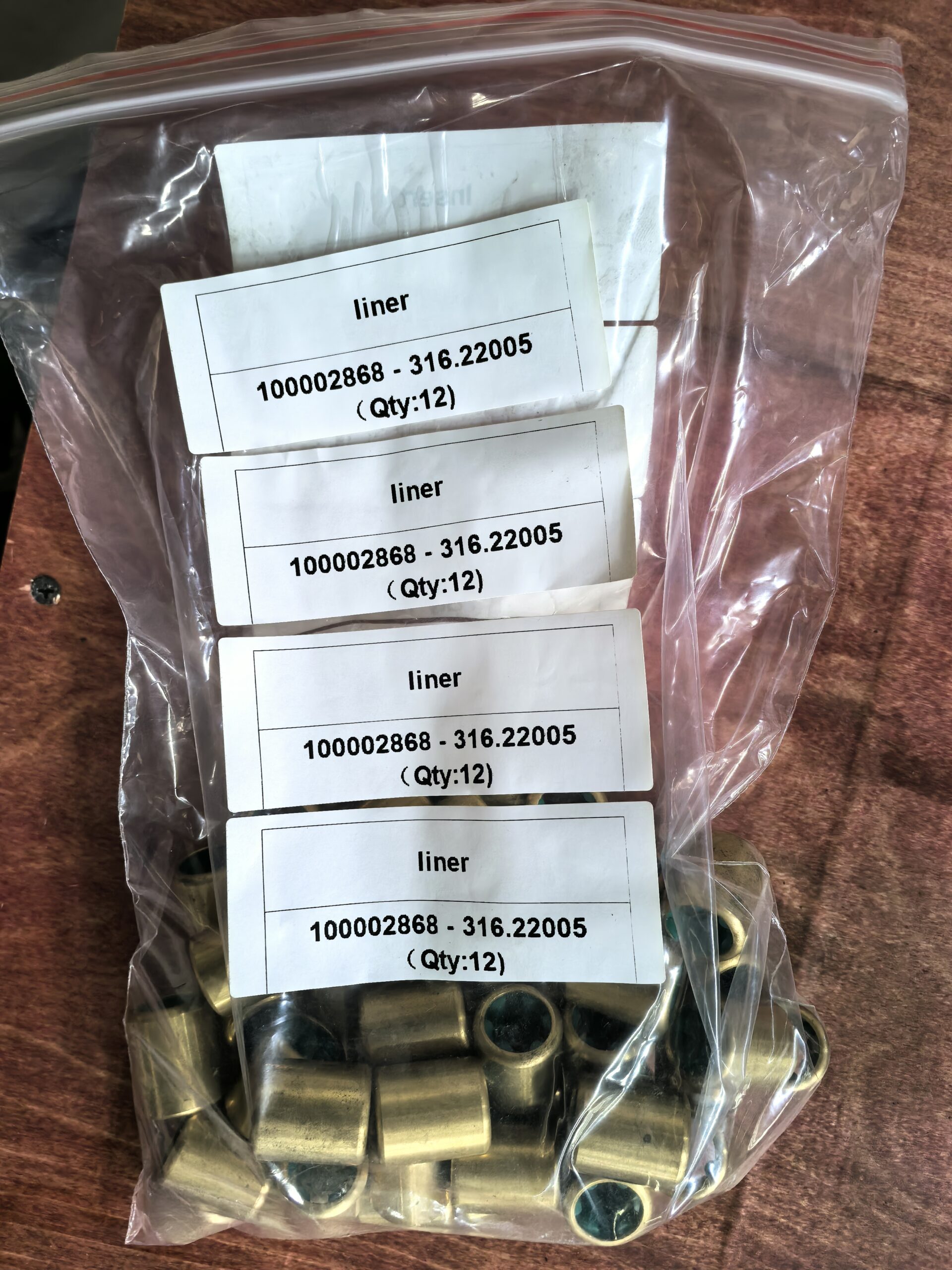

liner, – two pice bushing valve guide.no4 fracbrass.	100002868 – 316.22005

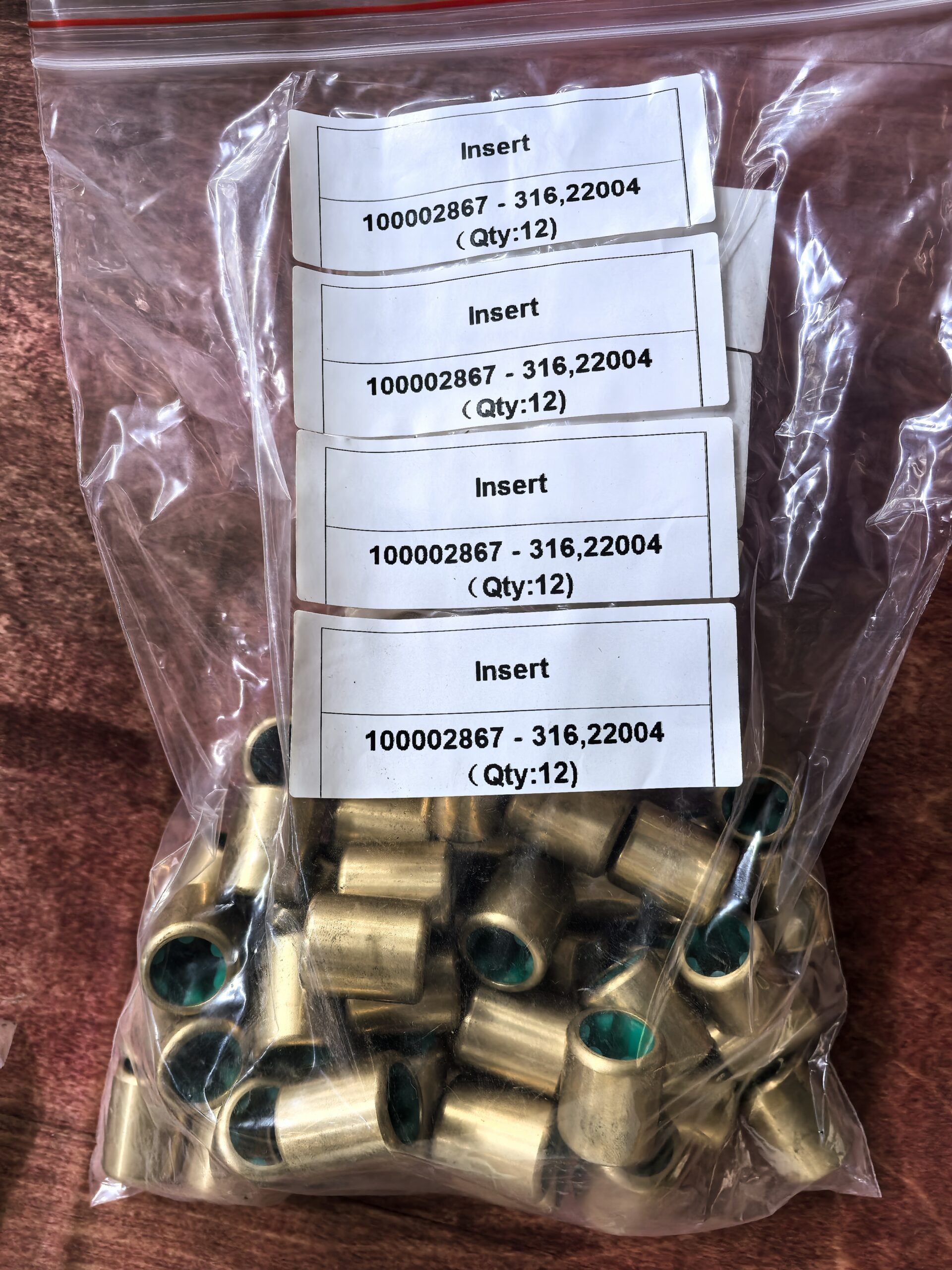

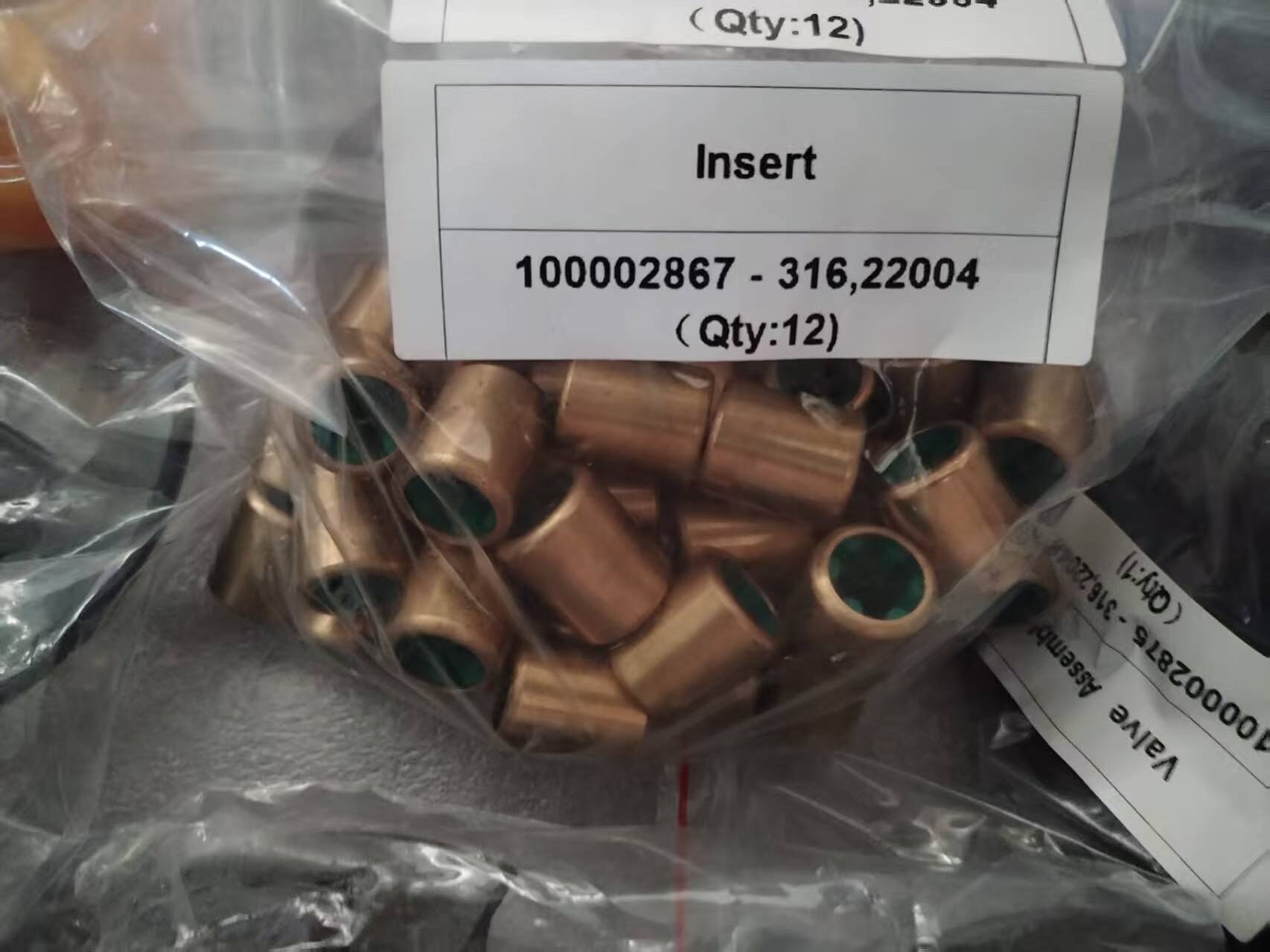

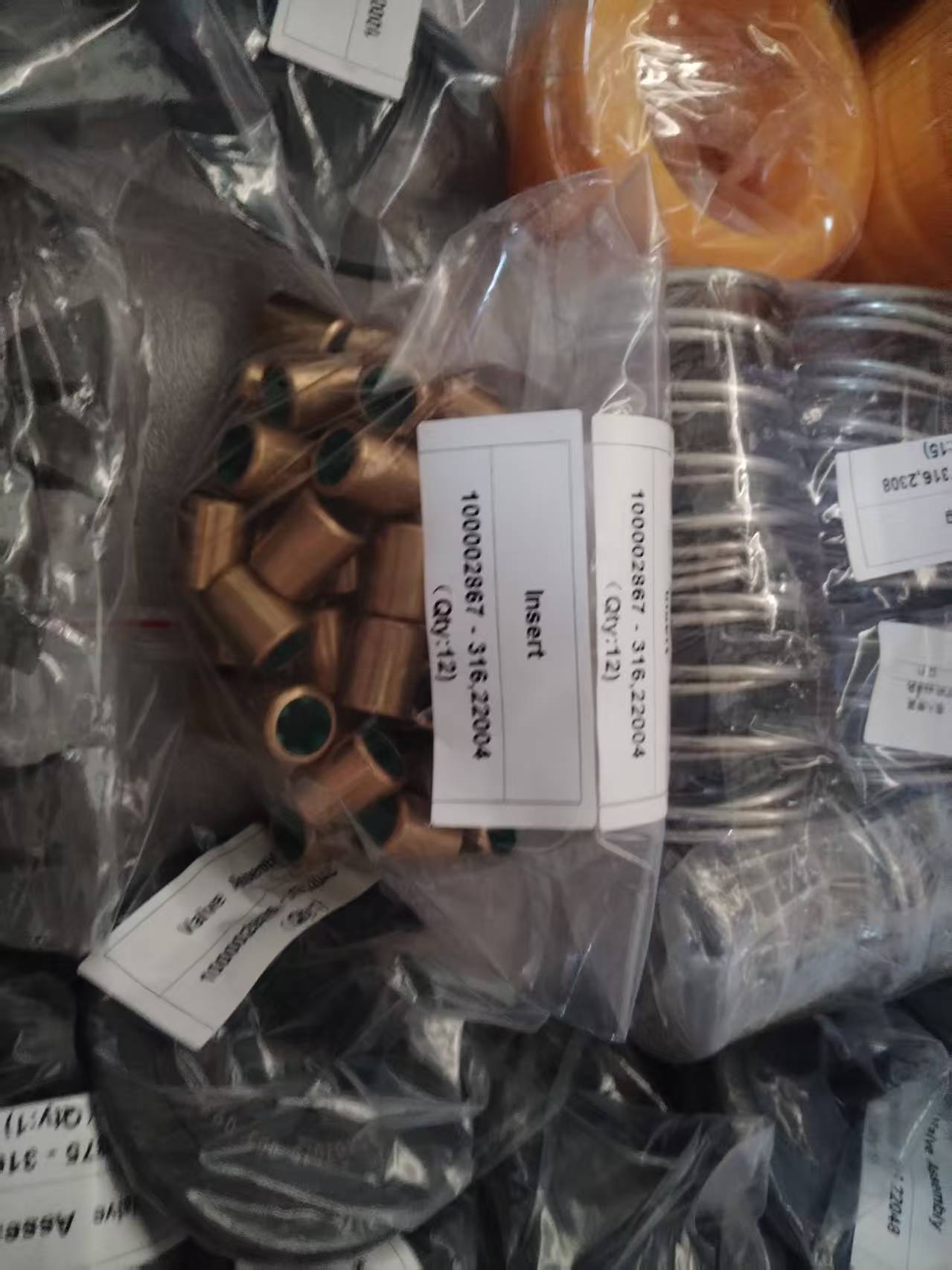

Insert, Two piece bushing, valve guide, special, ht-400, no 4 frac	100002867 – 316.22004

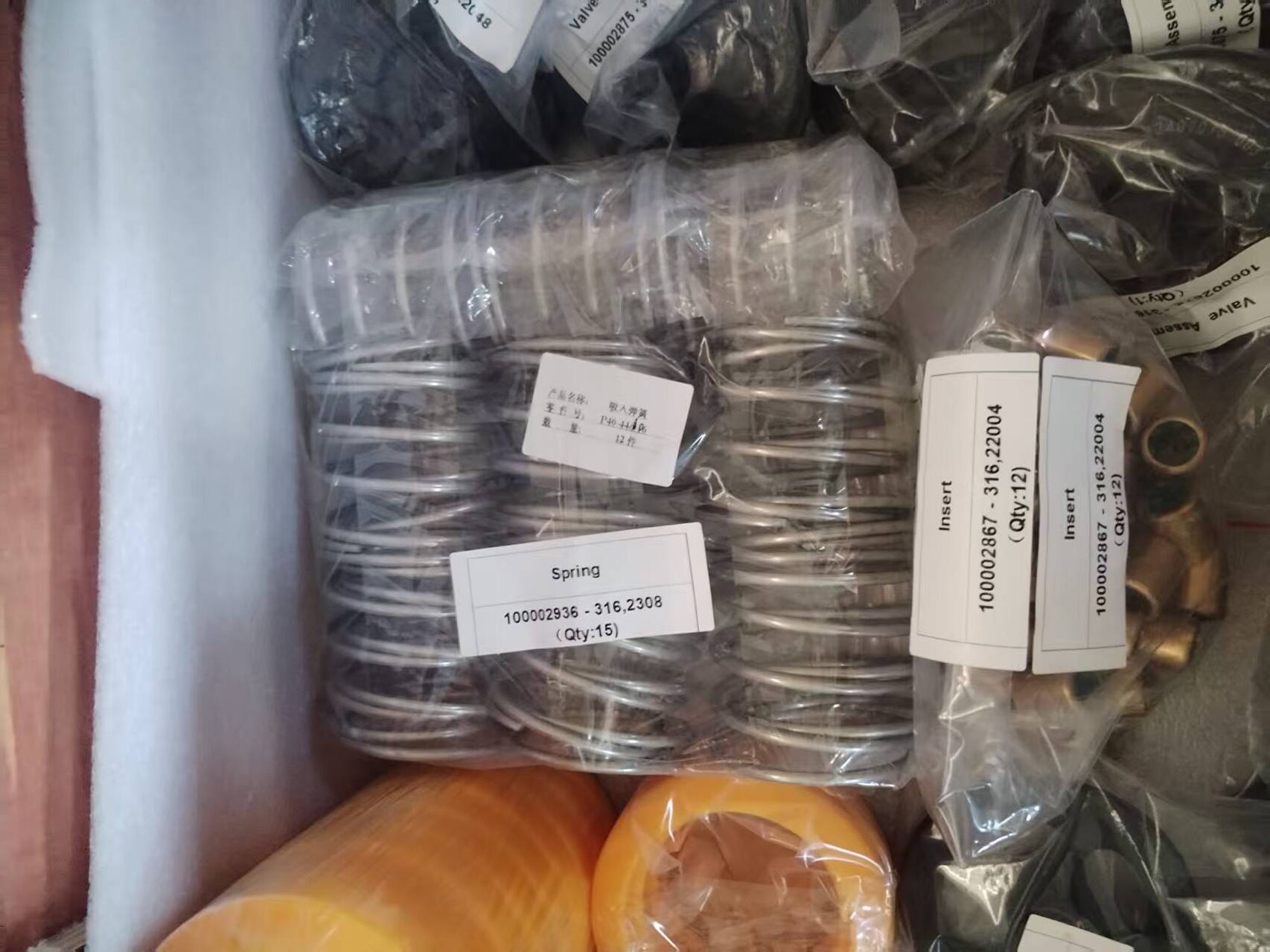

Spring, valve, ht 400, no,4, 4.5inch, 25 lb/in	100002936 – 316.2308

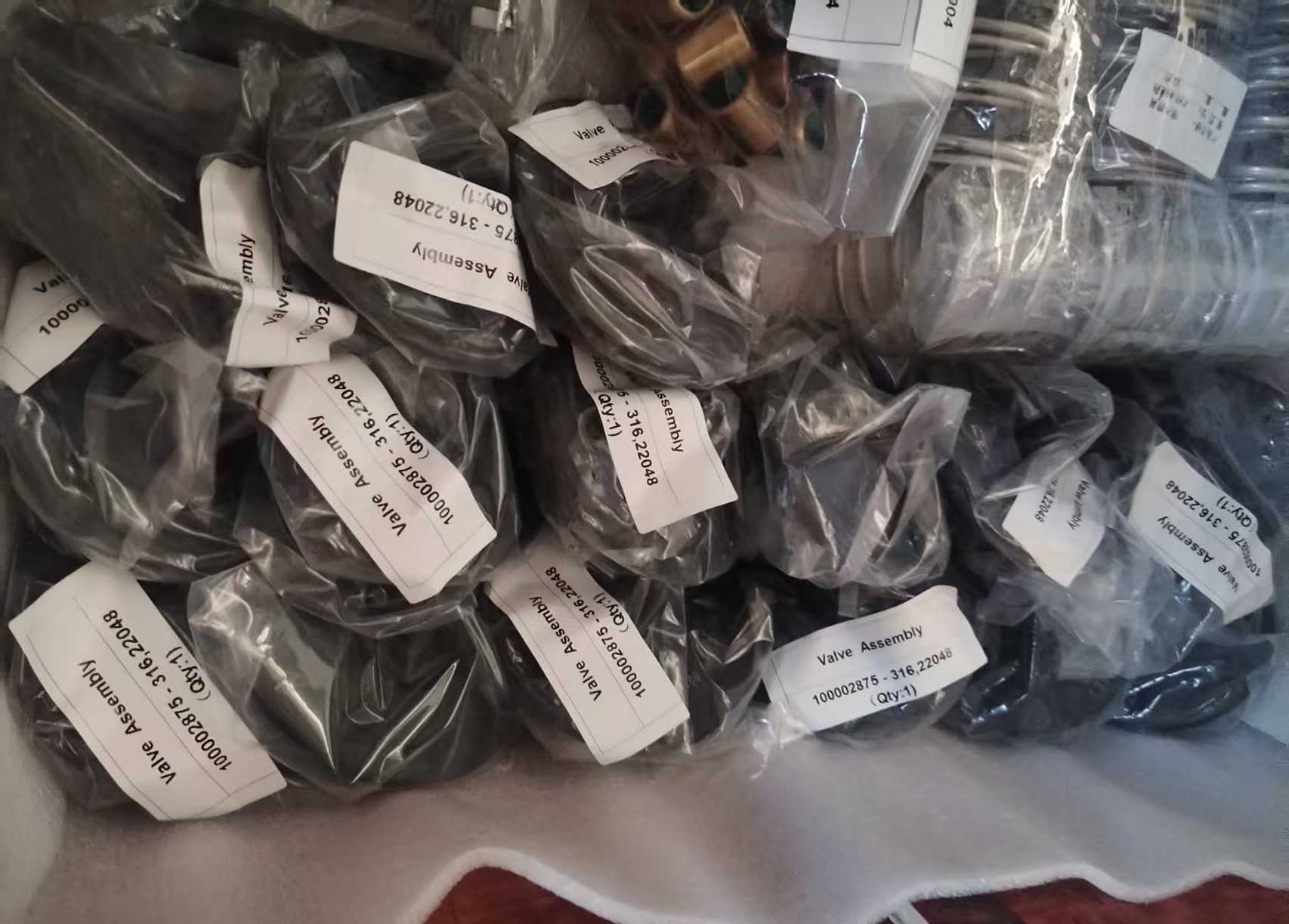

Valve ht 400, 4.5inch, frac	100002875 – 316.22048

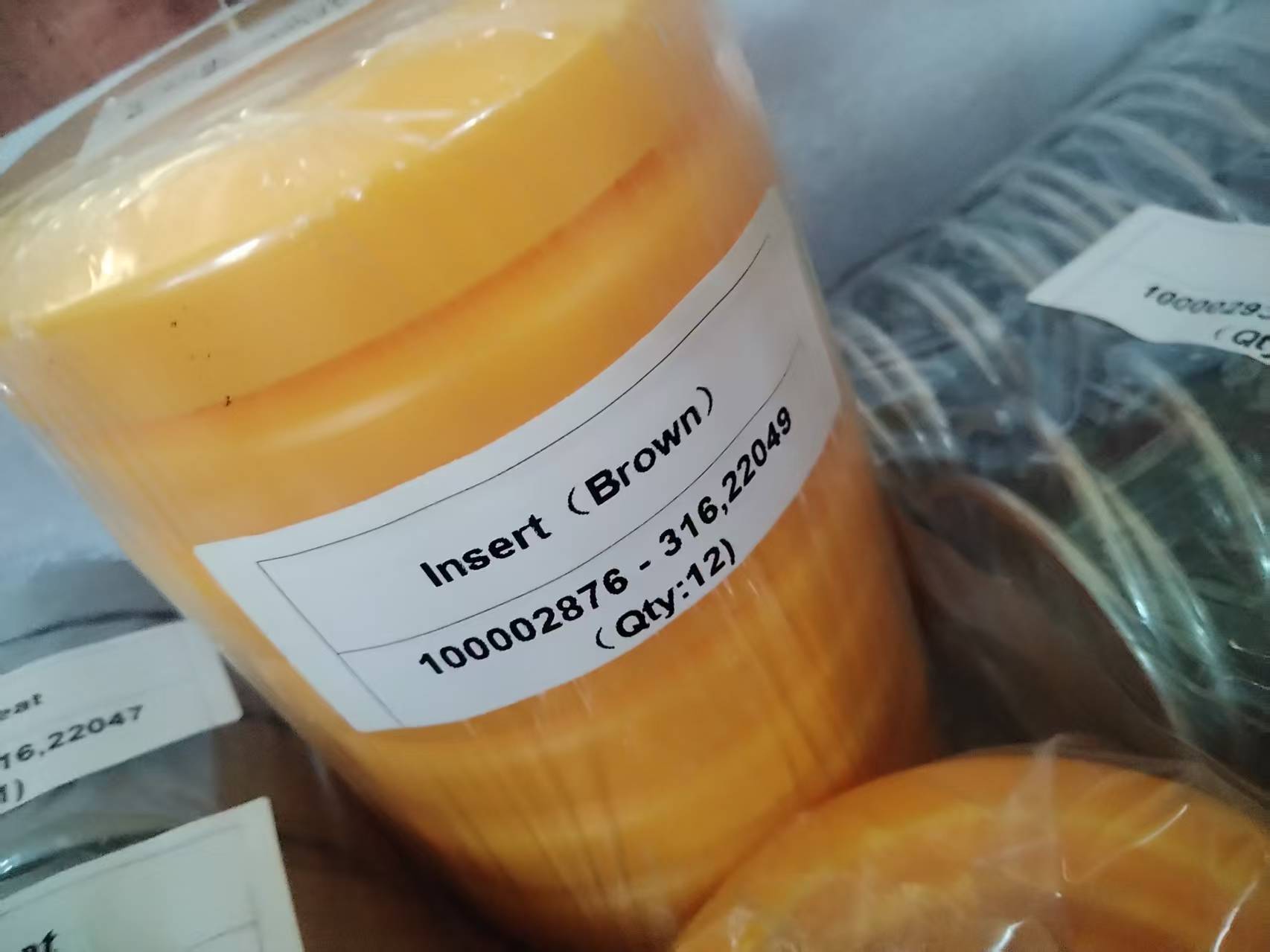

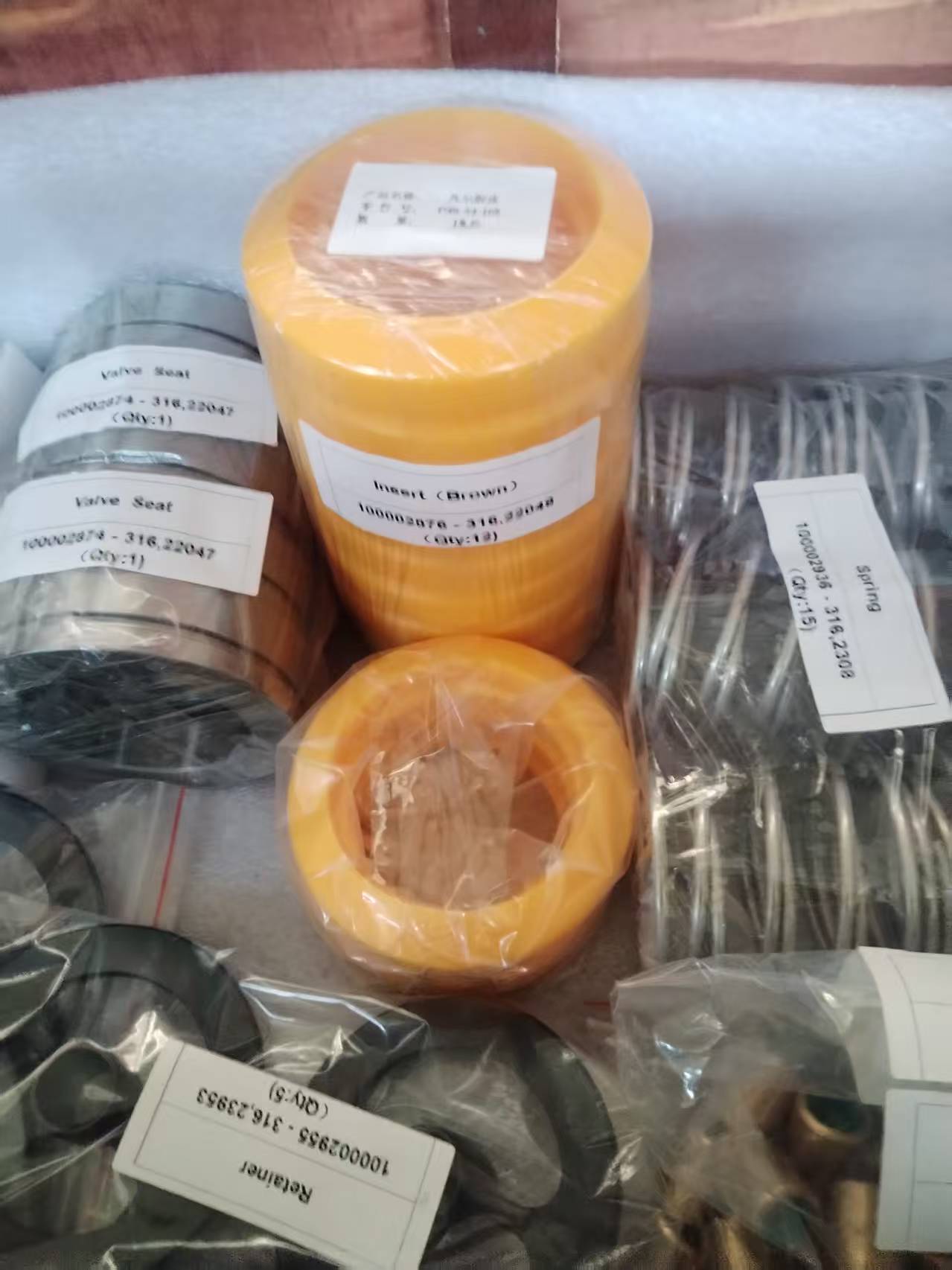

Insert, valve, ht400,no, 4 frac, urethane, standard service (Brown)	101333104 – 316.22046

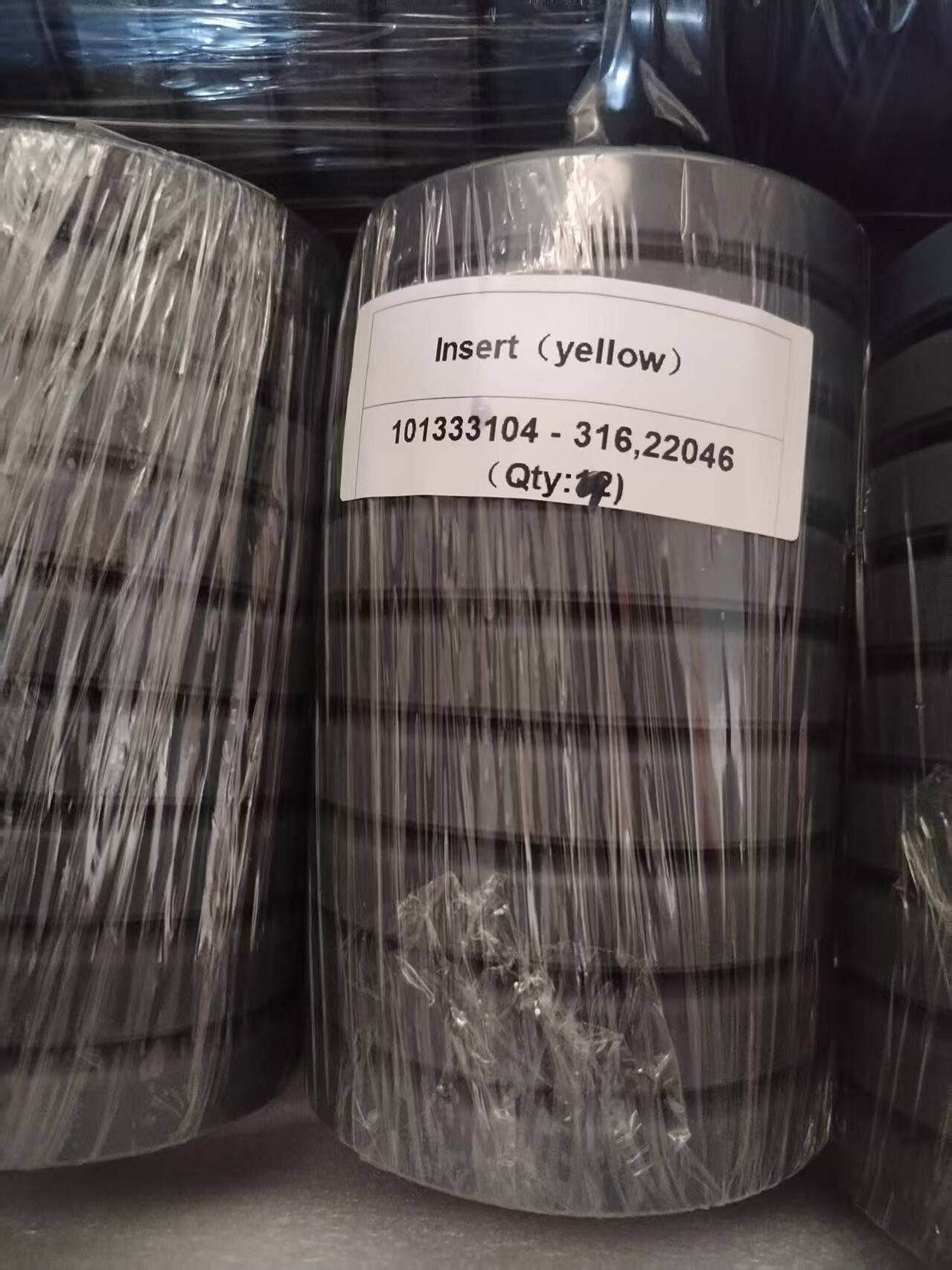

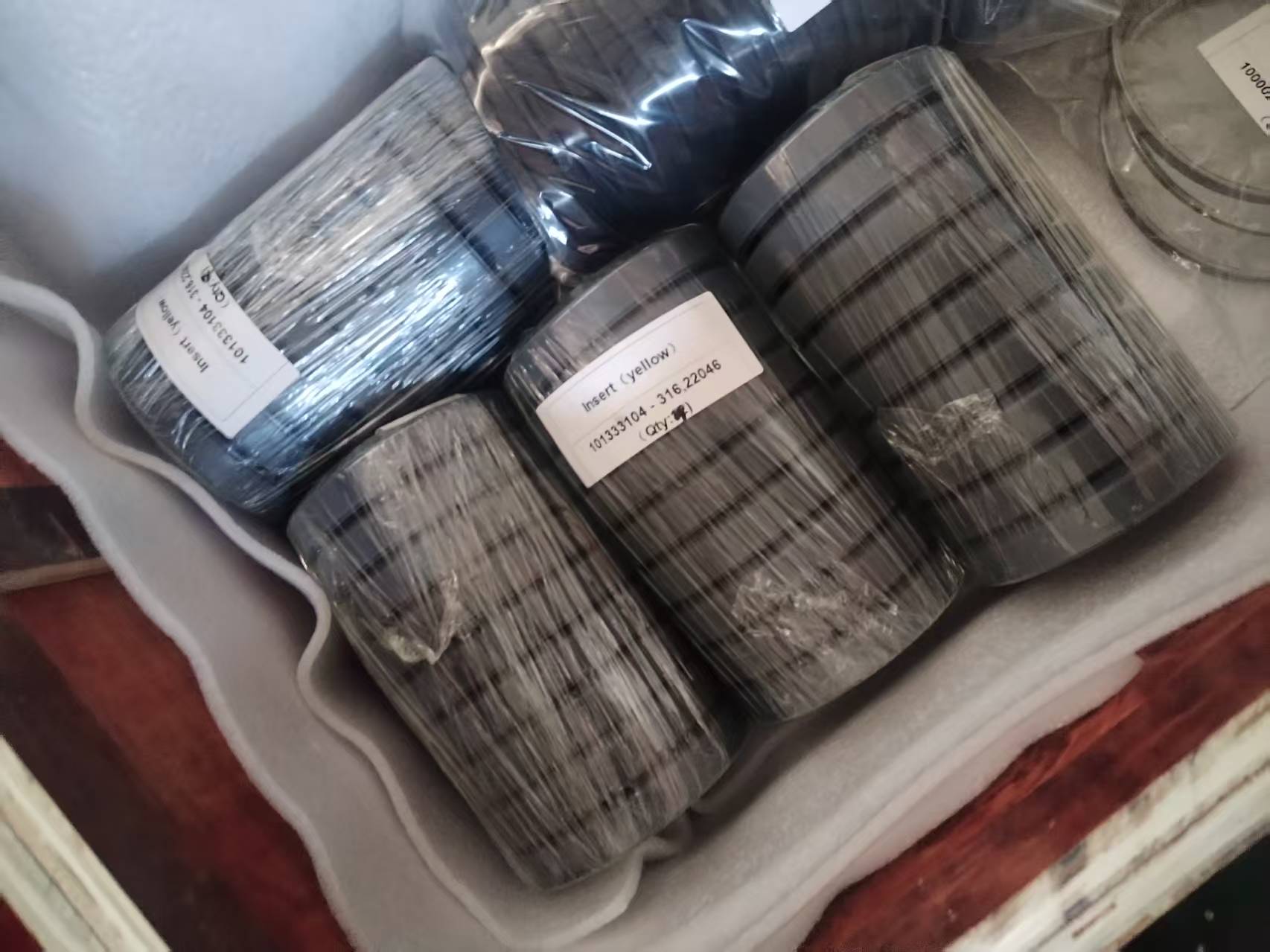

Insert, valve, ht400,no,4frac, urethane, Acid/frac service (yellow)	100002876 – 316.22049

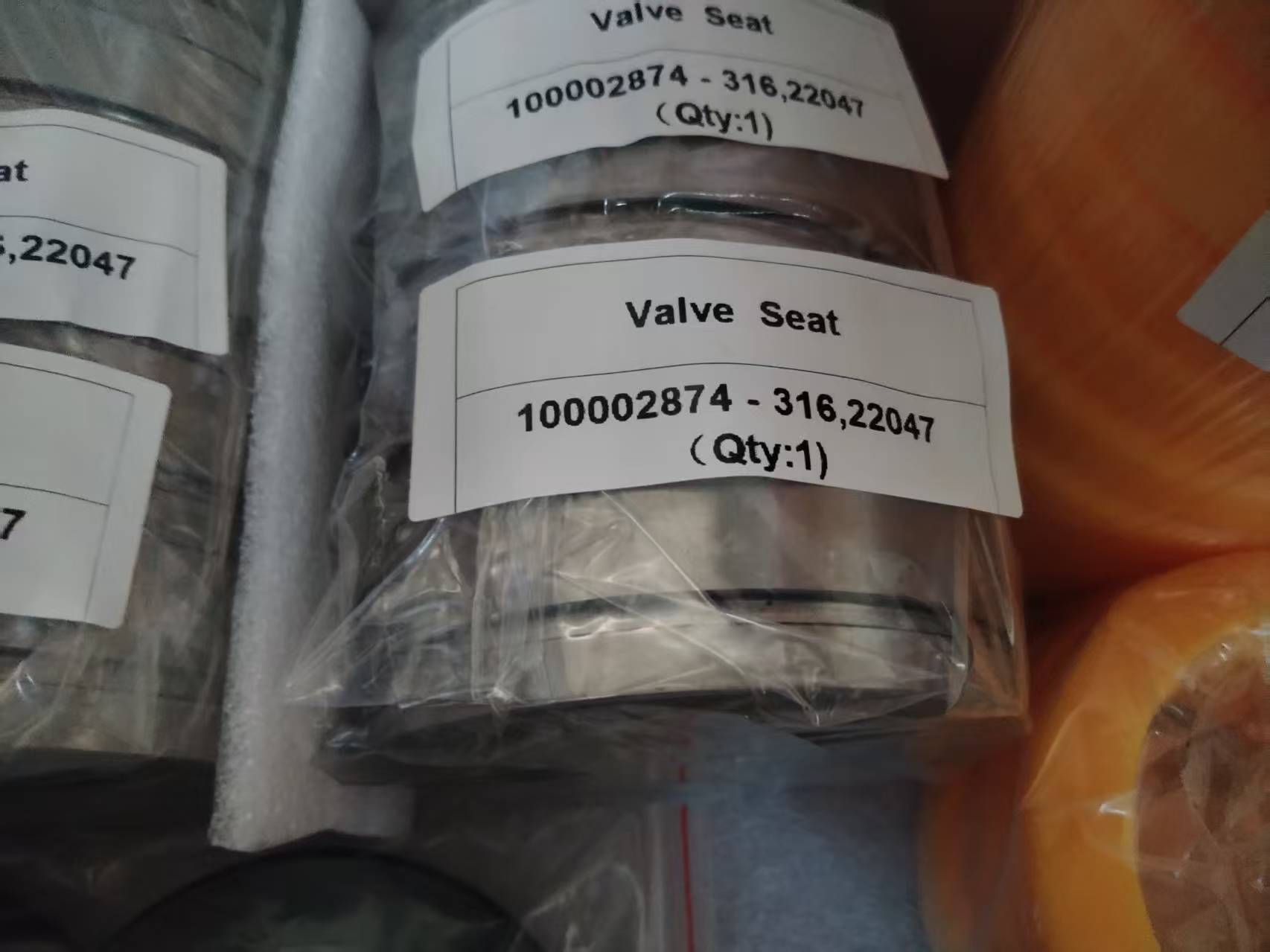

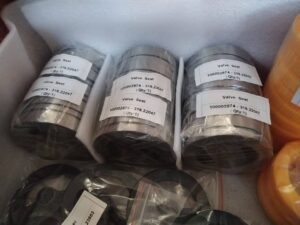

Set valve, ht400,no, 4 frac, tapered	100002874 – 316.22047

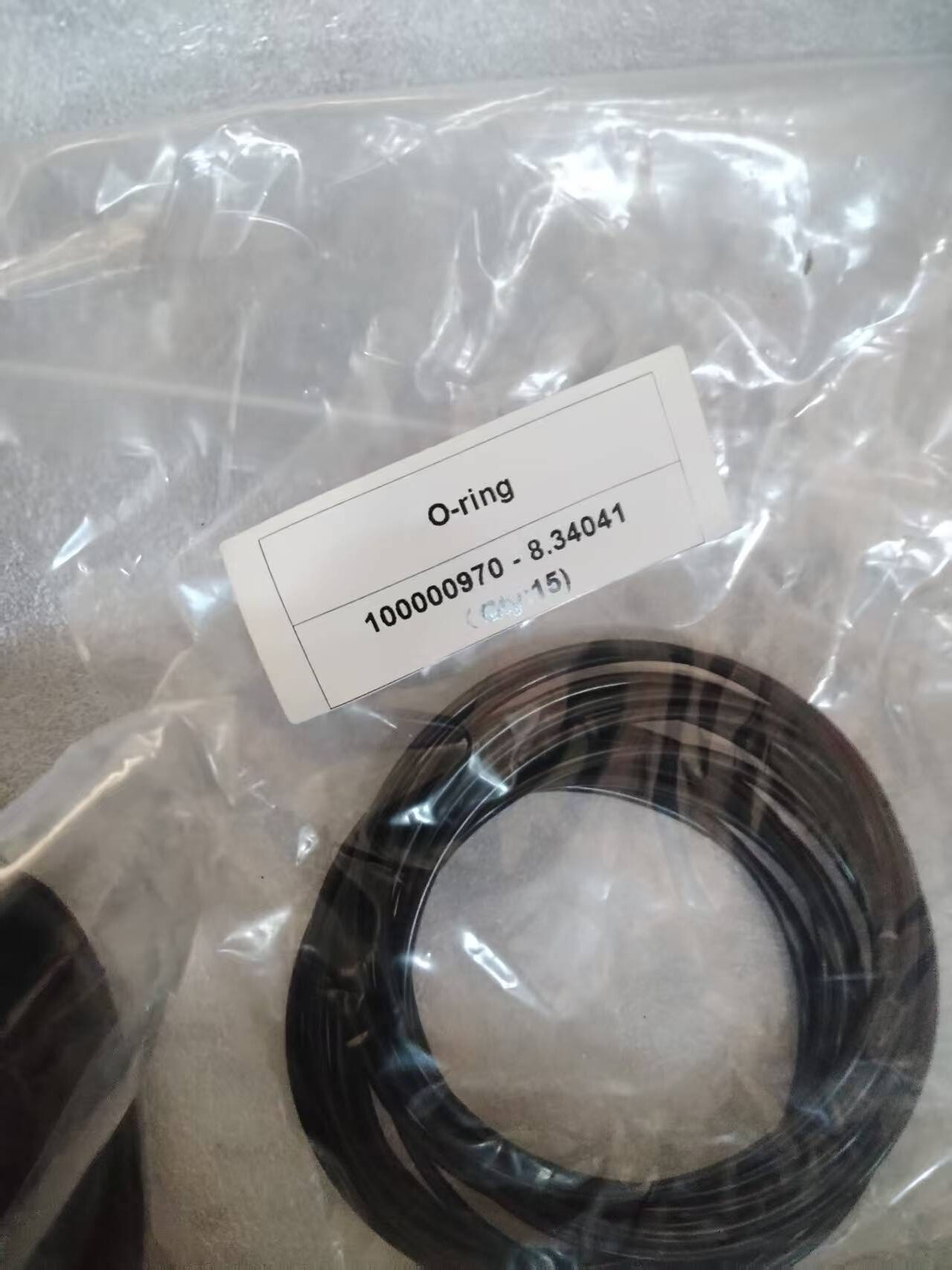

O-ring, 90 duro, 4 1/2 x 4 1/4 x 1/8, 568-244	100000970 – 8.34041

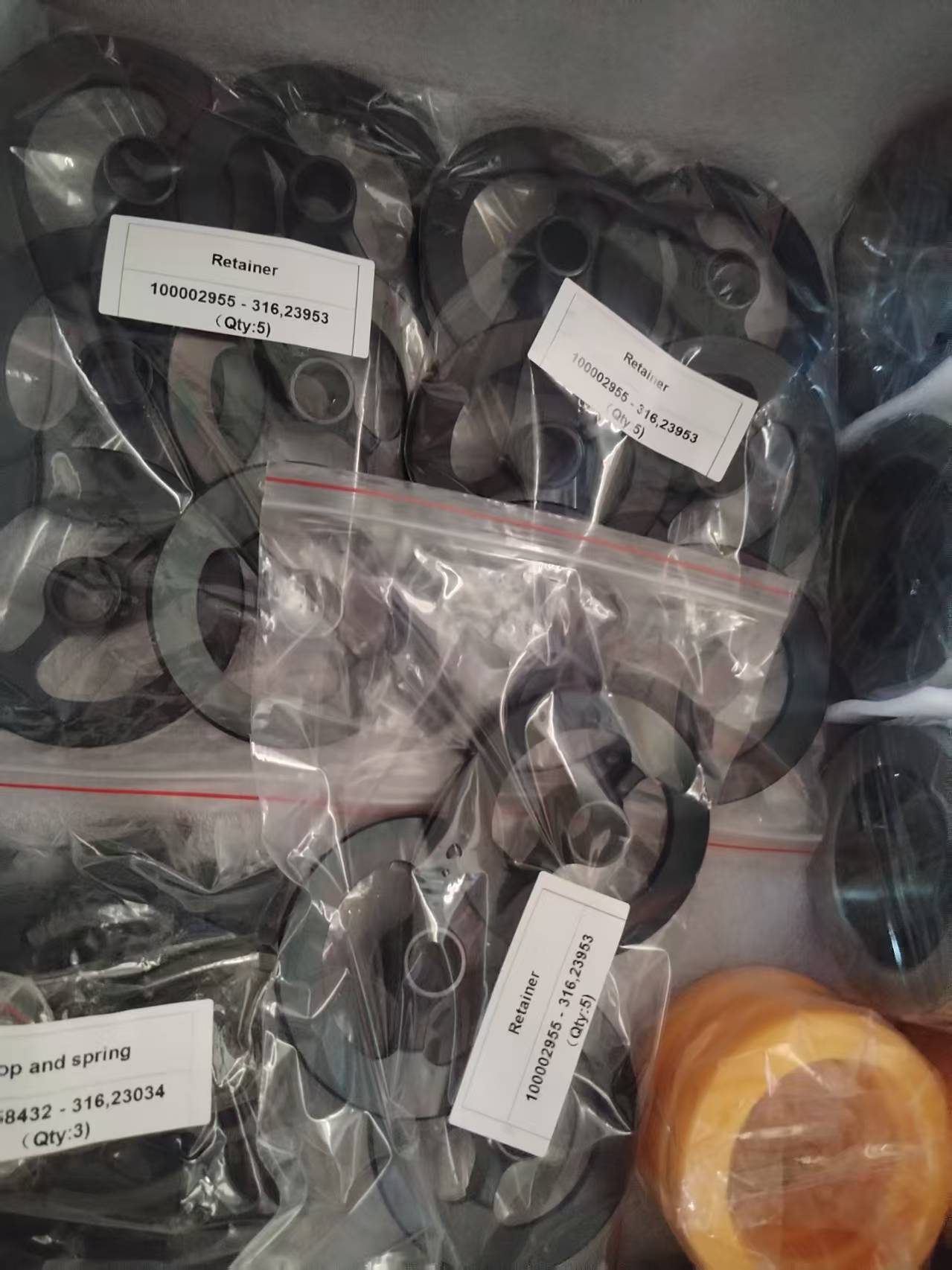

Retainer, guide bushing, th400, no, 4, tapered set bore	100002955 – 316.23953

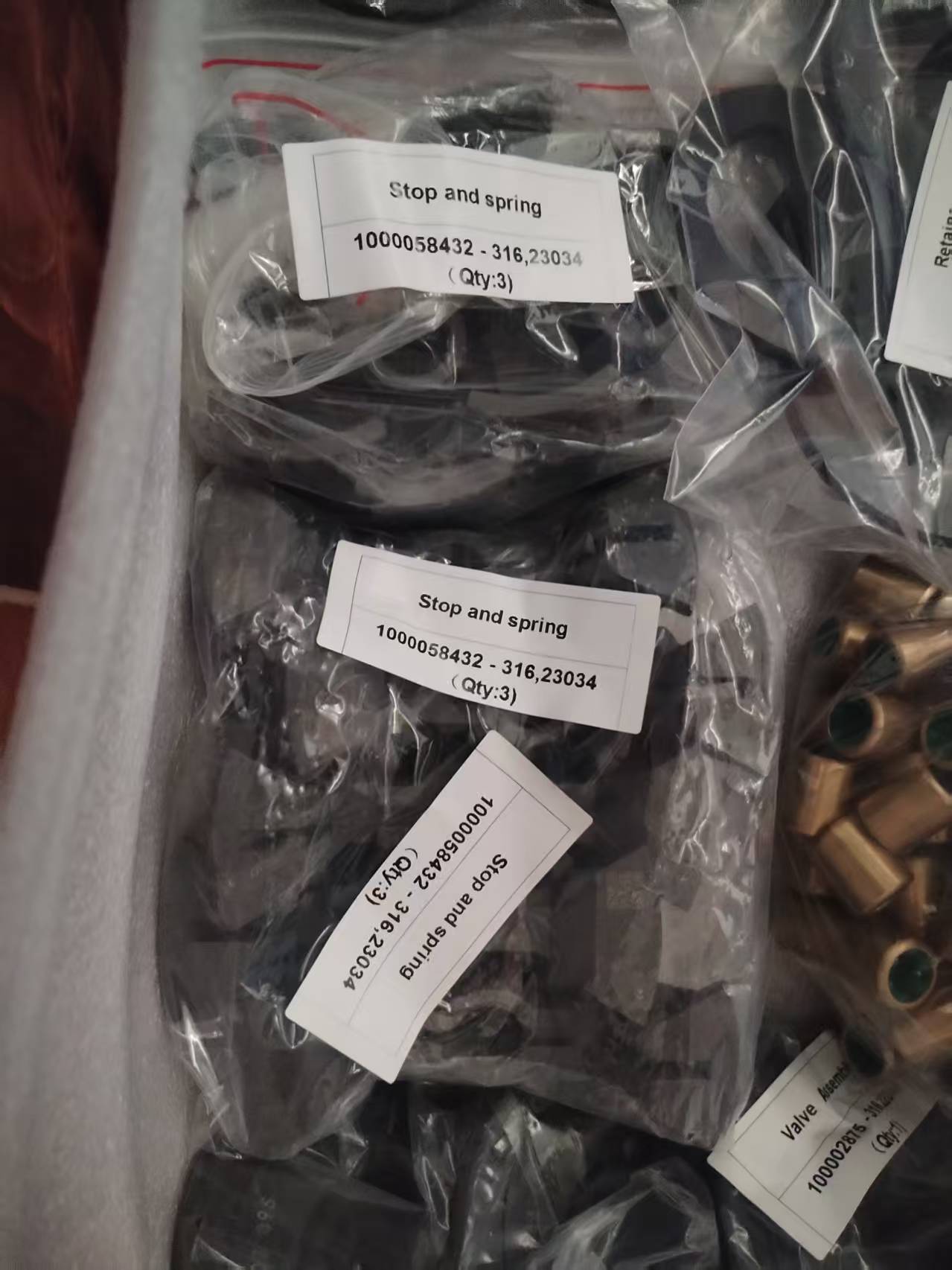

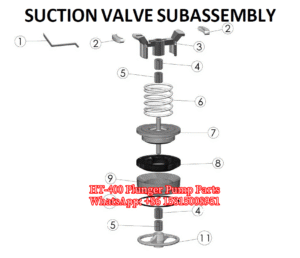

Retainer, stop and spring, ht400 4suction valve, mach, cast.	1000058432 – 316.23034

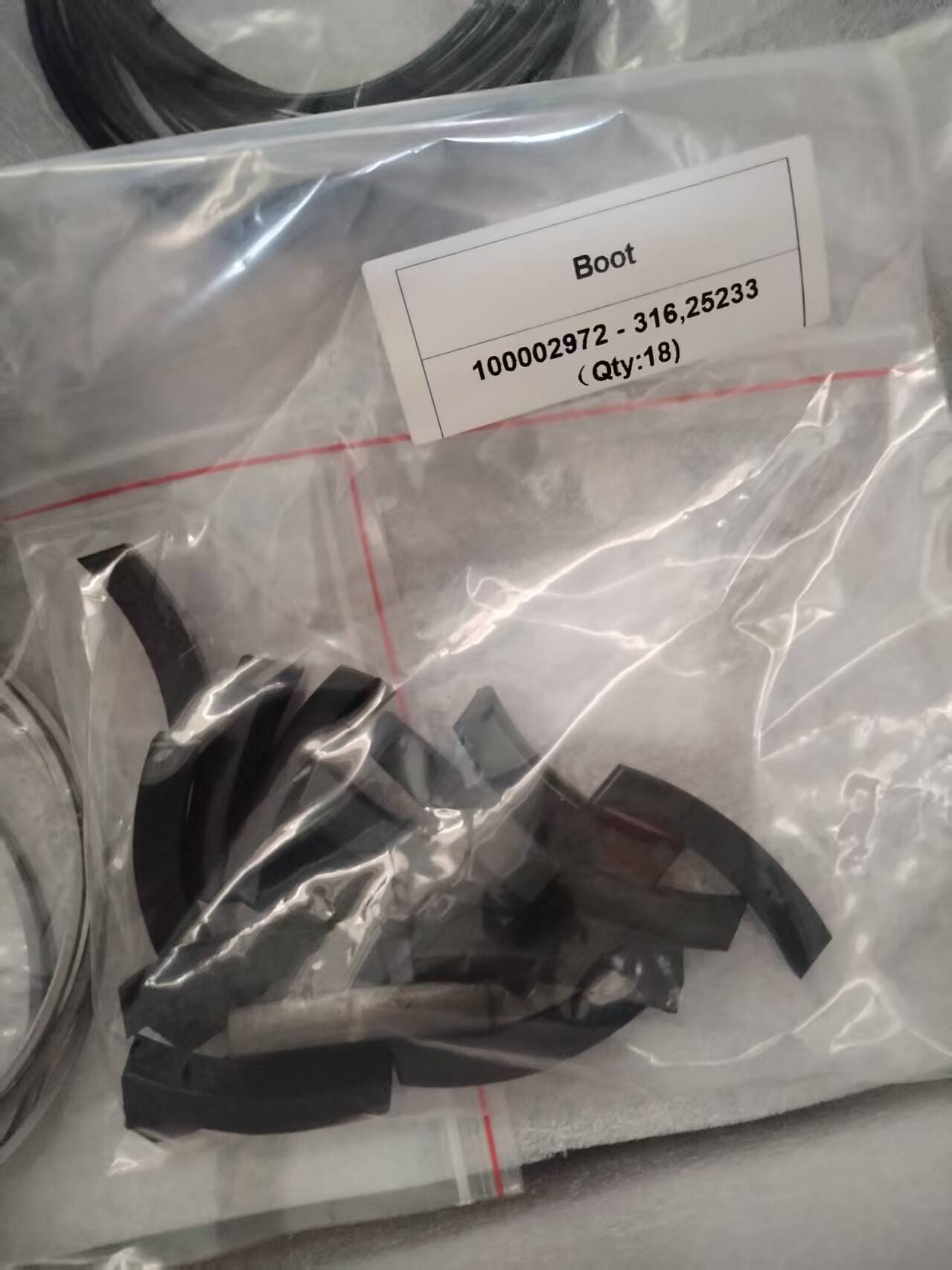

Boot, suction and stop, ht400 3.4 and 5 frac.	100002972 – 316.25233

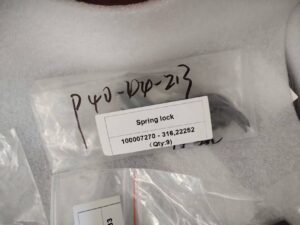

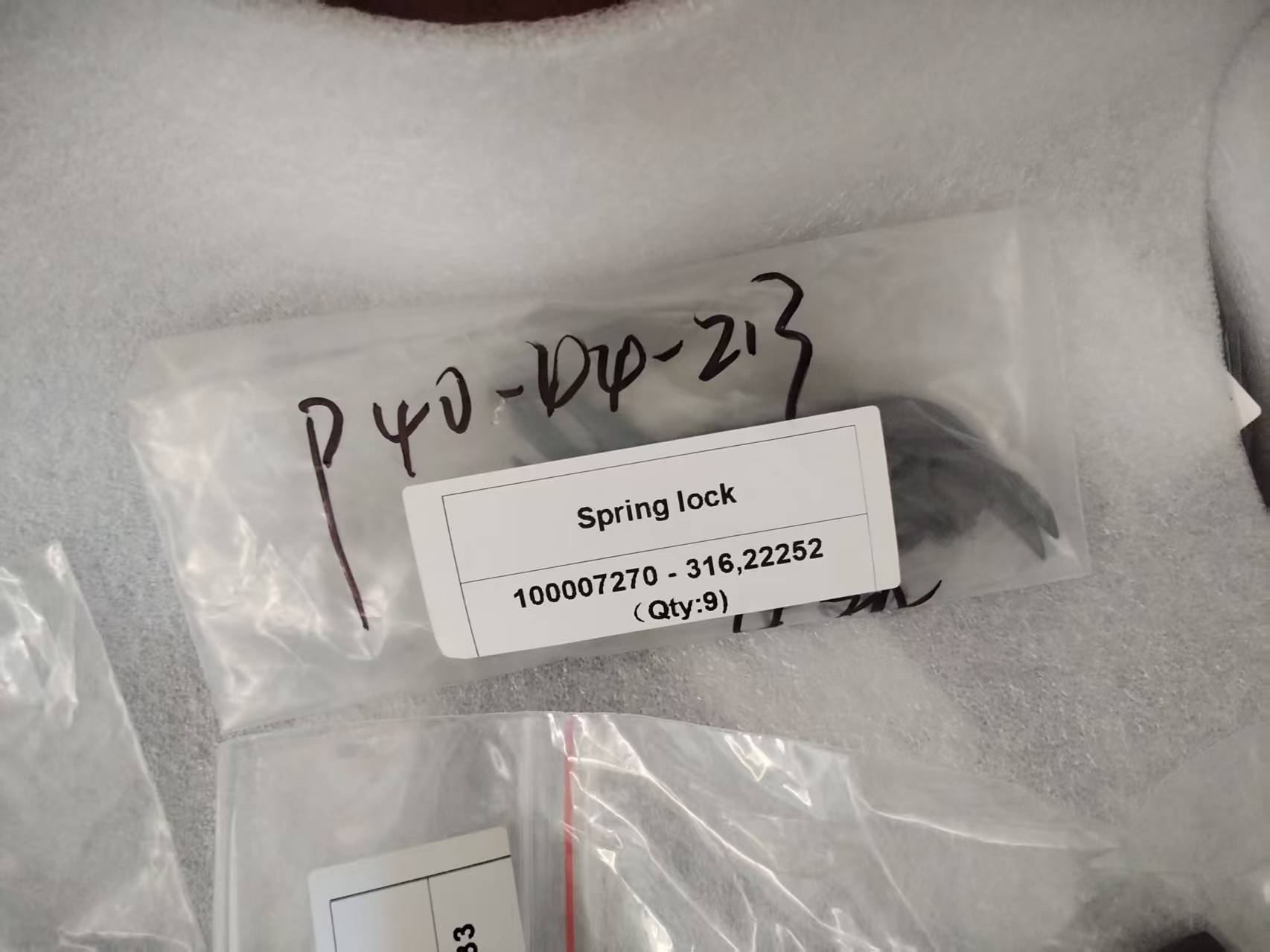

Spring lock suction stop, no,4, ht400	100007270 – 316.22252

HT-400 Pump Power-End Parts

Worm Gear Drive-End Assembly
SAP PN	Legacy No.	Qty	Description
100007816	316.11631	2	Gasket, Worm Housing Input End
100058137	316.11619	1	Retainer, Bearing, Worm-Drive End
100058140	316.11625	1	Bearing, Drive End-Worm Shaft
100058139	316.11620	1	Inner Race for 316.11625
100029186	70.46241	1	Seal, Oil, 53-in. x 7448, Fl, 4-in. B x 5 1/2-in. OD x 1/2-in. Wide
100058134	316.11615	1	Cover, Oil Seal Retainer
100029874	70.58806	4	Washer, Flat, 3/8-in. WI, Pl
13431	70.43839	4	Screw Hex Socket, 3/8-in.16NC x 1 1/4-in., Unbrako/Loc-Wel
100054533	280.03021	1	Flange, Companion, 1810 Series, 3.0 – 10 Spline
100058133	316.11613	1	Washer, Worm Yoke Retainer
100058132	316.11611	1	Washer, Lock, Worm Yoke Retainer
100028455	70.43816	2	Screw, Hex Cap, 3/8-in. 16UNC x 1 1/4-in., Pl

Cone Drive (8.4:1) Worm Gear Thrust End Assembly
SAP PN	Legacy No.	Qty	Description
100058310	316.16416	1	Plug, Orifice, 1/8-in. NPT, 0.157-in. Diameter Hole
100028380	70.43680	12	Screw, Hex Socket, 1/2-in. 13UNC x 5 1/2-in., Drilled Head
100058235	316.13200	1	Plate, thrust, bearing retainer modified for plunger lube pump
100015435	8.34062	2	O-Ring, 90D, 8, 7 3/4-in. x 1/8-in.
100011748	317.51064	1	Adapter, HQ, Worm Shaft, Plunger Lube
100058150	316.11667	as req.	Shim, Clearance, Worm Thrust Bearing, 0.003 in.
100011686	316.11669	as req.	Shim, Clearance, Worm Thrust Bearing, 0.005 in.
100011687	316.11671	as req.	Shim, Clearance, Worm Thrust Bearing, 0.010 in.
100011688	316.11673	as req.	Shim, Clearance, Worm Thrust Bearing, 0.020 in.
100058210	316.13100	1	Nut, Lock, HT400, worm thrust end, nut and star washer
100058142	316.11629	1	Bearing, Thrust, Stack Worm
100058144	316.11633	1	Bushing, Worm Thurst Bearing
100058145	316.11634	1	Key, Worm-Thrust Bearing
100058141	316.11627	1	Bearing, Thrust-End, Worm Shaft
100058147	316.11645	1	Retainer, Iron Worm-Thrust End Bearing
100015435	8.34062	2	O-Ring, 90D, 8, 7 3/4-in. x 1/8-in.
100058249	316.13253	as req.	Shim, 0.005-in., Worm Positioning
100058250	316.13254	as req.	Shim, 0.010-in., Worm Positioning
100058251	316.13255	as req.	Shim, 0.020-in., Worm Positioning
100057938	315.31154	1	Key, Worm-Thrust Bearing Spacer
100058285	316.13522	1	Worm, Gear, 8.4 to 1 Ratio, Cone Drive

Holroyd (8.6:1) Worm Gear Thrust-End Assembly
SAP PN	Legacy No.	Qty	Description
100011699	316.13657	8	Screw, Cap, Worm Housing, RH
100012919	70.32821	4	Nut, Elastic Stop, 1/2-13 NC, Heavy, PL
100011684	316.11637	1	Pump, Assembly, Oil, 100 GPM, Tuthill, HT-400™ PE
100058267	316.13306	4	Stud, Long Loc Insert, Tuthill Oil Pump Mounting
100013727	8.34061	1	O-Ring, 90 Duro 7 3/4 X 7 1/2 X 1/8, 568-264
100058150	316.11667	as req.	Shim, Clearance, Worm Thrust Bearing, 0.003 in.
100011686	316.11669	as req.	Shim, Clearance, Worm Thrust Bearing, 0.005 in.
100011687	316.11671	as req.	Shim, Clearance, Worm Thrust Bearing, 0.010 in.
100011688	316.11673	as req.	Shim, Clearance, Worm Thrust Bearing, 0.020 in.
100058210	316.13100	1	Nut, Lock, HT400, Worm Thrust End, Nut and Star Washer
100058146	316.11644	1	Adapter, Brown and Sharp Lubricator Pump
100058142	316.11629	1	Bearing, Thrust, Stack Worm
100058144	316.11633	1	Bushing, Worm Thurst Bearing
100058145	316.11634	1	Key, Worm-Thrust Bearing
100058141	316.11627	1	Bearing, Thrust-End, Worm Shaft
100058147	316.11645	1	Retainer, Iron Worm-Thrust End Bearing
100015435	8.34062	1	O-Ring, 90D, 8, 7 3/4-in. x 1/8-in.
100057938	315.31154	1	Key, Worm-Thrust Bearing Spacer
100058130	316.11601	1	Gear, Worm, 8.6:1 Ratio, Holroyd, HT-400™ PE

Ring Gear Subassembly (A)
SAP PN	Legacy No.	Qty	Description
100027204	100058121	1	Pin, Cotter, 1/8-in. x 1 1/2-in., Spring Steel
100026544	70.32970	1	Nut, Hex Slot, 1-in. 14NF, Pl
100058092	316.11407	4	Screw, Cap, Spline Drive
100030594	70.62391	1	Wire, Stove Pipe, 19 Ga., 72-in. Long
100058107	316.11521	1	Spider, Crankshaft Thrust Retainer
100058105	316.11519	1	Bushing, Spider Spacer
100058100	316.11512	as req.	Shim, Positioning, Crankshaft Axial, 0.020-in.
100058104	316.11518	as req.	Shim, Positioning, Crankshaft Axial, 0.040-in.
100058109	316.11522	as req.	Shim, Positioning, Crankshaft Axial, 0.060-in.
100058110	316.11523	1	Coupling, Crankshaft, Spline Drive
100030594	70.62391	1	Wire, Stove Pipe, 19 Ga., 190-in. Long
100058111	316.11524	24	Screw, Cap, Ring, Mounting, Gear Clamp
100058125	316.11548	24	Washer, Left-Hand Gear Bearing Clamp
100028108	70.42965	1	Rod, Welding, L-61, 1/8-in., 95-in. Long
100023759	70.17324	1	Connector, No. 8, 128-B Reliance
100058127	316.11551	1	Flange, Gear Spline Drive
100058128	316.11553	1	Adapter, Clamp Ring, HT-400™, PE, Right-Hand Only
100011699	316.13657	16	Screw, Cap, Worm Housing, Right-Hand
100030594	70.62391	1	Wire, Stove Pipe, 19 Ga., 120-in. Long
100058123	316.11545	1	Ring, Thrust, Gear Bearing
100058117	316.11535	as req.	Shim, Clearance, Gear Support Bearing, 0.003-in.
100058118	316.11537	as req.	Shim, Clearance, Gear Support Bearing, 0.005-in.
100058119	316.11539	as req.	Shim, Clearance, Gear Support Bearing, 0.010-in.
100058121	316.11541	as req.	Shim, Clearance, Gear Support Bearing, 0.020-in.

Ring Gear Subassembly (B)
SAP PN	Legacy No.	Qty	Description
100058122	316.11543	1	Bearing, Gear Support
100058120	316.1154	2	Thrust Cage Assembly for 316.11543
100058284	316.13521	1	Gear, Ring, 8.4 to 1 Ratio, Cone Drive Use only with Cone Drive worm gear (100058285).
100058103	316.11517	1	Gear, Ring, 8.6 to 1 Ratio Holroyd Use only with Holroyd worm gear (100058130)
100058129	316.11556	24	Lug, Gear Bearing Clamp, Right Hand Only
100028108	70.42965	1	Rod, Welding, L-61, 1/8-in., 95-in. Long, Right Hand Only
100058111	316.11524	24	Screw, Cap, Ring Mounting, Gear Clamp, Right Hand Only
100023759	70.17324	1	Connector, No. 8, 128-B Reliance, Right Hand Only
100028247	70.43381	16	Screw, Hex Socket, 1/2-in. 13NC x 1 1/4-in.
100029934	70.58986	16	Washer, Lock, 1/2-in., Int Shakeproof, Pl
100058112	316.11525	1	Support, Bearing, Ring Gear
100058113	316.11527	as req.	Shim, Positioning, Gear Side, 0.003-in.
100058114	316.11529	as req.	Shim, Positioning, Gear Side, 0.005-in.
100058115	316.11531	as req.	Shim, Positioning, Gear Side, 0.010-in.
100058116	316.11533	as req.	Shim, Positioning, Gear Side, 0.020-in.
100058092	316.11407	2	Screw, Cap, Spline Drive
100030594	70.62391	1	Wire, Stove Pipe, 19 Ga., 24-in. Long
100081184	70.58959	4	Washer, Lock, 1/2-in., Stl-Pl
100058101	316.11514	1	Stud, Flanged, Crankshaft Thrust
100028108	70.42965	1	Rod, Welding, L-61, 1/8-in., 54-in. Long, Right Hand Only

Crankshaft Main Bearing Subassembly
SAP PN	Legacy No.	Qty	Description
100058283	316.13503	2	Bearing, Main Outboard
100058282	316.13501	2	Bearing, Main Inboard
101384369		4	Washer, Flat, SAE 5/16, 11/32 ID, 11/16 OD, 1/16 Thk, Stl
100058709	317.51017	12	Washer, Outer Race, Crankshaft, Main Bearing, HQ
100002166	70.43363	4	Screw, Hex Socket, 5/16-in. 18NC x 1-in.
100026483	70.32811	4	Nut, Elastic Stop, 5/16-in. 18NC, Heavy, Pl
100058266	316.13304	4	Screw, Cap, Inboard Bearing Race Retainer
100028496	70.43877	3	Screw, Hex Cap, 1/2-in. 13NC x 2 3/4-in.
100058095	316.11505	15	Washer, Bearing Retainer, Forged
100058233	316.13198	6	Washer, Retainer, Inner Race, Heavy-Duty Main Bearing
100030907	70.70309	12	Nut, Self-Locking, 1/2-in. 13NC x 3 1/2-in., Pl
100028494	70.43875	6	Screw, Hex Cap, 1/2-in. 13NC x 3 1/2-in., Pl
100058898	317.55208	1	Crankshaft Assembly, Machined, +0.125, No Nitride

Crosshead and Connecting Rod Subassembly
SAP PN	Legacy No.	Qty	Description
100138092	70.4319	18	Screw, FH Cap, 1/4-in. 20NC x 5/8-in., Hex Socket
100058170	316.11819	3	Shoe Top, Crosshead
100058172	316.11823	as req	Shim, Crosshead Shoe, Top, 0.003-in.
100058171	316.11821	as req	Shim, Crosshead Shoe, Top, 0.005-in.
100058173	316.11825	as req	Shim, Crosshead Shoe, Top, 0.010-in.
100058174	316.11827	as req	Shim, Crosshead Shoe, Top, 0.020-in.
100002817	316.13811	3	Crosshead, Heavy Duty
100058180	316.11847		Shim, Bottom Crosshead, 0.005-in.
100058181	316.11848		Shim, Bottom Crosshead, 0.010-in.
100058175	316.11832	3	Shoe Bottom, Crosshead
100026445	70.32721	3	Nut, Elastic Stop, 5/16-in. 24NF, LT, 21NE-054
100058176	316.11833	3	Screw, Cap, Retaining, Crosshead Pin
100057933	315.1193	6	Washer, Dished
100011690	316.11831	6	Key, Crosshead Pin
100002813	316.11829	3	Pin, Crosshead
100011691	316.11910	3	Connecting Rod, Forging, Machined
100058186	316.11913	3	Bushing, Connecting-Rod Pin
100058184	316.11911	12	Screw, Connecting-Rod
100058185	316.11912	12	Washer, Connecting-Rod Cap
100025800	70.27196	12	Helicoil Insert, No. 1185, 12-in. x 1 7/8-in. Long
100011758	317.55214	3	Bearing, Bottom, Connecting Rod, + 0.125, HQ2000
100011759	317.55215	3	Bearing, Top, Connecting Rod, + 0.125, HQ2000
100057932	315.11416	3	Dowel, Connecting-Rod Cap
100030594	70.62391	1	Wire, Stove Pipe, 19 Ga., 144-in. Long

Crosshead Slide Subassembly
SAP PN	Legacy No.	Qty	Description
100028805	70.44781	8	Screw, Set, 1/4-in. 20NC x 1/4-in., Cup Pt, Hex Socket, Pl
100028806	70.44782	8	Screw, Set, 1/4-in. 20NC x 3/4-in., Cup Pt, Hex Socket, Pl
100058286	316.13802	4	Clamp, Outboard, Crosshead Slide
100058164	316.11805	4	Foot, Right-Hand Crosshead Slide Clamp
100058166	316.11807	4	Screw, Crosshead Slide Clamp
100058169	316.11817	4	Foot, Left-Hand Crosshead Slide Clamp
100058161	316.11801	3	Slide, Top Crosshead
100058162	316.11803	3	Slide-Bottom, Crosshead
100058177	316.11834	as req	Shim, Crosshead Slide, 0.002-in.
100058178	316.11835	as req	Shim, Crosshead Slide, 0.005-in.
100058179	316.11836	as req	Shim, Crosshead Slide, 0.010-in.

Schroeder Filter/Strainer Lubrication Subassembly
SAP PN	Legacy No.	Qty	Description
100058197	316.11964	1	Cap, By-Pass, Schroeder Oil System
100058198	316.11965	1	Screw, Adjust, Bypass, Schroeder Oil System
100011694	316.11932	1	Spring, Bypass, Oil Pressure 80 to 100 psi
100058200	316.11966	1	Gasket, Cap, Screw, Bypass, Schroeder Oil Systems
100001377	70.00427	1	Ball, Steel, 2-in., Chrome Steel, Grade 50
100058195	316.11963	1	Body, Valve, Bypass, Schroeder Oil System
100028439	70.43786	6	Screw, Hex Cap, 5/16-in.18NC x 1-in., Plated
100015040	70.58952	8	Washer, Lock, 5/16-in., Stl, Pl
100000966	8.34031	2	O-Ring, 90D, 3 1/4-in. x 3-in. x 1/8-in.
100029873	70.58805	6	Washer, Flat, 5/16-in., Wi, Pl
100058193	316.11959	1	Manifold, Oil Strainer and Filter, Machined
100028485	70.43864	16	Screw, Hex Cap, 1/2-in.13NC x 1-in., Pl
100081184	70.58959	16	Washer, Lock, 1/2-in., Stl, Pl
100021413	70.06262	1	Strainer, Oil, Magnetic Element, 100 gpm, 300 psi
100021412	70.06260	1	Filter, Oil, 100 gpm, 300 psi
100000961	8.34022	4	O-Ring, 90D, 2 1/8-in. x 1 7/8-in. x 1/8-in.
100024782	70.23477	4	Flange, Half, 1 1/2-in., 3,000 psi, SF-2522-24
100036060	70.97198	1	Adapter, Hose, Straight, 1 5/8-12 JIC Male x 1.5 C61 Flange Head
100058298	316.14147	1	Bracket, Schroeder, Filter
100023268	70.15975	1	Clamp, Exhaust, 4 1/2-in., Stemco
100028435	70.43781	4	Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl
100013115	70.76708	35	Washer, Seal, 5/16-in., Barwood

Power-End Lubrication Hose/Line Subassembly
SAP PN	Legacy No.	Qty	Description
100002493	70.88352	1	Gauge, Oil Pressure, 0 to 150 lb, Microswitch
100049565	270.08673	1	Bracket, Heat Indicator, Murphy Gauge
100058080	316.11188	1	Bracket, Gauge, Oil Temp and Press-Schroeder
100013017	70.43814	2	Screw, Hex Cap, 3/8-in. 16NC x 1-in., Pl
100013059	70.58955	2	Washer, Lock, 3/8-in., Stl, Pl
100029874	70.58806	2	Washer, Flat, 3/8-in. WI, Pl
100012921	70.32912	2	Nut, Hex, 3/8-in. 16NC, Pl
100028488	70.43868	2	Screw, Hex Cap, 1/2-in.13NC x 1 1/2-in., Pl
100081184	70.58959	2	Washer, Lock, 1/2-in., Stl, Pl
100026525	70.32914	2	Nut, Hex, 1/2-in. 13NC, Pl
100058261	316.1328	1	Hose Assembly, Lube Pressure, HT-400™ Power End
100058262	316.13282	1	Hose Assembly, Gear Support Bearing Lube, HT-400™ Power End
100058263	316.13283	1	Hose Assembly, Thrust Bearing Lube, HT-400™ Power End
100025591	70.26634	1	Adapter, Hose, 070102-4-2C, 7-16-20 JIC Male x 1/8-27 NPT Male, Steel
100016618	27.00101	1	Coupling, 1/8 NOM 27V, Standard, Steel
100025640	70.26763	2	Adapter, Hose, Straight, 9/16-18 JIC Male x 3/8-18 NPT Male, Steel
100031391	70.72665	1	Adapter, Hose, Tee, 2 x 9/16-18 JIC Male x 9/16-18 JIC SWVL FML, STL
100025641	70.26764	1	Adapter, Hose, Straight, 7/16-20 JIC Male X 3/8-18 NPT Male, Steel
100012853	70.26364	3	Adapter, Hose, Elbow, 9/16-18 JIC Male x 9/16-JIC SWVL FML, STL
100025596	70.26644	1	Adapter, Hose, Straight, 9/16-18 JIC Male X 1/4-18 NPT Male, Steel
100058310	316.16416	1	Plug, Orifice, 1/8 NPT, 0.157 Dia Hole
101284157		1	Tube, Oil Line, General, HT-400™ Pump Power End,(Includes Rubber Lines and Fittings)
100011692	316.11917	3	Bolt, Saddle, Crosshead Oiler
100002324	70.72129	6	Washer, Seal, 1/2-in.
100011693	316.11918	6	Saddle, Oil Line, Crosshead Oiler
100000946	8.33929	6	O-Ring, 90D, 1 1/16-in. x 7/8-in. x 3/32-in.

Crankshaft Lubricator Subassembly
SAP PN	Legacy No.	Qty	Description
100010084	106.53475	1	Nut, 63121, Thread Protector, 7/8-in., S-W
100057942	315.32351	1	Gasket, Drive-Adapter Cap, Gallon Counter
100028439	70.43786	4	Screw, Hex Cap, 5/16-in. 18NC x 1-in., Pl
100015040	70.58952	4	Washer, Lock, 5/16-in., Stl, Pl
100011695	316.13197	1	Injector, Oil, Crankshaft, With l lb 20 Adapter
100011700	316.16414	1	Gasket, Injector, Crankshaft Oil, With No. 20 Adapter
100001944	70.33947	1	O-Ring, 90D, 9/16-in. x 3/8-in. x 3/32-in.
100002816	316.13308	1	Shaft, Drive, Gallon Counter
100028033	70.42144	1	Ring, Retaining, 5000, 156-H, Int, Truarc
100013005	70.42128	1	Ring, Retaining, UR-165-S, Stnls, Spirolox (Used on pre-1981 pumps)
100013035	70.45847	1	Seal, Magnetic Shaft, MSC-65152, Rev B
100002821	316.14142	1	Bushing, Magnetic Seal, Insulator & Counter Drive

Case Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100028435	70.43781	97	Screw-Hex Cap, 5/16-in. 18NC x 1/2-in., Pl
100013115	70.76708	67	Washer, Seal, 5/16-in., Barwood
100058273	316.13321	1	Cover, Long, Crosshead Slide
100011698	316.13323	1	Gasket, Long Cover, Crosshead Slide
100058237	316.13210	1	Plate, Cover, Oil Injector
100009528	316.13301	1	Gasket, Oil Injector, Cover Plate
100009677	70.58981	16	Washer, Lock, 5/16-in., Internal, Shakeproof, Pl
100029873	70.58805	12	Washer, Flat, 5/16-in., Wi, Pl
100058086	316.11344	2	Cover, Connecting Rod Access
100011682	316.11345	3	Gasket, Connecting Rod Access Cover
100011696	316.13244	1	Cover Assembly, Con Rod Access, W/4 1/4-in. OD Filler Neck
100002844	70.12486	1	Cap, Filler, Wisco, Vented
100002815	316.13249	1	Dipstick, Oil, 4 1/4-in. OD Filler Neck
100058070	316.11143	1	Cover, Inspection, Gear
100011680	316.11144	1	Gasket, Cover, Inspection Gear
100058084	316.11311	1	Cover, Plate, Gear Housing
100002810	316.11313	1	Gasket, Cover Plate, Gear
100058085	316.11315	1	Baffle, Inside, Gear Housing
100058271	316.13317	1	Cover, Short Crosshead Slide
100011697	316.13319	1	Gasket, Short Cover, Crosshead Slide
100058208	316.131	1	Power-End Case, Machined, Right-Hand Drive
100058299	316.161	1	Power-End Case, Machined, Left-Hand Drive

L-2 Spacer Subassembly
SAP PN	Legacy No.	Qty	Description
100002811	316.11621	12	Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length
100002833	316.21066	3	Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer
100000959	8.34020	3	O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223
100002832	316.21065	3	Push Rod, Two Piece, L-Spacer, HT-400™
100002971	316.25166	3	Tie Rod, Push Rod, L-Spacer, HT-400™
100058516	316.25168	1	Spacer, L-Frame, Machined, HT-400™ FE & PE
100058513	316.25100	1	Guard Assembly, HT-400™, L-2 Spacer
100011067	106.63914	2	Hinge, DR-35, Latch, Hood, Bassick
100026633	70.33263	4	Nut, Clip, 10-24, Steel With Bright Green Finish
100028741	70.44540	4	Screw, Round Head, Machine, No 10-24 NC x 3/8, PL
100029918	70.58947	4	Washer, Lock, #10 ST Plated
100013017	70.43814	12	Screw, Hex Cap, 3/8-16 NC x 1, PL, Spec 70.43917
100013059	70.58955	12	Washer, Lock, 3/8, Steel, PL, Spec
100002804	316.10012	3	Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400™ Pump
100001903	70.33739	3	O-Ring, 70 Duro, 5 11/16 x 5 1/2 x 3/32 568-161
100002805	316.10013	3	Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400™
100002806	316.10014	6	Seal, Push Rod, L-Spacer, HT-400™
100002968	316.24923	12	Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump

L-4 Spacer Subassembly
SAP PN	Legacy No.	Qty	Description
100002811	316.11621	12	Nut, 1-14 NF, Internal Wrenching, 1.03 Thread Length
100002833	316.21066	3	Retainer, Push Rod, HT-400™, Two Piece Nose, L-Spacer
100000959	8.34020	3	O-Ring, 90 Duro, 1 7/8 x 1 5/8 x 1/8, 568-223
100002832	316.21065	3	Push Rod, Two Piece, L-Spacer, HT-400™
100002971	316.25166	3	Tie Rod, Push Rod, L-Spacer, HT-400™
100058500	316.24926	12	Tube, Frame, L-4 Spacer
100009593	316.25101	1	Guard Assembly, HT-400™, L-4 Spacer
100011068	106.63915	2	Fastener, Bar, Hood, Bassick, DH-40
100026443	70.32708	4	Nut, Elastic Stop, 10-32 NF
100028197	70.43289	4	Screw, Hex Socket, #10-32 NF x ½, SS
100029949	70.59015	4	Washer, Lock, #10 SS
100058335	316.21253	2	Mount, Latch, Guard, Aluminum Spacer, HT-400™ Pump
100023243	70.15877	4	Clamp, Hose, SAE #36, 1 7/16 – 2 3/4
100028439	70.43786	9	SCREW, HEX CAP, 5/16-18 NC X 1, PL
100015040	70.58952	9	Washer, lock 5/16 , Steel Pl
100002818	316.14070	3	Retainer, Push Rod Seal Housing, L4 Spacer, HT-400™
100002025	70.34106	3	O-Ring, 70 Duro, 4 15/16 X 4 3/4 X 3/32 568-158
100002819	316.14072	3	Housing, Push Rod Seal, Floating, L4 Spacer, HT400
100002806	316.10014	6	Seal, Push Rod, L-Spacer, HT-400™
100058501	316.24927	1	Plate, PE, Steel, HT-400™, L-Spacer
100002968	316.24923	12	Stud, Attaching, Fluid End to Power End, L Spacer, HT-400™ Pump

HT-400 Pump Power-End Parts

3-3/8- and 4.0-inch (No. 3) Suction Valve Subassemblies
SAP PN	Legacy No.	Qty	Description
100058419	316.22977	3	Retainer, Stop and Spring, HT400, No. 3 Suction Valve, Mach. Cast
100002972	316.25233	6	Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac
100002841	316.2125	3	Spring, Lock, Suction Stop, No. 3, HT400
100002079	70.35717	6	Pin, Cotter, 1/8 x 1 1/2 Inch, HT-400™
100002868	316.22005	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass
100002867	316.22004	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac
100002837	316.2108	6	Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in
100002824	316.21007	6	Valve, HT400, 3.38, 4.0 In, Frac
101333083	316.21048	6	Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow)
100002823	316.21006	6	Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown)
100002825	316.21008	6	Seat Valve, HT400, No. 3 Frac, Tapered
100000968	8.34037	6	O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240
100002838	316.21096	6	Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore

4-1/2-inch (No. 4) Suction Valve Subassemblies
SAP PN	Legacy No.	Qty	Description
100058432	316.23034	3	Retainer, Stop and Spring, HT400, No. 4 Suction Valve, Mach. Cast
100002972	316.25233	6	Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac
100007270	316.22252	3	Spring, Lock, Suction Stop, No. 4, HT400
100002868	316.22005	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass
100002867	316.22004	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac
100002936	316.2308	6	Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in
100002875	316.22048	6	Valve, HT400, 4.5 inch, Frac
101333104	316.22046	6	Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/Frac Service (Yellow)
100002876	316.22049	6	Insert, Valve, HT400, No. 4 Frac, Urethane, Standard Service (Brown)
100002874	316.22047	6	Seat Valve, HT400, No. 4 Frac, Tapered
100000970	8.34041	6	O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244
100002955	316.23953	6	Retainer, Guide Bushing, HT400, No. 4, Tapered Seat Bore

5.0- and 6.0-inch (No. 5) Suction Valve Subassemblies
SAP PN	Legacy No.	Qty	Description
100058542	316.25840	3	Retainer, Stop and Spring, HT400, No. 5 Suction Valve, Mach. Cast
100002972	316.25233	6	Boot, Suction and Stop, HT-400™, No. 3, 4 and 5 Frac
100002882	316.22253	3	Spring, Lock, Suction Stop, No. 5, HT400
100002870	316.22007	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.5 Frac, Brass
100002869	316.22006	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 5 Frac
100058597	316.27259	6	Spring, Valve, HT400, No. 5, Conical, Stainless, 50 lb/in
100002960	316.24027	6	Valve, HT400, No. 5, 5.0 and 6.0 inch, Frac
101349952	316.24026	6	Insert, Valve, HT400, No. 5 Frac, Urethane, Acid/Frac Service (Yellow)
100002961	316.24037	6	Insert, Valve, HT400, No. 5 Frac, Urethane, Standard Service (Brown)
100002957	316.24024	6	Seat Valve, HT400, No. 5 Frac, Tapered
100000974	8.34045	6	O-ring, 90 Duro, 5 3/16 x 5 x 3/32, 568-159
100002962	316.24043	6	Retainer, Guide Bushing, HT400, No. 5, Tapered Seat Bore

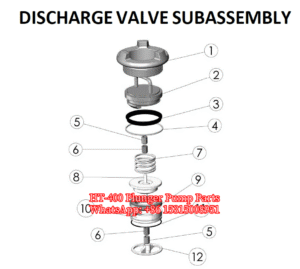

3-3/8-inch Fluid-End Discharge Valve Subassembly
SAP PN	Legacy No.	Qty	Description
100008186	316.2102	3	Retainer, Cover, HT-400™, 3.38 in
100002836	316.2107	3	Cover, Discharge, Double Guided Valve, HT-400™, 3.38 in
100002830	316.21052	3	Gasket, Discharge Valve & Cylinder Head Cover, 3.38 in., HT-400™
100002829	316.21051	3	Ring, Spacer, Discharge Valve & Cylinder Head Cover, 3.38 in., HT-400™
100002868	316.22005	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass
100002867	316.22004	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac
100002837	316.2108	3	Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in
100002824	316.21007	3	Valve, HT400, 3.38, 4.0 In, Frac
101333083	316.21048	3	Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow)
100002823	316.21006	3	Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown)
100002825	316.21008	3	Seat Valve, HT400, No. 3 Frac, Tapered
100000968	8.34037	3	O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240
100002838	316.21096	3	Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore

4-inch Fluid-End Discharge Valve Subassembly
SAP PN	Legacy No.	Qty	Description
100007820	316.2202	3	Retainer, Cover, HT-400™, 4.0 in
100002938	316.23091	3	Cover, Discharge, Double Guided Valve, HT-400™, 4.0 and 4.5 in
100002878	316.22052	3	Gasket, Discharge Valve & Cylinder Head Cover, No. 4, HT-400™
100002877	316.22051	3	Ring, Spacer, Discharge Valve & Cylinder Head Cover, No.4, HT-400™
100002868	316.22005	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass
100002867	316.22004	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac
100002837	316.2108	3	Spring, Valve, HT400, No. 3, 3.38 and 4 Inch, 36 lb/in
100002824	316.21007	3	Valve, HT400, 3.38, 4.0 In, Frac
101333083	316.21048	3	Insert, Valve, HT400, No. 3 Frac, Urethane, Acid/Frac Service (Yellow)
100002823	316.21006	3	Insert, Valve, HT400, No. 3 Frac, Urethane, Standard Service (Brown)
100002825	316.21008	3	Seat Valve, HT400, No. 3 Frac, Tapered
100000968	8.34037	3	O-ring, 90 Duro, 4 x 3 3/4 x 1/8, 568-240
100002838	316.21096	3	Retainer, Guide Bushing, HT400, 3.38, 4.0 Inch, Tapered Seat Bore

4-1/2-inch Fluid-End Discharge Valve Subassembly
SAP PN	Legacy No.	Qty	Description
100007820	316.2202	3	Retainer, Cover, HT-400™, 4.0 in
100002938	316.23091	3	Cover, Discharge, Double Guided Valve, HT-400™, 4.0 and 4.5 in
100002878	316.22052	3	Gasket, Discharge Valve & Cylinder Head Cover, No. 4, HT-400™
100002877	316.22051	3	Ring, Spacer, Discharge Valve & Cylinder Head Cover, No.4, HT-400™
100002868	316.22005	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.4 Frac, Brass
100002867	316.22004	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 4 Frac
100002936	316.2308	3	Spring, Valve, HT400, No. 4, 4.5 Inch, 25 lb/in
100002875	316.22048	3	Valve, HT400, 4.5 inch, Frac
101333104	316.22046	3	Insert, Valve, HT400, No. 4 Frac, Urethane, Acid/Frac Service (Yellow)
100002876	316.22049	3	Insert, Valve, HT400, No. 4 Frac, Urethane, Standard Service (Brown)
100002874	316.22047	3	Seat Valve, HT400, No. 4 Frac, Tapered
100000970	8.34041	3	O-ring, 90 Duro, 4 1/2 x 4 1/4 x 1/8, 568-244
100002955	316.23953	3	Retainer, Guide Bushing, HT400, No. 4, Tapered Seat Bore

5.0- and 6.0-inch Fluid-End Discharge Valve Subassembly
SAP PN	Legacy No.	Qty	Description
100058508	316.2502	3	Retainer, Cover, HT-400™, 5.75 in
100058471	316.24044	3	Cover, Discharge, Double Guided Valve, HT-400™, 5.0 and 6.0 in
100011734	316.25052	3	Gasket, Discharge Valve & Cylinder Head Cover, No. 5, HT-400™
100011733	316.25051	3	Ring, Spacer, Cylinder Head Cover, No.5, HT-400™
100002870	316.22007	6	Liner, Two Piece Bushing, Valve Guide, HT400, No.5 Frac, Brass
100002869	316.22006	6	Insert, Two Piece Bushing, Valve Guide, Special, HT-400™, No 5 Frac
100058597	316.27259	3	Spring, Valve, HT400, No. 5, Conical, Stainless, 50 lb/in
100002960	316.24027	3	Valve, HT400, No. 5, 5.0 and 6.0 inch, Frac
101349952	316.24026	3	Insert, Valve, HT400, No. 5 Frac, Urethane, Acid/Frac Service (Yellow)
100002961	316.24037	3	Insert, Valve, HT400, No. 5 Frac, Urethane, Standard Service (Brown)
100002957	316.24024	3	Seat Valve, HT400, No. 5 Frac, Tapered
100000974	8.34045	3	O-ring, 90 Duro, 5-in. x 4 3/4-in. x 1/8-in., 568-248
100002962	316.24043	3	Retainer, Guide Bushing, HT400, No. 5, Tapered Seat Bore

3 3/8-inch Fluid-End Plunger/Cylinder Head Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100008186	316.2102	6	Retainer, Cover, HT-400™, 3.38 in
100011711	316.22606	3	Retainer, Protective Cylinder Head Cover, 4.0 in
100002836	316.2107	3	Cover, Cylinder Head, HT-400™, 3.38 in
100002902	316.22605	3	Cover, Protective Cylinder Head, 4.0 in
100002830	316.21052	6	Gasket, 3 Discharge Valve & Cylinder Head Cover, 3 3/8 in
100002829	316.21051	6	Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8
100002843	316.2131	3	Nose, Plunger, HT-400™, 3 3/8 in
100002842	316.2130	3	Seal, Plunger Nose Assembly, HT-400™, 3 3/8 in
100009641	316.21026	3	Plunger, 3 3/8 in., Hard Surface, L-Spacer, HT-400™
100002827	316.21028	3	Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in
100002831	316.21059	3	Adapter, Pushrod, HT-400™, 3 3/8 in, Two Piece Nose

4-inch Fluid-End Plunger/Cylinder Head Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100008186	316.2102	6	Retainer, Cover, HT-400™, 3.38 in
100011711	316.22606	3	Retainer, Protective Cylinder Head Cover, 4.0 in
100002836	316.2107	3	Cover, Cylinder Head, HT-400™, 3.38 in
100002902	316.22605	3	Cover, Protective Cylinder Head, 4.0 in
100002830	316.21052	6	Gasket, 3 Discharge Valve & Cylinder Head Cover, 3 3/8 in
100002829	316.21051	6	Ring, Spacer, #3 Discharge Valve & Cylinder Head Cover, 3 3/8
100002885	316.2231	3	Nose, Plunger, HT-400™, 4.0 in
100002884	316.2230	3	Seal, Plunger Nose Assembly, HT-400™, 4.0 in
100002883	316.22294	3	Plunger, 4.0 in., Hard Surface, L-Spacer, HT-400™
100002827	316.21028	3	Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in
100011706	316.22302	3	Adapter, Pushrod, HT-400™, 4.0 in, Two Piece Nose

4 1/2-inch Fluid-End Plunger/Cylinder Head Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100007820	316.2202	6	Retainer, Cover, HT-400™, 4.5 in
100007823	316.23639	3	Retainer, Protective Cylinder Head Cover, 4.5 in
100009530	316.2207	3	Cover, Cylinder Head, HT-400™, 4.5 in, Bar Stock
100002952	316.23638	3	Cover, Protective Cylinder Head, 4.5 in
100002878	316.22052	6	Gasket, 4 Discharge Valve & Cylinder Head Cover, 4 1/2
100002877	316.22051	6	Ring, Spacer, #4 Discharge Valve & Cylinder Head Cover, 4 1/2
100002941	316.2331	3	Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in
100002940	316.2330	3	Seal, Plunger Nose Assembly, HT-400™, 4.5
100002937	316.23085	3	Plunger, 4.5 In., Hard Surface, L-Spacer, HT-400™
100002827	316.21028	3	Tie Rod, Plunger, HT-400™, 3.38, 4.0, 4.5 in
100011721	316.23089	3	Adapter, Pushrod, HT-400™, 4.5 in, Two Piece Nose

5-inch Fluid-End Plunger/Cylinder Head Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100058508	316.2502	6	Retainer, Cover, HT-400™, 5.75 in
100058490	316.24615	3	Retainer, Protective Cylinder Head Cover, 5 in
100058475	316.2407	3	Cover, Cylinder Head, HT-400™, 5.0 in
100011728	316.24614	3	Cover, Protective Cylinder Head, 5.0 in
100011734	316.25052	6	Gasket, 5 Discharge Valve & Cylinder Head Cover, 5 in
100011733	316.25051	6	Ring, Spacer, #5 Discharge Valve & Cylinder Head Cover, 5 in
100002941	316.2331	3	Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in
100002940	316.2330	3	Seal, Plunger Nose Assembly, HT-400™, 4.5
100011726	316.24296	3	Plunger, 5.0 In., Hard Surface, L-Spacer, HT-400™
100002970	316.25165	3	Tie Rod, Plunger, HT-400™, 6.0 in
100011727	316.24336	3	Adapter, Pushrod, HT-400™, 5.0 in, Two Piece Nose

6-inch Fluid-End Plunger/Cylinder Head Cover Subassembly
SAP PN	Legacy No.	Qty	Description
100058510	316.2506	6	Retainer, Cover, HT-400™, 6.0 in
100058618	316.27614	3	Retainer, Protective Cylinder Head Cover, 6 in
100008190	316.2507	3	Cover, Cylinder Head, HT-400™, 6.0 in
100058617	316.27613	3	Cover, Protective Cylinder Head, 6.0 in
100058512	316.25074	6	Gasket, 6 Discharge Valve & Cylinder Head Cover, 6 in
100058511	316.25073	6	Ring, Spacer, #6 Discharge Valve & Cylinder Head Cover, 6 in
100002941	316.2331	3	Nose, Plunger, HT-400™, 4.5, 5.0, 6.0 in
100002940	316.2330	3	Seal, Plunger Nose Assembly, HT-400™, 4.5
100058514	316.25162	3	Plunger, 6.0 In., Hard Surface, L-Spacer, HT-400™
100002970	316.25165	3	Tie Rod, Plunger, HT-400™, 6.0 in
100058517	316.25172	3	Adapter, Pushrod, HT-400™, 6.0 in, Two Piece Nose

3-3/8-inch Packing Nut
SAP PN	Legacy No.	Qty	Description
100002081		3	Pin, Groove, ½-in x 1 ¼-in, Type 5
100002846		3	Sleeve, Wiper Gland, 3.375 Inch
100002845		3	Nut, Packing Adjustment, 3.375 Inch

3-3/8-inch CDI Packing
SAP PN	Legacy No.	Qty	Description
101377627		3	Seal, Packing Lube, 3.375, WS-Seal, CDI
100002011		3	O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243
101377626		3	Carrier, Seal, 3.375, CDI
101377624		3	Adapter, Female, 3.375, PEEK, CDI
101377623		3	Packing, 3.375, CDI, WSP1, PTFE
101377622		3	Header Ring, 3.375, HNBR, CDI
101377620		3	Spacer, 3.375, Fluid End, CDI

3-3/8-inch Acid Service Packing (8140)
SAP PN	Legacy No.	Qty	Description
101408135		3	Seal, Packing Lube, Z20, 3-3/8 x 3-7/8 x 9/16 Zurcon UCUP, Double Lip FE
100000969		3	O-Ring, 90 Duro, 4 3/8 x 4 1/8 X 1/8 568-243
101389194		3	Carrier, Seal, 3.375, HT-400™, 2004
100002852		3	Ring, Backup, Packing, HT-400™ 3.38 in, 2004
100002854		3	Packing Set, 3 3/8 x 4 3/8 x 0.50 Stock HT, 3 rings, Hard, Acid Service
100058346		3	Header Ring, 3 3/8 x 4 3/8 Packing, Polyurethane, HT-400™ FE
100002852		3	Adapter, Header Ring, 3 3/8 x 4/3/8, HT-400™, FE

4.0-inch Packing Nut
SAP PN	Legacy No.	Qty	Description
100002081		3	Pin, Groove, ½-in x 1 ¼-in, Type 5
101328357		3	Sleeve, Wiper Gland, HCLE, 4.0 Inch
101328001		3	Nut, Packing Adjustment, HCLE, 4.0 Inch

4.0-inch CDI Packing
SAP PN	Legacy No.	Qty	Description
101377657		3	Seal, Packing Lube, 4.000, WS-Seal, CDI
100002016		3	O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248
101377656		3	Carrier, Seal, 4.000, CDI
101377652		3	Adapter, Female, 4.000, PEEK, CDI
101377641		3	Packing, 4.000, CDI, WSP1, PTFE
101377640		3	Header Ring, 4.000, HNBR, CDI
101377638		3	Spacer, 4.000, Fluid End, CDI

4.0-inch Acid Service Packing (8140)
SAP PN	Legacy No.	Qty	Description
100058388		3	Seal, Packing Lube, Z20, 4 x 4 1/2 x 9/16 Zurcon UCUP, Double Lip FE
100000974		3	O-Ring, 90 Duro, 5 x 4 3/4 X 1/8 568-248
101389213		3	Carrier, Seal, 4.0, HT-400™, 2004
101389224		3	Ring, Backup, Packing, HT-400™ 4.0 in, 2004
100002899		3	Packing Set, 4 x 5 x 0.50 Stock HT, 3 rings, Hard, Acid Service
100002897		3	Header Ring, 4 x 5 Packing, Polyurethane, HT-400™ FE
100002896		3	Adapter, Header Ring, 4 x 5, HT-400™, FE

4.5-inch Packing Nut
SAP PN	Legacy No.	Qty	Description
100002081		3	Pin, Groove, ½-in x 1 ¼-in, Type 5
101328357		3	Sleeve, Wiper Gland, HCLE, 4.0 Inch
101330209		3	Nut, Packing Adjustment, HCLE, 4.5 Inch

4.5-inch CDI Packing
SAP PN	Legacy No.	Qty	Description
101377665		3	Seal, Packing Lube, 4.50, WS-Seal, CDI
100002019		3	O-Ring, 90 Duro, 5 1/2 x 5 1/4 x 1/8 568-252
101377664		3	Carrier, Seal, 4.50, CDI
101377663		3	Adapter, Female, 4.500, PEEK, CDI
101377661		3	Packing, 4.50, CDI WSP1, PTFE
101377660		3	Header Ring, 4.50, HNBR, CDI
101377659		3	Spacer, 4.50 in., Fluid End, CDI

4.5-inch Acid Service Packing (8140)
SAP PN	Legacy No.	Qty	Description
101252286		3	Seal, Packing Lube, Z20, 4 1/2 x 5 x 9/16 Zurcon UCUP, Double Lip FE
100000977		3	O-Ring, 90 Duro, 5 1/2 x 5 1/4 X 1/8 568-252
101389214		3	Carrier, Seal, 4.5, HT-400™, 2004
101389225		3	Ring, Backup, Packing, HT-400™ 4.5 in, 2004
100002951		3	Packing Set, 4 1/2x 5 1/2 x 0.50 Stock HT, 3 rings, Hard, Acid Service
100002949		3	Header Ring, 4 1/2 x 5 1/2 Packing, Polyurethane, HT-400™ FE
100002948		3	Adapter, Header Ring, 4 1/2 x 5 1/2, HT-400™, FE

5.0-inch Packing Nut
SAP PN	Legacy No.	Qty	Description
100027239		3	Pin, Groove, 3/8-in x 1 ¼-in, Type 5
101438001		3	Sleeve, Wiper Gland, HCLE, 5.0 Inch
101438000		3	Nut, Packing Adjustment, HCLE, 5.0 Inch

5.0-inch CDI Packing
SAP PN	Legacy No.	Qty	Description
101377674		3	Seal, Packing Lube, 5.0, WS-Seal, CDI
101377672		3	O-Ring, 90 Duro, 6 x 5 3/4 x 1/8, 568-256
100002022		3	Carrier, Seal, 5.0, CDI
101377671		3	Adapter, Female, 5.00, PEEK, CDI
101377669		3	Packing, 5.0, CDI WSP1, PTFE
101377668		3	Header Ring, 5.0, HNBR, CDI
101377667		3	Spacer, 5.0 in., Fluid End, CDI

5.0-inch Acid Service Packing (8140)
SAP PN	Legacy No.	Qty	Description
101408161		3	Seal, Packing Lube, Z20, 5 x 5 1/2 x 9/16 Zurcon UCUP, Double Lip FE
100000980		3	O-Ring, 90 Duro, 6 x 5 3/4 X 1/8 568-256
101389216		3	Carrier, Seal, 5.0, HT-400™, 2004
101389226		3	Ring, Backup, Packing, HT-400™ 5.0 in, 2004
100002967		3	Packing Set, 5 x 6 x 0.50 Stock HT, 3 rings, Hard, Acid Service
100058486		3	Header Ring, 5 x 6 Packing, Polyurethane, HT-400™ FE
100002966		3	Adapter, Header Ring, 5 x 6, HT-400™, FE

6.0-inch Packing Nut
SAP PN	Legacy No.	Qty	Description
100027239		3	Pin, Groove, 3/8-in x 1 ¼-in, Type 5
101330379		3	Sleeve, Wiper Gland, HCLE, 6.0 Inch
101330259		3	Nut, Packing Adjustment, HCLE, 6.0 Inch

6.0-inch CDI Packing
SAP PN	Legacy No.	Qty	Description
101377686		3	Seal, Packing Lube, 6.0, WS-Seal, CDI
100007763		3	O-Ring, 90 Duro, 7 x 6 3/4 x 1/8, 568-261
101377685		3	Carrier, Seal, 6.0, CDI
101377684		3	Adapter, Female, 6.00, PEEK, CDI
101377683		3	Packing, 6.0, CDI WSP1, PTFE
101377682		3	Header Ring, 6.0, HNBR, CDI
101377679		3	Spacer, 6.0 in., Fluid End, CDI

6.0-inch Acid Service Packing (8140)
SAP PN	Legacy No.	Qty	Description
101408181		3	Seal, Packing Lube, Z20, 6 x 6 1/2 x 9/16 Zurcon UCUP, Double Lip FE
100013726		3	O-Ring, 90 Duro, 7 x 6 3/4 X 1/8 568-261
101389217		3	Carrier, Seal, 6.0, HT-400™, 2004
101389227		3	Ring, Backup, Packing, HT-400™ 6.0 in, 2004
100002997		3	Packing Set, 6 x 7 x 0.50 Stock HT, 3 rings, Hard, Acid Service
100058613		3	Header Ring, 6 x 7 Packing, Polyurethane, HT-400™ FE
100002996		3	Adapter, Header Ring, 6 x 7, HT-400™, FE

3 3/8-inch Fluid-End Straight Discharge Flange
SAP PN	Legacy No.	Qty	Description
100058317	316.21013	1	Flange, Discharge, HT-400™ Pump, 3-3/8 Inch, 20,000 PSI, Straight
100002801	315.27117	1	Seal, Discharge Passage, 2.5 OD
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

4.0-inch Fluid-End Straight Discharge Flange
SAP PN	Legacy No.	Qty	Description
100002992	316.27482	1	Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In

4 1/2-, 5.0-, and 6.0-inch Fluid-End Straight Discharge Flange
SAP PN	Legacy No.	Qty	Description
100002992	316.27482	1	Flange, Discharge, HT-400™ Pump, 4.0 – 6.0 Inch, Straight
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

3 3/8-inch Fluid-End Curved Discharge Flange
SAP PN	Legacy No.	Qty	Description
100009881	316.21676	1	Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, RH
100009882	316.21677	1	Flange, Discharge, HT-400™, 3-3/8 Inch, 20,000 PSI, Curved, LH
100002801	315.27117	1	Seal, Discharge Passage, 2.5 OD
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

4.0-inch Fluid-End Curved Discharge Flange
SAP PN	Legacy No.	Qty	Description
100002930	316.23019	1	Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand
100002929	316.23017	1	Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In

4 1/2-, 5.0-, and 6.0-inch Fluid-End Curved Discharge Flange
SAP PN	Legacy No.	Qty	Description
100002930	316.23019	1	Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Right-Hand
100002929	316.23017	1	Flange, Discharge, HT-400™, 4.0 – 6.0 Inch, Curved Left-Hand
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

3 3/8-inch Fluid-End Blank Discharge Flange (Thin)
SAP PN	Legacy No.	Qty	Description
100002858	316.21673	1	Flange, Discharge, HT-400™, 3.38 In., Blank, Thin
100002801	315.27117	1	Seal, Discharge Passage, 2.5 OD
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 Total Length
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In.
100009362	316.23012	2	Stud, HT-400™, Fluid End To Thin Discharge Flange

3 3/8-inch Fluid-End Blank Discharge Flange (Thick)
SAP PN	Legacy No.	Qty	Description
101325320		1	Flange, Discharge, HT-400™, 3.38 In., Blank, Thick
100002801	315.27117	1	Seal, Discharge Passage, 2.5 OD
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In.
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

4.0-inch Fluid-End Blank Discharge Flange
SAP PN	Legacy No.	Qty	Description
100007821	316.22980	1	Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch , Blank, Thick
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	2	Washer, Flat, Worm Housing, Head, 1 In.

4 1/2-, 5.0-, and 6.0-inch Fluid-End Blank Discharge Flange
SAP PN	Legacy No.	Qty	Description
100007821	316.22980	1	Flange, Discharge, HT-400™, 4.0, 4.5, 5.0, 6.0 Inch ,Blank, Thick
100002975	316.2547	1	Seal, Discharge Passage, HT-400™, 3.375 O.D.
100002811	316.11621	2	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002926	316.23013	2	Stud, HT-400™, Fluid End To Thick Discharge Flange

3 3/8-inch Fluid End
SAP PN	Legacy No.	Qty	Description
100002850	316.2145	2	Spacer, Inner, Discharge Passage Seal, HT-400™, 3.375 in FE
100002801	315.27117	6	Seal, Discharge Passage, HT-400™, 2.5 in. O.D.
100002993	316.27488	1	Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC
100002976	316.25501	2	Nut, Top Tie Bolt, HT-400™, TC
100002894	316.22493	2	Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt
100002811	316.11621	4	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	4	Washer, Flat, Worm Housing, Head, 1 In.
100007819	316.21981	3	Sleeve, Packing, HT400, 3.38 In.
100007621	8.34038	3	O-Ring, 90 Duro, 4 1/8 X 3 7/8 X 1/8, 568-241
100002866	316.21951	3	Fluid End Section, HT-400™ Pump, 3.38 Inch, Not Sleeved
101455172		3	Fluid End Section, HT-400™ Pump, 3.38 Inch, With Packing Sleeve
100058621	316.27927	1	Tag, Part Number, Fluid End, HT-400™
100001860	70.32760	2	Nut, Elastic, Stop, 3/4-in., 16NF
100002925	316.23011	1	Bolt, Bottom, Tie, HT400, Type Certified

4.0-inch Fluid End
SAP PN	Legacy No.	Qty	Description
100002974	316.2545	2	Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in.
100002975	316.2547	6	Seal, Discharge Passage, HT-400™, 3.375 in. O.D.
100002993	316.27488	1	Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC
100002994	316.27489	2	Bolt, Tie, Fluid End, HT-400™, 1 in. Dia, Three Top Tie Bolt FE, TC
100002976	316.25501	2	Nut, Top Tie Bolt, HT-400™, TC
100002894	316.22493	2	Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt
100002811	316.11621	4	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002798	315.11183	4	Washer, Flat, Worm Housing, Head, 1 In.
100002914	316.22981	3	Sleeve, Packing, HT400, 4.0 In.
100000972	8.34043	3	O-Ring, 90 Duro, 4 3/4 X 4 1/2 X 1/8, 568-246
100002915	316.22982	3	Fluid End Section, HT-400™ Pump, 4.00 Inch, Not Sleeved
101455173		3	Fluid End Section, HT-400™ Pump, 4.00 Inch, With Packing Sleeve
100058621	316.27927	1	Tag, Part Number, Fluid End, HT-400™

4 1/2-inch Fluid End
SAP PN	Legacy No.	Qty	Description
100002974	316.2545	2	Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in.
100002975	316.2547	6	Seal, Discharge Passage, HT-400™, 3.375 in. O.D.
100002993	316.27488	1	Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC
100002976	316.25501	2	Nut, Top Tie Bolt, HT-400™, TC
100002894	316.22493	2	Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt
100002811	316.11621	4	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002956	316.23981	3	Sleeve, Packing, HT400, 4.5 In.
100000975	8.34047	3	O-Ring, 90 Duro, 5 1/4 X 5 X 1/8, 568-250
100002954	316.23951	3	Fluid End Section, HT-400™ Pump, 4.5 Inch, Not Sleeved
101455174		3	Fluid End Section, HT-400™ Pump, 4.5 Inch, With Packing Sleeve
100058621	316.27927	1	Tag, Part Number, Fluid End, HT-400™
100001860	70.32760	2	Nut, Elastic, Stop, 3/4-in., 16NF
100002925	316.23011	1	Bolt, Bottom, Tie, HT400, Type Certified

5.0-inch Fluid End
SAP PN	Legacy No.	Qty	Description
100002974	316.2545	2	Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in.
100002975	316.2547	6	Seal, Discharge Passage, HT-400™, 3.375 in. O.D.
100002993	316.27488	1	Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC
100002976	316.25501	2	Nut, Top Tie Bolt, HT-400™, TC
100002894	316.22493	2	Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt
100002811	316.11621	4	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002969	316.24981	3	Sleeve, Packing, HT400, 5.0 In.
100000979	8.34051	3	O-Ring, 90 Duro, 5 3/4 X 5 1/2 X 1/8, 568-254
100058502	316.24951	3	Fluid End Section, HT-400™ Pump, 5.0 Inch, Not Sleeved
101455175		3	Fluid End Section, HT-400™ Pump, 5.0 Inch, With Packing Sleeve
100058621	316.27927	1	Tag, Part Number, Fluid End, HT-400™
100001860	70.32760	2	Nut, Elastic, Stop, 3/4-in., 16NF
100002925	316.23011	1	Bolt, Bottom, Tie, HT400, Type Certified

6.0-inch Fluid End
SAP PN	Legacy No.	Qty	Description
100002974	316.2545	2	Spacer, Inner, Discharge Passage Seal, HT-400™, 5.75 in.
100002975	316.2547	6	Seal, Discharge Passage, HT-400™, 3.375 in. O.D.
100002993	316.27488	1	Bolt, Tie, 1.375-12 UNF x 32.4 in., Top, Fluid End, HT-400™, TC
100002976	316.25501	2	Nut, Top Tie Bolt, HT-400™, TC
100002894	316.22493	2	Washer, Hardened, 2.31 O.D. x 1.43 I.D., For Top Tie Bolt
100002811	316.11621	4	Nut, 1-14 NF, Internal Wrenching, 1.03 TL
100002998	316.27981	3	Sleeve, Packing, HT400, 6.0 In.
100000983	8.34057	3	O-Ring, 90 Duro, 6 3/4 X 6 1/2 X 1/8, 568-260
100058622	316.27951	3	Fluid End Section, HT-400™ Pump, 6.0 Inch, Not Sleeved
101455176		3	Fluid End Section, HT-400™ Pump, 6.0 Inch, With Packing Sleeve
100058621	316.27927	1	Tag, Part Number, Fluid End, HT-400™
100001860	70.32760	2	Nut, Elastic, Stop, 3/4-in., 16NF
100002925	316.23011	1	Bolt, Bottom, Tie, HT400, Type Certified

Plunger Lube Pump Subassembly
SAP PN	Legacy No.	Qty	Description
100029874	70.58806	8	Washer, Flat, 3/8-in. WI, Pl
13431	70.43839	8	Screw, Hex Socket, 3/8-in. 16NC x 1 1/4-in., Unbrako/Loc-Wel
100003003	317.54010	1	Pump, Gear, Recirculating Plunger Lubrication, HT-400™ Pump
100058711	317.51020	1	Adapter, Pump To Thrust Plate, Plunger Lube, HQ
100011749	317.51065	1	Adapter, HQ, Lube Pump, Plunger Lube
100028805	70.44781	1	1/4-in. x 1/4-in. 20NC Set Screw
100011751	317.51067	1	Seal, Lip, 1.000 Id X 2.000 Od X 0.250 Width
100011750	317.51066	1	Bearing, Ball, Radial, 1.0 Id X 2.0 Od X 0.375 Thick, Open
100011748	317.51064	1	Adapter, HQ, Worm Shaft, Plunger Lube

Recirculating Plunger Lube Pump Plumbing
SAP PN	Legacy No.	Qty	Description
100025600		1	Adapter, Hose, Straight, 1 1/16-12 JIC Male x 1/2-14 MPT, Stl
100035164		1	Adapter, Hose, Cross, 1/2-14 MPT x 1/2 -14 FPT x 12 -14 FPT, Aeroquip
100016860		2	Nipple, Standard, 1/2 X AT, Blackwall, A120
101139835		1	Pipe Plug – 1/2 NPT, Sq Head, Steel
100033152		1	Adapter, Hose, Cross, Tee, 1/2-14 FPT
100001210		1	Bushing, Hexagon, 1/2 x 1/4, Steel
100025044		1	Gauge, Pressure, 0-60 psi, 2 1/2 in., 1/4 NPT
100025646		1	Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/2-14 MPT, Steel
100033606		2	Fitting, Hose, Straight, 3/8 NOM Hose x 9/16 JIC Swivel Female, Brass
100016518		1	Bushing, Hexagon, 3/4 x 1/2, Steel
100015300		1	Valve, Relief, Brown and Sharp, 3/4, Preset at 45#
100031214		1	Adapter, Hose, Straight, 1 1/16-12 JIC Female x 9/16-18 JIC Male
100031598		1	Adptr, Hose, Tee, 1 1/16-12 JIC M x 3/4-14 MPT x 1 1/16-12 JIC M, Stl
100035892		2	Fitting, Hose, Straight, 1 1/16-12 JIC Swivel Female x 3/4 NOM Hose, Brs

Recirculating Plunger Lube Fluid-End Manifold Plumbing
SAP PN	Legacy No.	Qty	Description
100025596		1	Adapter, Hose, Straight, 9/16-18 JIC Male x 1/4-18 NPT Male, Steel
100000596		1	Valve, Ball, 1/4, 600 PSI, FPT, Bronze Body, 316 Ball & Stem, Tefl Seats & Seals
100033761		1	Adapter, Hose, 90 Degree 1/4-18 MPT x 1/4-18 MPT, Aero
101376366		2	Assembly, Manifold, Plunger, Lubrication, FE, Triplex, WSP
100032911		2	Tag, Identification, Hydraulic Tubing, Stnls Stl, 0.31 Wide x 14.3
100025591		6	Adapter, Hose, Straight, 7/16-20 JIC Male x 1/8-27 MPT, Steel
101374860		3	Line, Upper, Oil, Plunger Lubricator, WSP
100002681		1	Valve, Safety, 1/4, Brass, 150 psi Pressure Relief Setting
100027497		1	Plug, Pipe, 1/4 18 NPTF, Steel Countersunk Hex, Headless
101374914		3	Line, Lower, Oil, Plunger Lubricator, WSP
100000592		3	Valve, Check, 1/8, Female Inlet, Male Outlet, With 70 Duro O-Ring
100025604		6	Adapter, Hose, Elbow, 7/16-20 JIC Male x 1/8-27 MPT, Steel
100028293		2	Screw, Hex Socket, 3/4-10 NC x 1 1/4
100029925		2	Washer, Lock, 3/4, Steel, PL
101391751		2	Bracket, Plunger Lubrication Manifold, WSP
100015025		1	Adapter, Hose, Elbow, 9/16-18 JIC Male x 1/4-18 MPT, Steel

Halliburton HT-400 Triplex Plunger Pump Spare Parts List

Description

Related products

Gardner Denver 7.5”x8” FY FXX Duplex Mud Pump

Gardner Denver 4×5 PE-5 (TEE) Triplex Mud Pump

Gardner Denver 5.5″x10″ FD FXD Duplex Mud Pump

Gardner Denver 7.25″x14″ FK FXK Duplex Mud Pump
