| DUPLEX POWER PUMP MODEL FXD 10″ STROKE Pump Parts Manual List |
|
| FRAME GROUP |
| Part No. |
Name of Part |
| FXD172A |
FRAME ASSEMBLY, Includes Ref. No. 6, 8, 9, 18, 19 & 20 |
| 200FXD053 |
HOOD |
| 2009457 |
GASKET, Hood |
| 75AA1 |
SCREW, Hood |
| 64AA5 |
PLUG, Crosshead Oil |
| FXD723 |
PLATE-INSPECTION, Crosshead |
| 79A6 |
STUD, Croshead Inspection Plate |
| 50B5 |
NUT, Crosshead Inspection Plate Stud |
| 25C1083N |
GASKET, Crosshead Inspection Plate |
| 75AA1 |
SCREW, Crosshead Inspection Plate |
| 200FXD052 |
PLATE-INSPECTION |
| 79A438 |
STUD, Inspection Plate to Frame |
| 95B5 |
LOCKWASHER, Inspection Plate to Frame |
| 50B5 |
NUT, Inspection Plate to Frame |
| 64A7 |
PLUG, Frame Sludge Drain |
| 1 FXX840 |
BAFFLE, Piston Rod |
| 64A6 |
PLUG-SQHD PIPE, Frame Oil Drain |
| 64D4 |
ELBOW-PIPE, Oil Level |
| 64AA4 |
PLUG, Oil Level |
| JACKSHAFT |
| Part No. |
Name of Part |
| FXD371 |
JACKSHAFT |
| FXD289 |
SLEEVE-SHAFT |
| 60G63 |
SEAL-OIL, Bearing Housing |
| FXD376 |
SPACER, Bearing |
| 12W6 |
BEARING, Jackshaft. |
| 1 FXD368 |
HOUSING-BEARING |
| 25C1085 |
GASKET, Housing & Retaining Plates |
| 3FXD370 |
PLATE-BEARING RETAINING |
| 655EF080 |
SCREW, Housing & Retaining Plate |
| 655EE030 |
SCREW, Shaft Extension Cover |
| 200FXD490 |
COVER-SHAFT EXTENSION |
| 35B167 |
KEY, Jackshaft |
| 60G221 |
SEAL-OIL, Bearing Retaining Plate |
| 40E5 |
FITTING-LUBRICATION |
| OIL STOP HEAD |
| Part No. |
Name of Part |
| FXD495 |
OIL STOP HEAD ASSEM8L Y, Includes Ref. No. 2 & 3 |
| 79A69 |
STUD, Oil Stop Head |
| 50B5 |
NUT, Oil Stop Head |
| PXD238 |
GLAND |
| 655EE070 |
SCREW |
| 95A5 |
WASHER |
| 50B5 |
NUT |
| 60BG26 |
PACKING, Oil Stop Head |
| BC318 |
RING-JUNK, Oil Stop Head |
| ECCENTRIC & SHAFT |
| Part No. |
Name of Part |
| FXD367 |
SHAFT-ECCENTRIC |
| 35C68 |
KEY, Eccentric Shaft |
| FXD255 |
ECCENTRIC |
| ECCENTRIC SHAFT BEARING |
| Part No. |
Name of Part |
| 23AUX18 |
SLEEVE-SHAFT |
| 60G17 |
SEAL-OIL |
| 12C34 |
BEARING, Eccentric Shaft |
| 77B22 |
SHIM, Bearing Cover Plate (Used opposite 25C1084 Gasket) |
| 655EF050 |
SCREW, Bearing Cover Plate |
| FXD366 |
PLATE-BEARING COVER |
| 25C1084 |
GASKET, Bearing Cover Plate (Used opposite 77B22 Shim) |
| 40E5 |
FITTING-LUBRICATION, Bearing Cover Plate |
| CONNECTING ROD & CROSSHEAD |
| Part No. |
Name of Part |
| FXD417 |
CONNECTING ROD ASSEMBLY, Includes Ref. No. 2 & 3 |
| FXD421 |
BUSHING, Eccentric End |
| FXD229 |
BUSHING, Crosshead End |
| 200FXE005 |
CROSSHEAD |
| FXD189 |
PIN-CROSSHEAD |
| FXD281 |
PLATE-RETAINER |
| 655EF05D |
SCREW (1-1/4″ lg.), Retainer Plate |
| 6555EF06D |
SCREW (1-1/2″ lg.), Retainer Plate |
| 97A29 |
WIRE |
| STUFFING BOX FXDA, FXDB, FXDC, FXDE, FXDF, FXDG, FXDJ, FXDK, FXDL, FXDN, FXDP, FXDR, FXDS, FXDT |
| Part No. |
Name of Part |
| 79A183 |
STUD, Stuffing Box |
| 50B8 |
NUT, Stuffing Box Stud |
| FD21 |
GLAND, Stuffing Box |
| 2007956 |
STUFFING BOX ASSEMBLY Incl. Ref. No. 1 & 2 |
| 60DA415 |
PACKING |
| Molded Rubber & Duck |
| BC317 |
RING-JUNK |
| 25C1737 |
GASKET, Stuffing Box |
| 1FD152 |
BUSHING-GLAND |
| STUFFING BOX FXDD, FXDH, FXDM, FXDQ, FXDU |
| Part No. |
Name of Part |
| 79L 11 |
STUD, Stuffing Box |
| 50B9 |
NUT, Stuffing Box Stud |
| 1 FC21 |
GLAND, Stuffing Box |
| 16FC14B |
STUFFING BOX ASSEMBLY Incl. Ref. No. 1 & 2 |
| 60DA415 |
PACKING |
| BC317 |
RING-JUNK |
| 25AL35 |
GASKET, Stuffing Box |
| 1FD152 |
BUSHING-GLAND |
| STUFFING BOX GLAND (OPTIONAL) |
| Part No. |
Name of Part |
| 200FXX008A |
GLAND ASSEMBLY, Includes following 4 items |
| 200FXX008 |
GLAND |
| 60DD75 |
PACKING-RING |
| 40E10 |
FITTING-LUBRICATION |
| 200FXX086 |
NUT |
| FLUID CYLINDER 2 PIECE IRON D75759 (Ref. Drawing) FXDA, FXDE, FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 200FYY0298 |
FLUID CYLINDER ASSEM8L Y (RH)*, Includes Ref. No. 2 thru 9 |
| 201 FYY0298 |
FLUID CYLINDER ASSEM8L Y (LH)*, Includes Ref. No. 2 thru 9 |
| 79A557 |
STUD, Cylinder to Frame |
| 50B10 |
NUT, Cylinder to Frame Stud |
| 79A92 |
STUD, Valve Cover |
| 50B9 |
NUT, Valve Cover Stud |
| 79L4 |
STUD, Discharge Manifold |
| 50B8 |
NUT, Discharge Manifold Stud |
| 79A183 |
STUD, Cylinder Head |
| 50B8 |
NUT, Cylinder Head Stud |
| FY41 |
HEAD-CYLINDER |
| 25G8 |
GASKET, Cylinder Head |
| 1FY207 |
SET SCREW, Liner Clamp |
| 50B9 |
NUT, Liner Clamp Set Screw |
| 60B03 |
PACKING, Liner Clamp Set Screw |
| 95F9 |
WASHER, Liner Clamp Set Screw |
| F0217 |
CLAMP-LINER |
| 3EN519 |
SLEEVE, Liner |
| EN957 |
SPACER, Liner Sleeve |
| 200FYY069 |
MANIFOLD-SUCTION |
| 75A74 |
SCREW, Suction Manifold to Cylinder |
| 25BC105N |
GASKET, Suction Manifold to Cylinder. |
| 64EB131 |
FLANGE, Suction Manifold |
| 75A150 |
SCREW, Suction Manifold Flange |
| 50B9 |
NUT, Suction Manifold Flange Screw |
| 25C1154N |
GASKET, Suction Manifold Flange |
| 2FO280 |
DISCHARGE MANIFOLD, Includes Ref. No. 27 & 31 |
| 79L4 |
STUD, Discharge Manifold Flange |
| 50B8 |
NUT, Discharge Manifold Flange Stud |
| 64DA12 |
FLANGE, Discharge Manifold |
| 25T34 |
GASKET, Discharge Manifold Flange |
| 64AA5 |
PLUG-SQHD PIPE, Discharge Manifold |
| 25T34 |
GASKET, Discharge Manifold to Cylinder |
| 64AU5 |
PLUG, Cylinder Priming & Drain |
| * For definition of Right Hand and Left Hand side of pump, see ordering instructions on Page i. |
| FLUID CYLINDER – 1 PIECE IRON (Ref. Drawing) C75848 FXDC, FXDG, FXDL, FXDP, FXDT |
| Part No. |
Name of Part |
| 1 FD388 |
FLUID CYLINDER ASSEM8L Y Includes Ref. No. 2 thru 11 |
| 79L92 |
STUD, Cylinder to Frame |
| 50B10 |
NUT,Cylinder to Frame Stud |
| 79A559 |
STUD, Valve Cover |
| 50B13 |
NUT, Valve Cover Stud |
| 79A183 |
STUD, Discharge Manifold |
| 50B8 |
NUT, Discharge Manifold Stud |
| 79A183 |
STUD, Cylinder Head |
| 50B8 |
NUT, Cylinder Head Stud |
| 79A183 |
STUD, Suction Flange |
| 50B8 |
NUT, Suction Flange Stud |
| (See Valve Pages) |
COVER-VALVE |
| (See Valve Pages) |
GASKET, Valve Cover |
| 64DA5 |
FLANGE, Discharge |
| 25G4 |
GASKET, Discharge Flange |
| 5FD41 |
HEAD-CYLINDER |
| 25G12 |
GASKET, Cylinder Head |
| FD217 |
CLAMP-LINER |
| 4EF519 |
SLEEVE-LINER |
| FC957 |
SPACER-LINER |
| 76W3 |
SET SCREW, Liner |
| 50B12 |
NUT, Liner Set Screw |
| 95F12 |
WASHER, Liner Set Screw |
| 60BQ6 |
PACKING, Liner Set Screw |
| FD77 |
FLANGE, Suction |
| 25C320N |
GASKET, Suction Flange |
| 64AU5 |
PLUG, Cylinder Cleanout |
| FXD20 |
FOOT, Fluid Cylinder |
| 75A14 |
SCREW, Foot to Cylinder |
| 95B9 |
WASHER, Foot to Cylinder Screw |
| 50B9 |
NUT, Foot to Cylinder Screw |
| FLUID CYLINDER – 1 PIECE IRON (Ref. Drawing) C75848 FXDB, FXDF, FXDK, FXDS |
| Part No. |
Name of Part |
| 6FD29 |
FLUID CYLINDER ASSEM8L Y Includes Ref. No. 2 thru 11 |
| 79L92 |
STUD, Cylinder to Frame |
| 50B10 |
NUT, Cylinder to Frame Stud |
| 79A559 |
STUD, Valve Cover |
| 50B13 |
NUT, Valve Cover Stud |
| 79A183 |
STUD, Discharge Manifold |
| 50B8 |
NUT, Discharge Manifold Stud |
| 79A183 |
STUD, Cylinder Head |
| 50B8 |
NUT, Cylinder Head Stud |
| 79A183 |
STUD, Suction Flange |
| 50B8 |
NUT, Suction Flange Stud |
| (See Valve Pages) |
COVER-VALVE |
| (See Valve Pages) |
GASKET, Valve Cover |
| 64DA5 |
FLANGE, Discharge |
| 25G4 |
GASKET, Discharge Flange |
| 4FD41 |
HEAD-CYLINDER |
| 25G43 |
GASKET, Cylinder Head |
| 3FD217 |
CLAMP-LINER |
| 25T32 |
SLEEVE-LINER |
| FD445 |
SPACER-LINER |
| 76W3 |
SET SCREW, Liner |
| 50B12 |
NUT, Liner Set Screw |
| 95F12 |
WASHER, Liner Set Screw |
| 60BQ6 |
PACKING, Liner Set Screw |
| FD77 |
FLANGE, Suction |
| 25C320N |
GASKET, Suction Flange |
| 64AU5 |
PLUG, Cylinder Cleanout |
| FXD20 |
FOOT, Fluid Cylinder |
| 75A14 |
SCREW, Foot to Cylinder |
| 95B9 |
WASHER, Foot to Cylinder Screw |
| 50B9 |
NUT, Foot to Cylinder Screw |
| FLUID CYLINDER – 2 PIECE STEEL & STAINLESS STEEL (Ref. Drawing) D75823 FXDD, FXDM, FXDQ, FXDU |
| Part No. |
Name of Part |
| 21FC29LF |
FLUID CYLINDER ASSEMBLY (LH)*, Includes Ref. No. 2 thru 10 |
| 21FC29RF |
FLUID CYLINDER ASSEMBLY (RH)*, Includes Ref. No. 2 thru 10 |
| 79L114 |
STUD, Cylinder to Frame |
| 50B10 |
NUT, Cylinder to Frame Stud |
| 79L4 |
STUD, Valve Cover |
| 50B8 |
NUT, Valve Cover Stud |
| 79L65 |
STUD, Discharge Manifold |
| 50B8 |
NUT, Discharge Manifolf Stud |
| 79L80 |
STUD, Cylinder Head |
| 50B10 |
NUT, Cylinder Head Stud |
| 64AU5 |
PLUG, Priming & Drain |
| (See Valve Pages) |
VALVE-COVER |
| (See Valve Pages) |
GASKET, Valve Cover. |
| 200FCC071A |
DISCHARGE MANIFOLD ASSEMBLY, Includes Ref. No. 14thru 18 & 36 |
| 64AA5 |
PLUG, Discharge Manifold |
| 202FCC073 |
FLANGE, Discharge |
| 79L9 |
STUD, Discharge Flange |
| 50B36 |
NUT, Discharge Flange |
| 25T15 |
GASKET, Discharge Flange |
| 25T20 |
GASKET, Manifold to Cylinder |
| FC957 |
SPACE-LINER |
| 4EF519 |
SLEEVE-LINER |
| FC217 |
CLAMP-LINER |
| 3FC41 |
HEAD-CYLINDER |
| 25T40 |
GASKET, Cylinder Head |
| 1FY207 |
SET SCREW, Liner |
| 50B9 |
NUT, Liner Set Screw |
| 95F9 |
WASHER, Liner Set Screw |
| 60BQ3 |
PACKING, Liner Set Screw |
| 3EF499 |
SUCTION MANIFOLD ASSEMBLY, Includes Ref. No. 29 thru 34 |
| 64DE8 |
FLANGE, Suction |
| 25C320 |
GASKET, Suction Flange |
| 75A214 |
SCREW, Suction Flange |
| 50B8 |
NUT, Suction Flange Screw |
| 3EF110 |
MANIFOLD-SUCTION |
| 25G18 |
GASKET, Suction Manifold to Cylinder |
| 75A74 |
SCREW, Suction Manifold |
| 64AA9 |
PLUG, 2″ (Not shown) |
| For definition of Right Hand and Left Hand side of pump, see ordering instructions on Page i. |
| FLUID CYLINDER – 2 PIECE STEEL & STAINLESS STEEL (Ref. Drawing) D75823 FXDH |
| Part No. |
Name of Part |
| 23FC29LF |
FLUID CYLINDER ASSEMBLY (LH)*, Includes Ref. No. 2 thru 10 |
| 23FC29RF |
FLUID CYLINDER ASSEMBLY (RH)*, Includes Ref. No. 2 thru 10 |
| 79L114 |
STUD, Cylinder to Frame |
| 50B10 |
NUT, Cylinder to Frame Stud |
| 79L4 |
STUD, Valve Cover |
| 50B8 |
NUT, Valve Cover Stud |
| 79L65 |
STUD, Discharge Manifold |
| 50B8 |
NUT, Discharge Manifolf Stud |
| 79L80 |
STUD, Cylinder Head |
| 50B10 |
NUT, Cylinder Head Stud |
| 64AU5 |
PLUG, Priming & Drain |
| (See Valve Pages) |
VALVE-COVER |
| (See Valve Pages) |
GASKET, Valve Cover. |
| 200FCC071A |
DISCHARGE MANIFOLD ASSEMBLY, Includes Ref. No. 14thru 18 & 36 |
| 64AA5 |
PLUG, Discharge Manifold |
| 202FCC073 |
FLANGE, Discharge |
| 79L9 |
STUD, Discharge Flange |
| 50B36 |
NUT, Discharge Flange |
| 25T15 |
GASKET, Discharge Flange |
| 25T20 |
GASKET, Manifold to Cylinder |
| FC957 |
SPACE-LINER |
| 4EF519 |
SLEEVE-LINER |
| FC217 |
CLAMP-LINER |
| 3FC41 |
HEAD-CYLINDER |
| 25T40 |
GASKET, Cylinder Head |
| 1FY207 |
SET SCREW, Liner |
| 50B9 |
NUT, Liner Set Screw |
| 95F9 |
WASHER, Liner Set Screw |
| 60BQ3 |
PACKING, Liner Set Screw |
| 3EF499 |
SUCTION MANIFOLD ASSEMBLY, Includes Ref. No. 29 thru 34 |
| 64DE8 |
FLANGE, Suction |
| 25C320 |
GASKET, Suction Flange |
| 75A214 |
SCREW, Suction Flange |
| 50B8 |
NUT, Suction Flange Screw |
| 3EF110 |
MANIFOLD-SUCTION |
| 25G18 |
GASKET, Suction Manifold to Cylinder |
| 75A74 |
SCREW, Suction Manifold |
| 64AA9 |
PLUG, 2″ (Not shown) |
| For definition of Right Hand and Left Hand side of pump, see ordering instructions on Page i. |

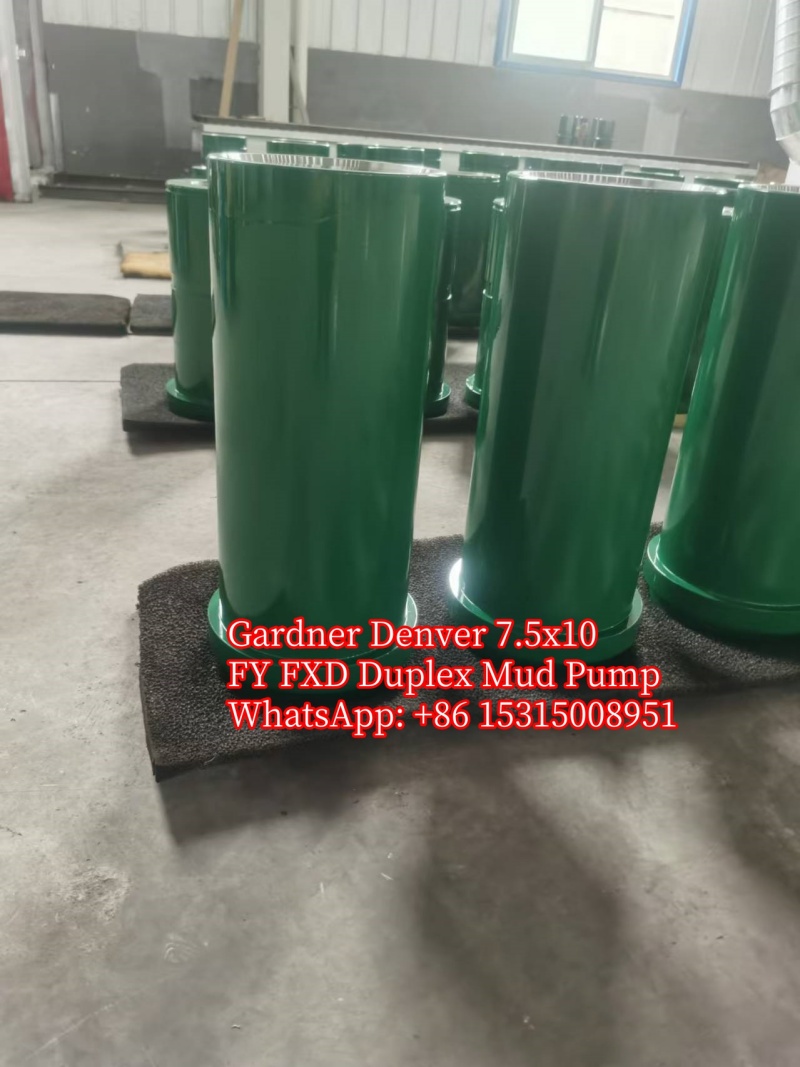

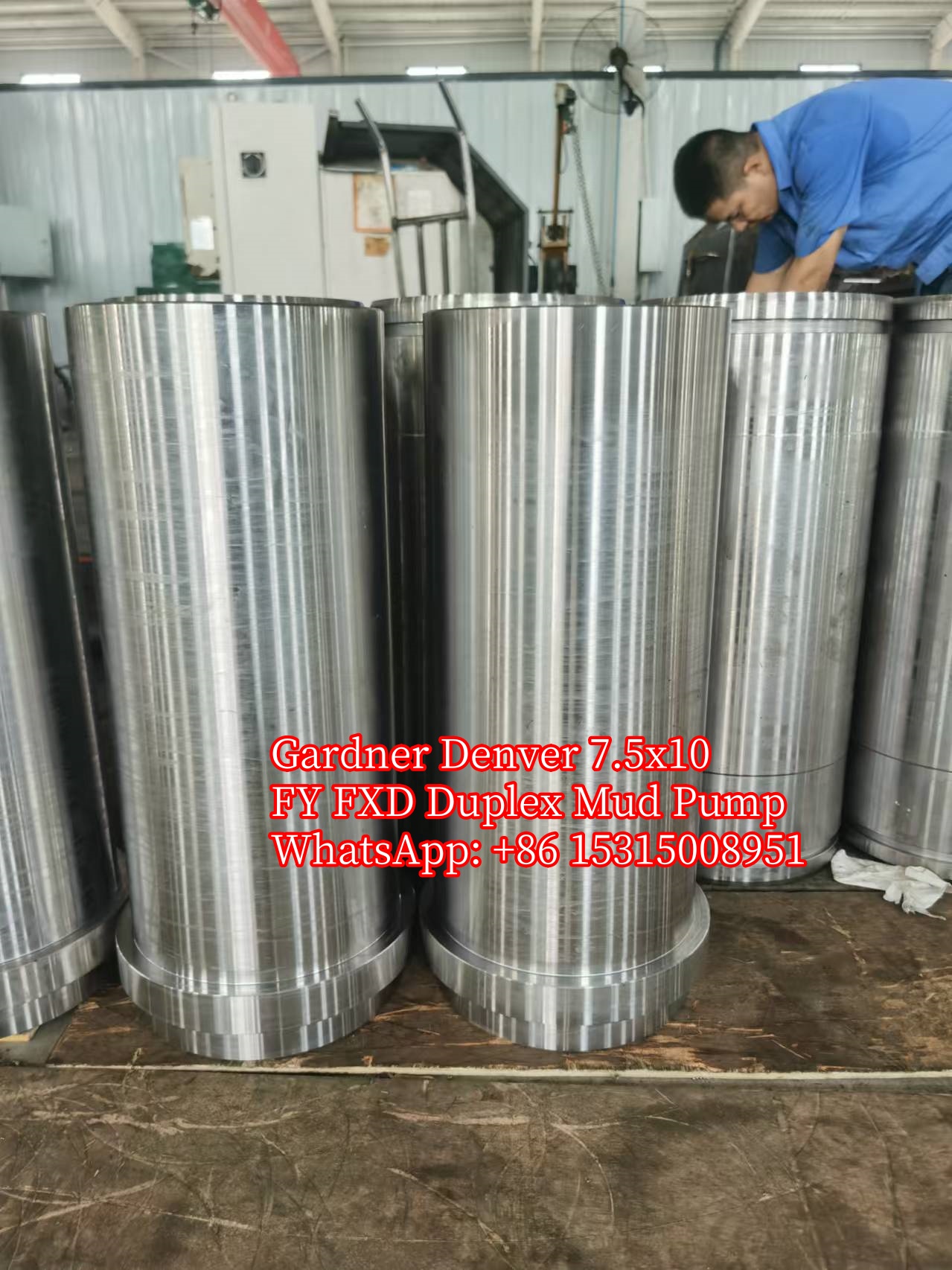

| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDA, FXDE, FXDJ Hardened Steel |
| Part No. |
Size |
| FY45675 |
7-1/2″ |
| FZ45672 |
7-1/4″ |
| FZ45670 |
7″ |
| FZ45667 |
6-3/4″ |
| FZ45665 |
6-1 /2″ |
| FZ45660 |
6″ |
| FZ45655 |
5-1 /2″ |
| FZ45650 |
5″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDN, FXDR Bronze |
| Part No. |
Size |
| FY6275BB |
7-1/2″ |
| FZ6272BB |
7-1/4″ |
| FZ6270BB |
7″ |
| FZ6267BB |
6-3/4″ |
| FZ6265BB |
6-1 /2″ |
| FZ6260BB |
6″ |
| FZ6255BB |
5-1 /2″ |
| FZ6250BB |
5″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDD, FXDH, FXDM Hardened Steel |
| Part No. |
Size |
| 1 EF45650 |
5″ |
| 1 EF45645 |
4-1/2″ |
| 1 EF45640 |
4″ |
| 1 EF45635 |
3-1/2″ |
| 1 EF45630 |
3″ |
| 1 EF45625 |
2-1/2″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDQ, FXDU Bronze |
| Part No. |
Size |
| 33EF64 |
5″ |
| 34EF64 |
4-1/2″ |
| 35EF64 |
4″ |
| 36EF64 |
3-1/2″ |
| 37EF64 |
3″ |
| 38EF64 |
2-1/2″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDC, FXDG, FXDL, FXDP, FXDT Stainless Steel |
| Part No. |
Size |
| None |
5-1 /2″ |
| 16FD64 |
5″ |
| 20FD64 |
4-1 /2″ |
| 22FD64 |
4″ |
| 24FD64 |
3-1/2″ |
| 26FD64 |
3″ |
| 28FD64 |
2-1 /2″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDC, FXDG, FXDL, FXDP, FXDT Hardened Steel |
| Part No. |
Size |
| None |
5-1 /2″ |
| FD45650 |
5″ |
| FD45645 |
4-1 /2″ |
| FD45640 |
4″ |
| FD45635 |
3-1/2″ |
| FD45630 |
3″ |
| FD45625 |
2-1 /2″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDC, FXDG, FXDL, FXDP, FXDT Bronze |
| Part No. |
Size |
| None |
5-1 /2″ |
| FD64 |
5″ |
| 3FD64 |
4-1 /2″ |
| 6FD64 |
4″ |
| 9FD64 |
3-1/2″ |
| 12FD64 |
3″ |
| 15FD64 |
2-1 /2″ |
| CYLINDER LINERS TWO (2) REQUIRED PER PUMP Models FXDB, FXDF, FXDK, FXDS Hardened Steel |
| Part No. |
Size |
| FD45655 |
5-1 /2″ |
| 1 FD45650 |
5″ |
| 2FD45645 |
4-1 /2″ |
| 1 FD45640 |
4″ |
| 200FDD456 |
3-1/2″ |
| None |
3″ |
| None |
2-1 /2″ |

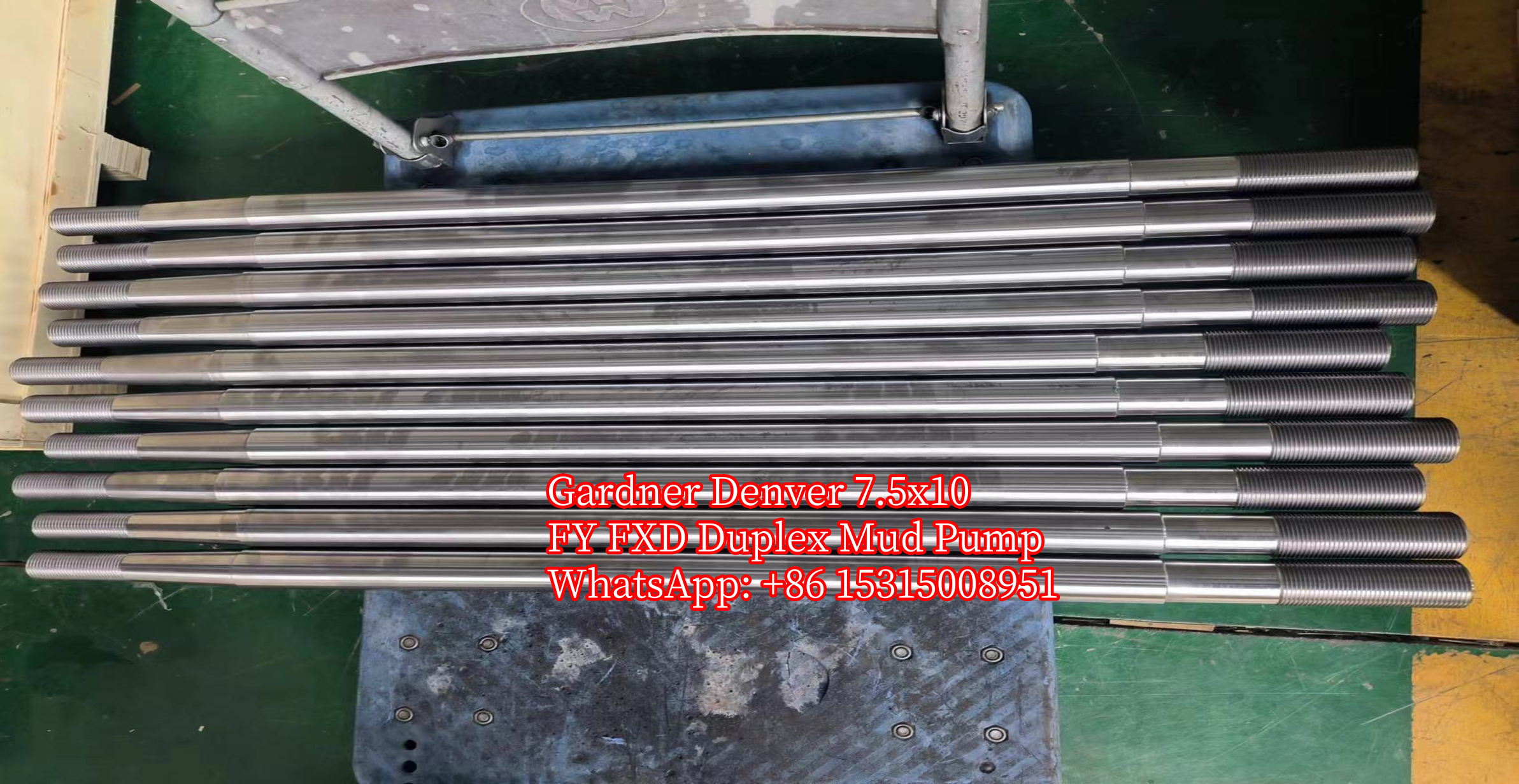

| PISTON RODS & NUTS (API No. 3 TAPER) (Ref. Drawing) 874017 Models FXDB, FXDC, FXDD, FXDF, FXDG, FXDH, FXDK, FXDL, FXDM, FXDP, FXDQ, FXDS, FXDT, FXDU |
| Part No. |
Name of Part |
| 5FD183 |
HARDENED STEEL PISTON ROD Includes Ref. No. 2 & 3 |
| NONE |
NUT (Thin) |
| 50V7 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 7FD183 |
BRONZE PISTON ROD Includes Ref. No. 2 & 3 |
| 50T235 |
NUT (Thin) |
| 50T236 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 9FD183 |
STAINLESS STEEL PISTON ROD Includes Ref. No. 2 & 3 |
| 50T156 |
NUT (Thin) |
| 50T157 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 10FD183 |
CHROME PLATED PISTON ROD Includes Ref. No. 2 & 3 |
| NONE |
NUT (Thin) |
| 50V7 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| PISTON RODS & NUTS (API No. 3 TAPER) (Ref. Drawing) 874017 Models FXDA, FXDE, FXDJ, FXDN, FXDR, |
| Part No. |
Name of Part |
| 5FD183 |
HARDENED STEEL PISTON ROD Includes Ref. No. 2 & 3 |
| NONE |
NUT (Thin) |
| 50V7 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 7FD183 |
BRONZE PISTON ROD Includes Ref. No. 2 & 3 |
| 50T235 |
NUT (Thin) |
| 50T236 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 9FD183 |
STAINLESS STEEL PISTON ROD Includes Ref. No. 2 & 3 |
| 50T156 |
NUT (Thin) |
| 50T157 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| 10FD183 |
CHROME PLATED PISTON ROD Includes Ref. No. 2 & 3 |
| NONE |
NUT (Thin) |
| 50V7 |
NUT (Full) |
| 50T137 |
NUT, Crosshead |
| STEEL INSERT-TYPE PISTON (STANDARD FOR SLUSH, GROUT & CEMENT SERVICE) (Ref. Drawing) C76948 Models FXDA & FXDE |
| Part No. |
Name of Part |
| 212TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 7-1/2″) |
| TBB76021 |
INSERT GROUP, Includes Retainer Plates & Rings ( 7-1/2″) |
| 211TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 7-1/4″) |
| TBB76020 |
INSERT GROUP, Includes Retainer Plates & Rings ( 7-1/4″) |
| 210TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 7″) |
| TBB76019 |
INSERT GROUP, Includes Retainer Plates & Rings ( 7″) |
| 209TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 6-3/4″) |
| TBB76018 |
INSERT GROUP, Includes Retainer Plates & Rings ( 6-3/4″) |
| 208TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 6-1/2″) |
| TBB76017 |
INSERT GROUP, Includes Retainer Plates & Rings ( 6-1/2″) |
| 206TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 6″) |
| TBB76015 |
INSERT GROUP, Includes Retainer Plates & Rings ( 6″) |
| STEEL INSERT-TYPE PISTON (STANDARD FOR SLUSH, GROUT & CEMENT SERVICE) (Ref. Drawing) C76948 Models FXDA, FXDB, FXDE, FXDF |
| Part No. |
Name of Part |
| 204TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 5-1/2″ ) |
| TBB76013 |
INSERT GROUP, Includes Retainer Plates & Rings ( 5-1/2″ ) |
| STEEL INSERT-TYPE PISTON (STANDARD FOR SLUSH, GROUT & CEMENT SERVICE) (Ref. Drawing) C76948 Models FXDA thru FXDH |
| Part No. |
Name of Part |
| 202TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 5″ ) |
| TBB76011 |
INSERT GROUP, Includes Retainer Plates & Rings ( 5″ ) |
| STEEL INSERT-TYPE PISTON (STANDARD FOR SLUSH, GROUT & CEMENT SERVICE) (Ref. Drawing) C76948 Models FXDB thru FXDH |
| Part No. |
Name of Part |
| 200TBB045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 4-1/2″ ) |
| TBB76009 |
INSERT GROUP, Includes Retainer Plates & Rings ( 4-1/2″ ) |
| 221TBK045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 4″ ) |
| TBK90403 |
INSERT GROUP, Includes Retainer Plates & Rings ( 4″ ) |
| 220TBK045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 3-1/2″ ) |
| TBK90402 |
INSERT GROUP, Includes Retainer Plates & Rings ( 3-1/2″ ) |
| STEEL INSERT-TYPE PISTON (STANDARD FOR SLUSH, GROUT & CEMENT SERVICE) (Ref. Drawing) C76948 Models FXDC, FXDD, FXDG, FXDH |
| Part No. |
Name of Part |
| 221TBA045A |
PISTON ASSEMBLY, Includes Ref. No. 2 ( 3″ ) |
| TBA75994 |
INSERT GROUP, Includes Retainer Plates & Rings ( 3″ ) |

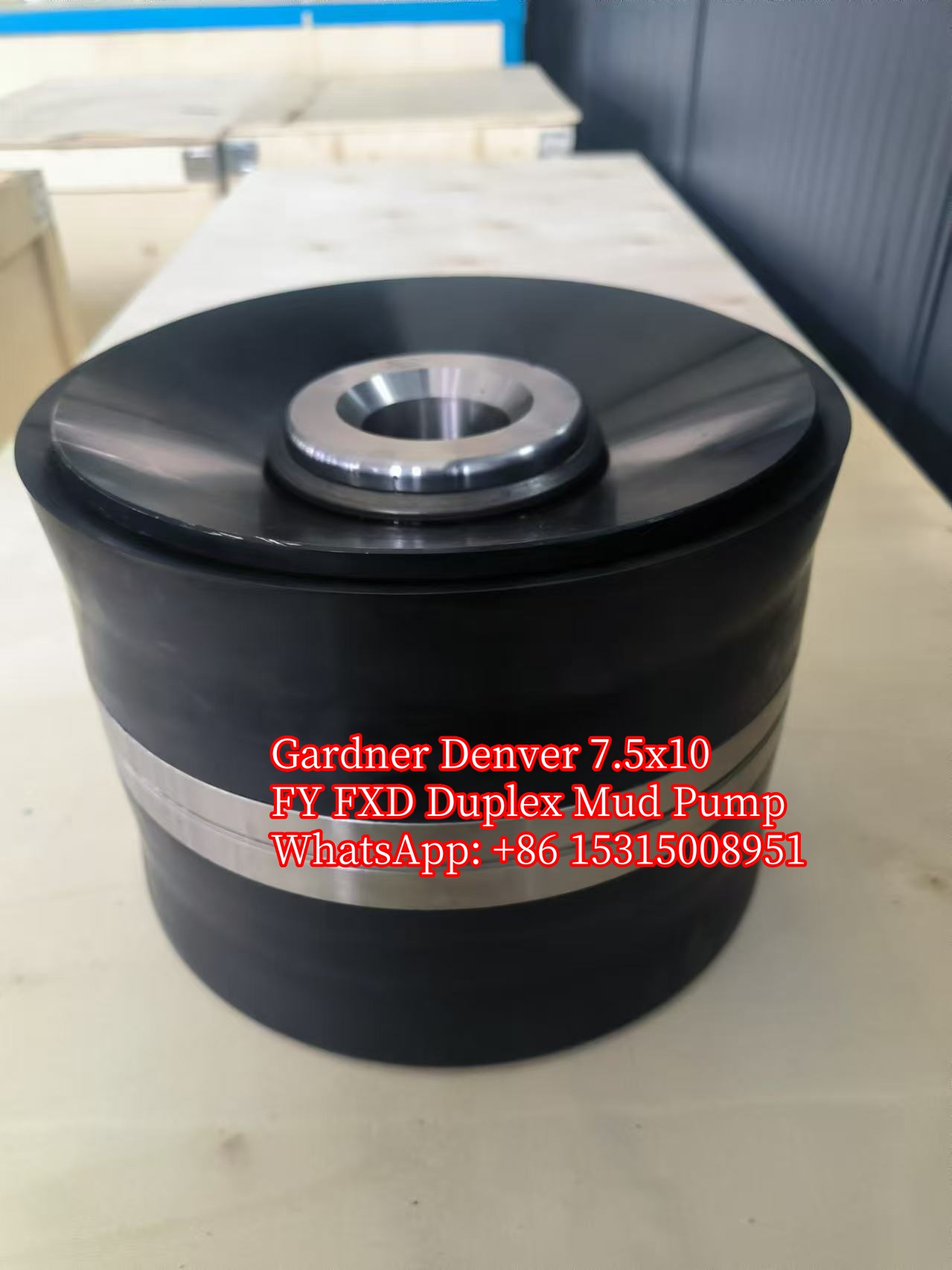

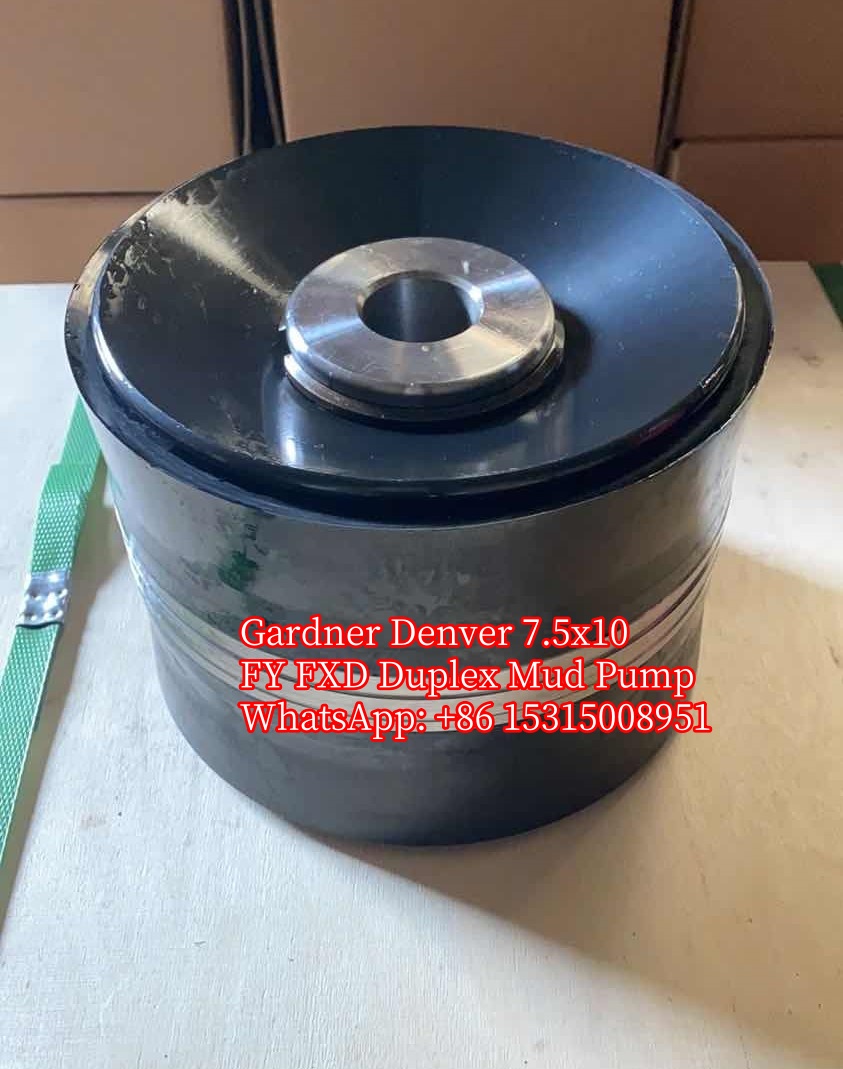

| FOLLOWER-TYPE FLUID PISTONS FOR WATER & GENERAL SERVICE (GARDNER DENVER No. 3 TAPER) (Ref. Drawing) A44562 Models FXDA & FXDE |
| Part No. |
Name of Part |
| FY45 |
BODY-PISTON (Iron) ( 7-1/2″ ) |
| FY46 |
FOLLOWER-PISTON (Iron) ( 7-1/2″ ) |
| 1FY45 |
BODY-PISTON (Bronze) ( 7-1/2″ ) |
| 1FY46 |
FOLLOWER-PISTON (Bronze) ( 7-1/2″ ) |
| 60D47 (12) |
PACKING, Regular Cure ( 7-1/2″ ) |
| 60Y47 (12) |
PACKING, Rock Hard ( 7-1/2″ ) |
| 17F045 |
BODY-PISTON (Iron) ( 7-1/4″ ) |
| F046 |
FOLLOWER-PISTON (Iron) ( 7-1/4″ ) |
| 18F045 |
BODY-PISTON (Bronze) ( 7-1/4″ ) |
| 1F046 |
FOLLOWER-PISTON (Bronze) ( 7-1/4″ ) |
| 2009141 (12) |
PACKING, Regular Cure ( 7-1/4″ ) |
| 60Y2 (12) |
PACKING, Rock Hard ( 7-1/4″ ) |
| 19F045 |
BODY-PISTON (Iron) ( 7″ ) |
| 18F046 |
FOLLOWER-PISTON (Iron) ( 7″ ) |
| 20F045 |
BODY-PISTON (Bronze) ( 7″ ) |
| 19F046 |
FOLLOWER-PISTON (Bronze) ( 7″ ) |
| 60D52 (12) |
PACKING, Regular Cure ( 7″ ) |
| 60Y52 (12) |
PACKING, Rock Hard ( 7″ ) |
| 21F045 |
BODY-PISTON (Iron) ( 6-3/4″ ) |
| 3F046 |
FOLLOWER-PISTON (Iron) ( 6-3/4″ ) |
| 22F045 |
BODY-PISTON (Bronze) ( 6-3/4″ ) |
| 8F046 |
FOLLOWER-PISTON (Bronze) ( 6-3/4″ ) |
| 2009042 ( 16) |
PACKING, Regular Cure ( 6-3/4″ ) |
| 60Y3 (16) |
PACKING, Rock Hard ( 6-3/4″ ) |
| 23F045 |
BODY-PISTON (Iron) ( 6-1/2″ ) |
| 2F046 |
FOLLOWER-PISTON (Iron) ( 6-1/2″ ) |
| 24F045 |
BODY-PISTON (Bronze) ( 6-1/2″ ) |
| 9F046 |
FOLLOWER-PISTON (Bronze) ( 6-1/2″ ) |
| 60D9 (12) |
PACKING, Regular Cure ( 6-1/2″ ) |
| 60Y9 (12) |
PACKING, Rock Hard ( 6-1/2″ ) |
| 27F045 |
BODY-PISTON (Iron) ( 6″ ) |
| 4F046 |
FOLLOWER-PISTON (Iron) ( 6″ ) |
| 28F045 |
BODY-PISTON (Bronze) ( 6″ ) |
| 10F046 |
FOLLOWER-PISTON (Bronze) ( 6″ ) |
| 60D8 (12) |
PACKING, Regular Cure ( 6″ ) |
| 60Y8 (12) |
PACKING, Rock Hard ( 6″ ) |
| FOLLOWER-TYPE FLUID PISTONS FOR WATER & GENERAL SERVICE (GARDNER DENVER No. 3 TAPER) (Ref. Drawing) A44562 Models FXDN, FXDR, FXDS |
| Part No. |
Name of Part |
| 31F045 |
BODY-PISTON (Iron) ( 5-1/2″ ) |
| 6F045 |
FOLLOWER-PISTON (Iron) ( 5-1/2″ ) |
| 32F045 |
BODY-PISTON (Bronze) ( 5-1/2″ ) |
| 12F046 |
FOLLOWER-PISTON (Bronze) ( 5-1/2″ ) |
| 60D7 (12) |
PACKING, Regular Cure ( 5-1/2″ ) |
| 60Y7 (12) |
PACKING, Rock Hard ( 5-1/2″ ) |
| FOLLOWER-TYPE FLUID PISTONS FOR WATER & GENERAL SERVICE (GARDNER DENVER No. 3 TAPER) (Ref. Drawing) A44562 Models FXDN thru FXDU |
| Part No. |
Name of Part |
| 35F045 |
BODY-PISTON (Iron) ( 5″ ) |
| 7F046 |
FOLLOWER-PISTON (Iron) ( 5″ ) |
| 36F045 |
BODY-PISTON (Bronze) ( 5″ ) |
| 13F046 |
FOLLOWER-PISTON (Bronze) ( 5″ ) |
| 60D6 (12) |
PACKING, Regular Cure ( 5″ ) |
| 60U6 (12) |
PACKING, Rock Hard ( 5″ ) |
| FOLLOWER-TYPE FLUID PISTONS FOR WATER & GENERAL SERVICE (GARDNER DENVER No. 3 TAPER) (Ref. Drawing) A44562 Models FXDP, FXDQ, FXDS, FXDT and FXDU |
| Part No. |
Name of Part |
| 37F045 |
BODY-PISTON (Iron) ( 4-1/2″ ) |
| FD45 |
BODY-PISTON (Iron) ( 4″ ) |
| 1FD45 |
BODY-PISTON (Iron) ( 3-1/2″ ) |
| 16F045 |
FOLLOWER-PISTON (Iron) ( 4-1/2″ ) |
| FD46 |
FOLLOWER-PISTON (Iron) ( 4″ ) |
| 1FD46 |
FOLLOWER-PISTON (Iron) ( 3-1/2″ ) |
| 38F045 |
BODY-PISTON (Bronze) ( 4-1/2″ ) |
| 4FD45 |
BODY-PISTON (Bronze) ( 4″ ) |
| 5FD45 |
BODY-PISTON (Bronze) ( 3-1/2″ ) |
| 22F046 |
FOLLOWER-PISTON (Bronze) ( 4-1/2″ ) |
| 4FD46 |
FOLLOWER-PISTON (Bronze) ( 4″ ) |
| 5FD46 |
FOLLOWER-PISTON (Bronze) ( 3-1/2″ ) |
| 60D22 (12) |
PACKING, Regular Cure ( 4-1/2″ ) |
| 60D17 (14) |
PACKING, Regular Cure ( 4″ ) |
| 60D25 (14) |
PACKING, Regular Cure ( 3-1/2″ ) |
| 60Y22 (12) |
PACKING, Rock Hard ( 4-1/2″ ) |
| 60Y17 (14) |
PACKING, Rock Hard ( 4″ ) |
| 60Y25 (14) |
PACKING, Rock Hard ( 3-1/2″ ) |
| FOLLOWER-TYPE FLUID PISTONS FOR WATER & GENERAL SERVICE (GARDNER DENVER No. 3 TAPER) (Ref. Drawing) A44562 Models FXDP, FXDQ, FXDT, FXDU |
| Part No. |
Name of Part |
| 2FD45 |
BODY-PISTON (Iron) ( 3″ ) |
| 3FD45 |
BODY-PISTON (Iron) ( 2-1/2″ ) |
| 2FD46 |
FOLLOWER-PISTON (Iron) ( 3″ ) |
| 3FD46 |
FOLLOWER-PISTON (Iron) ( 2-1/2″ ) |
| 6FD45 |
BODY-PISTON (Bronze) ( 3″ ) |
| 7FD45 |
BODY-PISTON (Bronze) ( 2-1/2″ ) |
| 6FD46 |
FOLLOWER-PISTON (Bronze) ( 3″ ) |
| 7FD46 |
FOLLOWER-PISTON (Bronze) ( 2-1/2″ ) |
| 60D11 (12) |
PACKING, Regular Cure ( 3″ ) |
| 60D13 (10) |
PACKING, Regular Cure ( 2-1/2″ ) |
| 60Y11 (12) |
PACKING, Rock Hard ( 3″ ) |
| 60Y13 (10) |
PACKING, Rock Hard ( 2-1/2″ ) |
| IRON SOLID-TYPE PISTON WITH CAST IRON RINGS STANDARD FOR OIL SERVICE (API No. 3 TAPER) (Ref. Drawing) B76949 Models FXDJ |
| Part No. |
Name of Part |
| FY350 |
PISTON ( 7-1/2″ ) |
| 1 FY350 |
PISTON ( 7-1/4″ ) |
| 2FY350 |
PISTON ( 7″ ) |
| 3FY350 |
PISTON ( 6-3/4″ ) |
| 4FY350 |
PISTON ( 6-1/2″ ) |
| 6FY350 |
PISTON ( 6″ ) |
| 65A43 (10) |
RING-PISTON ( 7-1/2″ ) |
| 65A92 (10) |
RING-PISTON ( 7-1/4″ ) |
| 65A39 (10) |
RING-PISTON ( 7″ ) |
| 65A101 (10) |
RING-PISTON ( 6-3/4″ ) |
| 65A17 (10) |
RING-PISTON ( 6-1/2″ ) |
| 65A8 (10) |
RING-PISTON ( 6″ ) |
| IRON SOLID-TYPE PISTON WITH CAST IRON RINGS STANDARD FOR OIL SERVICE (API No. 3 TAPER) (Ref. Drawing) B76949 Models FXDJ, FXDK |
| Part No. |
Name of Part |
| 8FY350 |
PISTON ( 5-1/2″ ) |
| 65A6 (10) |
RING-PISTON ( 5-1/2″ ) |
| IRON SOLID-TYPE PISTON WITH CAST IRON RINGS STANDARD FOR OIL SERVICE (API No. 3 TAPER) (Ref. Drawing) B76949 Models FXDJ thru FXDM |
| Part No. |
Name of Part |
| 9FY350 |
PISTON ( 5″ ) |
| 65A3 (10) |
RING-PISTON ( 5″ ) |
| IRON SOLID-TYPE PISTON WITH CAST IRON RINGS STANDARD FOR OIL SERVICE (API No. 3 TAPER) (Ref. Drawing) B76949 Models FXDK, FXDL, and FXDM |
| Part No. |
Name of Part |
| FX0350 |
PISTON ( 4-1/2″ ) |
| FD350 |
PISTON ( 4″ ) |
| 1 FD350 |
PISTON ( 3-1/2″ ) |
| 65A47 (8) |
RING-PISTON ( 4-1/2″ ) |
| 65A33 (8) |
RING-PISTON ( 4″ ) |
| 65A9 (8) |
RING-PISTON ( 3-1/2″ ) |
| IRON SOLID-TYPE PISTON WITH CAST IRON RINGS STANDARD FOR OIL SERVICE (API No. 3 TAPER) (Ref. Drawing) B76949 Models FXDL and FXDM |
| Part No. |
Name of Part |
| 2FD350 |
PISTON ( 3″ ) |
| 3FD350 |
PISTON ( 2-1/2″ ) |
| 65A14 (8) |
RING-PISTON ( 3″ ) |
| 65A44 (8) |
RING-PISTON ( 2-1/2″ ) |
| CUP-TYPE PISTONS IRON & STEEL FOR OIL & GENERAL SERVICE BRONZE FOR WATER SERVICE (API No. 3 TAPER – OPTIONAL) (Ref. Drawing) A76951 Models FXDJ, FXDR and FXDN |
| Part No. |
Name of Part |
| P3APIL750 |
PISTON (Iron) Includes Ref. No. 2 ( 7-1/2″ ) |
| P3APIL725 |
PISTON (Iron) Includes Ref. No. 2 ( 7-1/4″ ) |
| P3APIL700 |
PISTON (Iron) Includes Ref. No. 2 ( 7″ ) |
| P3APIL675 |
PISTON (Iron) Includes Ref. No. 2 ( 6-3/4″ ) |
| P3APIL650 |
PISTON (Iron) Includes Ref. No. 2 ( 6-1/2″ ) |
| P3APIL600 |
PISTON (Iron) Includes Ref. No. 2 ( 6″ ) |
| P3APIL750S |
PISTON (Steel) Includes Ref. No. 2 ( 7-1/2″ ) |
| P3APIL725S |
PISTON (Steel) Includes Ref. No. 2 ( 7-1/4″ ) |
| P3APIL700S |
PISTON (Steel) Includes Ref. No. 2 ( 7″ ) |
| P3APIL675S |
PISTON (Steel) Includes Ref. No. 2 ( 6-3/4″ ) |
| P3APIL650S |
PISTON (Steel) Includes Ref. No. 2 ( 6-1/2″ ) |
| P3APIL600S |
PISTON (Steel) Includes Ref. No. 2 ( 6″ ) |
| P3APIL725B |
PISTON (Bronze) Includes Ref. No. 2 ( 7-1/2″ ) |
| P3APIL725B |
PISTON (Bronze) Includes Ref. No. 2 ( 7-1/4″ ) |
| P3APIL700B |
PISTON (Bronze) Includes Ref. No. 2 ( 7″ ) |
| P3APIL675B |
PISTON (Bronze) Includes Ref. No. 2 ( 6-3/4″ ) |
| P3APIL650B |
PISTON (Bronze) Includes Ref. No. 2 ( 6-1/2″ ) |
| P3APIL600B |
PISTON (Bronze) Includes Ref. No. 2 ( 6″ ) |
| 60BB25 |
CUP ( 7-1/2″ ) |
| 60BB24 |
CUP ( 7-1/4″ ) |
| 60BB23 |
CUP ( 7″ ) |
| 60BB22 |
CUP ( 6-3/4″ ) |
| 60BB21 |
CUP ( 6-1/2″ ) |
| 60BB19 |
CUP ( 6″ ) |
| CUP-TYPE PISTONS IRON & STEEL FOR OIL & GENERAL SERVICE BRONZE FOR WATER SERVICE (API No. 3 TAPER – OPTIONAL) (Ref. Drawing) A76951 Models FXDJ, FXDK, FXDN, FXDR, FXDS |
| Part No. |
Name of Part |
| P3APIL550 |
PISTON (Iron) Includes Ref. No. 2 ( 5-1/2″ ) |
| P3APIL550S |
PISTON (Steel) Includes Ref. No. 2 ( 5-1/2″ ) |
| P3APIL550B |
PISTON (Bronze) Includes Ref. No. 2 ( 5-1/2″ ) |
| 60BB17 |
CUP ( 5-1/2″ ) |
| CUP-TYPE PISTONS IRON & STEEL FOR OIL & GENERAL SERVICE BRONZE FOR WATER SERVICE (API No. 3 TAPER – OPTIONAL) (Ref. Drawing) A76951 Models FXDJ thru FXDS & FXDU |
| Part No. |
Name of Part |
| P3APIL500 |
PISTON (Iron) Includes Ref. No. 2 ( 5″ ) |
| P3APIL500S |
PISTON (Steel) Includes Ref. No. 2 ( 5″ ) |
| P3APIL500B |
PISTON (Bronze) Includes Ref. No. 2 ( 5″ ) |
| 60BB15 |
CUP ( 5″ ) |
| CUP-TYPE PISTONS IRON & STEEL FOR OIL & GENERAL SERVICE BRONZE FOR WATER SERVICE (API No. 3 TAPER – OPTIONAL) (Ref. Drawing) A76951 Models FXDK, FXDL, FXDM, FXDP, FXDQ, FXDS, FXDT, FXDU |
| Part No. |
Name of Part |
| P3APIL450 |
PISTON (Iron) Includes Ref. No. 2 ( 4-1/2″ ) |
| P3APIL400 |
PISTON (Iron) Includes Ref. No. 2 ( 4″ ) |
| P3APIL350 |
PISTON (Iron) Includes Ref. No. 2 ( 3-1/2″ ) |
| P3APIL450S |
PISTON (Steel) Includes Ref. No. 2 ( 4-1/2″ ) |
| P3APIL400S |
PISTON (Steel) Includes Ref. No. 2 ( 4″ ) |
| P3APIL350S |
PISTON (Steel) Includes Ref. No. 2 ( 3-1/2″ ) |
| P3APIL450B |
PISTON (Bronze) Includes Ref. No. 2 ( 4-1/2″ ) |
| P3APIL400B |
PISTON (Bronze) Includes Ref. No. 2 ( 4″ ) |
| P3APIL350B |
PISTON (Bronze) Includes Ref. No. 2 ( 3-1/2″ ) |
| 60BB13 |
CUP ( 4-1/2″ ) |
| 60BB11 |
CUP ( 4″ ) |
| 60BB9 |
CUP ( 3-1/2″ ) |
| CUP-TYPE PISTONS IRON & STEEL FOR OIL & GENERAL SERVICE BRONZE FOR WATER SERVICE (API No. 3 TAPER – OPTIONAL) (Ref. Drawing) A76951 Models FXDL, FXDM, FXDP, FXDQ, FXDT, FXDU |
| Part No. |
Name of Part |
| P3APIL300 |
PISTON (Iron) Includes Ref. No. 2 ( 3″ ) |
| P3APIL300S |
PISTON (Steel) Includes Ref. No. 2 ( 3″ ) |
| P3APIL300B |
PISTON (Bronze) Includes Ref. No. 2 ( 3″ ) |
| 60BB7 |
CUP ( 3″ ) |
| WING GUIDED VALVE BRONZE WITHOUT INSERT WATER SERVICE Models FXDN |
| Part No. |
Name of Part |
| 7EN39 |
SEAT-VALVE |
| 2EN206 |
VALVE-FLUID |
| 78D83 |
SPRING (Brass) |
| 25G32 |
GASKET, Valve Cover |
| 1FY147 |
COVER-VALVE |
| WING GUIDED GRAVEL VALVE HARDENED STEEL WITH RUBBER INSERT (SLUSH, GROUT & CEMENT SERVICE) Models FXDA & FXDE |
| Part No. |
Name of Part |
| 200FYY482A |
VALVE ASSEMBLY less seat, Includes Ref. No. 1 thru 6 |
| 200FYY482 |
VALVE-FLUID |
| 200FYY106 |
INSERT, Rubber |
| 200FYY279 |
WASHER-VALVE |
| 200FYY012 |
BOLT-VALVE |
| 50V6 |
LOCKNUT |
| 2013547 |
BUSHING |
| 200FYY039 |
SEAT-VALVE |
| 78A169 |
SPRING |
| 25G32 |
GASKET, Valve Cover |
| 1FY147 |
COVER-VALVE |
| CENTER GUIDED VALVE STEEL-FITTED WITHOUT INSERT OIL & GENERAL SERVICE (STAND ARD) Models FXDJ & FXDR |
| Part No. |
Name of Part |
| 201 FYY039 |
SEAT-VALVE |
| 204PZL482 |
VALVE-FLUID |
| 78A169 |
SPRING |
| FY147 |
COVER-VALVE |
| 25U32 |
GASKET |
| CENTER GUIDED VALVE STEEL-FITTED WITH CARBOXYLATED RUBBER INSERT SLUSH, GROUT & CEMENT SERVICE Models FXDA & FXDE |
| Part No. |
Name of Part |
| 202PZL482B |
VALVE ASSEMBLY, Includes Ref. No. 1thru4 |
| 202PZL482 |
VALVE-FLUID |
| 202PZL106 |
INSERT |
| 201 PZL279 |
WASHER |
| 50V27 |
NUT |
| 201 FYY039 |
SEAT-VALVE |
| 78A139 |
SPRING |
| 25G32 |
GASKET |
| FY147 |
COVER-VALVE |

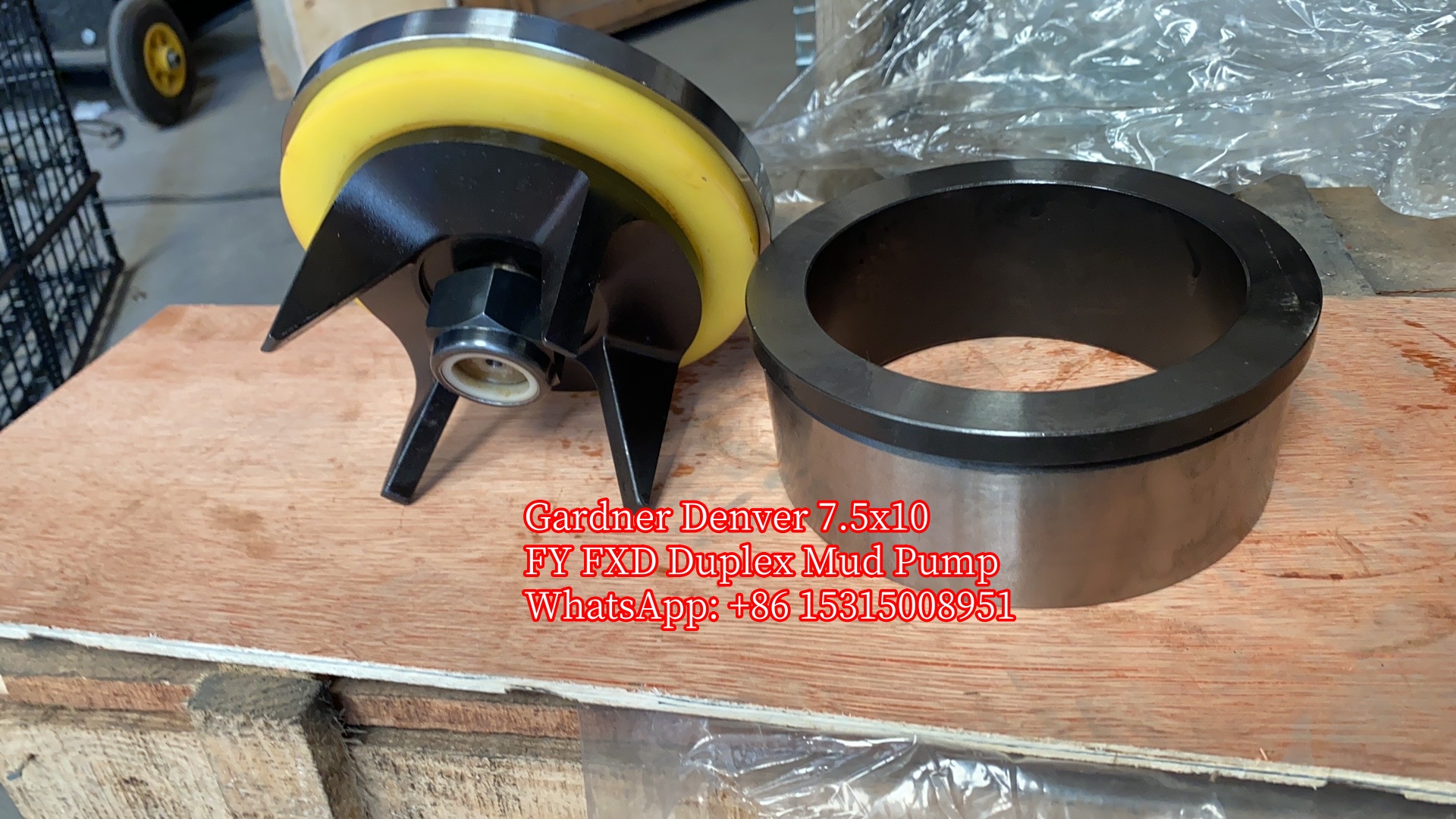

| WING GUIDED VALVE WITH RUBBER INSERT WATER, SLUSH, GROUT & CEMENT SERVICE Bronze Models FXDQ |
| Part No. |
Name of Part |
| 6PA39 |
SEAT-VALVE |
| 9EF206A |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| 9EF206 |
VALVE-FLUID |
| 5EF452 |
INSERT |
| 95G35 |
WASHER |
| 7FF156 |
SCREW |
| 78D88 |
SPRING |
| 25AL36 |
GASKET, Valve Cover |
| 9FC147 |
COVER-VALVE |
| WING GUIDED VALVE WITH RUBBER INSERT WATER, SLUSH, GROUT & CEMENT SERVICE Hardened Steel Models FXDB, FXDC, FXDF, FXDG |
| Part No. |
Name of Part |
| 11 FG39 |
SEAT-VALVE |
| 1 FG928 |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| 17FG206 |
VALVE-FLUID |
| 1 FG452* |
INSERT |
| 95D49 |
WASHER |
| 5FF156 |
SCREW |
| 78A171 |
SPRING |
| 25G18 |
GASKET, Valve Cover |
| FD147 |
COVER-VALVE |
| * Also available as 7FG452 Polyurethane Insert. |
| WING GUIDED VALVE WITH RUBBER INSERT WATER, SLUSH, GROUT & CEMENT SERVICE Hardened Steel Models FXDD, FXDH |
| Part No. |
Name of Part |
| 4PA39 |
SEAT-VALVE |
| 11 EF206A |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| 11 EF206 |
VALVE-FLUID |
| 5EF452 |
INSERT |
| 95D53 |
WASHER |
| 5FF156 |
SCREW |
| 78A298 |
SPRING |
| 25AL36 |
GASKET, Valve Cover |
| 9FC147 |
COVER-VALVE |
| WING GUIDED VALVE WITHOUT INSERT OIL OR WATER SERVICE Bronze Models FXDQ |
| Part No. |
Name of Part |
| 6PA39 |
SEAT-VALVE |
| 9EF206B |
FLUID VALVE ASSEMBLY, Includes Ref. No. 3 & 4 |
| 7FF156 |
SCREW |
| 78A299 |
SPRING |
| 9FC147 |
COVER-VALVE |
| 25AL36 |
GASKET |
| 95G38 |
WASHER |
| WING GUIDED VALVE WITHOUT INSERT OIL OR WATER SERVICE Hardened Steel Models FXDK, FXDL, FXDS, FXDT |
| Part No. |
Name of Part |
| 11 FG39 |
SEAT-VALVE |
| 17FG206C |
FLUID VALVE ASSEMBLY, Includes Ref. No. 3 & 4 |
| 5FF156 |
SCREW |
| 78A134 |
SPRING |
| FD147 |
COVER-VALVE |
| 25AV18 |
GASKET |
| 95D136 |
WASHER |
| WING GUIDED VALVE WITHOUT INSERT OIL OR WATER SERVICE Hardened Steel Models FXDM, FXDU |
| Part No. |
Name of Part |
| 4PA39 |
SEAT-VALVE |
| 11 EF206B |
FLUID VALVE ASSEMBLY, Includes Ref. No. 3 & 4 |
| 5FF156 |
SCREW |
| 78A299 |
SPRING |
| 9FC147 |
COVER-VALVE |
| 25AL36 |
GASKET |
| 95D136 |
WASHER |
| WING GUIDED GRAVEL VALVE HARDENED STEEL WITH RUBBER INSERT SLUSH, GROUT & CEMENT SERVICE Models FXDB, FXDC, FXDF, FXDG |
| Part No. |
Name of Part |
| 200FGG482A |
VALVE ASSEMBLY less seat, Includes Ref. No. 1 thru 5 |
| 200FGG482 |
VALVE |
| 200FGG106 |
INSERT |
| 200FGG279 |
WASHER |
| 200FGG655 |
BOLT |
| 50AF8 |
NUT |
| 200FGG039 |
SEAT |
| 78A171 |
SPRING (Steel) |
| 78D22 |
SPRING (Bronze) |
| FD147 |
COVER-VALVE |
| 25G18 |
GASKET, Valve Cover |
| DELRIN BALL VALVE GENERAL SERVICE (OPTIONAL) Steel Models FXDS, FXDT |
| Part No. |
Name of Part |
| 200FDD039 |
SEAT-VALVE |
| 200FDD481 |
VALVE-BALL, Delrin |
| 25G18 |
GASKET, Valve Cover. |
| 200FDD147A |
COVER-VALVE |
| DELRIN BALL VALVE GENERAL SERVICE (OPTIONAL) Stainless Steel Models FXDS, FXDT |
| Part No. |
Name of Part |
| 201 FDD039 |
SEAT-VALVE |
| 200FDD481 |
VALVE-BALL, Delrin |
| 25G18 |
GASKET, Valve Cover. |
| 200FDD147A |
COVER-VALVE |
| CENTER GUIDED VALVE HARDENED STEEL WITH RUBBER INSERT SLUSH, GROUT & CEMENT SERVICE Bronze Models FXDD, FXDH |
| Part No. |
Name of Part |
| PA451 |
SEAT-VALVE |
| EF482E* |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| EF482 |
VALVE-FLUID |
| 6EF452 |
INSERT |
| 3EF279 |
WASHER |
| 50V50 |
NUT |
| 9FC147 |
COVER-VALVE |
| 25AL36 |
GASKET, Valve Cover |
| 78A298 |
SPRING |
| *With Polyurethane Insert. |
| CENTER GUIDED VALVE HARDENED STEEL WITH RUBBER INSERT SLUSH, GROUT & CEMENT SERVICE Hardened Steel Models FXDB, FXDC, FXDF, FXDG |
| Part No. |
Name of Part |
| 1FG451 |
SEAT-VALVE |
| 1 FG908 |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| 3FG482 |
VALVE-FLUID |
| 5FG452 |
INSERT |
| 1 FG279 |
WASHER |
| 50G8 |
NUT |
| FD147 |
COVER-VALVE |
| 25G18 |
GASKET, Valve Cover |
| 78A171 |
SPRING |
| CENTER GUIDED VALVE HARDENED STEEL WITH RUBBER INSERT SLUSH, GROUT & CEMENT SERVICE Hardened Steel Models FXDD, FXDH |
| Part No. |
Name of Part |
| PA451 |
SEAT-VALVE |
| EF482G |
FLUID VALVE ASSEMBLY, Includes Ref. No. 2 thru 5 |
| EF482 |
VALVE-FLUID |
| 7EF452 |
INSERT |
| 3EF279 |
WASHER |
| 50V50 |
NUT |
| 9FC147 |
COVER-VALVE |
| 25AL36 |
GASKET, Valve Cover |
| 78A298 |
SPRING |
| CENTER GUIDED VALVE HARDENED STEEL WITHOUT INSERT OIL OR GENERAL SERVICE Models FXDK, FXDL, FXDS, FXDT |
| Part No. |
Name of Part |
| 1FG451 |
SEAT-VALVE |
| 3FG482 |
VALVE-FLUID |
| 78A134 |
SPRING |
| FD147 |
COVER-VALVE |
| 25AV18 |
GASKET, Valve Cover |
| CENTER GUIDED VALVE HARDENED STEEL WITHOUT INSERT OIL OR GENERAL SERVICE Models FXDM, FXDU |
| Part No. |
Name of Part |
| PA451 |
SEAT-VALVE |
| EF482 |
VALVE-FLUID |
| 78A299 |
SPRING |
| 9FC147 |
COVER-VALVE |
| 25AL36 |
GASKET, Valve Cover |
| WING GUIDED VALVE BEVELLED SEAT WITHOUT INSERT OIL, WATER OR GENERAL SERVICE Iron Fitted Models FXDL, FXDP, FXDS, FXDT |
| Part No. |
Name of Part |
| FG39 |
SEAT-VALVE |
| FG69 |
VALVE-FLUID |
| 78A172 |
SPRING |
| FD147 |
COVER-VALVE |
| 25AV18 |
GASKET, Valve Cover |
| WING GUIDED VALVE BEVELLED SEAT WITHOUT INSERT OIL, WATER OR GENERAL SERVICE Brass Fitted Models FXDP |
| Part No. |
Name of Part |
| FG39 |
SEAT-VALVE |
| 1FG69 |
VALVE-FLUID |
| 78D72 |
SPRING |
| FD147 |
COVER-VALVE |
| 25AV18 |
GASKET, Valve Cover |
| DURABLA VALVE STAINLESS STEEL GENERAL SERVICE (OPTIONAL) Models FXDR |
| Part No. |
Name of Part |
| 1F01602 |
FLUID VALVE ASSEMBLY, Includes Ref. No. 1 thru 7 |
| 2109269 |
VALVE SEAT ASSEMBLY |
| 2109264 |
DISC |
| 2109265 |
GUARD |
| 2109266 |
STUD |
| 2109267 |
SLEEVE |
| 78R7 |
SPRING |
| 2109268 |
SPRING |
| 3FY147 |
COVER-VALVE |
| 25U32 |
GASKET, Valve Cover. |
| DURABLA VALVE STAINLESS STEEL GENERAL SERVICE (OPTIONAL) Models FXDS, FXDT |
| Part No. |
Name of Part |
| 2FG1602 |
FLUID VALVE ASSEMBLY, Includes Ref. No. 1 thru 7 |
| 18FG39A* |
VALVE SEAT ASSEMBLY |
| 90AN23 |
DISC |
| 50AK11 |
GUARD |
| 79AG14* |
STUD |
| 80K10 |
SLEEVE |
| 78R3 |
SPRING |
| 50AK14 |
SPRING |
| 4FD147 |
COVER-VALVE |
| 25G18 |
GASKET, Valve Cover. |
| * Stud furnished with SEAT but may be purchased separately. |
| DURABLA VALVE STAINLESS STEEL GENERAL SERVICE (OPTIONAL) Models FXDU |
| Part No. |
Name of Part |
| 2PA1602 |
FLUID VALVE ASSEMBLY, Includes Ref. No. 1 thru 7 |
| 9PA39A* |
VALVE SEAT ASSEMBLY |
| 90AN21 |
DISC |
| 50AK11 |
GUARD |
| 79AG15* |
STUD |
| 80K10 |
SLEEVE |
| 78R3 |
SPRING |
| 50AK14 |
SPRING |
| 201 FCC147 |
COVER-VALVE |
| 25AL36 |
GASKET, Valve Cover. |
| * Stud furnished with SEAT but may be purchased separately. |
| BALL GUIDED SPHERICAL VALVE OIL, WATER OR GENERAL SERVICE (OPTIONAL) Models FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 3F01614 |
FLUID VALVE ASSM. (Steel) |
| 6F01614 |
FLUID VALVE ASSM. (Stainless Steel) |
| F01614 |
FLUID VALVE ASSM. (Bronze) |
| 3FY147 |
COVER-VALVE |
| 25U32 |
GASKET, Valve Cover |
| BALL GUIDED SPHERICAL VALVE OIL, WATER OR GENERAL SERVICE (OPTIONAL) Models FXDK, FXDL, FXDP, FXDS, FXDT |
| Part No. |
Name of Part |
| 3FG1614 |
FLUID VALVE ASSM. (Steel) |
| 6FG1614 |
FLUID VALVE ASSM. (Stainless Steel) |
| FG1614 |
FLUID VALVE ASSM. (Bronze) |
| 4FD147 |
COVER-VALVE |
| 25G18 |
GASKET, Valve Cover |
| BALL GUIDED SPHERICAL VALVE OIL, WATER OR GENERAL SERVICE (OPTIONAL) Models FXDM, FXDQ, FXDU |
| Part No. |
Name of Part |
| 3PA1614 |
FLUID VALVE ASSM. (Steel) |
| 6PA1614 |
FLUID VALVE ASSM. (Stainless Steel) |
| PA1614 |
FLUID VALVE ASSM. (Bronze) |
| 201 FCC147 |
COVER-VALVE |
| 25AL36 |
GASKET, Valve Cover |
| VALVE SEAT PULLER WING GUIDED & GRAVEL TYPE (OPTIONAL EQUIPMENT) Wing Guided Models FXDA, FXDE, FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 201 FYY219A |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 201FYY219 |
PULLER, Valve Seat |
| 2015079 |
BOLT-PULLER |
| 62R40 |
PIN-SPRING ROLL |
| 3AUX292 |
PLATE-PULLER |
| 50T62 |
NUT-HEX |
| VALVE SEAT PULLER WING GUIDED & GRAVEL TYPE (OPTIONAL EQUIPMENT) Gravel Type Models FXDA, FXDE, FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 202FYY219A |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 202FYY219 |
PULLER, Valve Seat |
| 2015079 |
BOLT-PULLER |
| 62R40 |
PIN-SPRING ROLL |
| 3AUX292 |
PLATE-PULLER |
| 50T62 |
NUT-HEX |
| VALVE SEAT PULLER WING GUIDED & GRAVEL TYPE (OPTIONAL EQUIPMENT) Gravel Type Models FXDC, FXDL, FXDF, FXDP, FXDG, FXDS, FXDK, FXDT |
| Part No. |
Name of Part |
| 200FGG219A |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 200FGG219 |
PULLER, Valve Seat |
| 2015079 |
BOLT-PULLER |
| 62R40 |
PIN-SPRING ROLL |
| 3AUX292 |
PLATE-PULLER |
| 50T62 |
NUT-HEX |
| VALVE SEAT PULLER WING GUIDED & DELRIN BALL (OPTIONAL EQUIPMENT) Wing Guided Models FXDB, FXDC, FXDF, FXDG, FXDK, FXDL, FXDP, FXDS, FXDT |
| Part No. |
Name of Part |
| 1AUX545 |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 3AUX291 |
PULLER |
| 2AUX292 |
PLATE-PULLER |
| 50C11 |
NUT |
| 2AUX235 |
BOLT-PULLER |
| NONE |
PIN |
| VALVE SEAT PULLER WING GUIDED & DELRIN BALL (OPTIONAL EQUIPMENT) Gravel Type Models FXDB, FXDC, FXDF, FXDG, FXDK, FXDL, FXDP, FXDS, FXDT |
| Part No. |
Name of Part |
| FDD67544 |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 200FDD219 |
PULLER |
| 2AUX292 |
PLATE-PULLER |
| 50C11 |
NUT |
| 2AUX235 |
BOLT-PULLER |
| NONE |
PIN |
| VALVE SEAT PULLER WING GUIDED & DELRIN BALL (OPTIONAL EQUIPMENT) Gravel Type Models FXDD, FXDH, FXDM, FXDQ, FXDU |
| Part No. |
Name of Part |
| 2015080 |
PULLER ASSEMBLY, Valve Seat, Includes Ref. No. 1 thru 5 |
| 2015078 |
PULLER |
| 3AUX292 |
PLATE-PULLER |
| 50T62 |
NUT |
| 2015079 |
BOLT-PULLER |
| 62R40 |
PIN |
| VALVE SEAT PULLER CENTER GUIDED (OPTIONAL EQUIPMENT) Models FXDB, FXDF, FXDK, FXDS, FXDC, FXDD, FXDG, FXDH, FXDL, FXDM, FXDP, FXDQ, FXDT and FXDU |
| Part No. |
Name of Part |
| 3AUX545 |
PULLER ASSEMBLY, Includes Ref. No. 1 thru 4 |
| AUX549 |
PULLER |
| 4AUX292 |
PLATE-PULLER |
| 95A22 |
WASHER |
| 50T161 |
NUT |
| VALVE SEAT PULLER CENTER GUIDED (OPTIONAL EQUIPMENT) Models FXDA, FXDE, FXDJ, FXDR |
| Part No. |
Name of Part |
| 100E16 |
HEAD (Not included with 1OOE15 Puller) |
| 100E15 |
VALVE SEAT PULLER ASSM., Includes Ref. No. 2 thru 11 |
| 2117045 |
NUT |
| 2117054 |
GAUGE |
|
HOSE COUPLING (Male) |
|
HOSE COUPLING (Female) |
|
BUSHING |
| 2117050 |
HYDRAULIC PUMP |
| 2117044 |
STEM |
| 2117049 |
HYDRAULIC HOSE |
| 2117043 |
HYDRAULIC JACK |
| 2117046 |
PULLER CROSSBAR |
| 2117055 |
TOOL BOX (Not shown) |
| LINER PULLER (OPTIONAL EQUIPMENT) Models FXDD, FXDH, FXDM, FXDQ, FXDU |
| Part No. |
Name of Part |
| EF284 |
PULLER ASSEMBLY, Includes Ref. No. 1 thru 6 |
| FC346 |
TOOL, Liner Puller. |
| 95A8 |
WASHER-PLAIN |
| 50B8 |
NUT |
| FC344 |
BOLT-PULLER |
| 62A93 |
PIN |
| EF345 |
PULLER |
| LINER PULLER (OPTIONAL EQUIPMENT) Models FXDC, FXDG, FXDL, FXDP, FXDT |
| Part No. |
Name of Part |
| FD284 |
PULLER ASSEMBLY, Includes Ref. No. 1 thru 6 |
| FD346 |
TOOL, Liner Puller. |
| 95A8 |
WASHER-PLAIN |
| 50B8 |
NUT |
| FD344 |
BOLT-PULLER |
| 62A93 |
PIN |
| EF345 |
PULLER |
| LINER PULLER (OPTIONAL EQUIPMENT) Models FXDB, FXDF, FXDK, FXDS |
| Part No. |
Name of Part |
| 1 FD345A |
PULLER ASSEMBLY, Includes Ref. No. 1 thru 6 |
| FD346 |
TOOL, Liner Puller. |
| 95A8 |
WASHER-PLAIN |
| 50B8 |
NUT |
| FD344 |
BOLT-PULLER |
| 62A93 |
PIN |
| 1 FD345 |
PULLER |
| LINER PULLER (OPTIONAL EQUIPMENT) Models FXDA, FXDE, FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 100E18 |
PULLER-LINER (Mechanical) |
| CROSSHEAD PIN BUSHING PULLER (OPTIONAL EQUIPMENT) Models ALL Models |
| Part No. |
Name of Part |
| FXD1585 |
CROSSHEAD PIN BUSHING PULLER ASSEMBLY, Includes Ref. No. 1 thru 5 |
| FXD1277 |
PLATE |
| FXX1279 |
BOLT-PULLER |
| FXD1278 |
BUSHING |
| FXD1276 |
PLATE-PULLER |
| 50T161 |
NUT, Puller Bolt |
| DISCHARGE PRESSURE RELIEF VALVE (SHEAR TYPE) (OPTIONAL EQUIPMENT) Models FXDB_B, FXDC_B, FXDD_B, FXDF_B, FXDG_B, FXDH_B, FXDK_B, FXDL_B, FXDM_B, FXDP_B, FXDQ_B, FXDS_B, FXDT_B, FXDU_B |
| Part No. |
PSI |
| 5825319 |
125 – 500 PSI |
| 187922 |
500 – 1375 PSI |
| 200TFE169 |
1000 – 2750 PSI |
| DISCHARGE PRESSURE RELIEF VALVE (SHEAR TYPE) (OPTIONAL EQUIPMENT) Models FXDA_B, FXDE_B, FXDJ_B, FXDN_B, FXDR_B |
| Part No. |
PSI |
| 5825319 |
125 – 500 PSI |
| 187922 |
500 – 1375 PSI |
| ROD OILER (OPTIONAL EQUIPMENT) Models FXDA, FXDE, FXDJ, FXDN, FXDR |
| Part No. |
Name of Part |
| 46C14 |
PUMP |
| 200FXD250 |
TANK LUBE OIL |
| 200FXD249 |
COVER-TANK |
| 75A130 |
SCREW, Pump to Tank |
| 50B3 |
NUT, Pump to Tank Screw |
| 126998 |
SHEAVE, Jackshaft |
| 118518 |
KEY, Sheave to Jackshaft |
| 141322 |
SHEAVE, Oil Pump |
| 22F09SH |
HUB, Sheave to Oil Pump |
| 13C85 |
BELT |
| 201 FXD240 |
GUARD-AUXI LLIARY |
| 5400840 |
LUG, to Mount Auxilliary Guard |
| 75A7 |
SCREW, to Mount Auxilliary Guard |
| 95B3 |
WASHER, to Mount Auxilliary Guard |
| 50B3 |
NUT, to Mount Auxilliary Guard |
| 5400839 |
SUPPORT, Lube Oil Tank (Short) |
| 75A7 |
SCREW, to Mount Lube Oil Tank |
| 95B3 |
WASHER, to Mount Lube Oil Tank |
| 63F14 |
NIPPLE-PIPE |
| 86N6 |
ELBOW-TUBE |
| 85D8B |
TUBE |
| 86N13 |
ELBOW-TUBE |
| 29Q154 |
COUPLING-HOSE |
| R5D |
HOSE-HYDRAULIC |
| 29Q145 |
COUPLING-HOSE |
| 200FXD275 |
LUBRICATOR HOSE |
| 75A188 |
SCREW, Lubricator Assembly to Pump |
| 64D7 |
ELBOW-PIPE |
| 63AJ20X50 |
NIPPLE-PIPE |
| 2009155 |
HOSE-COOLANT |
| 29B33 |
CLAMP-HOSE |
| 64A7 |
PLUG-SOHD PIPE |
| ROD OILER (OPTIONAL EQUIPMENT) Models FXDB, FXDL, FXDC, FXDM, FXDD, FXDP, FXDF, FXDQ, FXDG, FXDS, FXDH, FXDT, FXDK, FXDU |
| Part No. |
Name of Part |
| 46C14 |
PUMP |
| 200FXD250 |
TANK LUBE OIL |
| 200FXD249 |
COVER-TANK |
| 75A130 |
SCREW, Pump to Tank |
| 50B3 |
NUT, Pump to Tank Screw |
| 126998 |
SHEAVE, Jackshaft |
| 118518 |
KEY, Sheave to Jackshaft |
| 141322 |
SHEAVE, Oil Pump |
| 22F09SH |
HUB, Sheave to Oil Pump |
| 13C84 |
BELT |
| 202FXD240 |
GUARD-AUXI LLIARY |
| 5400840 |
LUG, to Mount Auxilliary Guard |
| 75A7 |
SCREW, to Mount Auxilliary Guard |
| 95B3 |
WASHER, to Mount Auxilliary Guard |
| 50B3 |
NUT, to Mount Auxilliary Guard |
| 5400839 |
SUPPORT, Lube Oil Tank (Short) |
| 75A7 |
SCREW, to Mount Lube Oil Tank |
| 95B3 |
WASHER, to Mount Lube Oil Tank |
| 63F14 |
NIPPLE-PIPE |
| 86N6 |
ELBOW-TUBE |
| 85D8B |
TUBE |
| 86N13 |
ELBOW-TUBE |
| 29Q154 |
COUPLING-HOSE |
| R5D |
HOSE-HYDRAULIC |
| 29Q145 |
COUPLING-HOSE |
| 200FXD275 |
LUBRICATOR HOSE |
| 75A188 |
SCREW, Lubricator Assembly to Pump |
| 64D7 |
ELBOW-PIPE |
| 63AJ20X50 |
NIPPLE-PIPE |
| 2009155 |
HOSE-COOLANT |
| 29B33 |
CLAMP-HOSE |
| 64A7 |
PLUG-SOHD PIPE |
