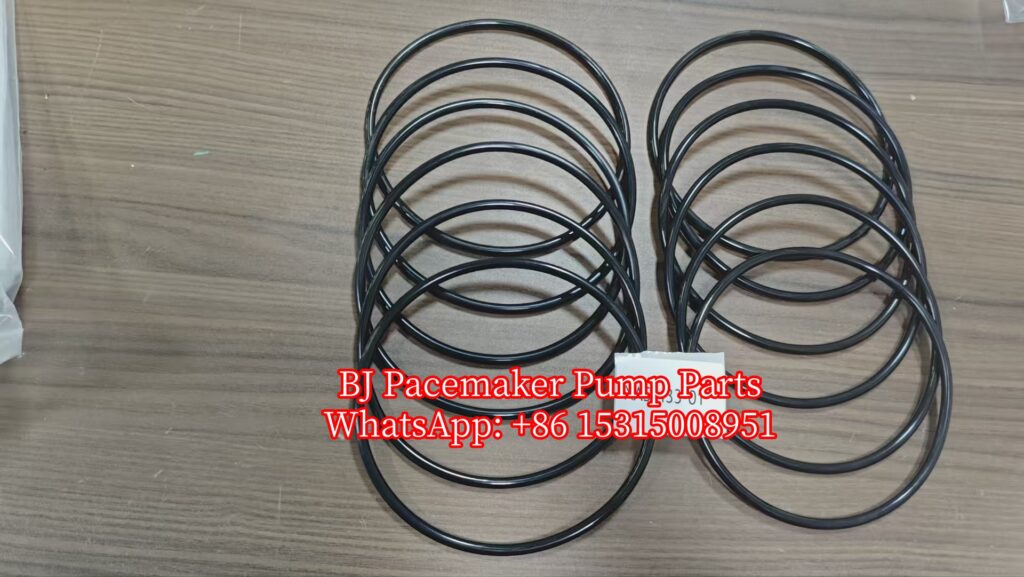

O-RING SUCTION COVER INNER XAS-433-01
O-RING SUCTION MANIFOLD XAS-439-01

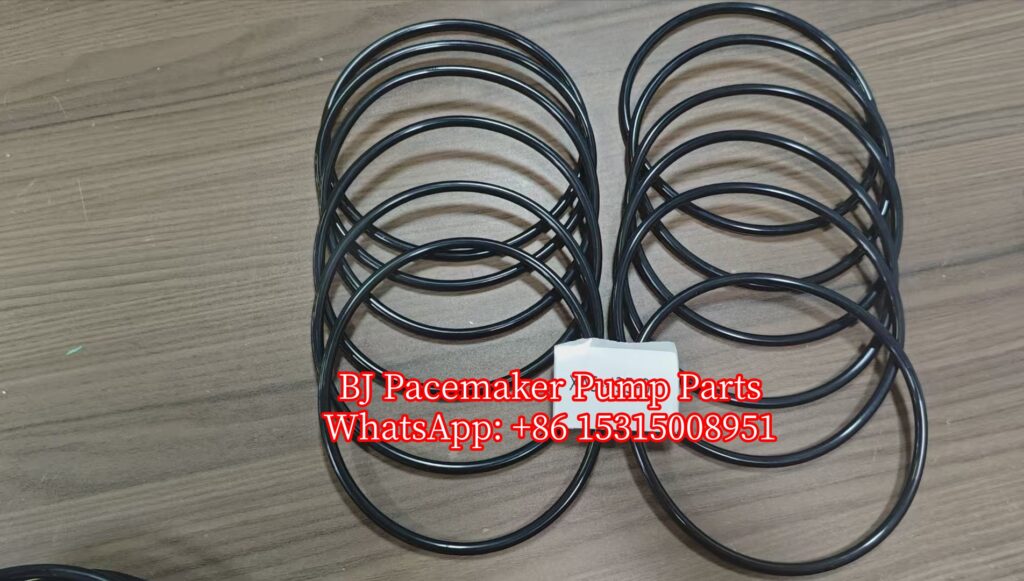

O-RING SUCTION COVER OUTER XAS-435-01
O-RING, XAS 439-03
Part Number or Drawing Number Description QTY
86839 Pacemaker 3.5RH/CW Pump Assembly
L120270-5 PMP, FLUID END ASSY 3.5 LESS DISCH CONN 1
L114501RH-1 PMP, PWR END RIGHT HAND 4.06 CW 1810
L11282012 PMP, DISCH CONN 2.0-1502 W/ BUSHING 1
L11282014 CONN ASSY, DISCH 2.0-1502 OPEN BORE 1
L600180-1 PMP, SHIPPING SKID 1
L114501RH-3 PMP, PWR END RIGHT HAND 4.06 CW 1880 1
L18-0007 SWVL, 2.0-1502F S-50 FXPMP
86840 Pacemake 4.5 LH/CW Pump Assembly
120270-7 PMP, FLUID END ASSY 4.500 STD FRAC & ACID 1
114501LH-2 PMP, POWER END LEFT HAND 4.06 CW 1810
11282012 PMP, DISCHARGE CONN 2.0-1502 W/ BUSHING 1
11282014 CONNECTION ASSY, DISCH 2.0-1502 OPEN BORE 1
600180-1 PMP, SHIPPING SKID 1
114501LH-4 PMP, POWER END LEFT HAND 4.06 CW 1880
120270 3.5-5.0 Standard Pacemaker Pump Fluid End Assembly
112814 PMP, RAM WASH & PKG LUBE CVR ASSY 1
112519 PMP, DISCHARGE COVER STANDARD FLUID END 3
36627BJ-1 VALVE ASSY, DISCH PACEMAKER PMP 3
112821-1 MANIFOLD, SUCTION PMP STANDARD FLUID END 1
112505-1 PMP, SUCTION COVER CASTING F/STD FE SUCT CVR 3
36585BJ-1 PMP, SUCTION VALVE ASSY FOR CEMENT 60# SPRING 3
120269-1 PMP, FLUID END MACHINED 3.5-4.0 -4.5-5.0″ 1
21715 PMP, FLUID END ADAPTER ASSY 2.0 1502F 2
18-0007 SWIVEL, 2.0-1502F S-50 FXPMP 1
11282012 PMP, DISCHARGE CONN 2.0-1502 W/ BUSHING 1
136542-1 PMP, PLUNGER PACKING ASSY 3.5 HEADER RING CYLINDRICAL 3
136543-1 PMP, PLUNGER PACKING ASSY 4.0 HEADER RING CYLINDRICAL
136544-1 PMP, PLUNGER PACKING ASSY 4.5 HEADER RING CYLINDRICAL
136545-1 PMP, PLUNGER PACKING ASSY 5.0 HEADER RING CYLINDRICAL

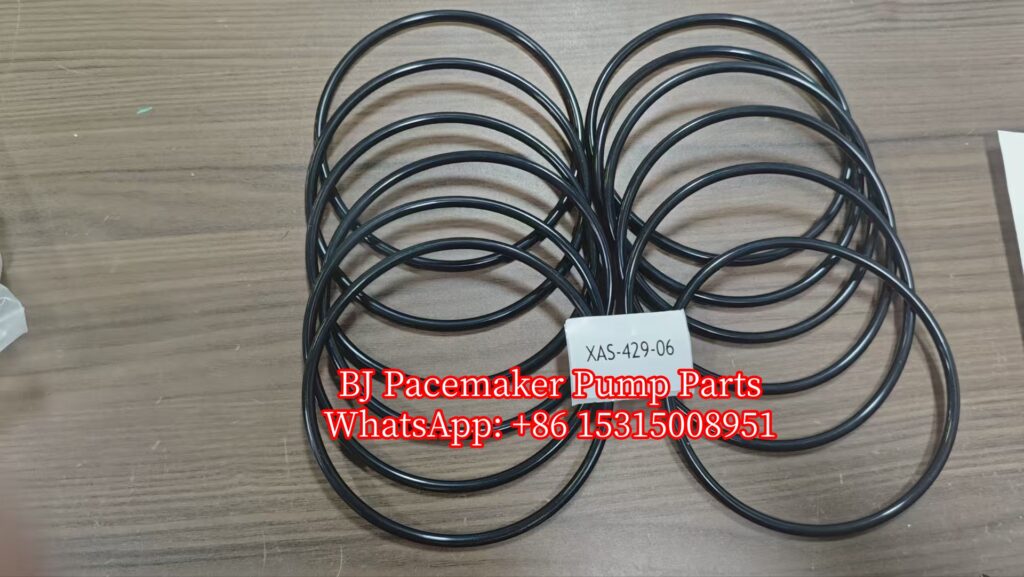

XAS-429-02 O-RING, 429 NITRILE 90 DURO 3
118408 SCREW, CP 12PT 1.500-6NC X 12.000 8Z 12
940584-59 SCREW, SHOULDER SOC 0.625 X .500NC X 1.25 S 2
X24380 SCREW, CP HEX .375-16NC X .500 S CAD G5 2
939349-3 WASHER, LOCK H/S .375 REG S ZINC 2
943631-70 PIN, DOWEL .750DIA X 2.000 ASA B5.20 2
32022 O-RING, 439 NITRILE 70 DURO 3
XAS-433-01 O-RING, 433 NITRILE 70 DURO 3
32027 O-RING, 435 NITRILE 70 DURO 3

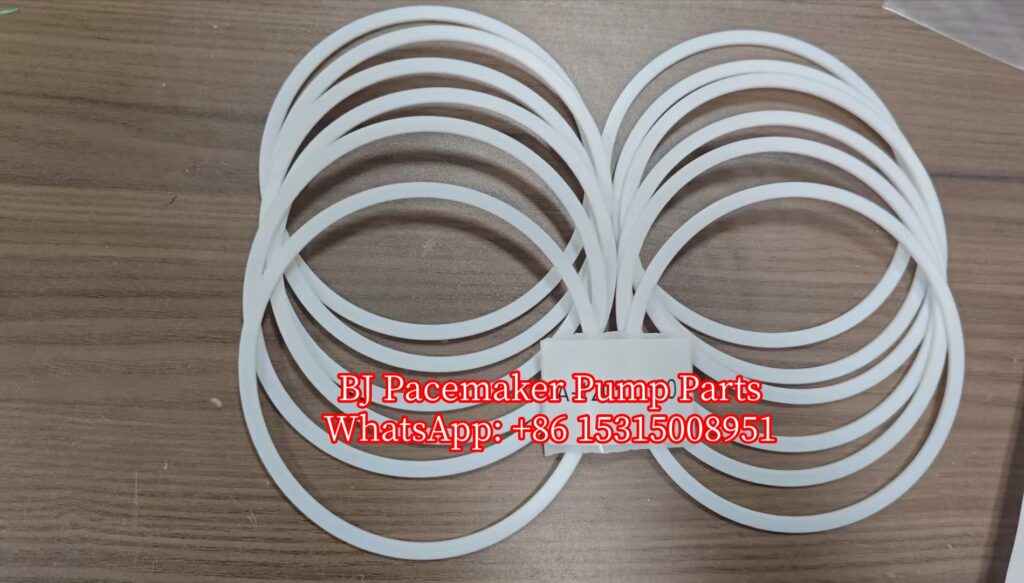

120531-50 PMP, BKUP RING 5.505 X 5.020 TF LN 3
112814 Pacemaker Pump RAM Wash & packing Lube Cover Assembly
57720 ELL, 90°, 1/4 NPT 150# MI 2
X10020 TUBING, SQUARE, 3/4 X .120 WALL STEEL TUBING
002107 PIPE, 3/4 SCH 40 A53
X10021 TUBING, SQUARE, 1 X .120 WALL 1018
X10022 STEEL, SHEET, 10 GA, H/R 1020
001018 ANGEL, 1 1/4 X 1 1/4 X 3/16 A36
118316 FTG, HOSE BARB, 1/8 MPS STRATOFLEX 3
31090 HOSE, AIR, 1/4 ARQP #2566-4
118317 FTG, HOSE BARB, 1/4 FJS STRATOFLEX 3
118318 ELBOW, 90°, 04MS-04FP BRASS 3
X3803 CAP, PIPE, 3/4 NPT STD 1
118321 PLUG, PIPE SQ. HD, 1/4 NPT MI STD 2
118322 HINGE, CONT, 1/8 X 2W X 1/8 PIN S/S
118323 LINKS, CHAIN CAMBELL, COIL LINK CHAIN #2/0 3/16 STRAIGHT 2
118324 BOLT, SNAP, NORTH & JUDD 229 1/4 1
26060601 TUBING, COPPER, 1/4″ (3/8″ O.D.) X .035W TYPE K
31187 ELL, 90° ST, 06MJ X 04MP 3
42909 ELL, 90° ST, 3/4 NPT 150# MI-BLK 1
118328 VALVE, GLOBE, 3/4 WALWORTH W58 1
57611 NUT, TUBING, 3/8 O.D. ARQP FG2875-6 OR EQUIVALENT 3
57610 FERRULE, 3/8 O.D. ARQP FF9605-6 OR EQUIVALENT 3

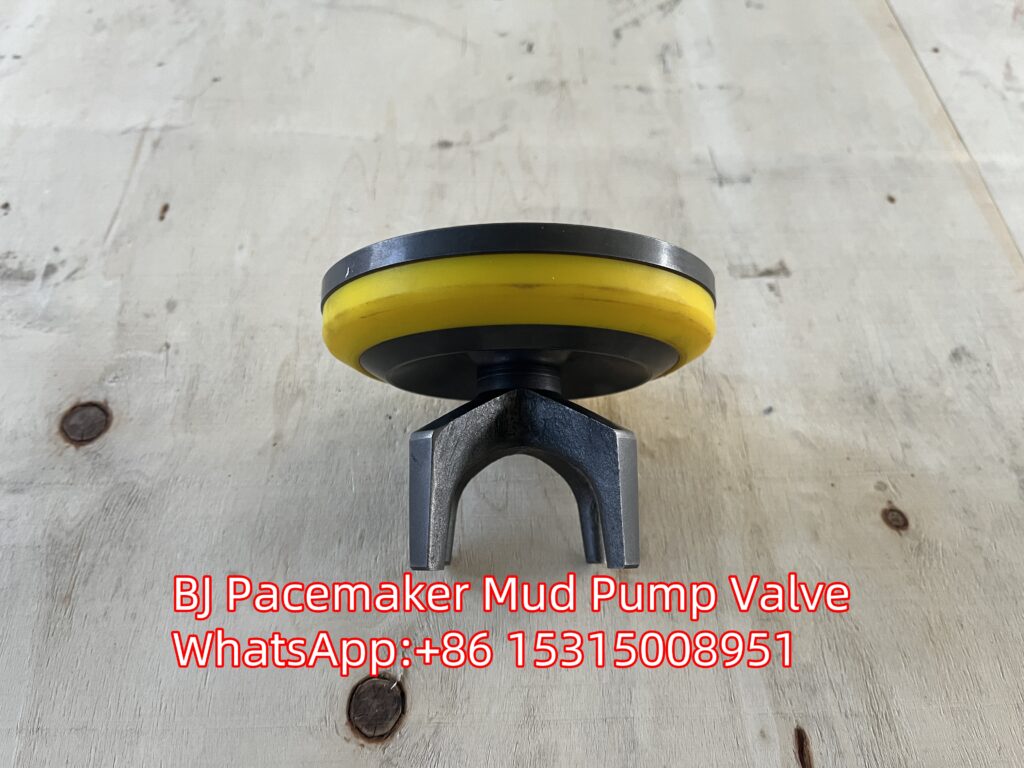

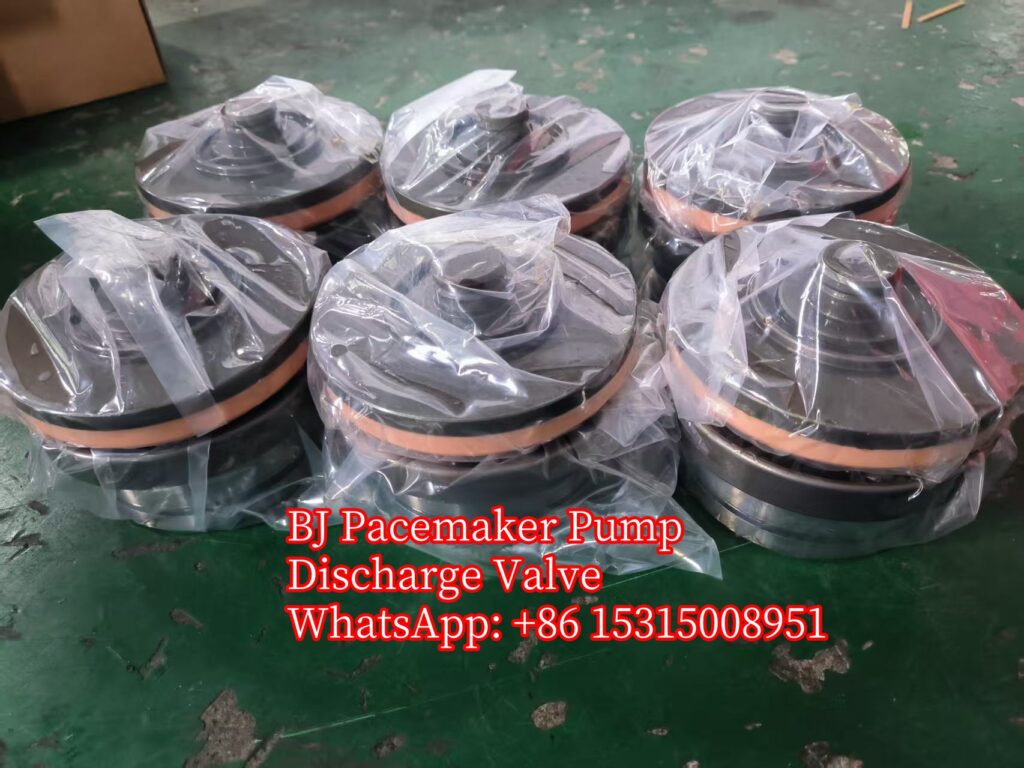

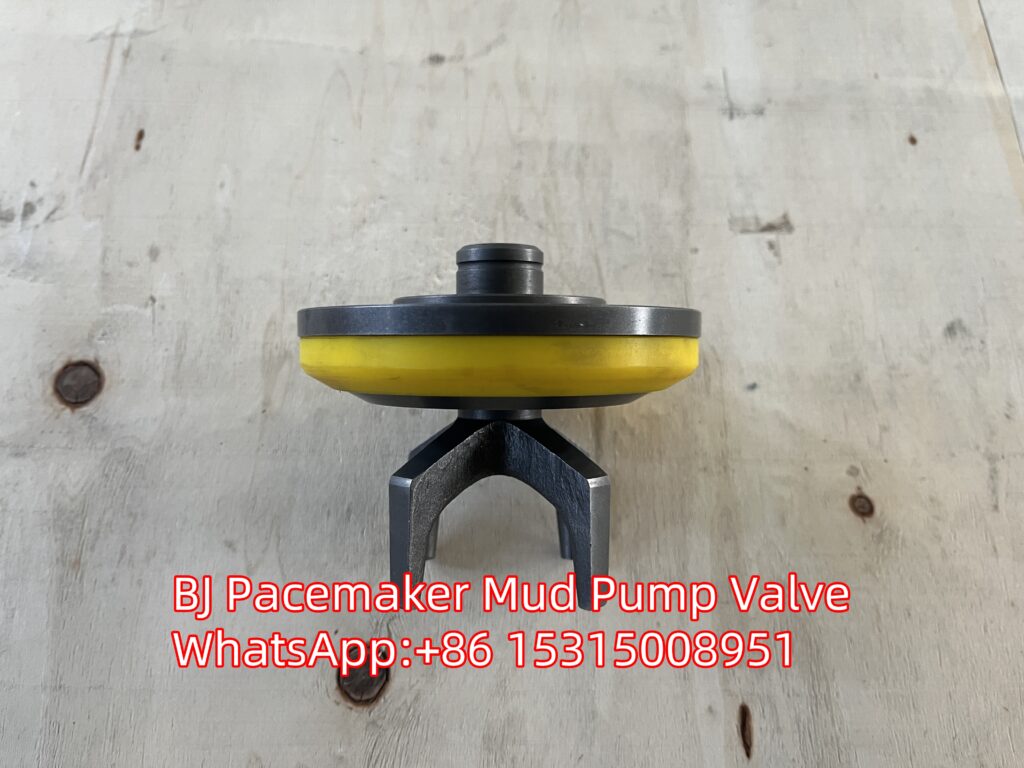

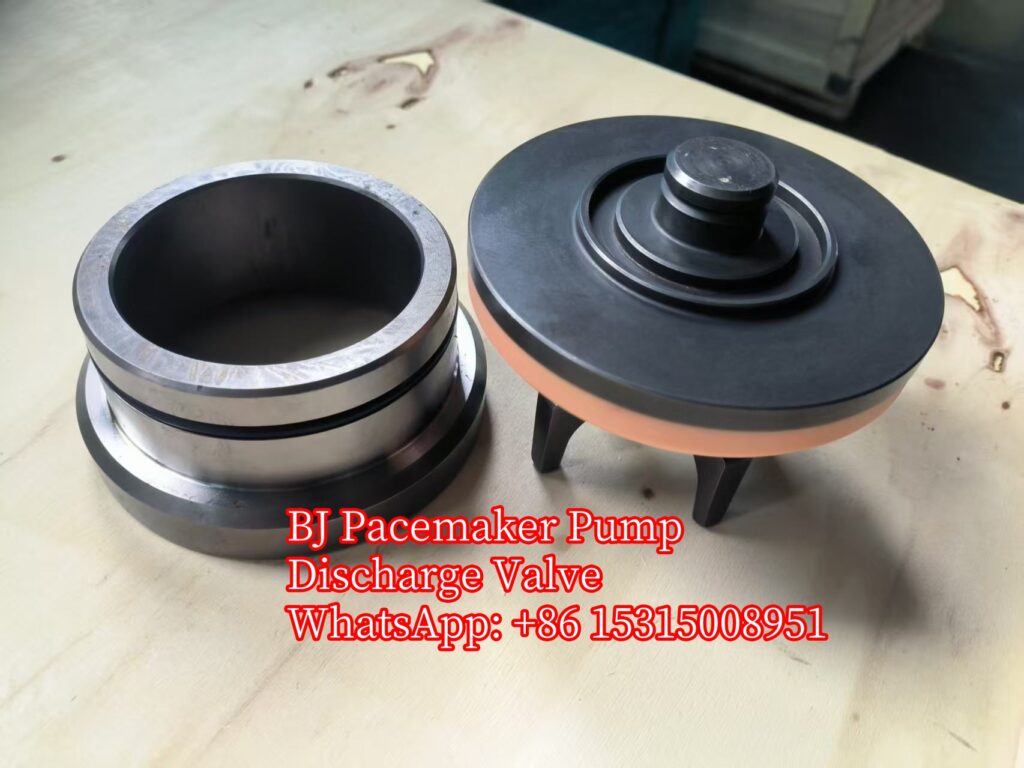

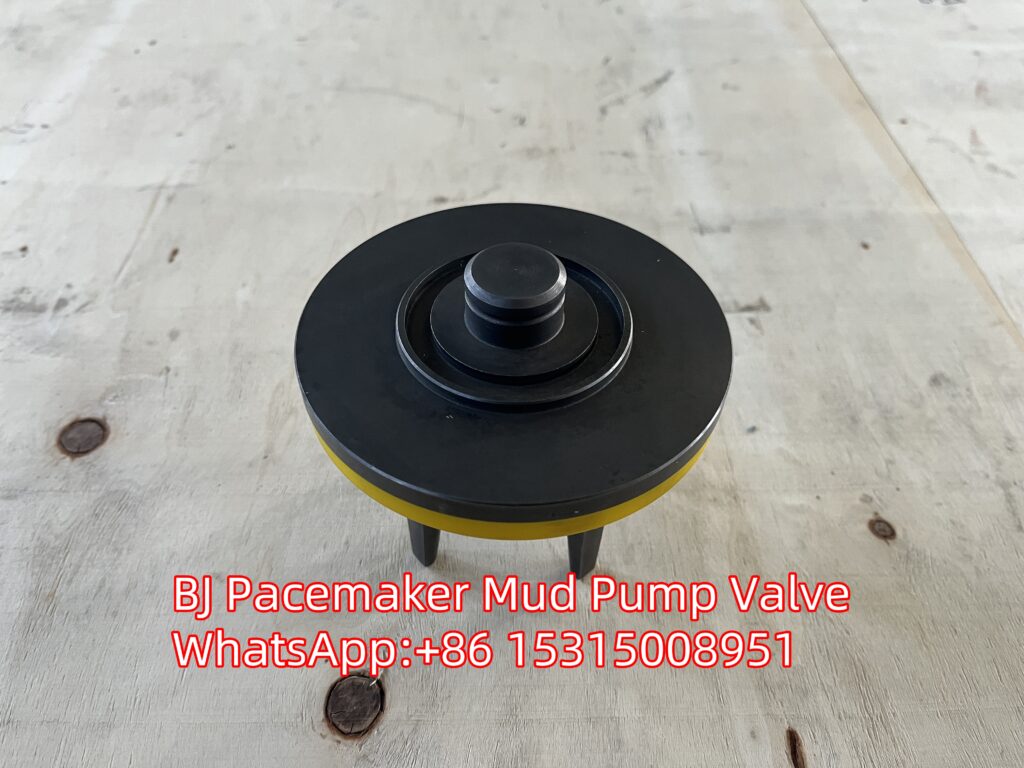

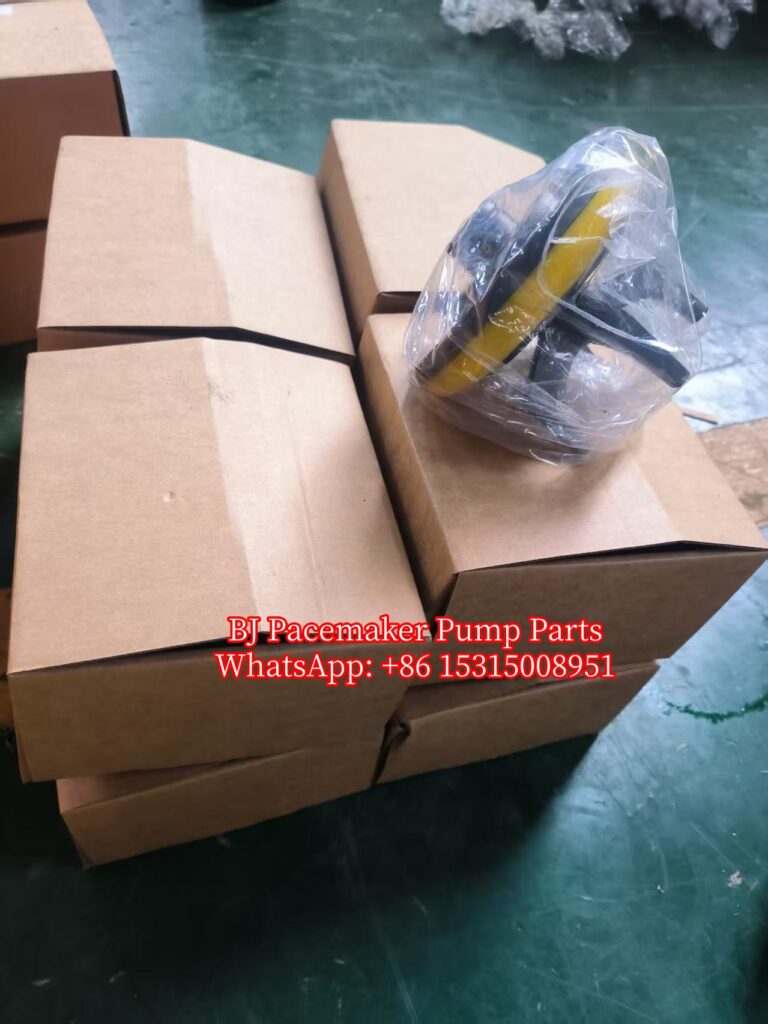

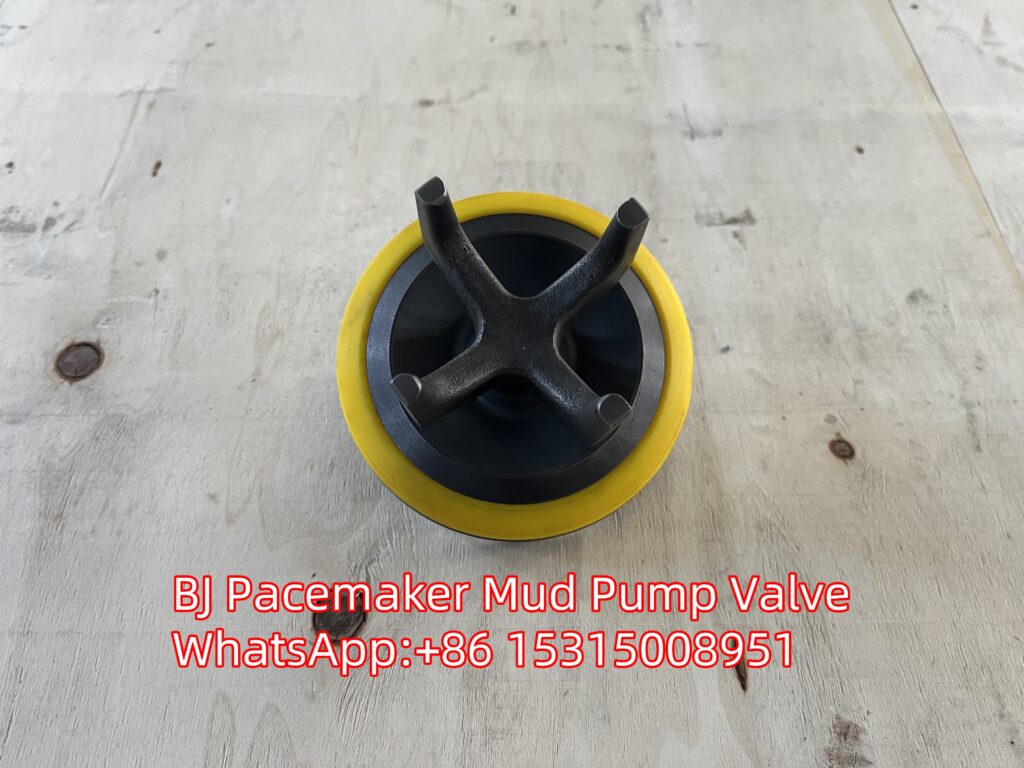

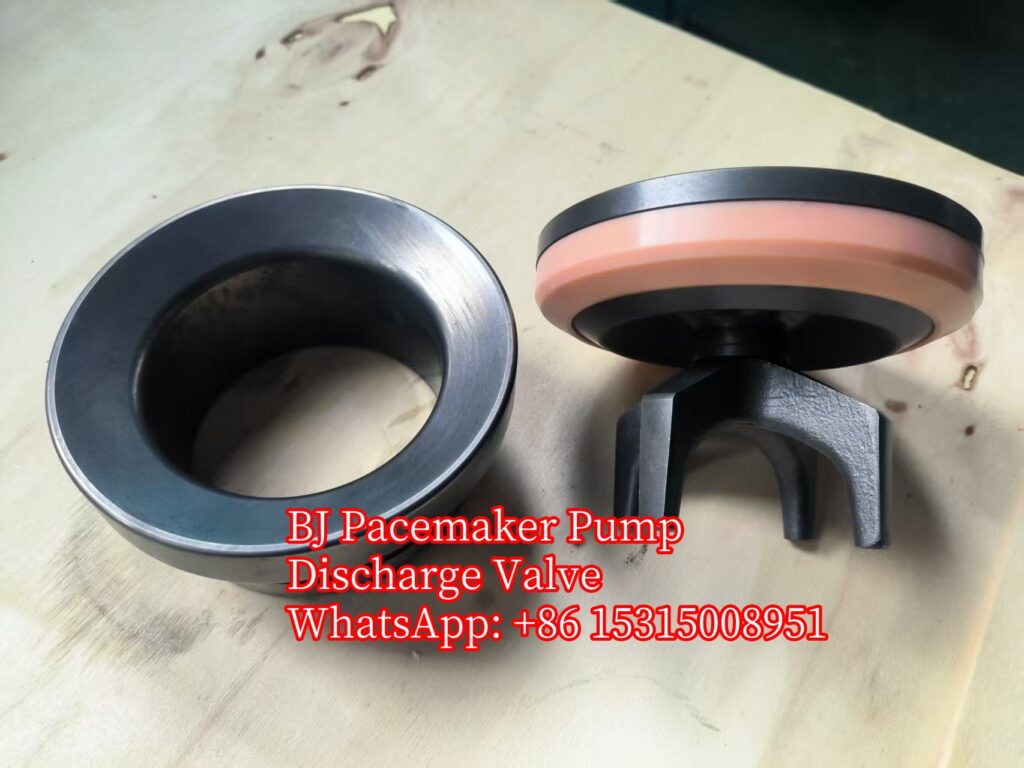

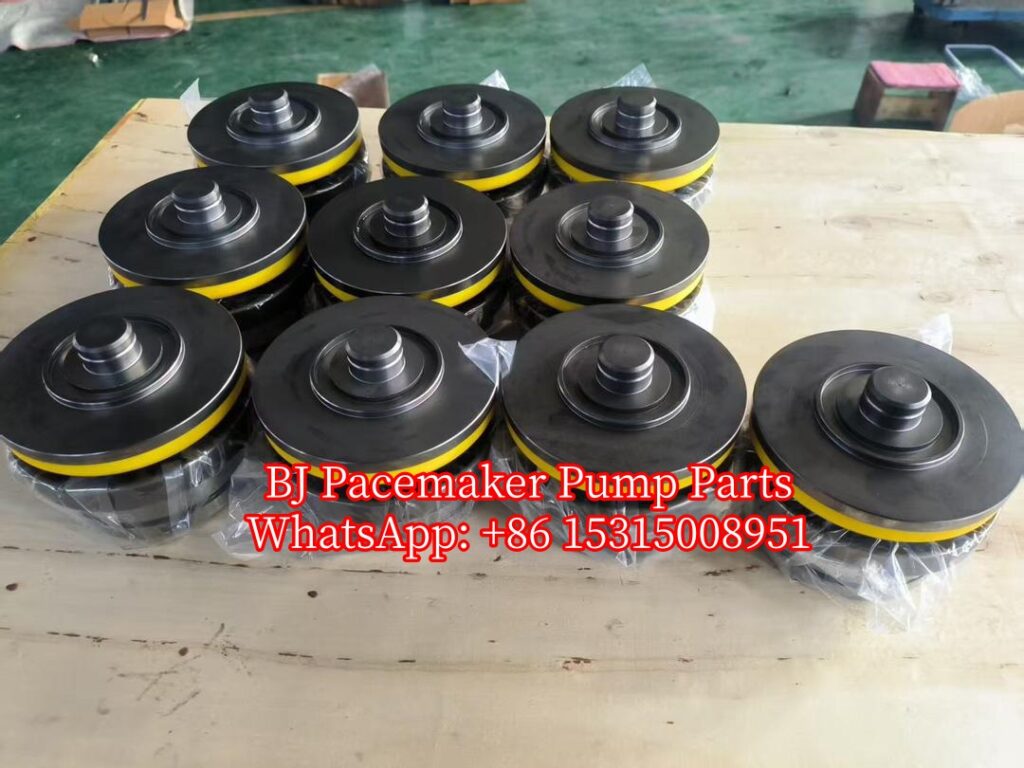

36627BJ Pacemaker Pump Discharge Valve Assembly

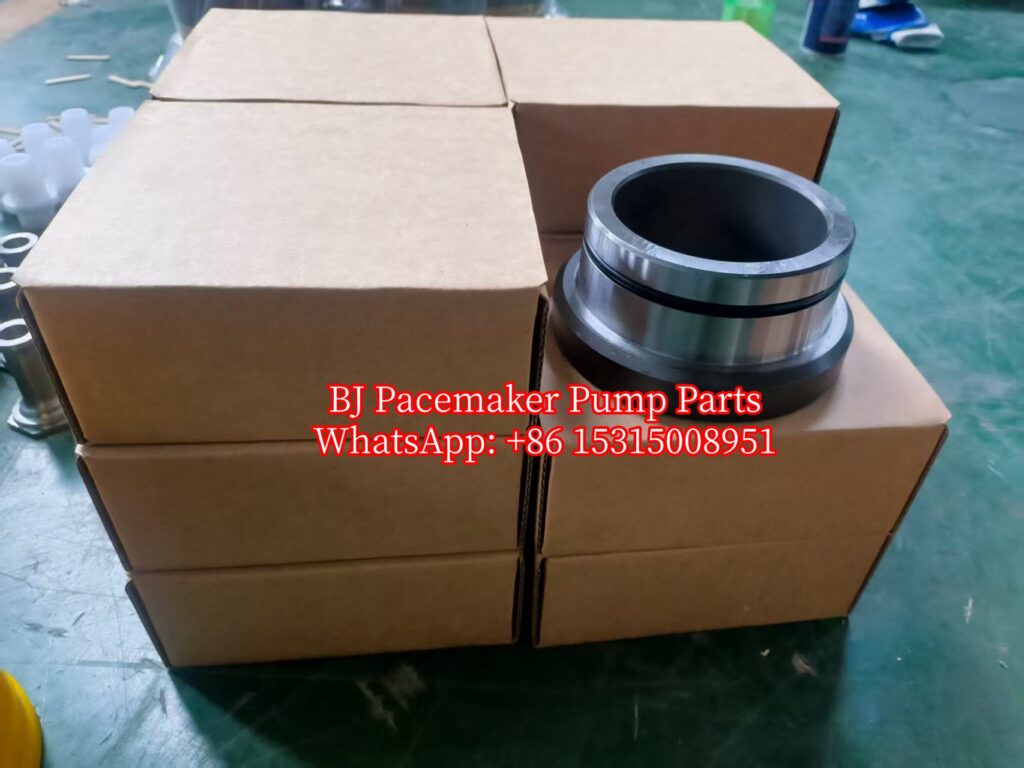

40496 DISCHARGE VALVE SEAT WITH O-RING 1
40497 DISCHARGE VALVE WITH INSERT 1
112818 SPRING, COMPRESSION (75 LB/INCH SPRING RATE) 1
120004 SPRING, COMPRESSION (125 LB/INCH SPRING RATE)

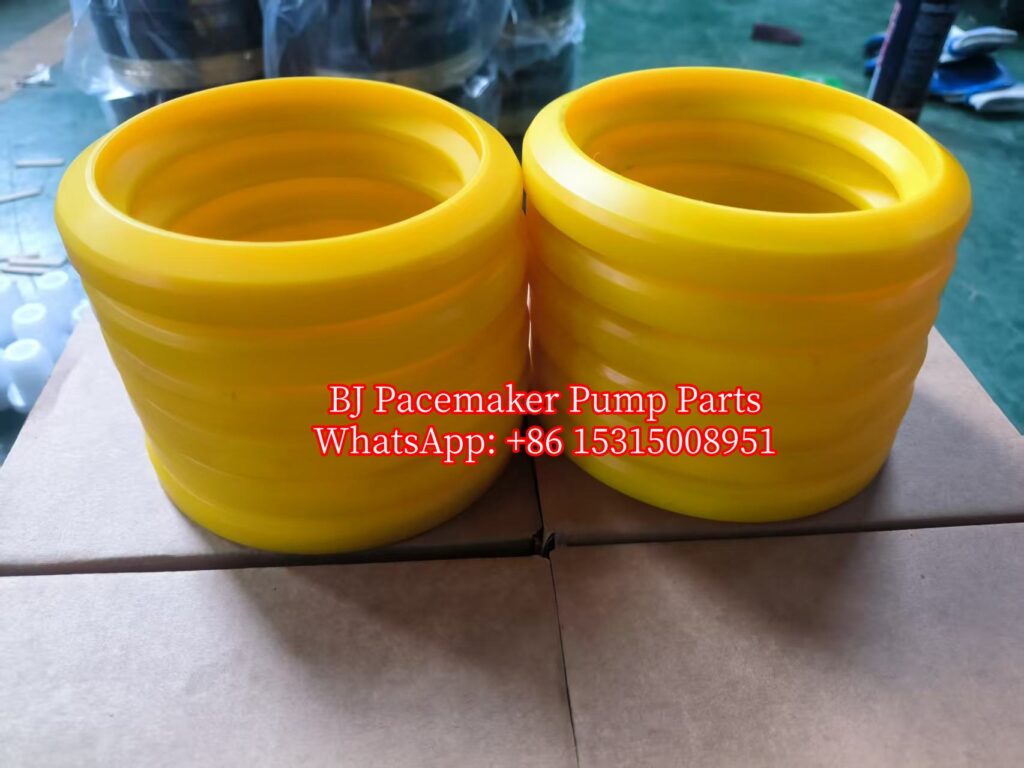

36629BJ DISCHARGE VALVE INSERT BJ 1
XAS-240-01 O-RING AS568-240 NTRL 70 DURO BJ 1

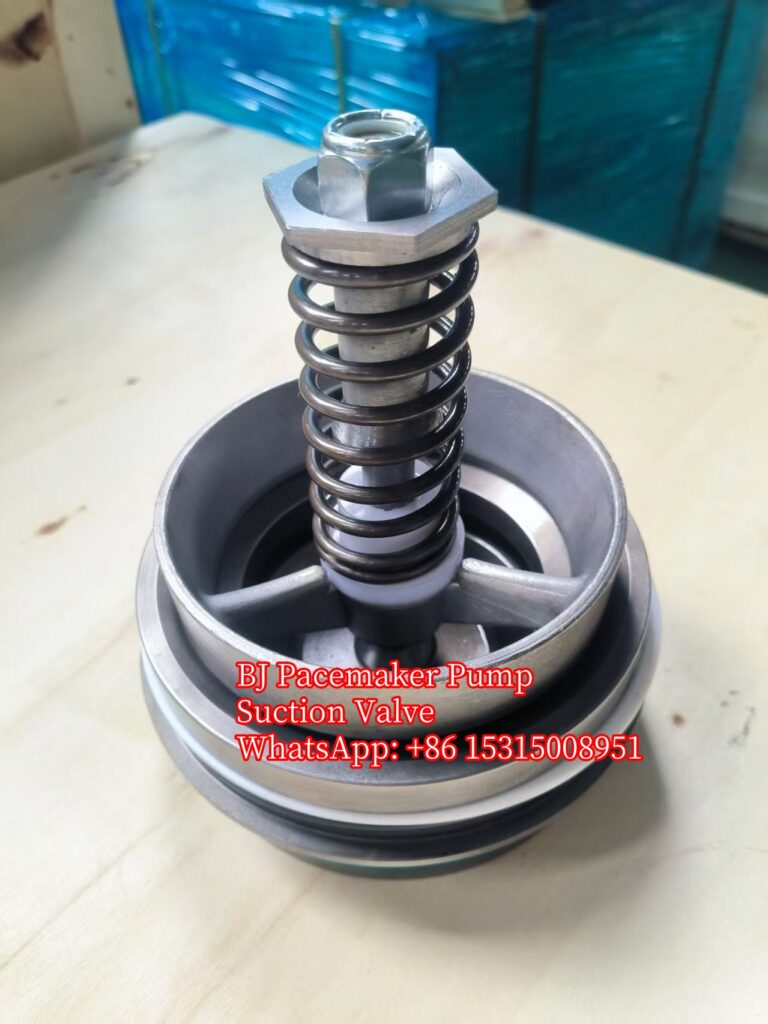

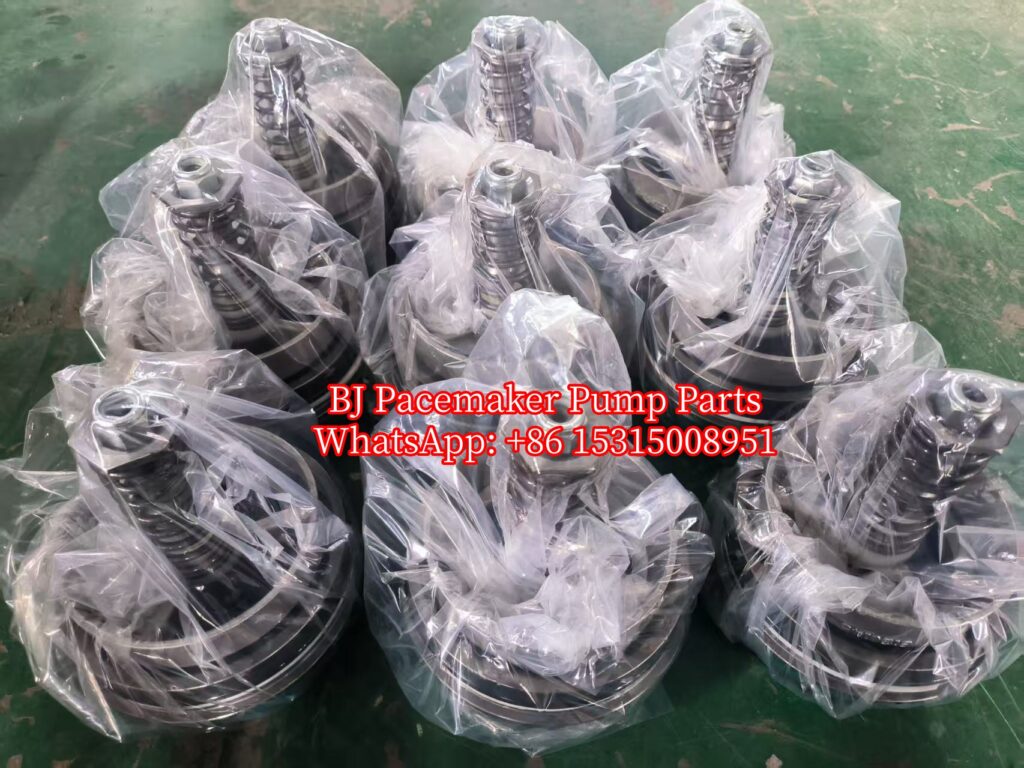

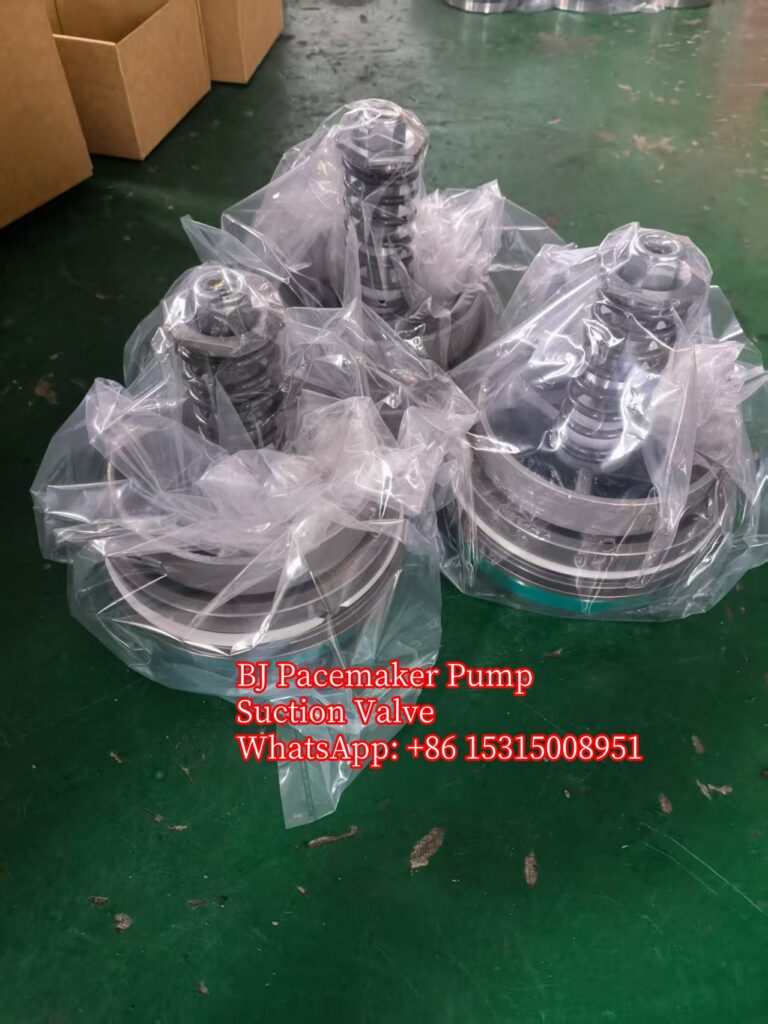

36585BJ Pacemaker Pump Suction Valve Assembly
40111 VALVE, SUCTION WITH INSERT 1
40110 SEAT, SUCTION VALVE WITH O-RING AND BACK-UP RING 1
120145 SUCTION VALVE GUIDE 1

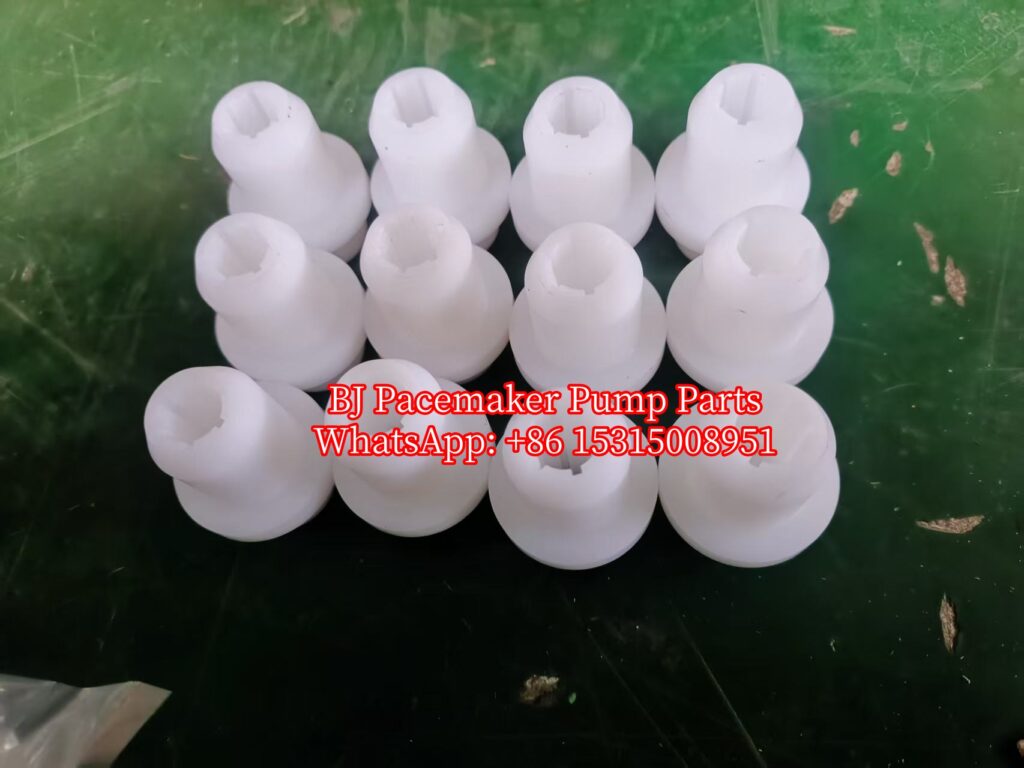

115376 SUCTION VALVE GUIDE INSERT 1

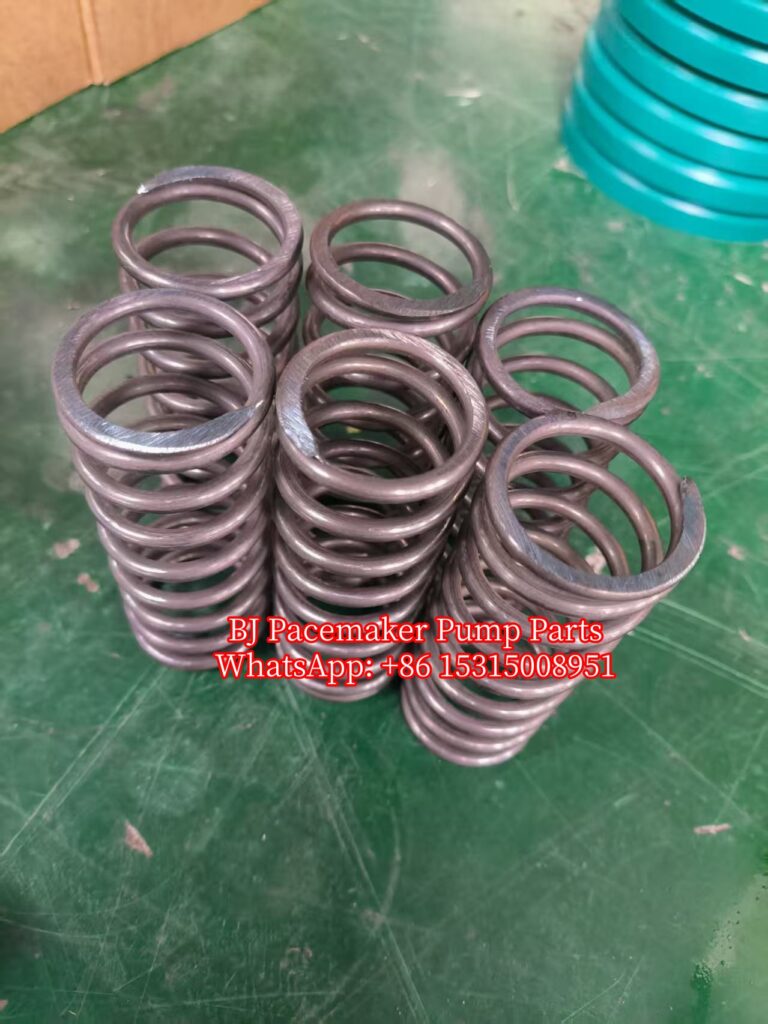

112856 SPRING, COMPRESSION (60 LB/INCH SPRING RATE) 1
112512 SPRING, COMPRESSION (120 LB/INCH SPRING RATE)
115823 SUCTION VALVE SPRING RETAINER 1
118488 NUT, HEX LOCK 1/2-20NF S 22UTB1220 1

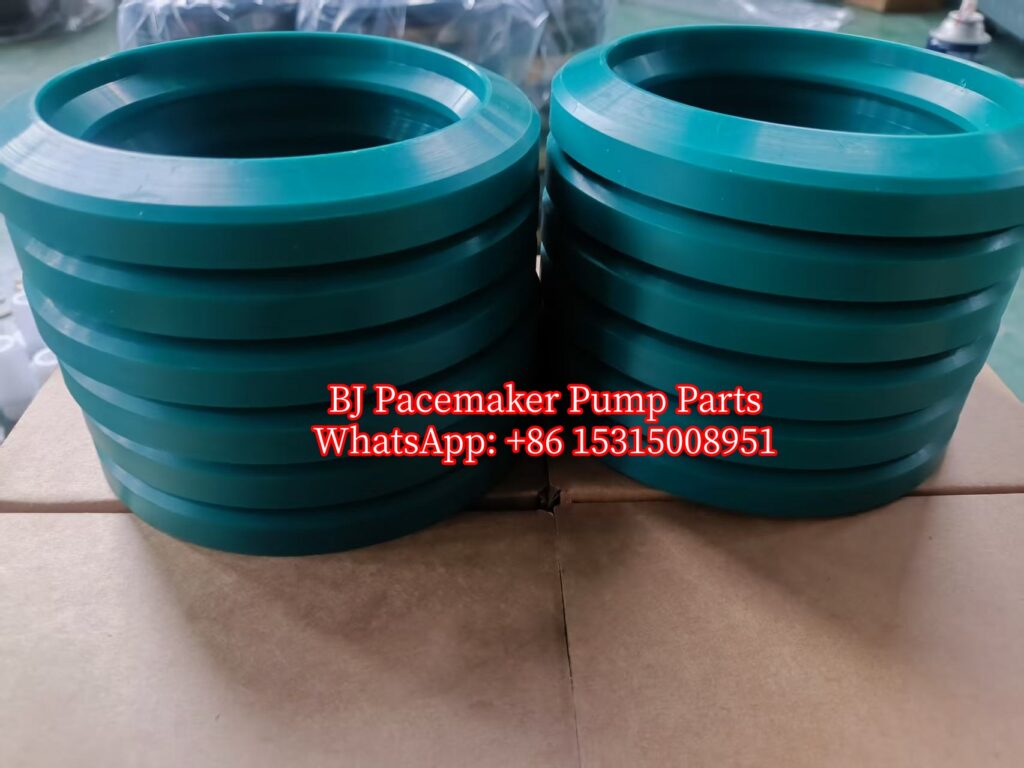

36583BHI SUCTION VALVE INSERT BHI 1

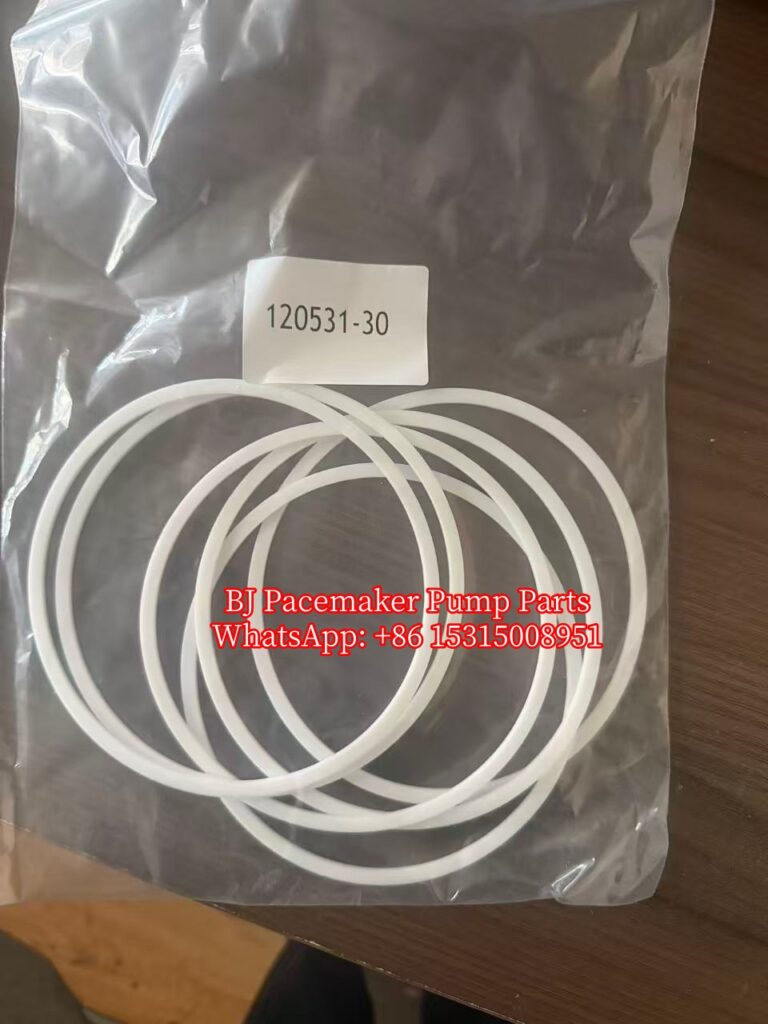

120531-30 BACK-UP RING, TEFLON, BHI 1

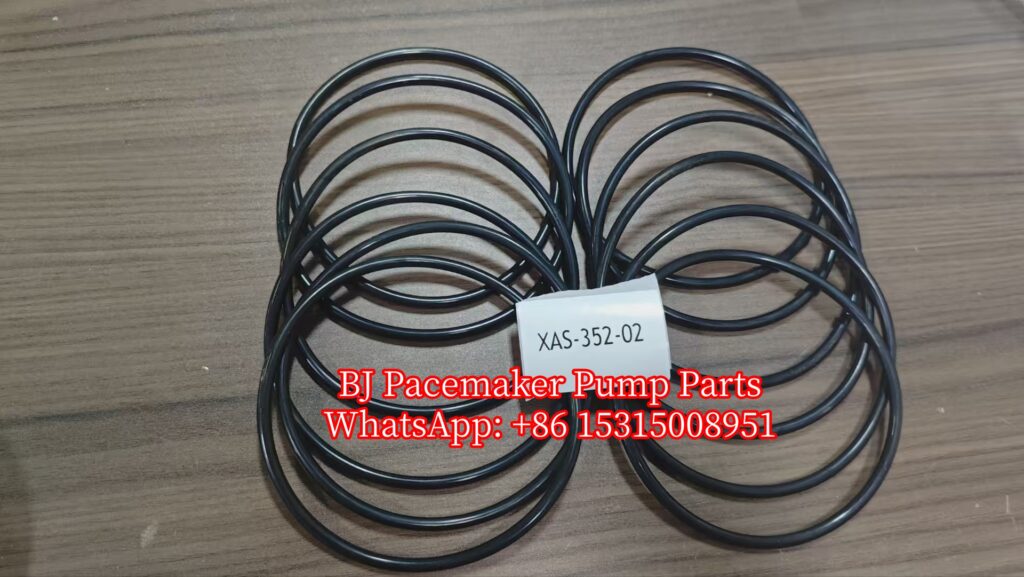

XAS-352-02 O-RING AS568-352 NTRL 90 DURO BHI 1
123496-2 SUCTION VALVE PULLER BHI P/N: 123496-2
112821 Suction Manifold Standard Fluid End Pacemaker Pump
43628-4 FLANGE, BUTTERFLY VALVE 5″ BJ
112821-2C CASING, STEEL PER BHI MATERIAL SPEC. 20A27
21715 Assembly Fluid End Adapter 2″-1502 Thread Half Pacemaker Pump
21714-1 ADAPTOR, PACEMAKER PUMP FLUID END 1
21713-1 NUT, LOCK PMP FLUID END ADAPTER 1
XAS-226-02 O-RING, 568-226-02 P/BJ SPEC 128199 1
21740 RNG, BACKUP 8-226 PARKER PARBAK 1
31069 SEAL 2″ 1502 NITRILE 1
112820 Pacemaker Pump Discharge Connection Assembly
LXAS-342-02 ORING, 342 NITRILE 90 DURO 1
LX309769BJ BUSH, WELCH H-6448 .5 X 1 X 3.0 1
L49418 UNION SEAL, 2.0 602/1002/1502 NTRL 1
L45841-1 PMP, ADPT, DISCH 2.0-1502 FEM X PMP INTEG 1
L136443 PMP, DISCH CONN INTEG NUT X 2.0 -1502 FEM 1

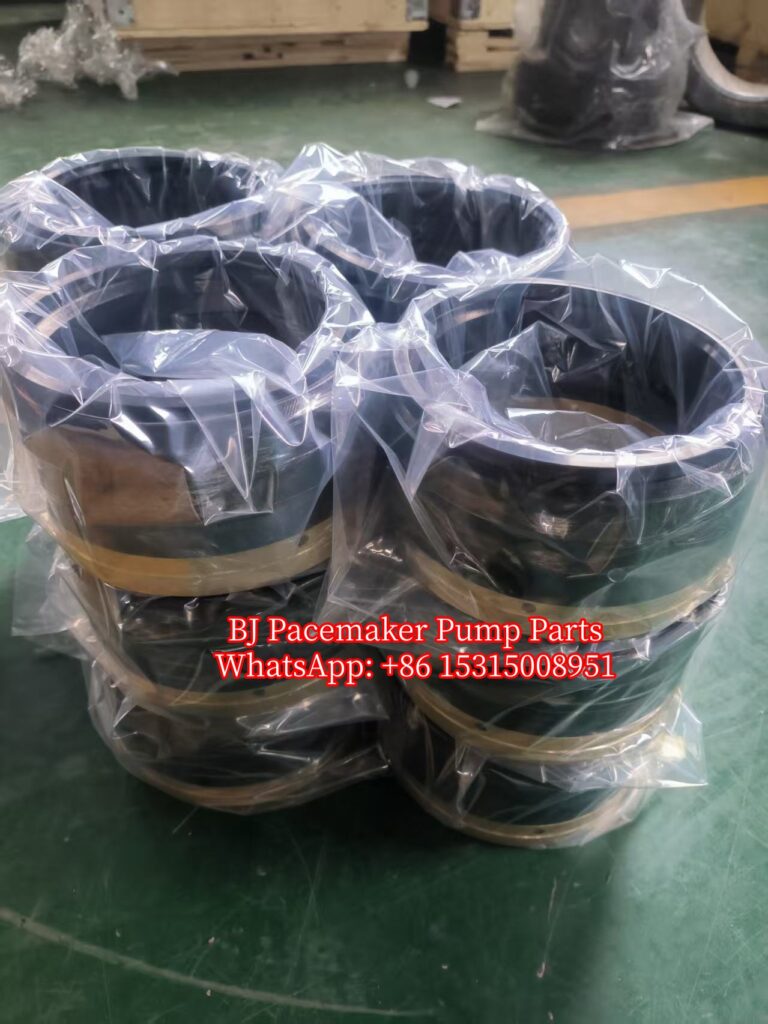

136542 Pacemaker Pump Plunger Packing Assembly 3-1/2″ Header Ring-Cylindrical Seal
129508 PMP, GLAND PKG 3.5″ CHEVRON 1

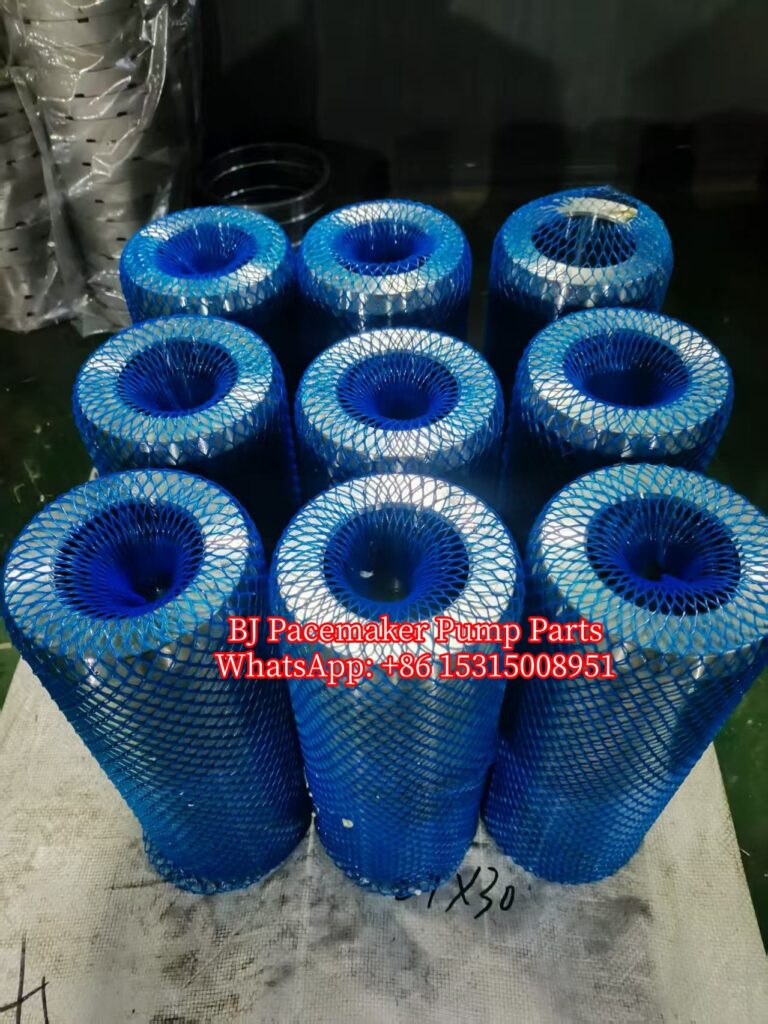

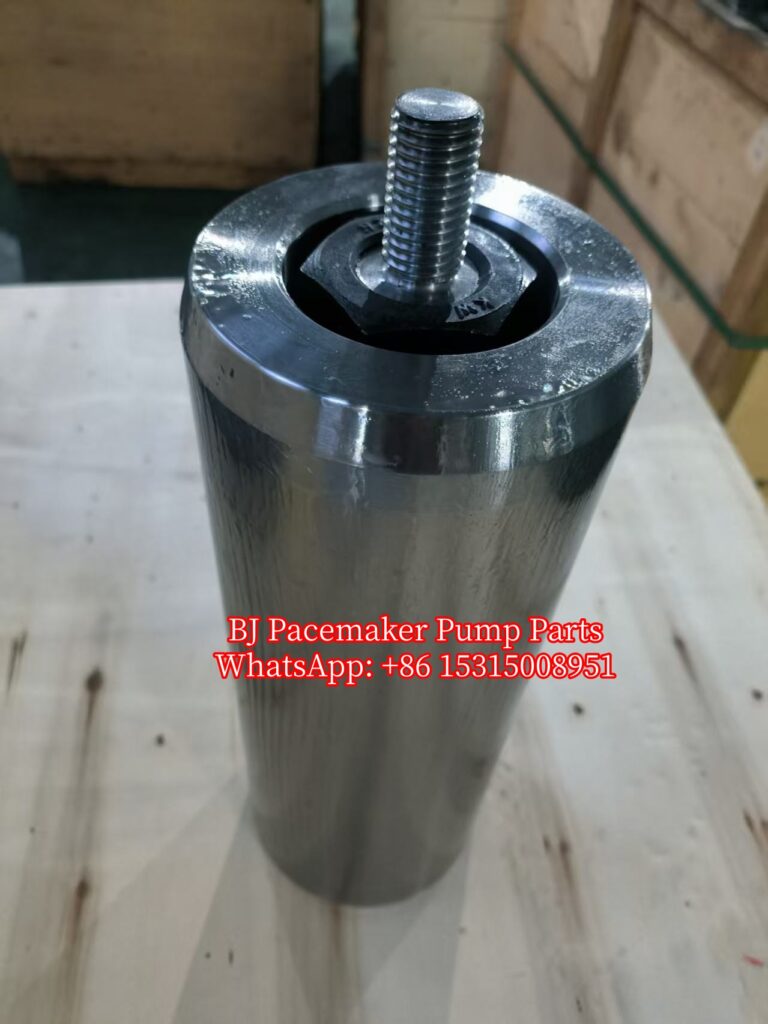

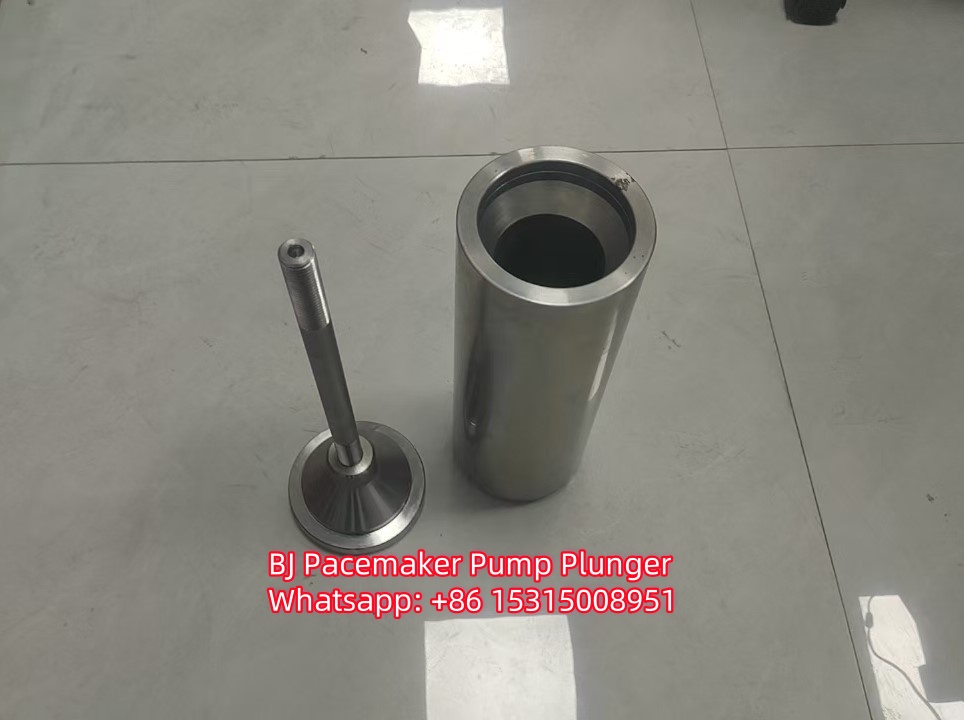

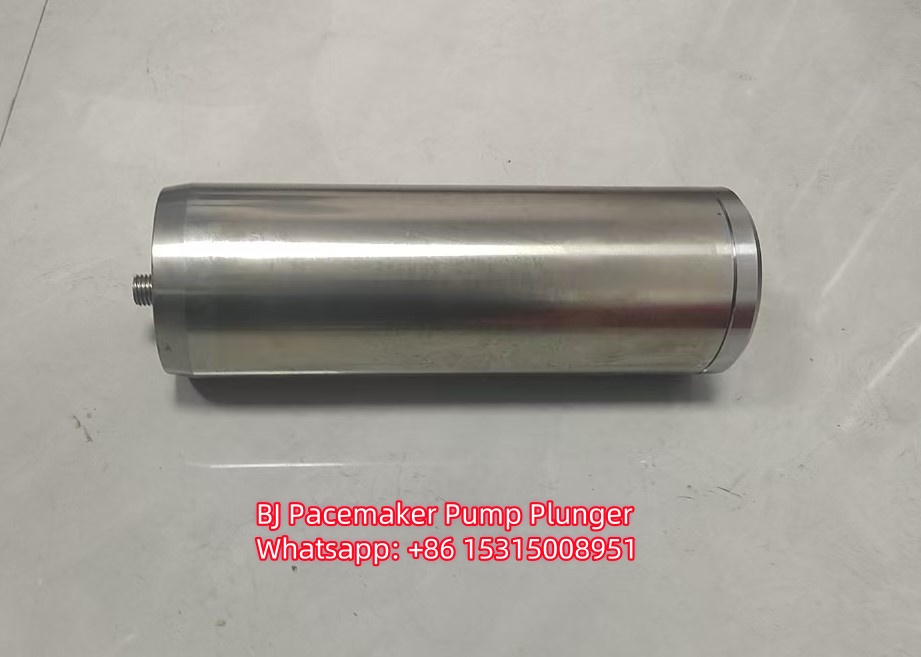

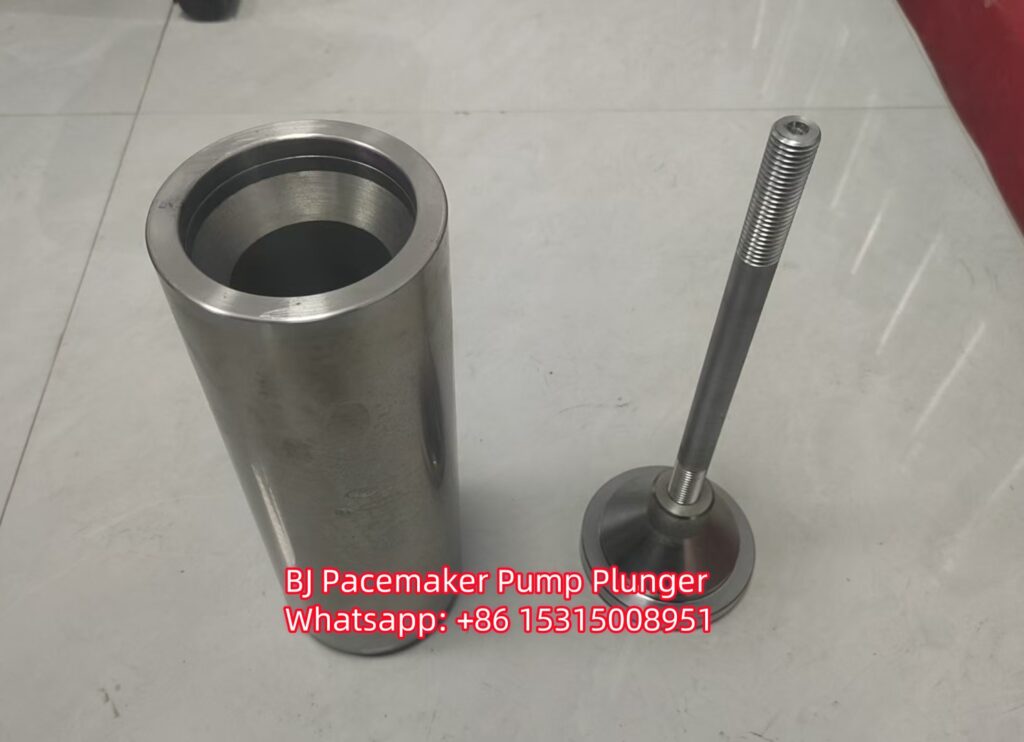

88998-1 PLUNGER, PUMP 3.5000 PMP SOLID HARDMETAL COATED 1
112880 PMP, PLUNGER 3.5″ STN STL HRD MTL
120002 PMP, CROSSHEAD SEAL COVER ASSY 3.5″ 1
128692 PMP, SEAL RING 3.5″ F/5″ FLUID END 1
13654103 RING, SPACER 3.50″ PL PKG 1
120251 PMP, RING BACK 3.5″ SLC PACK 1
112595 PMP, GASKET CROSSHEAD SEAL COVE R 1
120531-55 PMP, BKUP RING 5.688 X 5.353 TF LN 1
120531-46 PMP, BKUP RING 5.500 X 5.283 TF LN 1
XAS-356-02 O-RING, 356 NITRILE 90 DURO 1
XAS-252-02 O-RING, 252 NITRILE 90 DURO 1
939657-12 WASHER, LOCK STAR .750 INT S 1
118376 STUD, 0.750NC X 4.000 B7 A193 TAP END 3
939207-7 NUT, HEX 0.750-10NC S ZINC G8 1
31564 PLUG, PIPE 0.250NPT SOC HD FS 1
118318 ELL, 90 04MS-04FP BRASS 1
12949503 SEAL, ROD 3.50 PRKR 25003500-375 1
X304374 VALVE, CHECK ASSY W/CAP W/O SINTERED FILTER & STRAINER 1
118469 SEAL, OIL NATIONAL 415437 1
13654903 SEAL, PRES RG 3.50 X 4.50 UTEX 1067-01-0082-19 2
13654803 RING, HEADER 3.500 X 4.500 PL P KG UTEX IND 0783-01-0082-00 1
136543 Pacemaker Pump Plunger Packing Assembly 4.0 Header Ring-Cylindrical Seal
L129509 PMP, GLND PKG 4.0″ CHEVRON 1
L88998-2 PLNGR, PUMP 4.0 PMP SOLID HARDMETAL COATED 1
L112588 PMP, CROSSHD SEAL CVR 1
L128429 PMP, RING SEAL 4.0″ F/5.0″ FE 1
L13654104 RING, SPCR 4.00″ PL PKG 1
L120262 PMP, RING BACK 4.0″ SLC PACK 1
L112595 PMP, GASKET CROSSHD SEAL COVER 1
L120531-55 PMP, BKUP RING 5.688 X 5.353 TF LN 1
L120531-46 PMP, BKUP RING 5.500 X 5.283 TF LN 1
LXAS-356-02 ORING, 356 NITRILE 90 DURO 1
LXAS-252-02 ORING, 252 NITRILE 90 DURO 1
L31564 PLUG, PIPE 0.250NPT SOC HD FS 1
L118318 ELL, 90 04MS-04FP BRASS 1
L12949504 SEAL, ROD 4.00 PRKR 25004000-375 1
LX304374 VLV,CHK ASY CAP W/O SINTERED FLTR & STRNR 1
L118465 SEAL, OIL NATL 417509 1
13654804 RING, PRESSURE UTEX P/N 1067-01-0103-81(HARD) 2
L13654804 RING, HDER 4.0 X 5.0 PL PKG 1
10312288 ROD, ALL-THD 0.750-10NC X 3.50 A193 B7
L939207-7 NUT, HEX 0.750-10NC S ZINC G8
L939657-12 WASHER, LOCK STAR .750 INT S
136544 Pacemaker Pump Plunger Packing Assembly 4.5 Header Ring-Cylindrical Seal
L129510 PMP, GLND PKG 4.5″ CHEVRON 1
L88998-3 PLNGR, PUMP 4.5 PMP SOLID HARDMETAL COATED 1
L112588 PMP, CROSSHD SEAL CVR 1
L120420 PMP, RING SEAL 4.5″ SLC CS 1
L13654105 RING, SPCR 4.50″ PL PKG 1
L120298 PMP, RING BACK 4.5″ SLC 1
L112595 PMP, GASKET CROSSHD SEAL COVER 1
L120531-45 PMP, BKUP RING 6.250 X 5.915 TF LN 1
L120531-46 PMP, BKUP RING 5.500 X 5.283 TF LN 1
LXAS-360-02 ORING, 360 NITRILE 90 DURO 1
LXAS-252-02 ORING, 252 NITRILE 90 DURO 1
L31584 PLUG, PIPE 0.250NPT SOC HD FS 1
L118318 ELL, 90 04MS-04FP BRASS 1
L12949505 SEAL, ROD 4.50 PRKR 25004500-375 1
LX304374 VLV,CHK ASY CAP W/O SINTERED FLTR & STRNR 1
L118461 SEAL, OIL NATL 416154 1
L13654905 RING, PRESS 4.500 X 5.500 2
L13654805 RING, HDER 4.500 X 5.500 PL PKG 1
10312288 ROD, ALL-THD 0.750-10NC X 3.50 A193 B7
L939207-7 NUT, HEX 0.750-10NC S ZINC G8
L939657-12 WASHER, LOCK STAR .750 INT S
136545 Pacemaker Pump Plunger Packing Assembly 5.0 Header Ring-Cylindrical Seal
L129511 PMP, GLND PKG 5.0″ CHEVRON 1
L88998-4 PLNGR, PUMP 5.0 PMP SOLID HARDMETAL COATED 1
L112588 PMP, CROSSHD SEAL CVR 1
L120312 PMP, RING SEAL 5.0″ SFE 1
L13654106 RING, SPCR 5.00″ PL PKG 1
L120376 PMP, RING BACK 5.0″ SLC PACK SS 1
L112595 PMP, GASKET CROSSHD SEAL COVER 1
L120531-45 PMP, BKUP RING 6.250 X 5.915 TF LN 1
L120531-46 PMP, BKUP RING 5.500 X 5.283 TF LN 1
LXAS-360-02 ORING, 360 NITRILE 90 DURO 1
LXAS-252-02 ORING, 252 NITRILE 90 DURO 1
L31564 PLUG, PIPE 0.250NPT SOC HD FS 1
L118318 ELL, 90 04MS-04FP BRASS 1
L12949506 SEAL, ROD 5.00 PRKR 25005000-375 1
LX304374 VLV,CHK ASY CAP W/O SINTERED FLTR & STRNR 1
L118468 SEAL, OIL NATL 415725 1
L13654906 RING, PRESS 5.0 X 6.0 2
L13654806 RING, HDER 5.0 X 6.0 PL P KG 1
10312288 ROD, ALL-THD 0.750-10NC X 3.50 A193 B7
L939207-7 NUT, HEX 0.750-10NC S ZINC G8
L939657-12 WASHER, LOCK STAR .750 INT S
114501 Pacemaker II Pump Power End Assembly
L118223 PMP, PWR FRAME CASTING-MACH 1
L112846 PMP, STROKE CNTR DRV ASSY 1
L112802 PMP, DRVLNE ADPT SPICER 1800 FLG 1
L118074 PMP, DRVLNE ADPT SPICER 1880 1910 FLG
L112592 PMP, CROSSHD SLV 3
L112585 PMP, PINION GEAR CVR 1
L112557-3 PMP, CRANKSHAFT ASSY “A” 3.13:1 RATIO
L112557-1 PMP, CRANKSHAFT ASSY “A” 4.06:1 RATIO 1
L112583 PMP, CNTR SHAFT-SNGL END 1
L118229 PMP, LUBE ASSY PWR END 1
L112580 PMP, CONROD & CROSSHD ASSY 3
L114529-1 CVR INSTL/ASSY, PWR END PMP(STD) 1
L112593 PMP, SPCR SET, CNTRSHAFT 2
L112586 PMP, CNTRSHAFT BRG 2
L112566 PMP, CNTRSHAFT BRG 2
L120061 PMP, OIL PAN II & IV 1
L112596 PMP, BOLT LOCKING FLUID END 2
L112854 PMP, GASKET OIL PAN 2
L112574 PMP, BRG CONNECTING ROD 3
L112801 PMP, BRG RTNR PIN 4
L112573 PMP, BRG INSERT CTR MAIN 2
L112575 PMP, BRG OUTER MAIN 2
L112584 PMP, PINION GEAR CVR 1
L112594 PMP, CNTRSHAFT WASHER 1
L112568-1 PMP, PINION GEAR-A 4.06:1, LEFT 1
L112568-2 PMP, PINION GEAR-A 4.06:1, RIGHT 1
L112570-1 PMP, PINION GEAR “C” RATIO 3.13:1 LEFT
L112570-2 PMP, PINION GEAR “C” RATIO 3.13:1 RIGHT
L112576 PMP, PINION GEAR CVR GASKET 2
L112587 PMP, CNTRSHAFT THRUST PLT 2
L50758-1 IND, SIGHT GLASS LUBE 2
L118331 SEAL, OIL GARLOCK 53X2798 1
L114595 PMP, CNTRSHAFT SEAL WASHER 1
L940251-4 PLUG, PIPE 0.500NPT SQ HD FS CI 2
LX5051 NIP, 0.125NPT X 3.0 SCH40 S 2
L941288-49 SCR, CP SOC .375-16NC X .750 NYLOK 16
L940251-5 PLUG, PIPE 0.750NPT SQ HD CI 1
LX22049 PIN, ROLL .250 DIA X .625 2
L26028506 SCR, CP HEX .375-16NCX0.75 S ZINC G5 4
L939349-3 WASHER, LOCK H/S .375 REG S ZINC 8
L939282-4 SCR, CP HEX .437-20NFX0.75 S ZINC G5 2
L939369-11 WASHER, FLAT .500 STD S ZINC 2
L939349-61 WASHER, LOCK H/S .437 REG S ZIN C 2
L118334 SCREEN, DRAIN PAUL MONROE FB-S- C16 4
L939282-2 SCR, CP HEX .312-24NF X .750 S ZINC G5 24
L939370-8 WASHER, FLAT .312 STD S ZINC 20
LX14305 WASHER, FNDR .312 ID X 1.50 OD S ZINC 4
LX14835 SEAL, HOLE HFMN A-S075 1
L57371 NUT, HEX LOCK 10-32 S ZINC G5 1
L56835 PLUG, PIPE 1.0NPT SQ HD CI 1
LX23859 PLUG, DRUM 2.0 MMC 8983T11 2
L118352 PMP, SCR CAP 12PT 11/2-6C-2AX5 12
L118333 BRTHR, AIR LHA DPS-40N06 .375 1
LX307069 NUT, HEX LOCK BEAR HUG BH-16 2
L118184 PMP, DRAIN SCREENMTG PLT 2
L118339 RING, QUAD MINN-RBR 14338 CO MP 1
L940237-8 CAP, SCRD 1.50 150# MI BLK 1
118223 Cast Machine Drawing Pacemaker Pump Power End Frame
L118352 PMP, SCREW CAP 12PT 11/2-6C-2AX5 12
L118222 PMP, FRAME/GEAR COVER WELD ASSY 1
L112554 PMP, BEARING CAP-CENTER MAIN 2
L112553 PMP, BEARING CAP-OUTER MAIN 2
L943631-36 PIN, DIAMOND NOSE 0.500 CARR LANE CL-5-DP-Z 4
L943631-35 PIN, BULLET NOSE 0.500 CARR LANE CL4-BND 4
112846 Stroke Counter Drive Assembly Pacemaker Pump
112848-1 DRIVE SHAFT, STROKE COUNTER, PACEMAKER PUMP
112847-1 CONNECTOR, STROKE COUNTER, PACEMAKER PUMP
X11150 CAP, SPEEDOMETER CONNECTOR S-W 63121
939259-9 NUT, HEX JAM, 1-14NF S G2
118301 SEAL, FASTENER, 1″ PARKER STAT-O-SEAL
112557 Crankshaft Assembly Pacemaker Pump
112558 CRANKSHAFT, POWER END, PACEMAKER PUMP 1
112811 KEY, CRANKSHAFT, PACEMAKER PUMP 2
939291-125 SCREW, CAP HEX HD, 1/2-20NF X 3 1/4 S G8 6
118488 NUT, HEX LOCK, 1/2-20NF S 22UTB1220 6
X3779 PLUG, PIPE SOC HD, 1 NPT FS 2
943732-74 PIN, ROLL 1/4 DIA X 1 LG 2
941309-183 SCREW, CAP SOCKET HD, 1/2-20NF X 3 1/2 LG 12
118416 THREAD-LOC LOCTITE #242 50ML OR EQUIVALENT 1
112559-1 GEAR, BULL LEFT HAND RATIO 4.06:1 1
112559-2 GEAR, BULL RIGHT HAND RATIO 4.06:1 1
112560-1 GEAR, BULL LEFT HAND RATIO 3.55:1
112560-2 GEAR, BULL RIGHT HAND RATIO 3.55:1
112561-1 GEAR, BULL LEFT HAND RATIO 3.13:1
112561-2 GEAR, BULL RIGHT HAND RATIO 3.13:1
112562-1 GEAR, BULL LEFT HAND RATIO 2.64:1
112562-2 GEAR, BULL RIGHT HAND RATIO 2.64:1
112563-1 GEAR, BULL LEFT HAND RATIO 2.13:1
112563-2 GEAR, BULL RIGHT HAND RATIO 2.13:1
112812 WEIGHT, BALANCE PACEMAKER PUMP
112813 WEIGHT, BALANCE PACEMAKER PUMP
112558RW CRANKSHAFT, POWER END, PACEMAKER PUMP(REWORKED)
112583 Counter Shaft Pacemaker Pump
L50584 5 1/2 O.D. X 1/2 WALL 1020 SMLS
LX25721 4 3/4 O.D. 4130 ANNEALED
118229 Lube Lines Power End Pacemaker Pump Tubing Installation/Assembly
L118343 ELL, 90 TBG PARKER 169HD-6-4 8
L118345 ELL, 90 TBG PARKER 169HD-5-4 3
L118470 ELL, 90 TBG PARKER 169HD-5-2 3
L118348 ELL, 90 TBG PARKER 169HD-3-2 2
L31466 ADAPTER, HEX NIPPLE 04MP-02MP STEEL 2
L31564 PLUG, PIPE .250NPT SOC HD FS 2
LX3779 PLUG, PIPE 1.000NPT SOC HD FS 1
L127922 PMP, LUBE LINE “A” 2
L127924 PMP, LUBE LINE “C” 4
L127929 PMP, LUBE LINE “D” 2
L326448-1 PMP, LUBE LINE “E” 1
112580 Pacemaker Pump Connecting Rod and Crosshead Assembly
112599 CONNECTING ROD ASSY, PACEMAKER PUMP 1
112578 CROSSHEAD, PACEMAKER PUMP 1
112579 PIN, WRIST PACEMAKER PUMP 1
114538 BEARING, INSERT WRIST PIN, PACEMAKER PUMP 1
945251-98 SCREW, SET SOCKET, 5/8-18NF X 5/8 LG HFDP 1
939560-65 SCREW, SET SOCKET, 1/2-13NC X 1/2 LG HFDP 1
114520 Cover Installation/Assembly Power End Pacemaker Pump (Standard/CE Certified)
135805 COVER ASSY, POWER END PMP 1
134080 LATCH ASSY, COVER PACEMAKER PUMP WELDED STANDARD 4
321817-1 RETAINER, COVER LATCH PACEMAKER PUMP
194627 CAPSCREW, HEX SOC HD, 1/4-28 UNF X 3/8 IN 8
26007201 WASHER, LOCK H/S .250 REG S ZINC 8
Series 350 Cylindrical Seal PACEMAKER PUMP
D120270 Fluid End Assembly
D112814 Ram Wash, Packing Lube & Cover Assy 1
C112519 Discharge Cover 3
D112820- Discharge Connection ASSY 2
D120177- Discharge Valve Assy 3
D112821 Suction Manifold 1
C112505 Suction Cover 3
D120178- Suction Valve ASSY 350 Series 3
A120531-50 Back-up Ring Teflon Solid 3
D120269 Fluid End-3 1/2″, 4″, 4 1/2″, 5″ 1
D129517 Plunger Packing, Assy 3 1/2″ SLC 3
D129518 Plunger Packing, Assy 4″ SLC 3
D129519 Plunger Packing, Assy 4 1/2″ SLC 3
D129520 Plunger Packing, Assy 5″ SLC 3
C128696 Plunger Packing Assy 3 1/2″ Style J842 Phenolic 3
C128754 Plunger Packing Assy 4″ Style J842 Phenolic 3
C128749 Plunger Packing Assy 4 1/2″ Style J842 Phenolic 3
D136544
D136545
D136542
D136543
C-21715 ASSY, FLUID END ADAPTR 2″ THD HALF
C118408 SCREW, CAP
H40584-59 SCREW, SHOULDER-SOCKET HD
XAS-435-01 O-RING PER BJ SPEC S128199
XAS-433-01 O-RING PER BJ SPEC S128199
XAS-439-01 O-RING PER BJ SPEC S128199
XAS-429-02 O-RING PER BJ SPEC S128199
H43631-70 PIN, DOWEL
H39349-3 WASHER, LOCK
H39067-393 SCREW, CAP
D132134 Suction Valve Assembly
D132134-1 Suction Valve Assembly 1
D132134-2 Suction Valve Assembly
D132134-3 Suction Valve Assembly
D132134-4 Suction Valve Assembly
D132134-5 Suction Valve Assembly
D132134-6 Suction Valve Assembly
A120500 Lock Nut 1
A118499 Lock Nut 1
XAS-352-02 O-Ring 1
A120531-30 Back Up Ring 1
120182-1 Valve Insert 1
120182-2 Valve Insert
120182-3 Valve Insert
B-115376 Guide Insert 1
C132125 Valve 1
A115823 Retainer 1
B120145 Guide 1
B132124 Valve Seat 1
B112856 Spring 1
A112512 Spring
A120515 Wrench, Open End
B120062 Wrench
D120178 Suction Valve Assembly
D120178-1 Suction Valve Assembly 1
D120178-2 Suction Valve Assembly
D120178-3 Suction Valve Assembly
D120178-4 Suction Valve Assembly
D120178-5 Suction Valve Assembly
D120178-6 Suction Valve Assembly
A-120500 Lock Nut 1
A-118499 Lock Nut 1
XAS-352-02 O-Ring 1
A-120531-30 Back Up Ring 1
B-120210-1 Valve Insert 1
B-120210-2 Valve Insert
B-120210-3 Valve Insert
B-115376 Guide Insert 1
B-120214 Valve 1
A-115823 Retainer 1
B-120145 Guide 1
B-120170 Valve Seat 1
B-112856 Spring 1
B-112512 Spring
D120178 Discharge Valve Assembly
D120177-1 Discharge Valve Assembly 1
D120177-2 Discharge Valve Assembly
D120177-3 Discharge Valve Assembly
D120177-4 Discharge Valve Assembly
D120177-5 Discharge Valve Assembly
D120177-6 Discharge Valve Assembly
A-120500 Locknut 1
XAS-240-01 O-Ring 1
A-120181 Valve 1
C-132193 Valve Seat
C-120182-1 Valve Insert 1
C-120182-2 Valve Insert
C-120182-3 Valve Insert
A-112818 Spring 1
A-120004 Spring 1
A-118004 Spring Retainer 1
A-120515 Required Tool
B112866 Discharge Valve Seat Puller
D-112820 Discharge Connection
B-112539 DISCH, CONN, NUT 1
B-114528 Retaining Ring
C-112819 DISCH, CONN
C-112861 DISCH, CONN
C-120368 DISCH, CONN
C-134117 DISCH, CONN
C-120331 DISCH, CONN
D-136443 DISCH, CONN
A-126794 Swivel Joint
41997 Swivel Joint
A-118473
A-118426
XAS-342-02
D-112820-1 DISCH, CONN
D-112820-2 DISCH, CONN
D-112820-3 DISCH, CONN
D-112820-4 DISCH, CONN
D-112820-5 DISCH, CONN
D-112820-6 DISCH, CONN
D-112820-7 DISCH, CONN
D-112820-8 DISCH, CONN
D-112820-9 DISCH, CONN
D-112820-10 DISCH, CONN
D-112820-11 DISCH, CONN
D-112820-12 DISCH, CONN
D-112820-13 DISCH, CONN
D-129517 3 1/2″ Plunger Packing SPRING LOADED
D129508 GLAND, PACKING 1
C118173 PLUNGER, HARD METAL COATED
C112880 PLUNGER, STAINLESS HD. METAL COATED
C120002 COVER ASSY, CROSSHEAD SEAL
B128602 RING, SEAL
B120252 RING, FRONT
B120251 RING, BACK
B112595 GASKET, CROSSHEAD COVER
A120531-55 RING, BACK-UP
A120531-46 RING, BACK-UP
XAS-354-02 O-Ring PER BJ SPEC. S128199
XAS-252-02 O-Ring PER BJ SPEC. S128199
H39657-12 LOCK WASHER SHAKE PROOF INTERNAL
A118376 STUD
H39207-7 NUT, HEX
H40977-3 PLUG, PIPE
A118318 EBLOW
S129495-03 SEAL, ROD
A118371 VALVE
A118467 SEAL, OIL

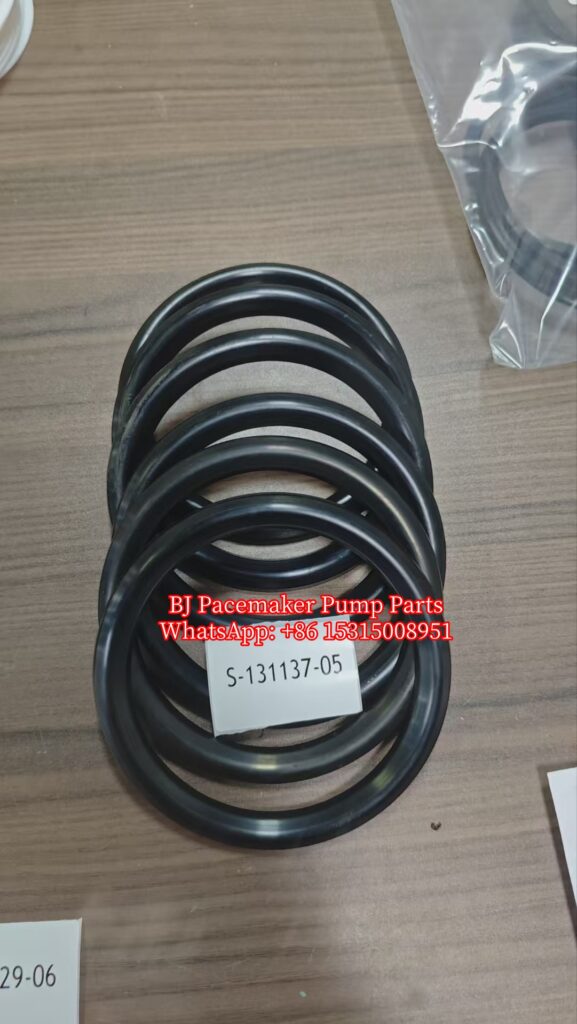

5131137-03 SEAL, PRESS RING
5129496-03 SEAL, PRESS RING
A118298 SPRING, COMPRESSION
B120329 SPANNER WRENCH
C112830 TEE WRENCH
C120402-4 PLUNGER PACKING LOADING AND REMOVAL TOOL ASSY
D114536-13 PLUNGER PACKING DRIVER ASSY
D-129517 3 1/2″ Plunger Packing HEADER RING
D129508 GLAND, PACKING 1
A120531-46 RING, BACK-UP
A120531-55 RING, BACK-UP
B112595 GASKET, CROSSHEAD COVER
B120251 RING, BACK
C120002
XAS-356-02 O-RING
XAS-252-02 O-RING
939657-12 LOCK WASHER
118376 STUD
939207-7 NUT, HEX
940977-3 PLUG, PIPE
118318 ELBOW
12949503 SEAL, ROD
118371 VALVE, LINE
118469 SEAL, OIL
13655003 PRESS RINGS
13654903 PRESS RINGS
13654803 HEADER RING
B120329 SPANNER WRENCH
C112830 TEE WRENCH
C120002-4 PLUNGER PACKING LOADING AND REMOVAL TOOL ASSY
D114536-13 PLUNGER PACKING DRIVER ASSY
D-129518 4″ Plunger Packing SPRING LOADED
D129509 GLAND, PACKING 1
C112881
C112588
B112538
B112528
B128429
B120261
B120262
B112595
A120531-55
A120531-46
Old Style Pump
C-115832-1 Old Style Suction Valve Assembly
(B) BJ PACEMAKER TRIPLEX PUMP:
Suction Cover Front Seal XAS-432-02
Suction Cover Rear Seal 32027
Discharge Cover Seal XAS-429-01
Discharge Cover Back-up Seal 120531-50
Fluid End Adapter Back-up Seal 21740
Fluid End Adapter O-Ring XAS-226-02
SUCTION VALVE PARTS
Suction Valve Locknut (Upper) 120500
Suction Valve Locknut (Lower) 118499
Suction Valve Seat O-Ring XAS-352-02
Suction Valve Back-up Ring 120531-30
Suction Valve Body with Insert 40111
Suction Valve Seat with O-Ring 40110
Suction Valve Spring, Tight 112856
Suction Valve Stem Guide 115376

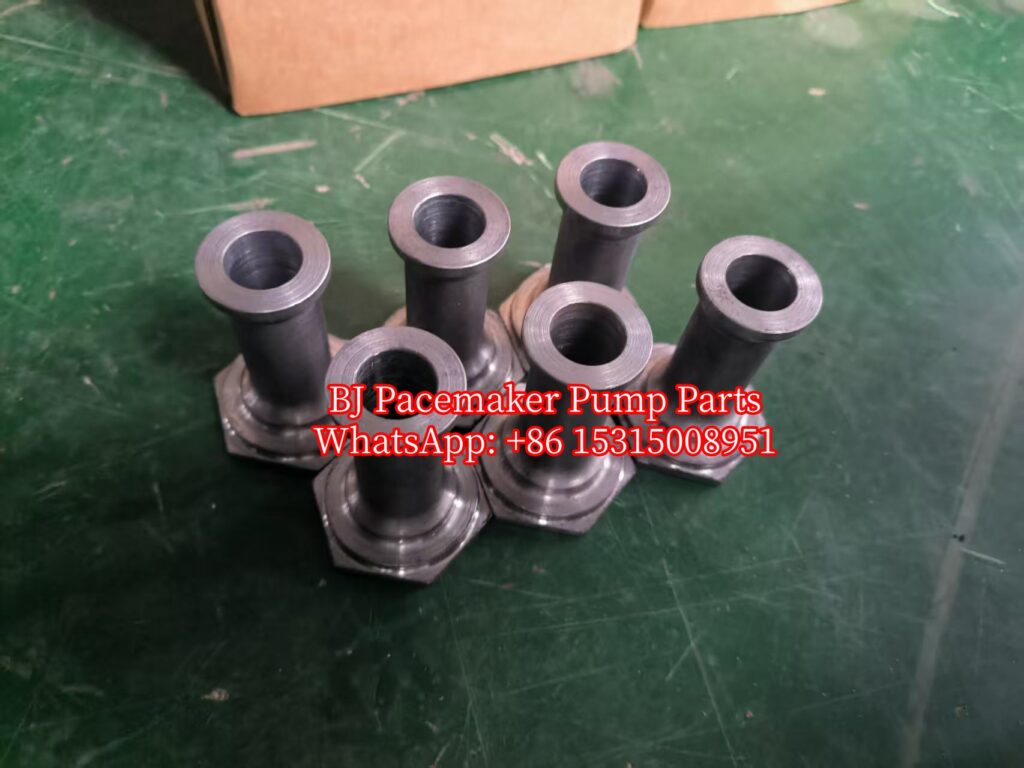

Suction Valve Spring Retainer 115823
Suction Valve Guide 120145
DISCHARGE VALVE PARTS
Discharge Valve Seat 40496
Discharge Valve Insert 36629BJ
O-ring XAS-240-01
Discharge valve body 40497
Discharge Valve Spring 112818
Discharge Valve Locknut 120500
POWER END PARTS
Filter PF 828/Gresen K3014/LF- 509N X20-735
Air Maze Breather 118333
Screen, Drain Paul Monroe A-100-C 118334
PLUNGER/PACKING SPARE PART FOR 3.5” PLUNGER PACKING ASSEMBLY WITH HEADER RING, CYLINDRICAL SEAL PAVKING.
3.5” Crosshead Seal 118465
Packing Line Cheak Valve X304374
Packing Sets, (3.5” x 5” Pressure Seal)-Cement 13655003
Gland Seal O-Ring, Outer XAS-356-02
Gland Seal O-Ring, Inner XAS-252-02
Rod Seal 12949503
Plunger Rod Nut 939207-7
Plunger Rod Washer 939657-12
Plunger Cap O-Ring XAS-339-03
Crosshead Seal Cover Gasket 112595
Gland Seal Back-up Ring, Inner 120531-46
Gland Seal Back-up Ring, Outer 120531-55
Header Ring 13654803
Back Ring 120251
Packing Sets, (3.5” x 5” Pressure Seal)-Acid 13654904
Plunger Cap 112538
Plunger Rod (short) 112528
Seal Oil 118469
Gland Packing (Stuffing Box) 129508
Ring Seal 128692
Ring Spacer 13654103
Ring Lantern 120251
Pressure Ring 13654903
Gland Seal Ring 128692
Spacer Ring 136541-02
Plungers, HMC 118178
PLUNGER/PACKING SPARE PART FOR 5” PLUNGER PACKING ASSEMBLY WITH HEADER RING, CYLINDRICAL SEAL PAVKING.
5” Crosshead Seal 118468
Packing Line Cheak Valve X304374
Packing Sets, ( 5” Pressure Seal)-Cement 13654906
Gland Seal O-Ring, Outer XAS-360-02
Gland Seal O-Ring, Inner XAS-252-02
Rod Seal 12949506
Plunger Rod Nut 939207-7
Plunger Rod Washer 939657-12
Plunger Cap O-Ring XAS-343-03
Crosshead Seal Cover Gasket 112595
Gland Seal Ring 120312
Gland Seal Back-up Ring, Inner 120531-46
Gland Seal Back-up Ring, Outer 120531-45
Header Ring 13654806
Spacer Ring 13654106
Back Ring 120376
Packing Sets, ( 5” Pressure Seal)-Acid 13654904
Plunger Cap 112535
Plunger Rod (short) 112528
Seal Oil 118468
Valve Line Check X304374
Gland Packing (Stuffing Box) 129511
Ring Seal 120312
Ring Spacer 13654106
Ring Lantern 120531-45
Pressure Ring 13654906
Plungers, HMC 112883
